Toyota Quick Delivery 200

2012-03 → 2012-12 · chassis XZU282 · catalogue 721150 · Japan

Supported model Data version 2013-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

24 part groups · 6 illustrations

Illustrations

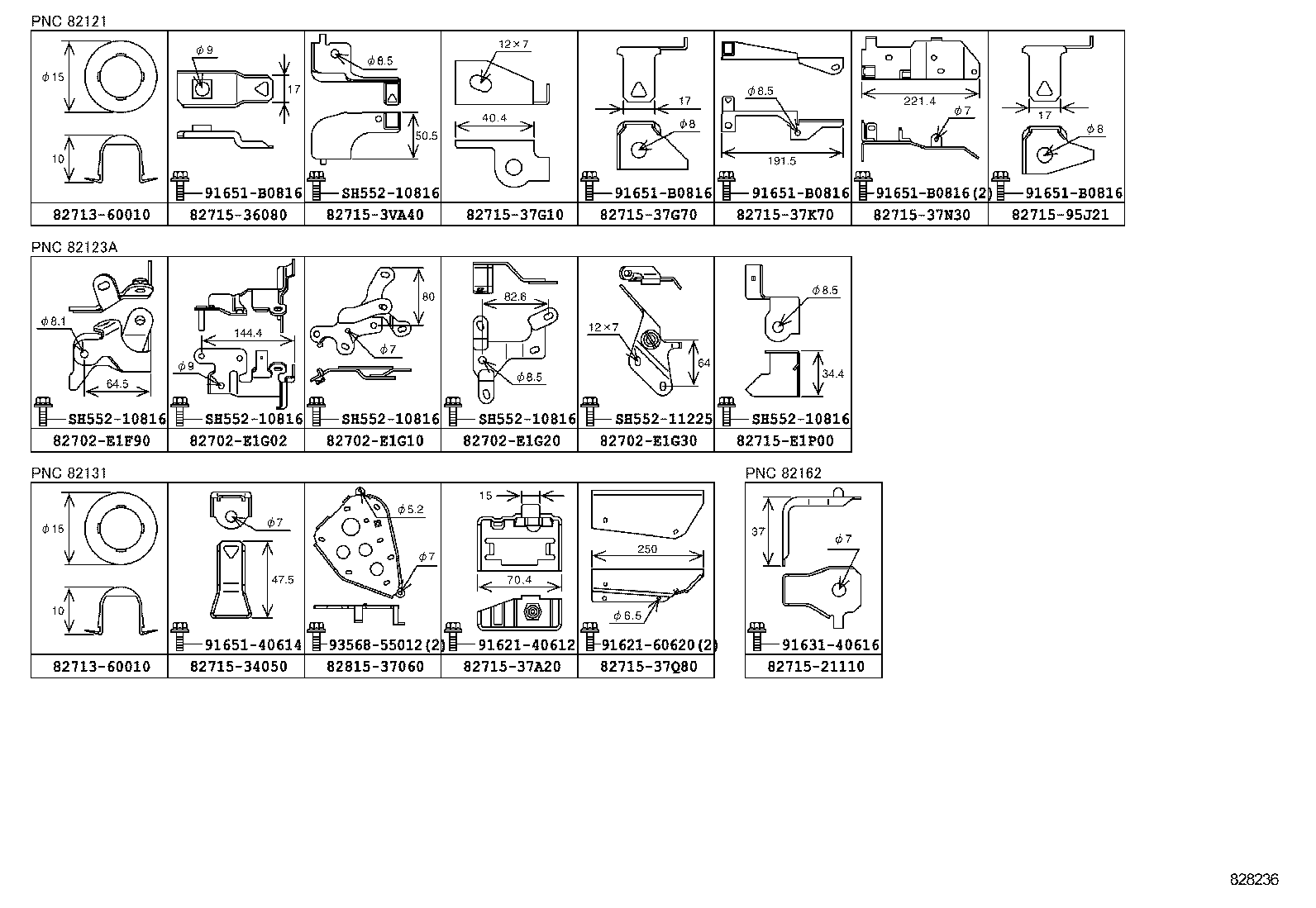

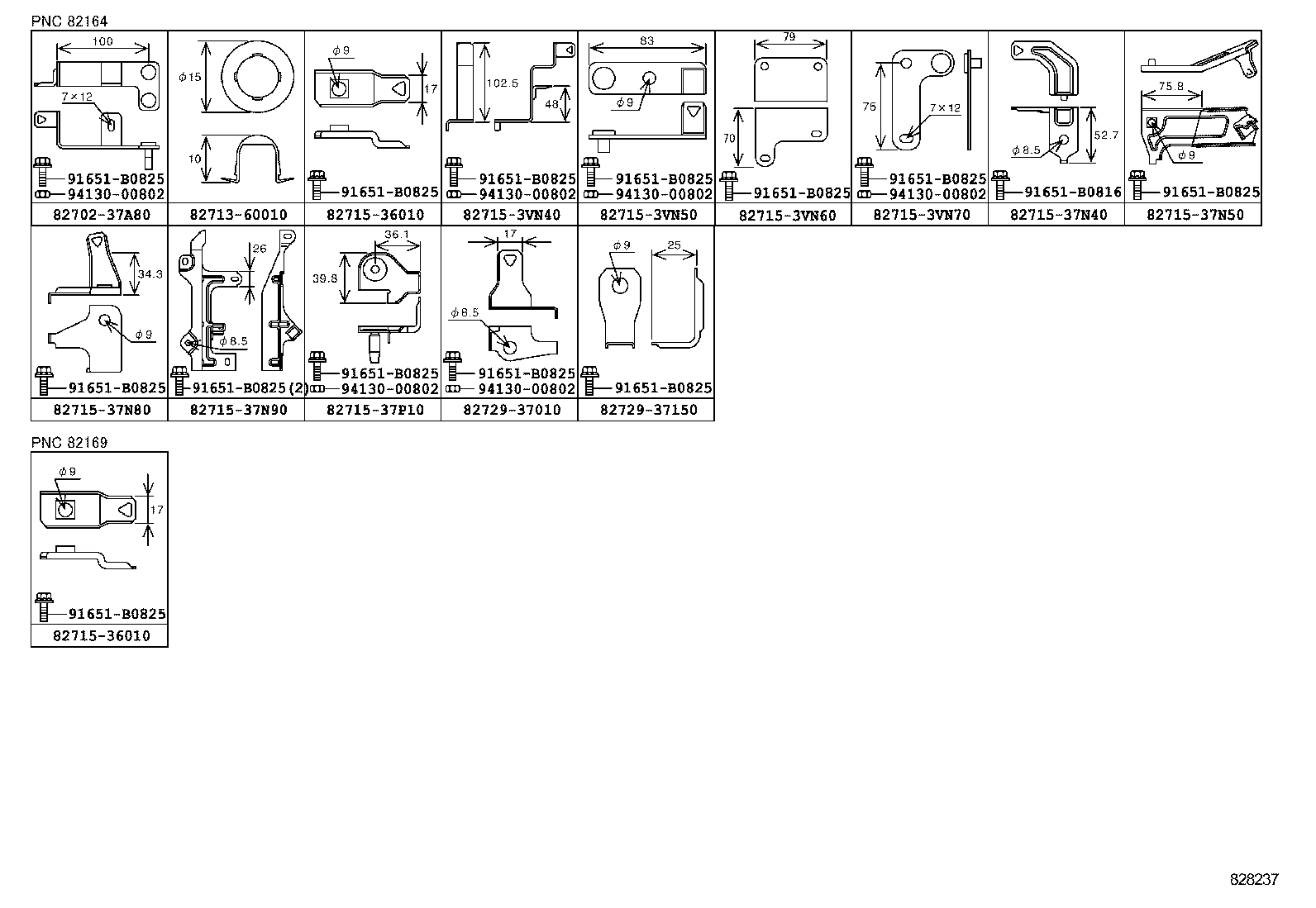

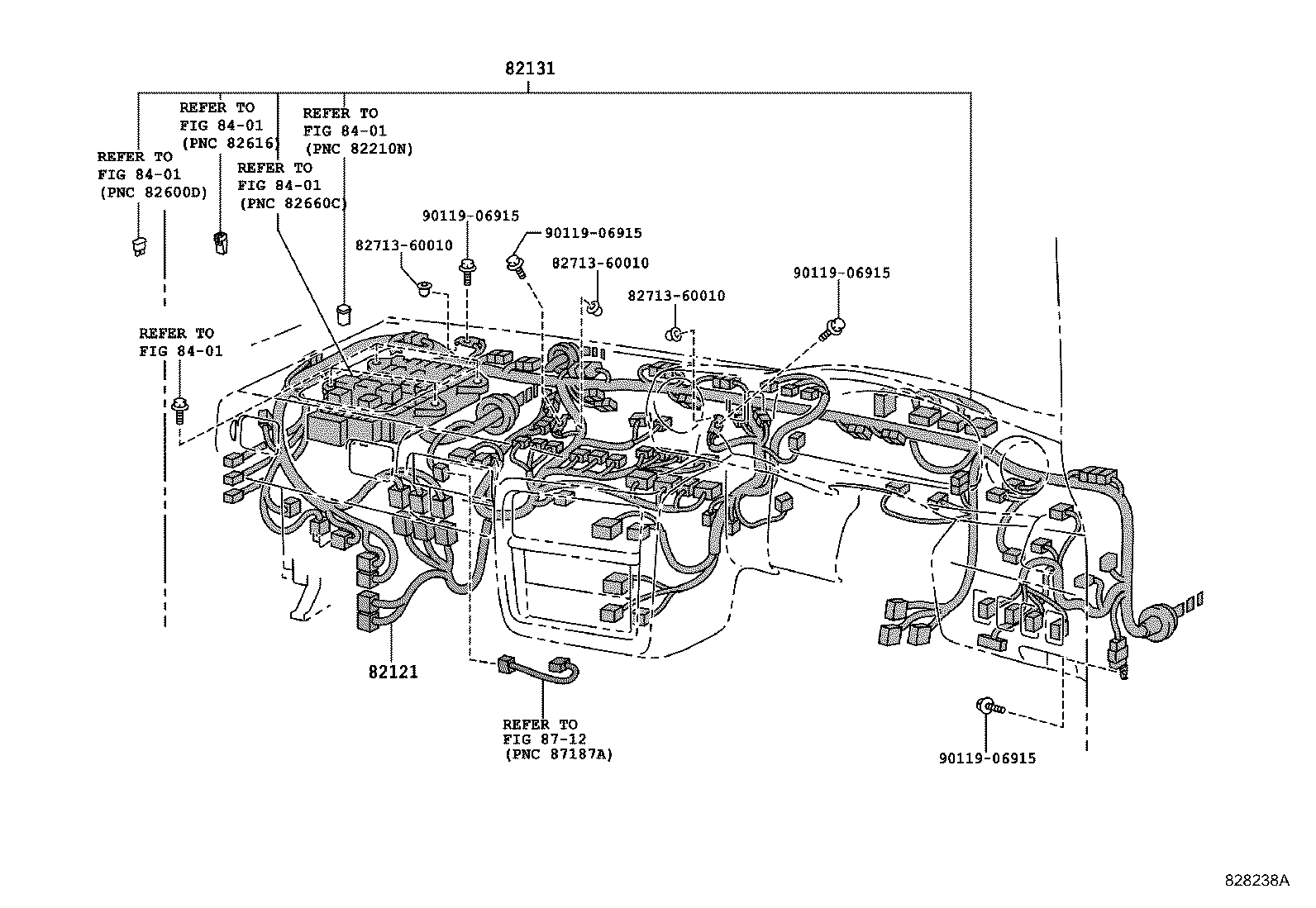

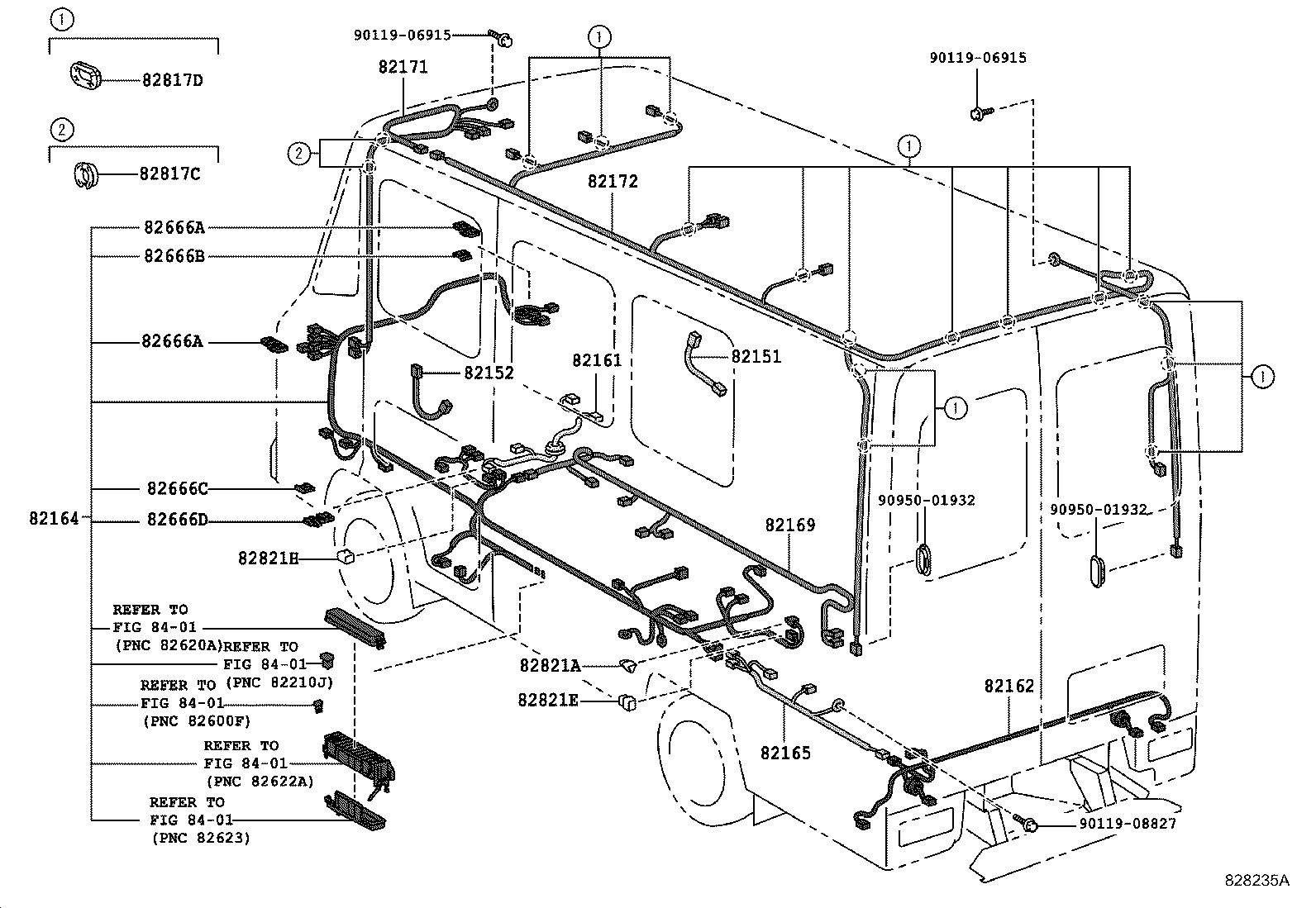

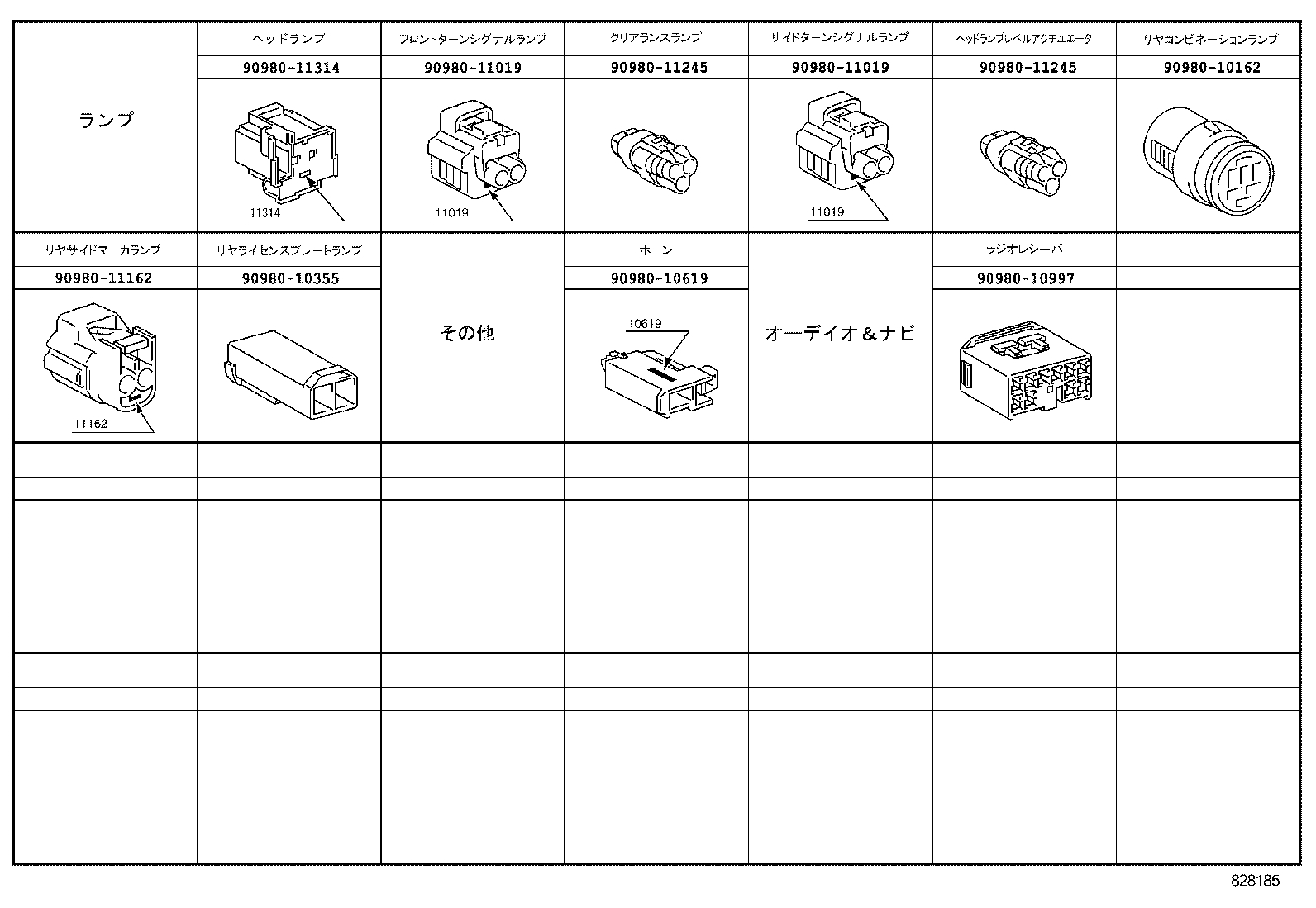

Figure 828233A 828233A 2012-03 → — Figure 828238A 828238A 2012-03 → — Figure 828235A 828235A 2012-03 → — Figure 828236 828236 2012-03 → — Figure 828237 828237 2012-03 → — Figure 828185 828185 2012-03 → —

Part groups

PNCDescription
82121 Wire, Engine
82123A Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125N Wire, Engine, NO.5
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82165 Wire, Frame, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82203 Wire Sub-assy, Alternator
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
