Toyota Quick Delivery 200
2012-03 → 2012-12 · chassis XZU282 · catalogue 721150 · Japan
Supported model
Data version 2013-07
Meter
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 82823L | Cap, Terminal |

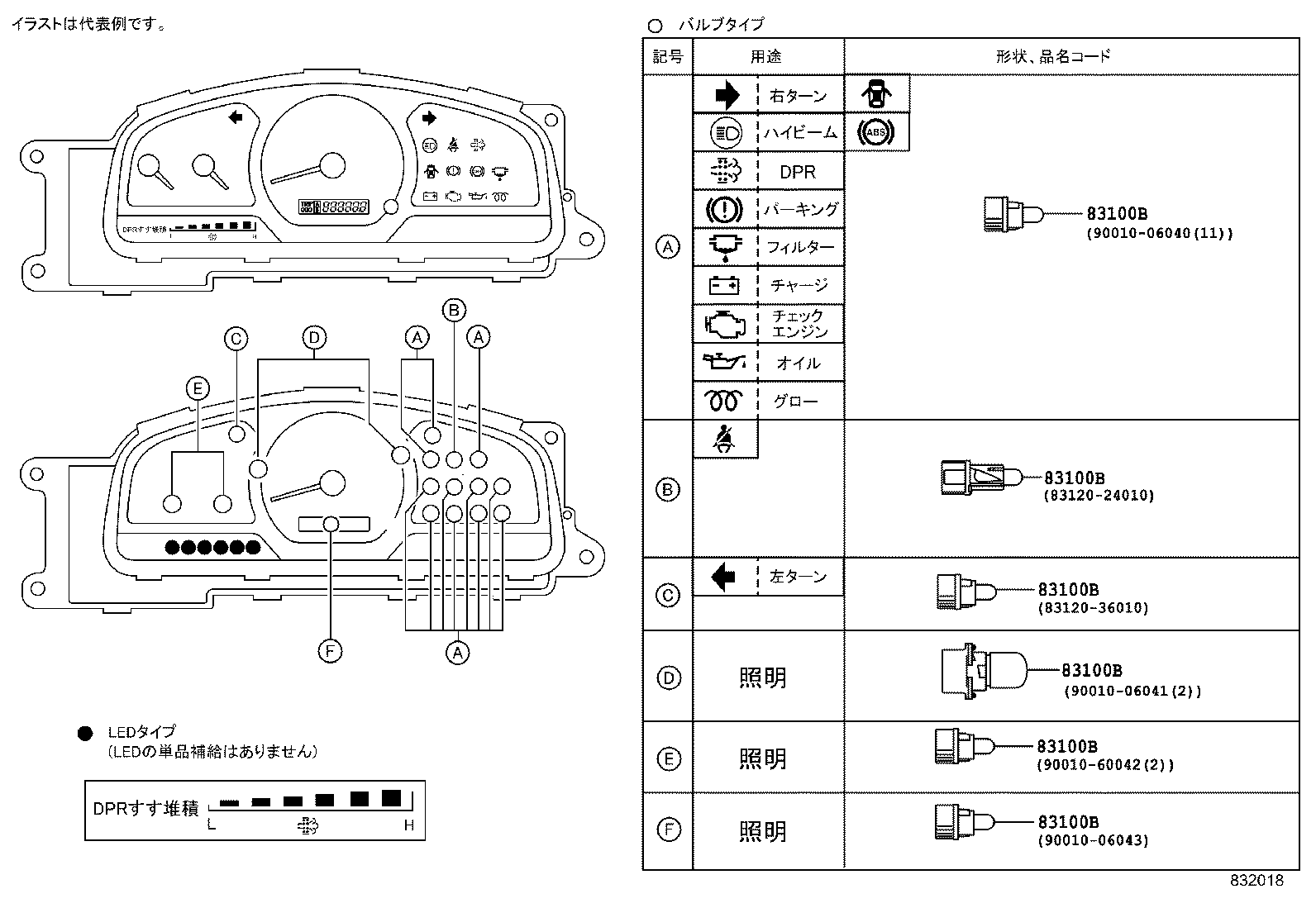

| 83100B | Bulb, Combination Meter, NO.1 |
| 83110 | Speedometer Assy |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138 | Glass, Speedometer |
| 83210 | Tachograph Assy |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83247 | Plate, Meter Circuit |
| 83247B | Plate, Meter Circuit, NO.2 |
| 83878 | Resistor, Combination Meter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
