Toyota Quick Delivery 200

2012-03 → 2012-12 · chassis XZU282 · catalogue 721150 · Japan

Supported model Data version 2013-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

13 part groups · 2 illustrations

Illustrations

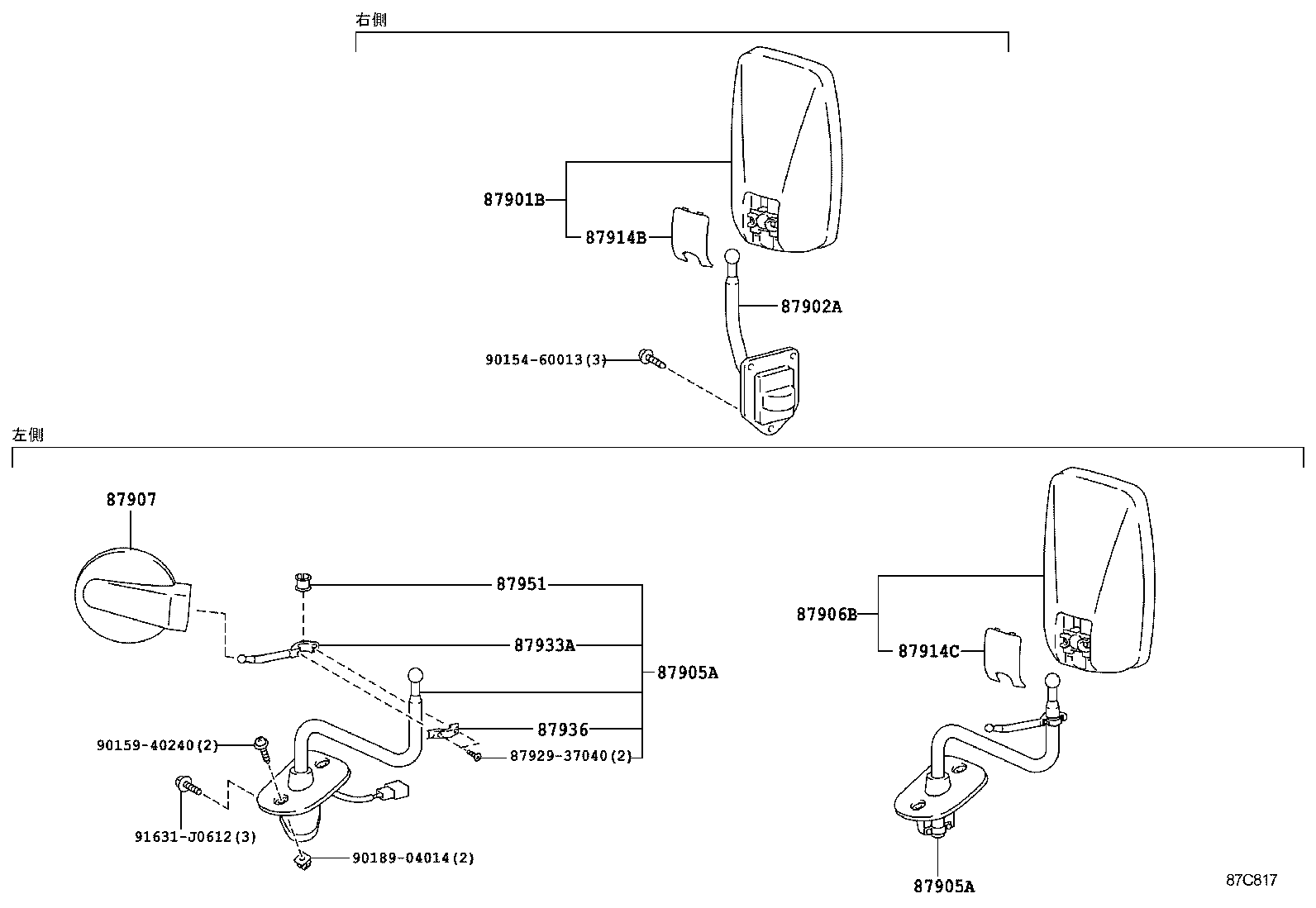

Figure 87C818 87C818 2012-03 → — Figure 87C817 87C817 2012-03 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87827 Absorber, Inner Rear View Mirror
87834 Cover, Inner Rear View Mirror Stay Holder
87901B Mirror Sub-assy, Outer Rear View, RH
87902A Arm Sub-assy, Outer Rear View Mirror, RH
87905A Arm Sub-assy, Outer Rear View Mirror, LH
87906B Mirror Sub-assy, Outer Rear View, LH
87907 Mirror Sub-assy, Outer Under View
87914B Cover, Outer Mirror Knob, RH
87914C Cover, Outer Mirror Knob, LH
87933A Arm, Outer Under View Mirror
87936 Holder, Outer Under View Mirror
87951 Gasket, Outer Under Rear View Mirror
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
