Heating & Air Conditioning - Compressor

14 part groups · 2 illustrations

Illustrations

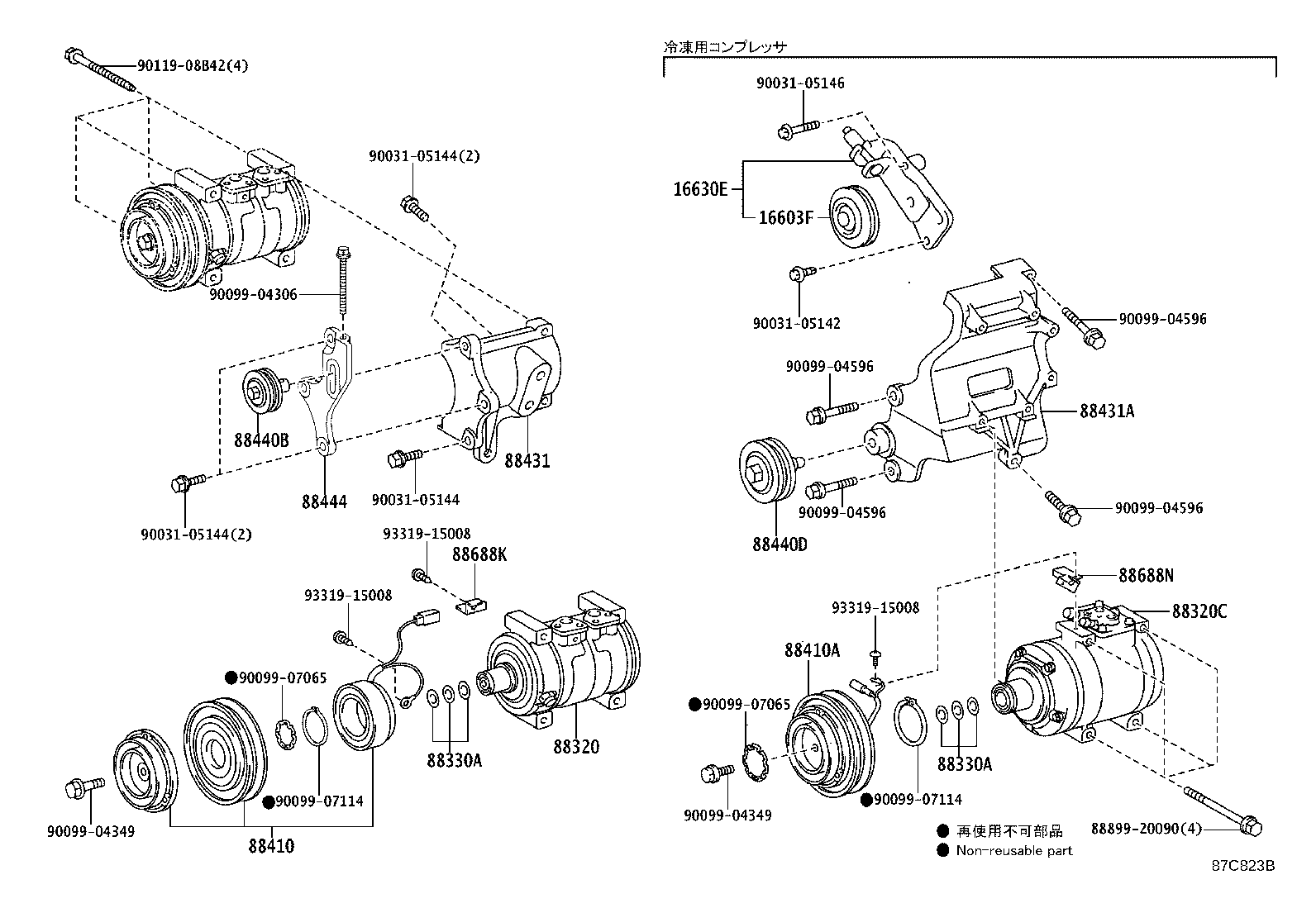

Figure 87C811B 87C811B 2012-03 → — Figure 87C823B 87C823B 2012-03 → —

Part groups

PNCDescription
16603F Pulley Sub-assy, Idler
16630E Pulley Assy, Idler
88320 Compressor Assy, Cooler
88320C Compressor Assy, NO. 2
88330A Washer (FOR MAGNET CLUTCH)
88410 Clutch Assy, Magnet
88410A Clutch Assy, Magnet, NO. 2
88431 Bracket, Compressor Mounting, NO.1
88431A Bracket, Compressor Mounting, NO.2
88440B Pulley Assy, Idle
88440D Pulley Assy, Idle NO.2
88444 Bracket, Idle Pulley
88688K Bracket, Cooler Compressor
88688N Bracket, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
