Toyota Toyoace
1979-03 → 1985-07 · chassis RY2#,3#,LY2#,3#,JY30,BY3# · catalogue 731130 · Japan
Discontinued model
Data version 1986-05

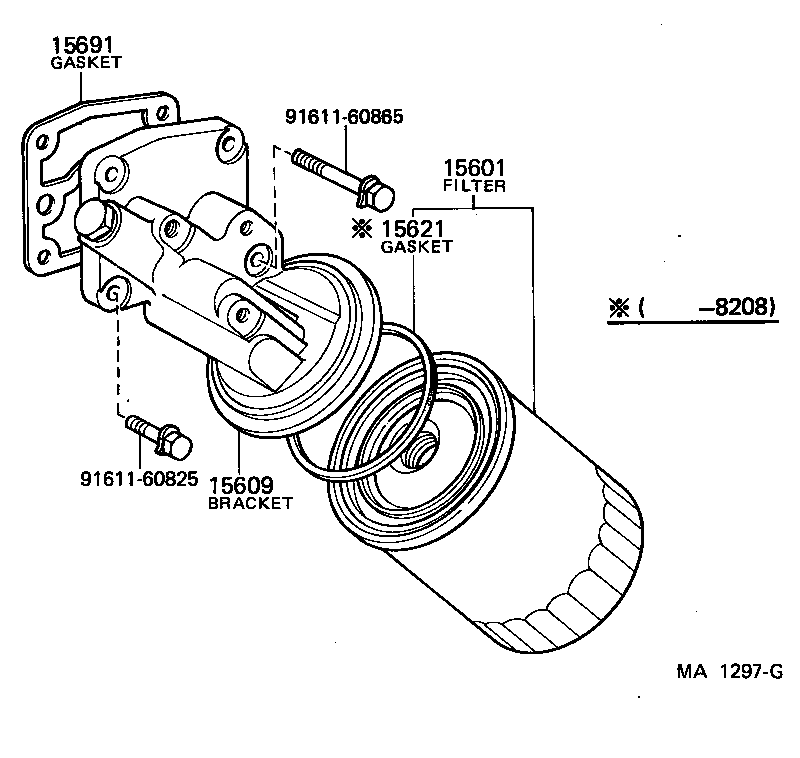

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15601 — Filter Sub-assy, Oil | ||||
| 15600-25010 |
Filter Sub-assy, Oil
1979-03 → 1985-07
ended
|
5R RY3# | ¥1,470 | |
| 15600-41010 |
Filter Sub-assy, Oil
1979-03 → 1985-07
ended
|
B BY3# | ¥1,470 | |
| 15600-41010 |
Filter Sub-assy, Oil
1979-03 → 1985-07
ended
|
2J JY30 | ¥1,470 | |
| 15600-41010 |
Filter Sub-assy, Oil
1979-03 → 1985-07
ended
|
L,2L LY2#,3# | ¥1,470 | |
| 15601-33020 |
Filter Sub-assy, Oil
1979-03 → 1983-06
ended
|
12R RY2# | ¥1,050 | |
| 15601-33021 |
Filter Sub-assy, Oil
1983-06 → 1985-07
ended
|
12R RY21 | ¥1,050 | |
| 15609 — Bracket Sub-assy, Oil Filter | ||||
| 15609-31030 |
Bracket Sub-assy, Oil Filter
1979-03 → 1985-07
ended
|
12R RY2# | — | |
| 15609-44020 |
Bracket Sub-assy, Oil Filter
1979-03 → 1985-07
ended
|
5R RY3# | — | |
| 15609-48023 |
Bracket Sub-assy, Oil Filter
1979-03 → 1983-08
ended
|
2J JY30 | ¥17,100 | |
| 15609-54010 |
Bracket Sub-assy, Oil Filter
1979-03 → 1982-05
ended
|
L LY20,30 | ¥28,300 | |
| 15609-54011 |
Bracket Sub-assy, Oil Filter
1982-05 → 1984-06
ended
|
L,2L LY2#,3# | ¥28,200 | |
| 15609-54012 |
Bracket Sub-assy, Oil Filter
1984-06 → 1985-07
ended
|
L,2L LY2#,31 | ¥26,900 | |
| 15609-56040 |
Bracket Sub-assy, Oil Filter
1980-09 → 1985-07
ended
|
B BY3# | — | |
| 15621 — Gasket, Oil Filter Body | ||||
| 15621-22010 |
Gasket, Oil Filter Body
1979-03 → 1982-08
ended
|
12R RY2# | ¥370 | |
| 15621-41010 |
Gasket, Oil Filter Body
1979-03 → 1982-08
ended
|
2J JY30 | — | |
| 15621-41010 |
Gasket, Oil Filter Body
1979-03 → 1982-08
ended
|
L LY20,30 | — | |
| 15621-41010 |
Gasket, Oil Filter Body
1979-03 → 1982-08
ended
|
5R RY3# | — | |
| 15621-41010 |
Gasket, Oil Filter Body
1979-03 → 1982-08
ended
|
B BY30 | — | |
| 15691 — Gasket, Oil Filter | ||||
| 15691-31010 |
Gasket, Oil Filter
1979-03 → 1985-07
ended
|
12R RY2# | ¥370 | |
| 15691-40011 |
Gasket, Oil Filter
1979-03 → 1985-07
ended
|
5R RY3# | ¥520 | |
| 15691-48021 |
Gasket, Oil Filter
1979-03 → 1983-08
ended
|
2J JY30 | ¥740 | |
| 15691-54010 |
Gasket, Oil Filter
1979-03 → 1981-08
ended
|
L LY20,30 | ¥1,390 | |
| 15691-54011 |
Gasket, Oil Filter
1981-08 → 1982-03
ended
|
L LY20,30 | ¥1,390 | |
| 15691-54012 |
Gasket, Oil Filter
1982-03 → 1985-07
ended
|
L,2L LY2#,3# | ¥1,400 | |
| 15691-56030 |
Gasket, Oil Filter
1980-09 → 1985-07
ended
|
B BY3# | ¥520 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
