Engine Oil Pump

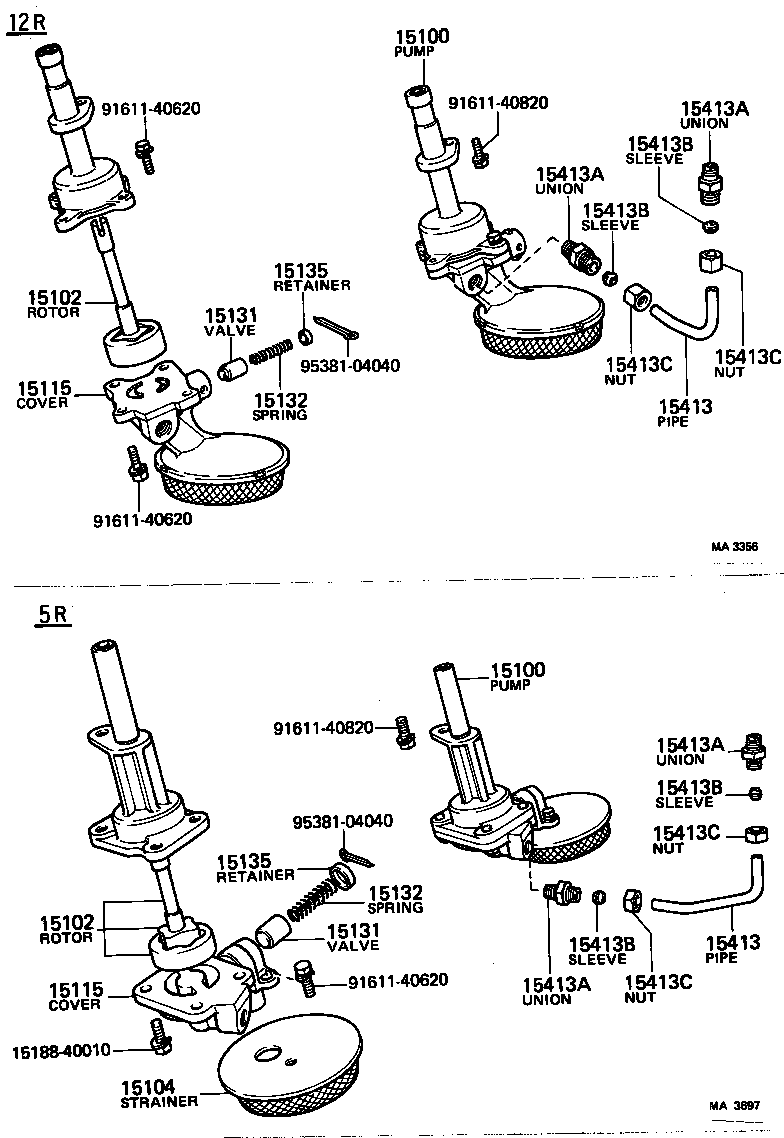

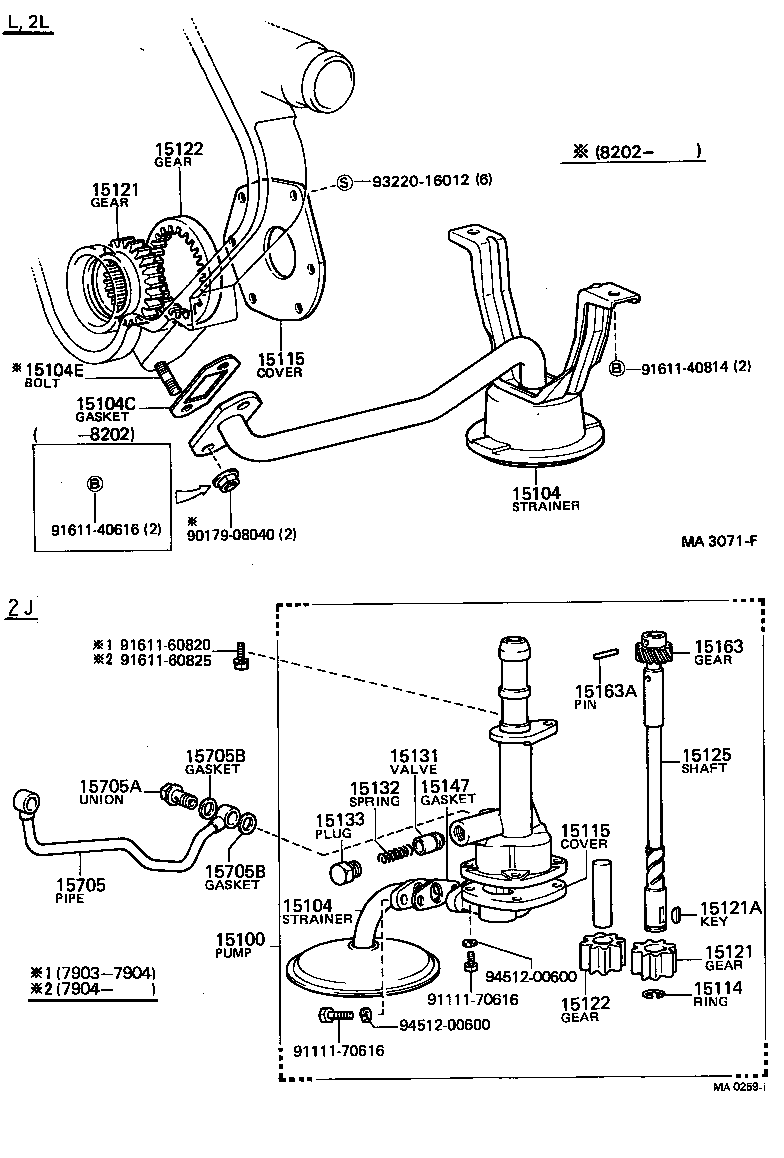

32 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 15100 | Pump Assy, Oil |
| 15102 | Rotor Set, Oil Pump |
| 15104 | Strainer Sub-assy, Oil |
| 15104C | Gasket(FOR OIL STRAINER) |
| 15104E | Bolt, Stud(FOR OIL STRAINER) |
| 15114 | Ring, Shaft Snap |
| 15115 | Cover, Oil Pump |
| 15121 | Gear, Oil Pump Drive |
| 15121A | Key, Oil Pump Drive Shaft |
| 15122 | Gear, Oil Pump Driven |
| 15125 | Shaft, Oil Pump |
| 15131 | Valve, Oil Pump Relief |
| 15132 | Spring, Oil Pump Relief Valve |
| 15133 | Plug, Oil Pump Relief Valve |
| 15134 | Gasket, Oil Pump Relief Valve |
| 15135 | Retainer, Oil Pump Relief Valve |
| 15147 | Gasket, Oil Strainer |
| 15163 | Gear, Oil Pump Drive Shaft |
| 15163A | Pin, Straight(FOR OIL PUMP DRIVE SHAFT GEAR) |
| 15403 | Pipe Sub-assy, Oil Pump Outlet |
| 15403A | Union(FOR OIL PUMP OUTLET PIPE) |
| 15403B | Gasket(FOR OIL PUMP OUTLET PIPE) |
| 15413 | Pipe, Oil Pump Outlet |
| 15413A | Union(FOR OIL PUMP OUTLET PIPE) |
| 15413B | Sleeve, Ball(FOR OIL PUMP OUTLET PIPE) |
| 15413C | Nut, Union(FOR OIL PUMP OUTLET PIPE) |
| 15705 | Pipe Sub-assy, Oil, Injection Pump Inlet |
| 15705A | Union(FOR INJECTION PUMP INLET PIPE) |
| 15705B | Gasket(FOR INJECTION PUMP INLET PIPE) |
| 15706 | Pipe Sub-assy, Oil, Injection Pump Outlet |
| 15706A | Union(FOR INJECTION PUMP OUTLET PIPE) |
| 15706B | Gasket(FOR INJECTION PUMP OUTLET PIPE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
