Toyota Toyoace

1979-03 → 1985-07 · chassis RY2#,3#,LY2#,3#,JY30,BY3# · catalogue 731130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

36 part groups · 14 illustrations

Illustrations

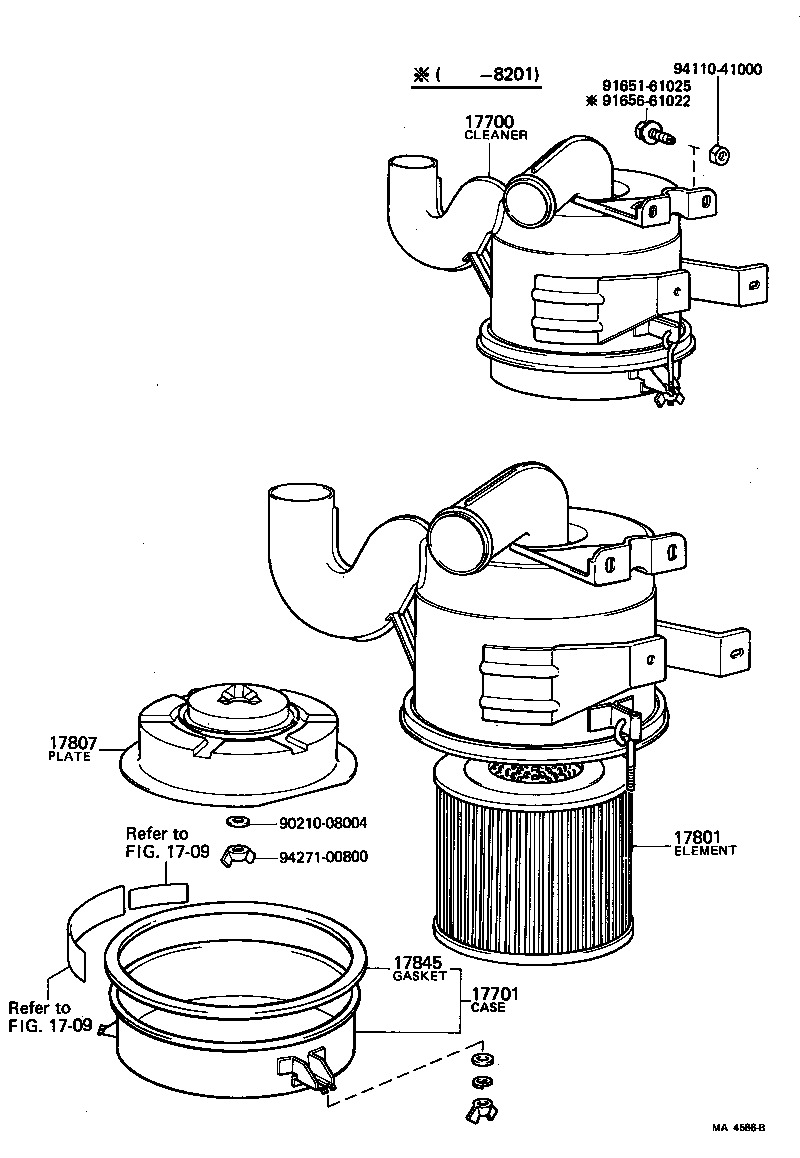

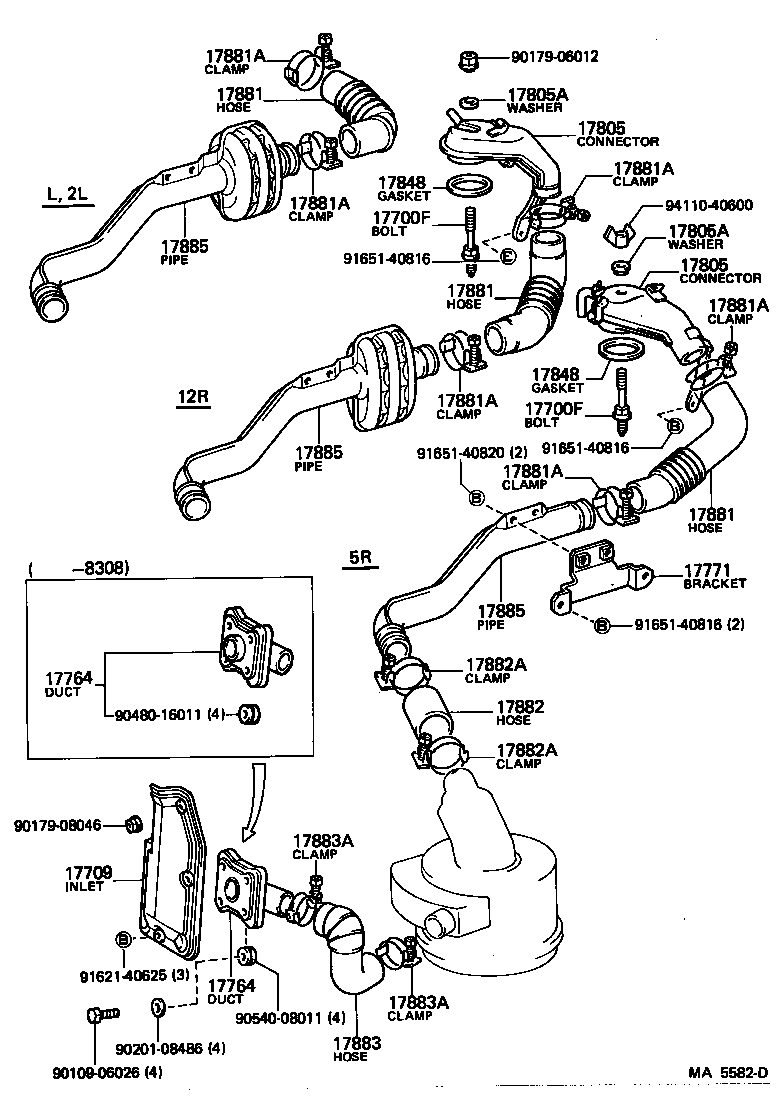

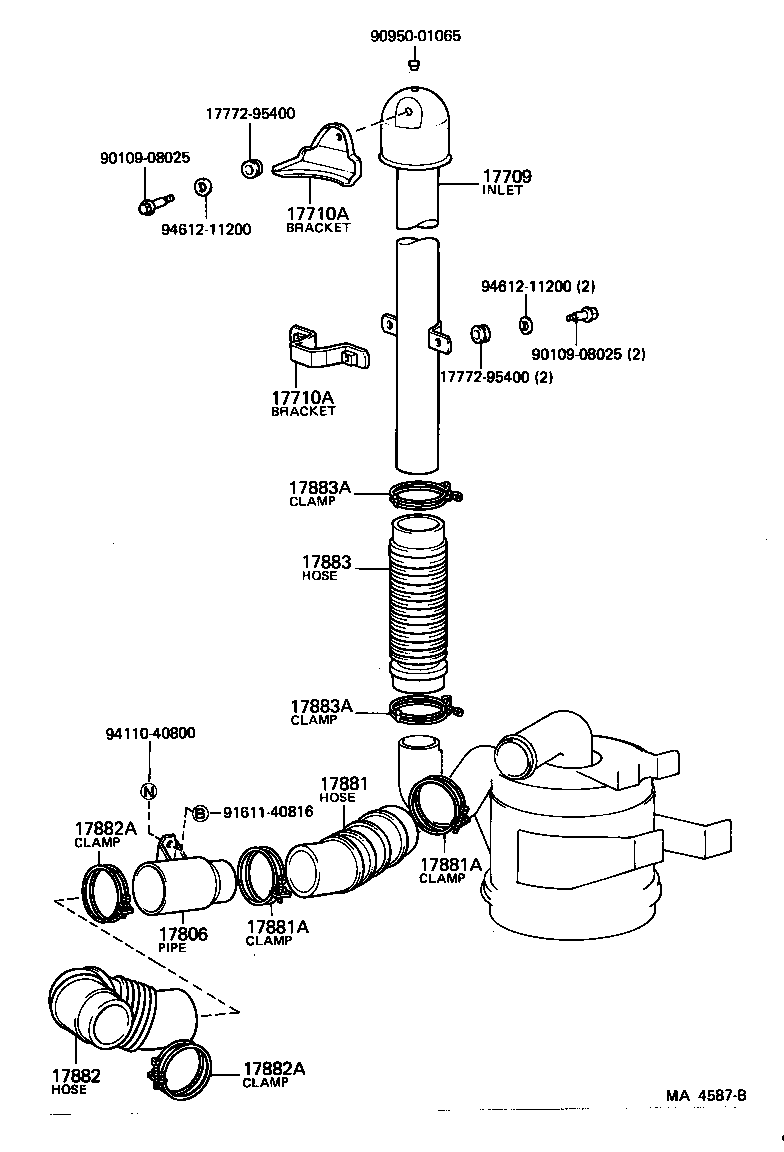

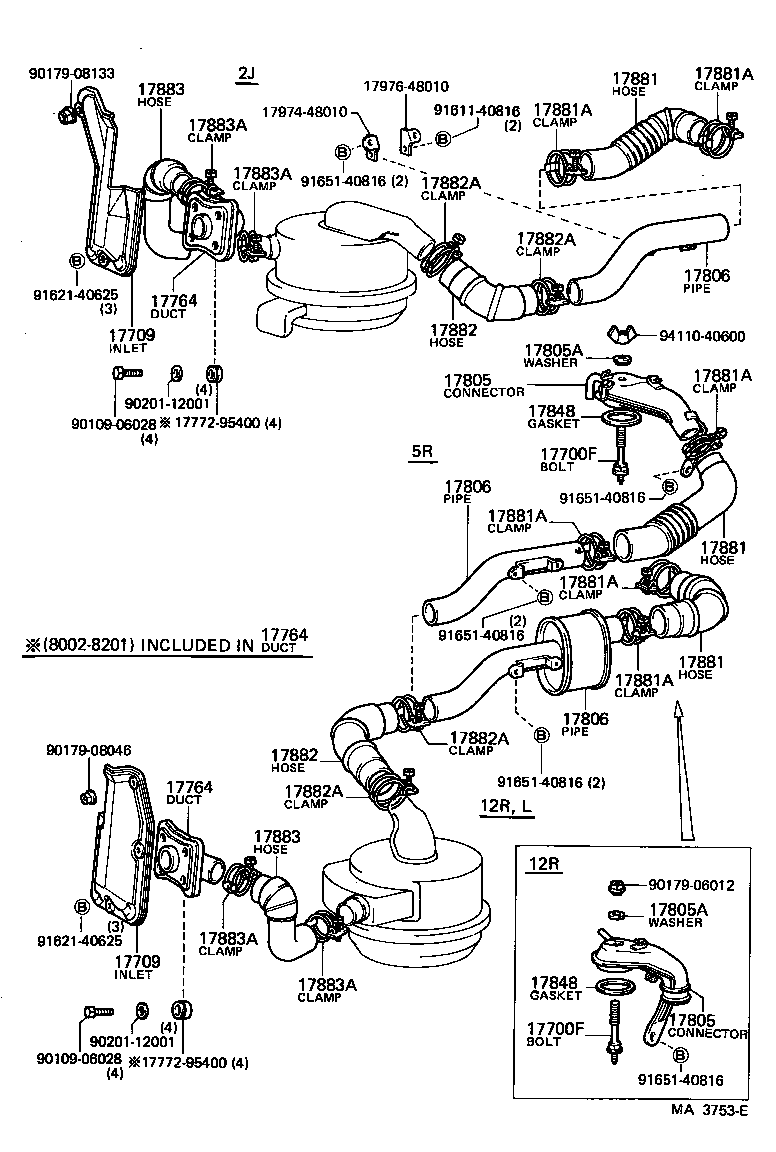

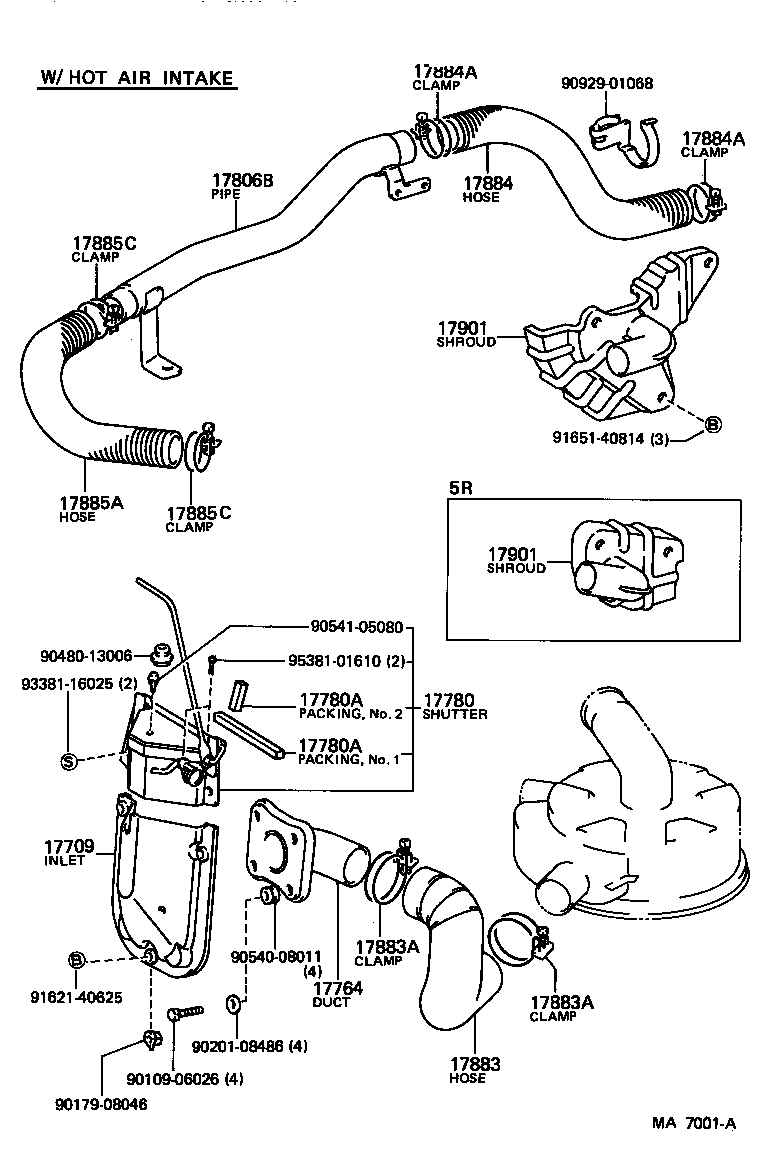

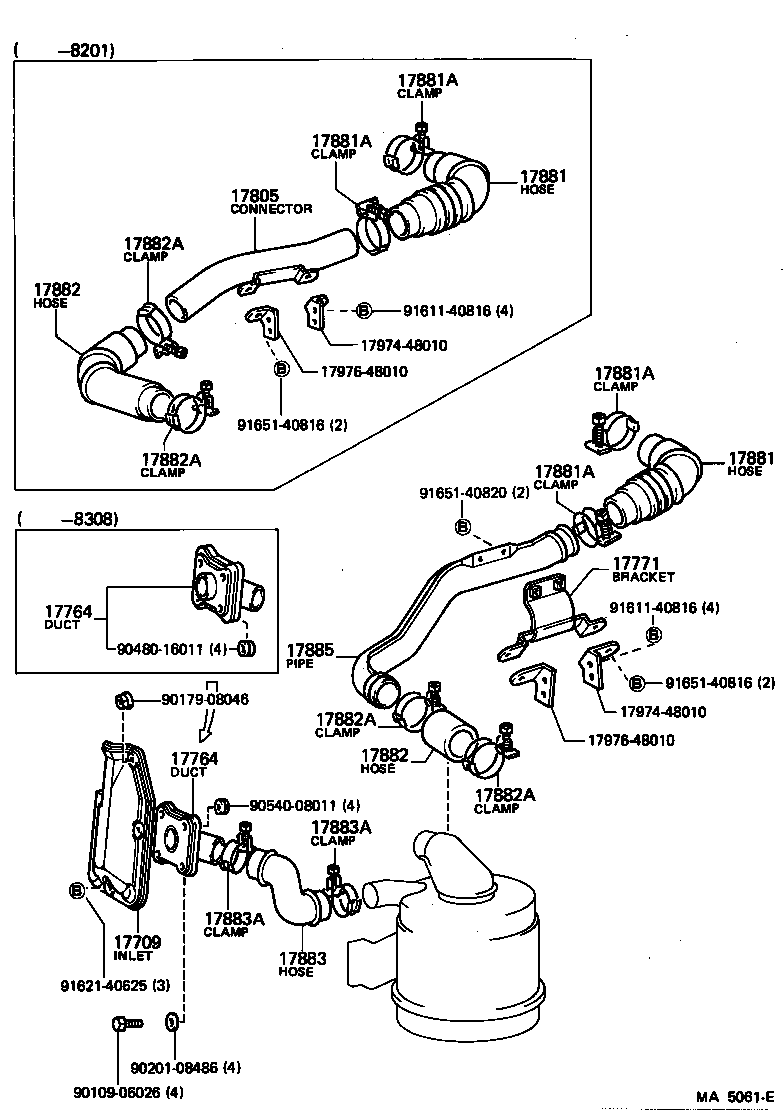

Figure MA5041D MA5041D 1980-09 → — Figure MA5061E MA5061E 1980-09 → — Figure AS0046C AS0046C 1979-03 → — Figure MA3753E MA3753E 1979-03 → 1982-01 Figure MA5593B MA5593B 1982-01 → 1983-08 Figure MA4586B MA4586B 1980-04 → 1983-08 Figure MA4587B MA4587B 1980-04 → 1983-08 Figure AS0046C AS0046C 1979-03 → — Figure MA3753E MA3753E 1979-03 → 1982-01 Figure MA5582D MA5582D 1982-01 → — Figure AS0046C AS0046C 1979-03 → — Figure MA3753E MA3753E 1979-03 → 1982-01 Figure MA5582D MA5582D 1982-01 → — Figure MA7001A MA7001A 1983-08 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700E Bolt, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17709 Inlet Sub-assy, Air Cleaner
17710A Bracket Sub-assy, Air Cleaner Inlet Duct
17764 Duct, Air Cleaner
17769 Support, Air Cleaner
17771 Bracket, Air Cleaner Inlet Duct
17780 Shutter Assy, Cool Air
17780A Packing(FOR COOL AIR SHUTTER)
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805A Gasket & Washer, Seal
17806 Pipe Sub-assy, Air Cleaner, NO.2
17806B Pipe Sub-assy, Air Cleaner, NO.3
17807 Plate Sub-assy, Air Cleaner Filter Set
17826 Plate, Filter Element Baffle
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17884 Hose, Air Cleaner, NO.4
17884A Clamp(FOR AIR CLEANER HOSE, NO.4)
17885 Pipe, Air Cleaner
17885A Hose, Air Cleaner, NO.5
17885C Clamp(FOR AIR CLEANER HOSE, NO.5)
17901 Inlet Sub-assy, Hot Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
