Toyota Toyoace

1979-03 → 1985-07 · chassis RY2#,3#,LY2#,3#,JY30,BY3# · catalogue 731130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

9 part groups · 7 illustrations

Illustrations

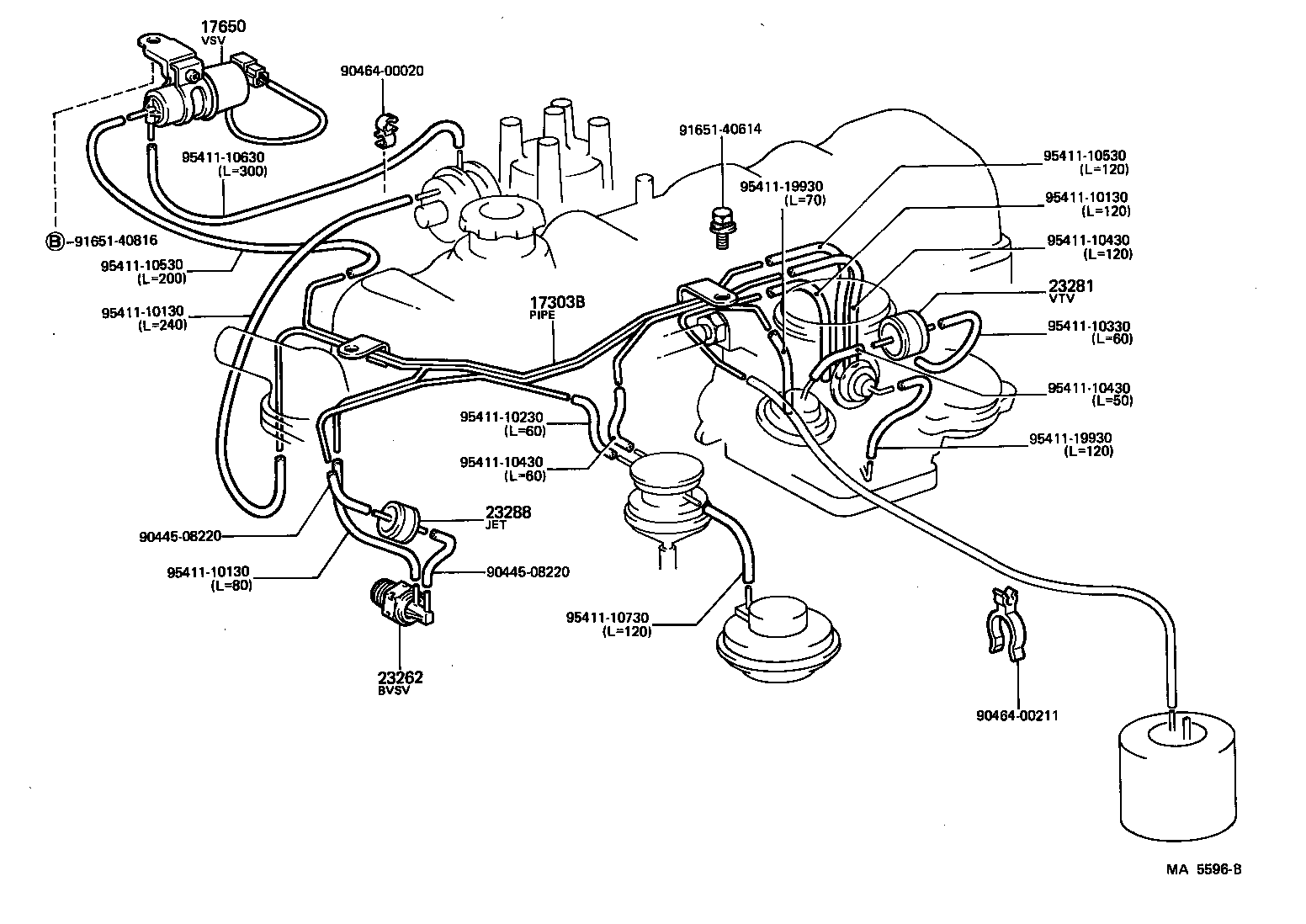

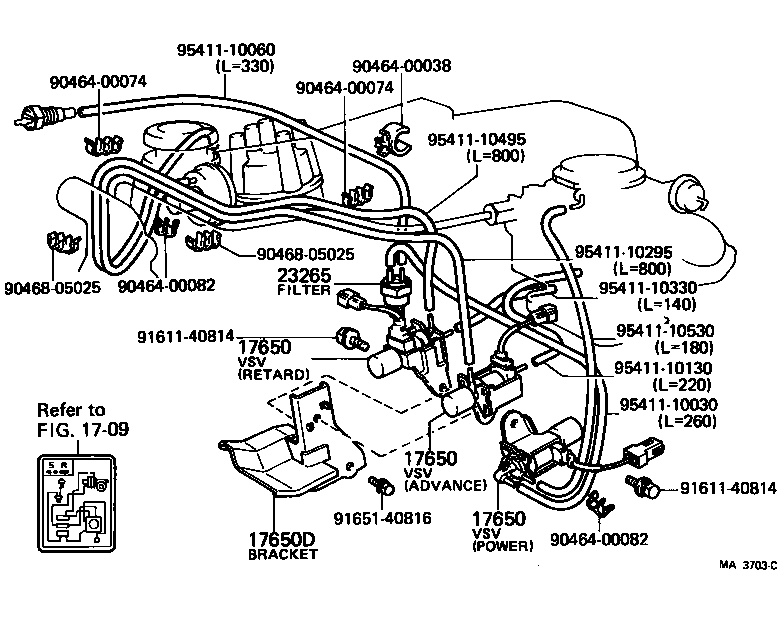

Figure MA9500 MA9500 1979-03 → — Figure MA9500 MA9500 1979-03 → — Figure MA9500 MA9500 1979-03 → — Figure MA3749A MA3749A 1979-03 → 1982-01 Figure MA5596B MA5596B 1982-01 → — Figure MA3703C MA3703C 1979-03 → 1982-01 Figure MA5621B MA5621B 1982-01 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23288 Jet, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
