Toyota Toyoace

1979-03 → 1985-07 · chassis RY2#,3#,LY2#,3#,JY30,BY3# · catalogue 731130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 4 illustrations

Illustrations

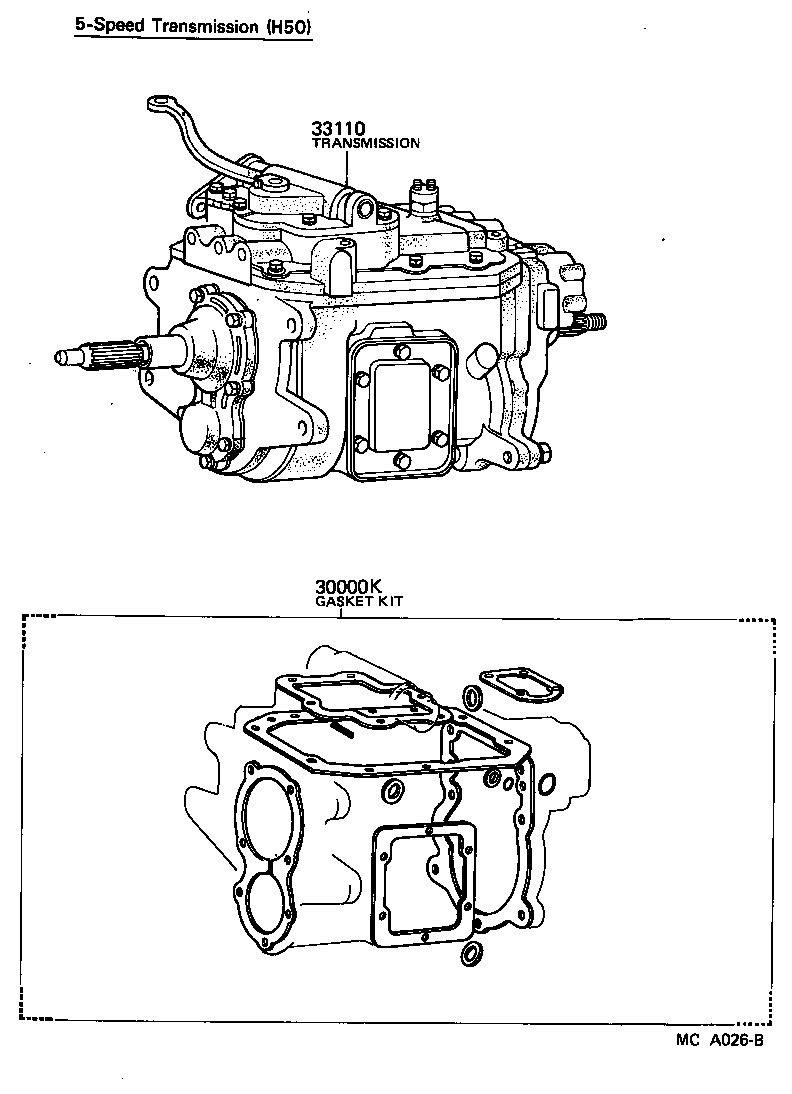

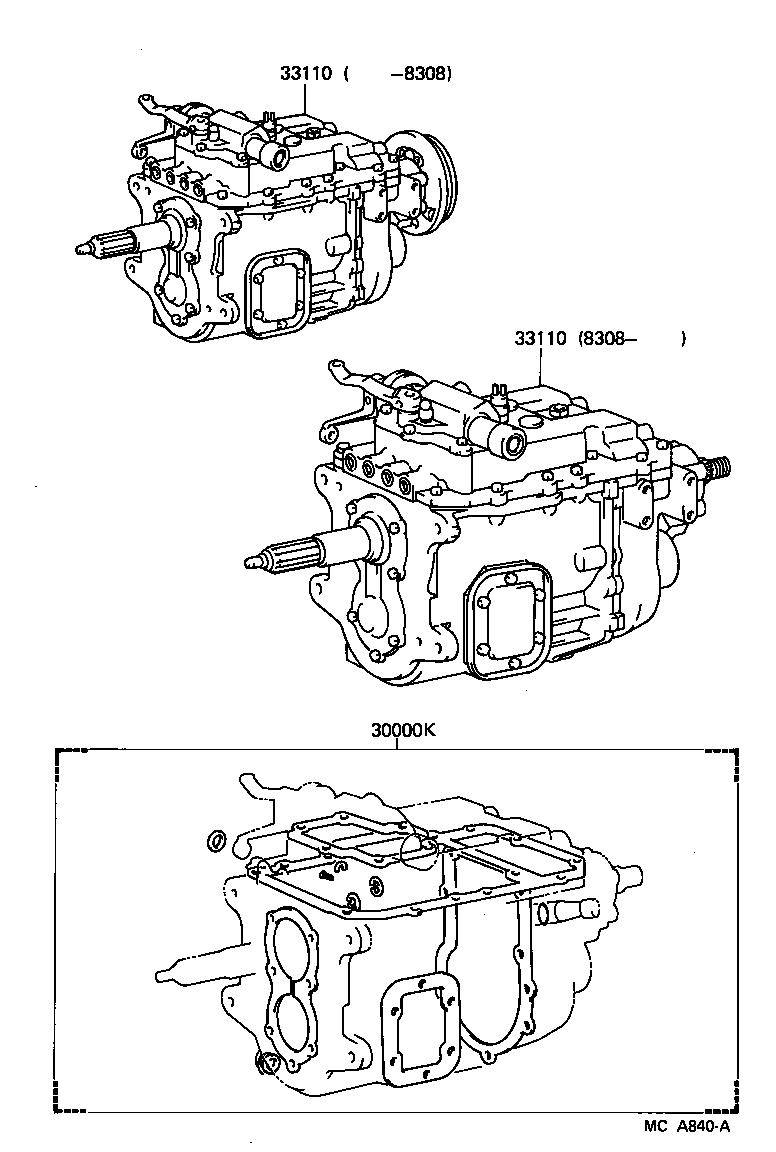

Figure MC6134C MC6134C 1979-03 → — Figure MCA840A MCA840A 1979-03 → 1983-08 Figure MCA840A MCA840A 1983-08 → — Figure MCA026B MCA026B 1983-08 → —

Part groups

PNCDescription
30000K Gasket Kit, Manual Transmission Overhaul
33110 Transmission Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
