Toyota Toyoace

1979-03 → 1985-07 · chassis RY2#,3#,LY2#,3#,JY30,BY3# · catalogue 731130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Lever & Link

17 part groups · 2 illustrations

Illustrations

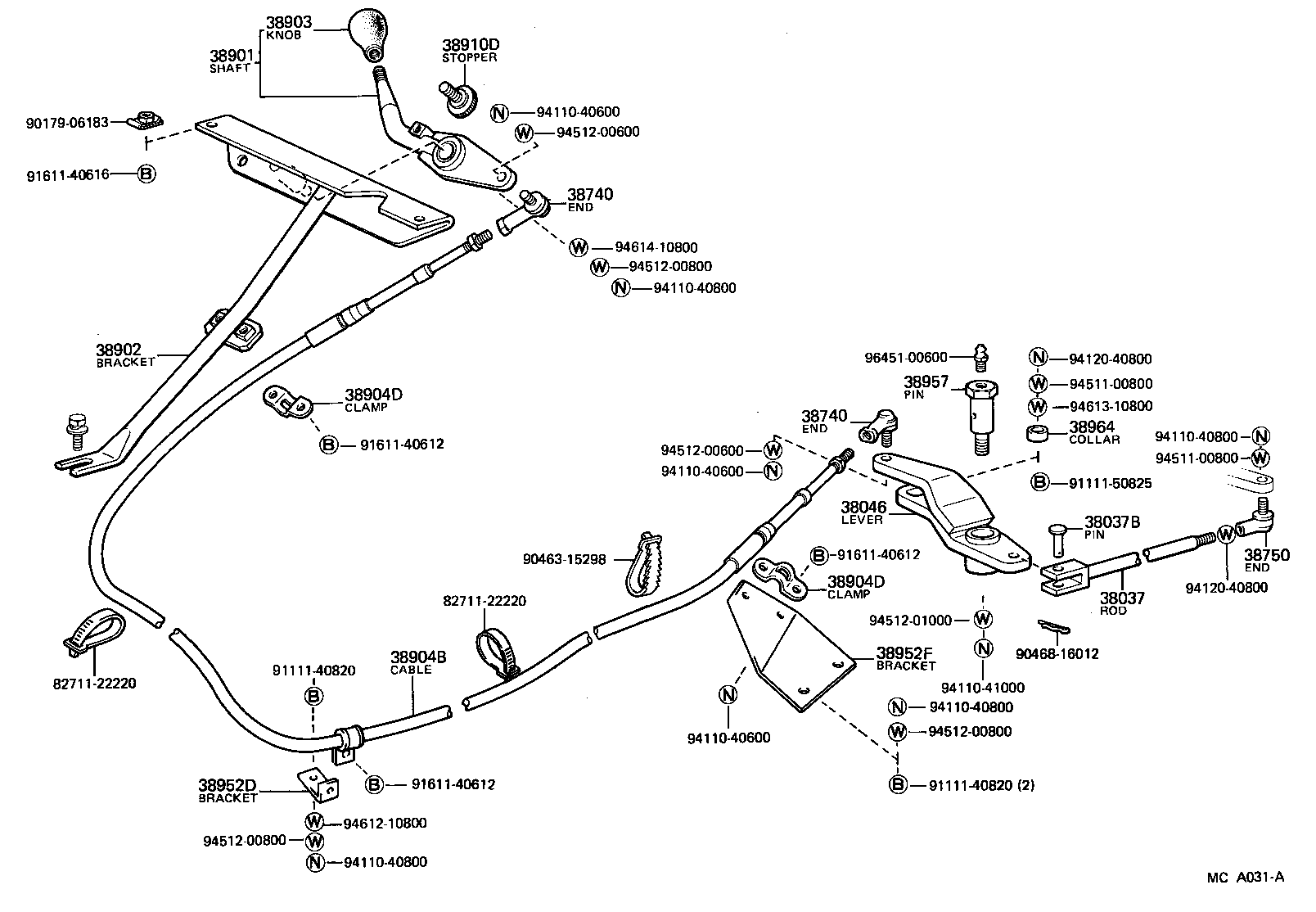

Figure MC6967E MC6967E 1980-04 → 1983-08 Figure MCA031A MCA031A 1983-08 → —

Part groups

PNCDescription
38037 Rod Sub-assy, Valve Control, Rear
38037B Pin, Valve Control Rear Rod
38046 Lever Sub-assy, Power Take-off Control
38740 End Assy, Connecting Rod
38750 End Assy, Connecting Rod
38901 Shaft Sub-assy, Control
38902 Bracket Sub-assy, Control Shaft, Upper
38903 Knob Sub-assy, Control
38904B Cable Assy, Push Pull
38904D Clamp, Cable Push Pull
38910D Stopper, Control Lever
38952A Bracket, Control Cable Clamp, NO.1
38952C Bracket, Control Cable Clamp, NO.3
38952D Bracket, Control Cable Clamp, NO.4
38952F Bracket, Control Cable Clamp, NO.6
38957 Pin, Control Lever
38964 Collar, Control Lever
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
