Toyota Toyoace
1979-03 → 1985-07 · chassis RY2#,3#,LY2#,3#,JY30,BY3# · catalogue 731130 · Japan
Discontinued model
Data version 1986-05

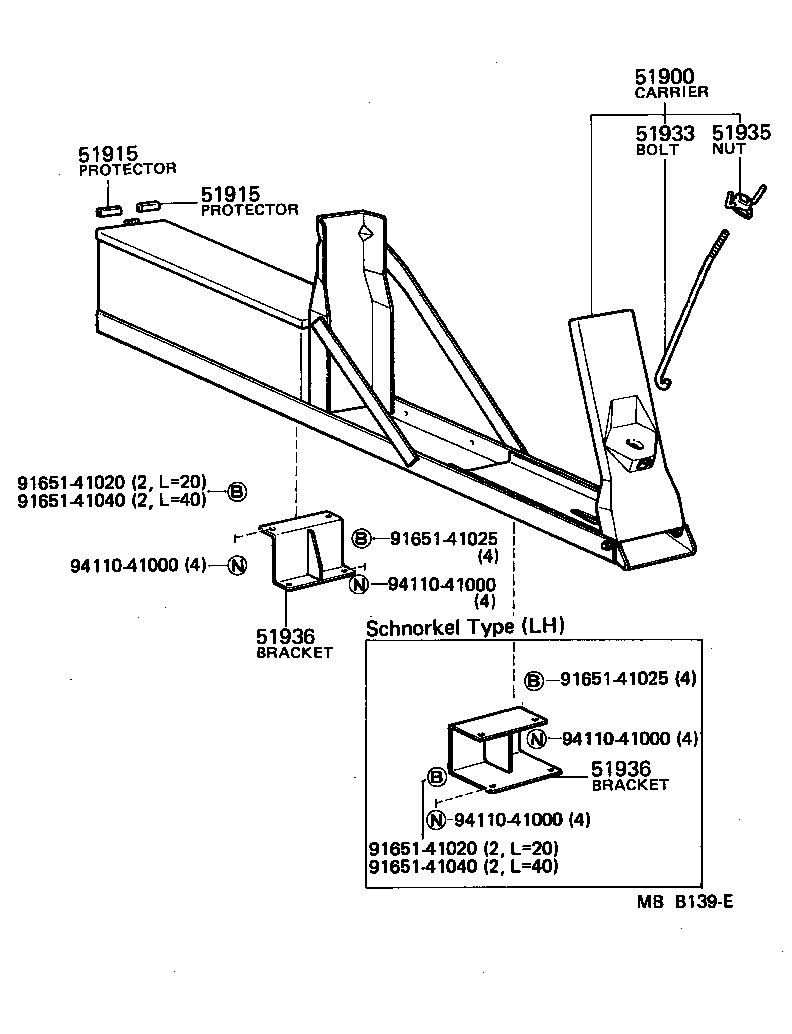

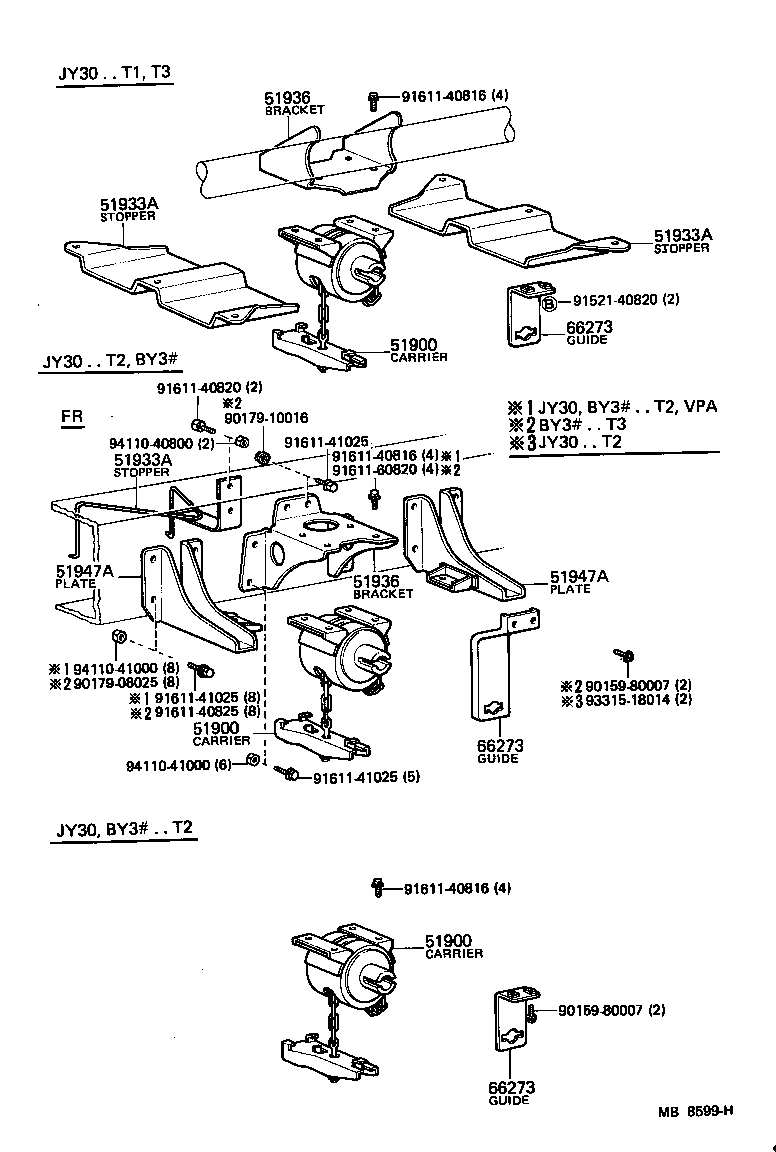

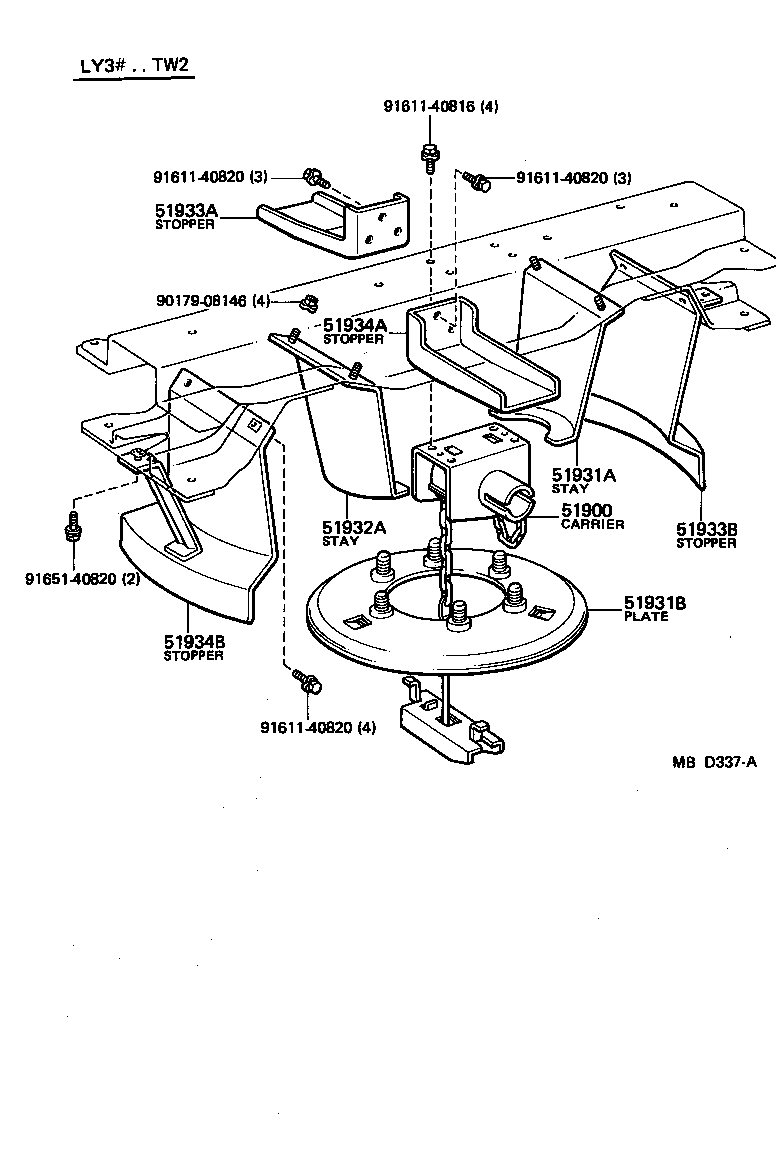

Spare Wheel Carrier
20 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 51900 | Carrier Assy, Spare Wheel |
| 51906A | Base Sub-assy, Spare Wheel Carrier |
| 51910 | Screw Assy, Spare Wheel Clamp |
| 51913 | Plate, Spare Wheel Clamp |
| 51915 | Protector, Spare Wheel Carrier |
| 51917 | Hook, Spare Wheel Carrier |
| 51931A | Stay, Spare Wheel Carrier, RH |
| 51931B | Plate, Spare Wheel Carrier Base |
| 51932A | Stay, Spare Wheel Carrier, LH |
| 51933 | Bolt, Spare Wheel Carrier Eye |
| 51933A | Stopper, Spare Wheel, NO.1 |
| 51933B | Stopper, Spare Wheel Carrier, RH |
| 51934A | Stopper, Spare Wheel, NO.2 |
| 51934B | Stopper, Spare Wheel Carrier, LH |
| 51935 | Nut, Spare Wheel Carrier Eye |
| 51936 | Bracket, Spare Wheel Carrier |
| 51941 | Stopper, Spare Wheel Carrier |
| 51947A | Plate, Spare Wheel Carrier Hinge |
| 51966A | Chain |
| 66273 | Guide, Spare Tire Carrier |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
