Toyota Toyoace

1979-03 → 1985-07 · chassis RY2#,3#,LY2#,3#,JY30,BY3# · catalogue 731130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

24 part groups · 2 illustrations

Illustrations

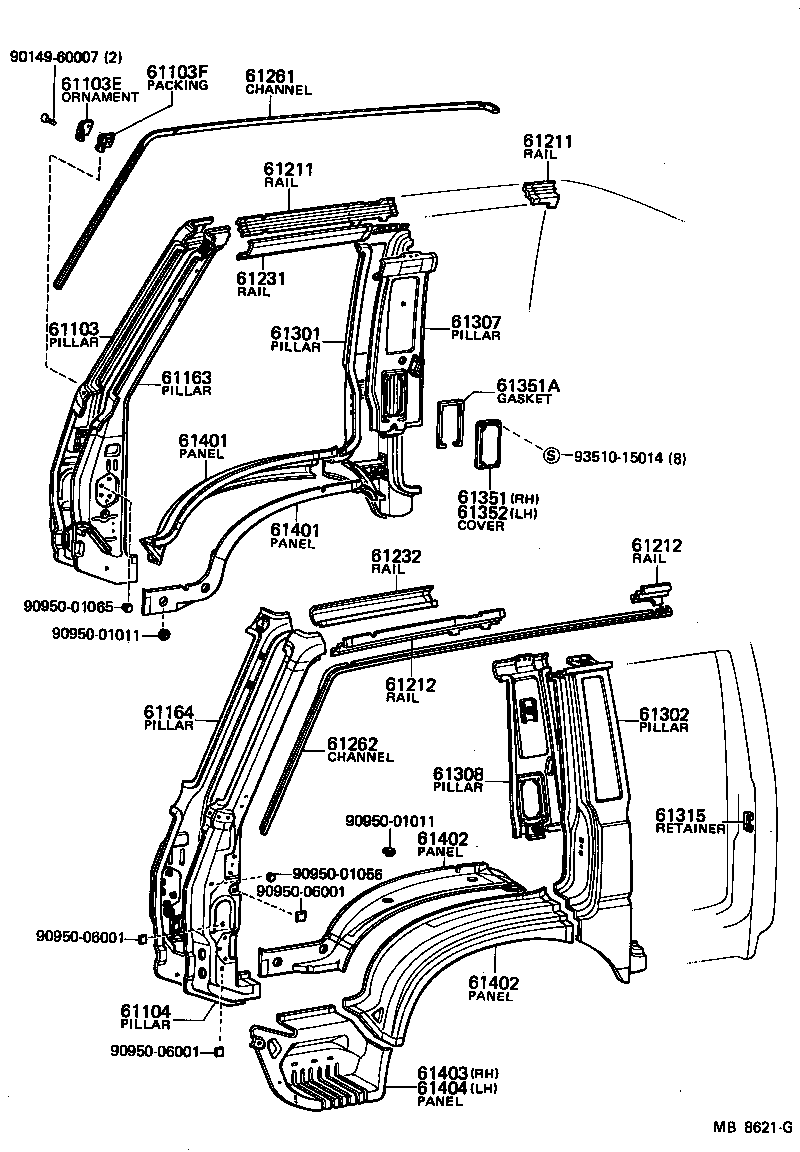

Figure MB8620F MB8620F 1979-03 → — Figure MB8621G MB8621G 1979-03 → —

Part groups

PNCDescription
61103 Pillar Sub-assy, Front Body, RH
61103E Ornament, Front Pillar, RH
61103F Packing, Front Pillar Ornament, RH
61104 Pillar Sub-assy, Front Body, LH
61163 Pillar, Front Body, Inner RH
61164 Pillar, Front Body, Inner LH
61211 Rail, Roof Side, Outer RH
61212 Rail, Roof Side, Outer LH
61231 Rail, Roof Side, Inner RH
61232 Rail, Roof Side, Inner LH
61261 Channel, Roof Drip, RH
61262 Channel, Roof Drip, LH
61301 Pillar Sub-assy, Center Body, RH
61302 Pillar Sub-assy, Center Body, LH
61307 Pillar Sub-assy, Center Body, Inner RH
61308 Pillar Sub-assy, Center Body, Inner LH
61315 Retainer, Door Lock Striker Plate
61351 Cover, Center Body, Inner RH
61351A Gasket(FOR CENTER BODY INNER COVER)
61352 Cover, Center Body, Inner, LH
61401 Panel Sub-assy, Fender, RH
61402 Panel Sub-assy, Fender, LH
61403 Panel Sub-assy, Front Step, RH
61404 Panel Sub-assy, Front Step, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
