Toyota Toyoace

1979-03 → 1985-07 · chassis RY2#,3#,LY2#,3#,JY30,BY3# · catalogue 731130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

22 part groups · 9 illustrations

Illustrations

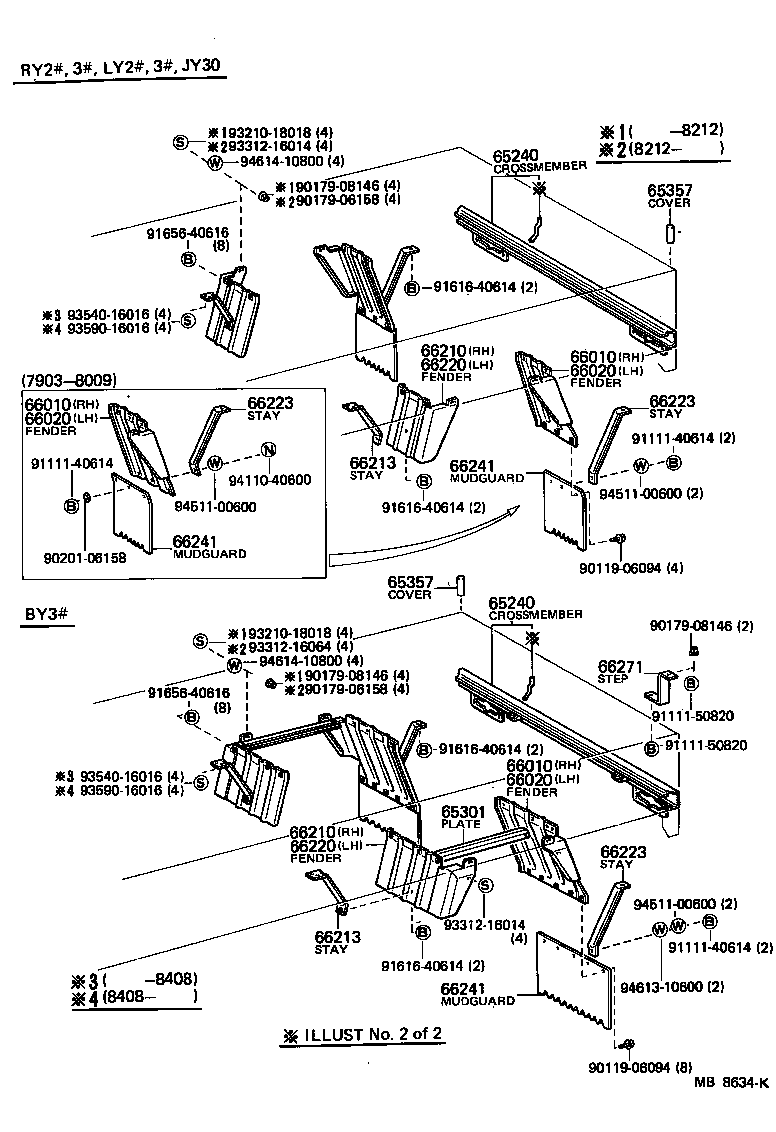

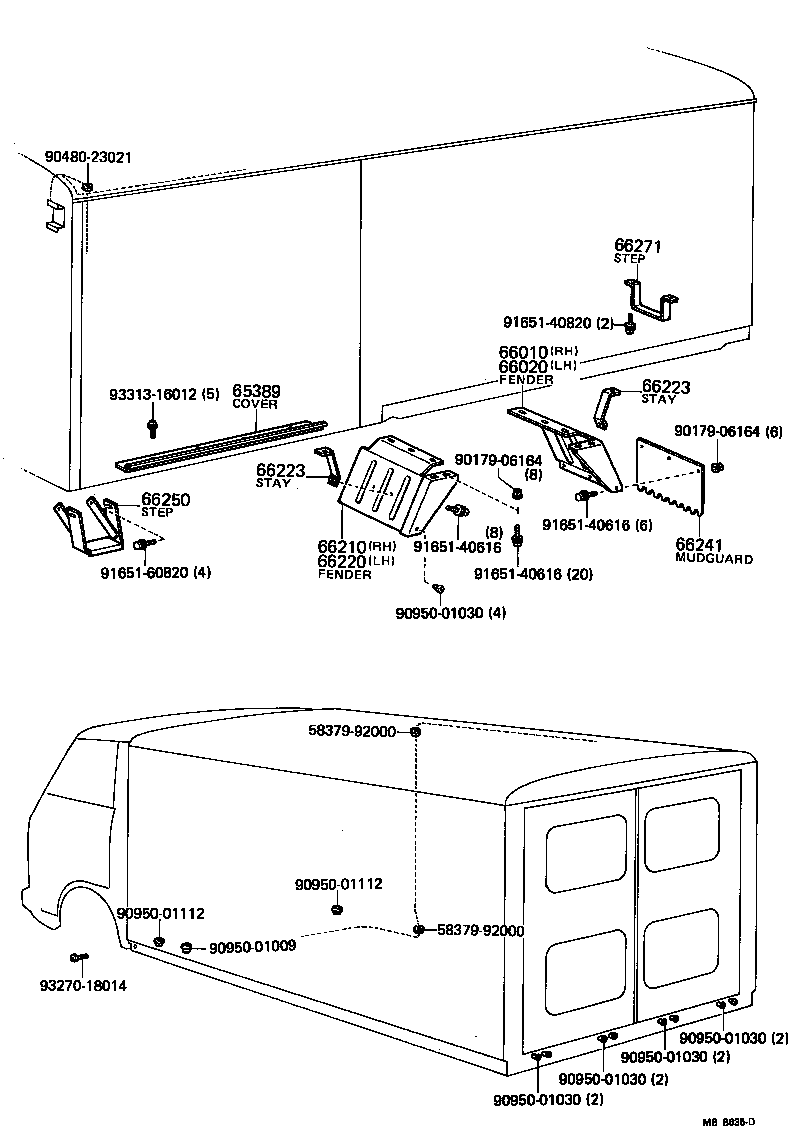

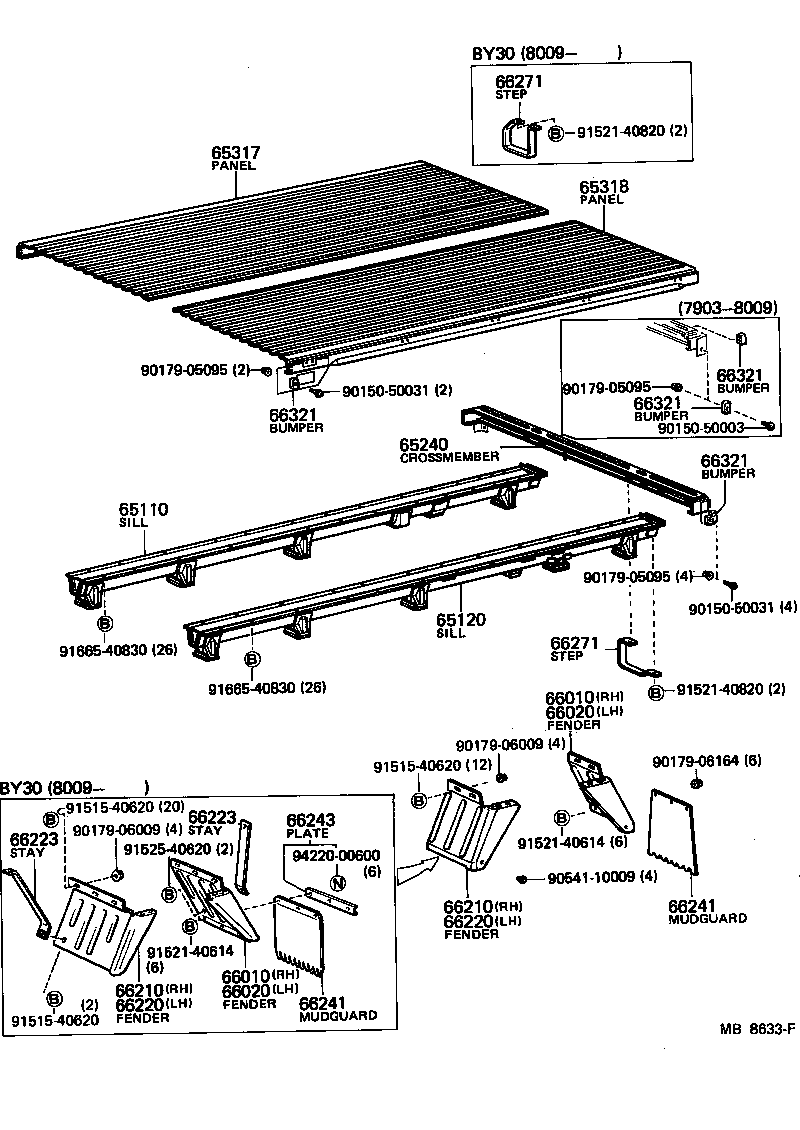

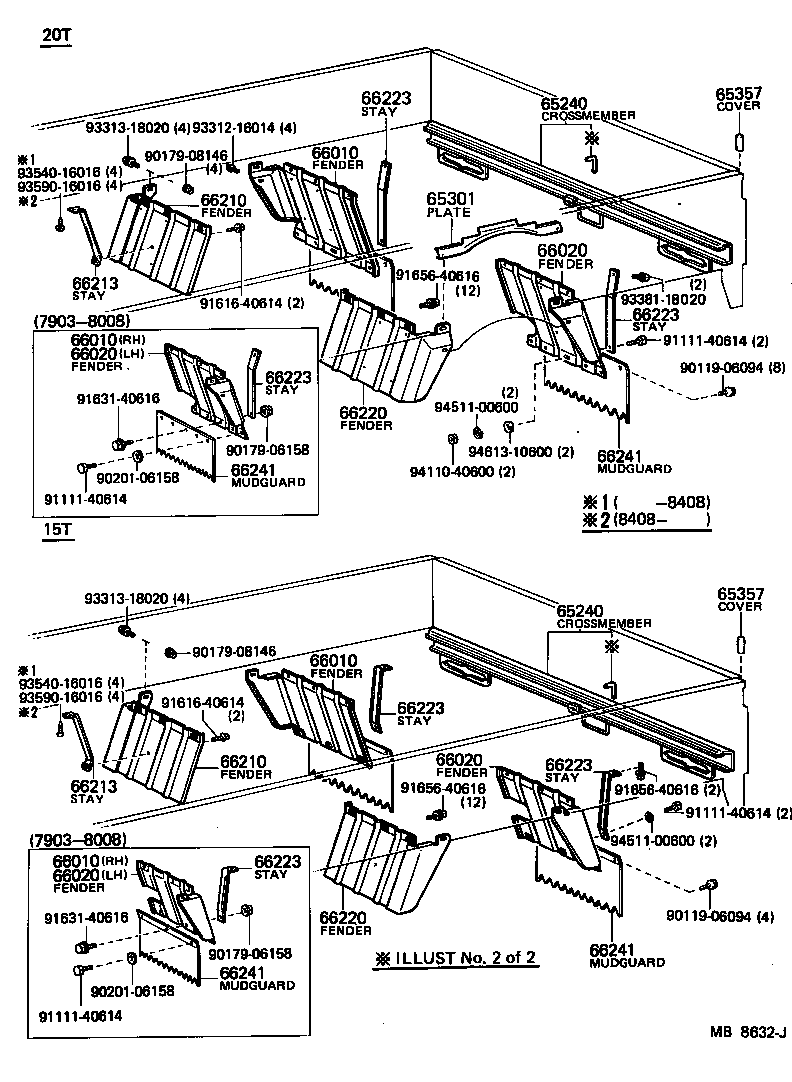

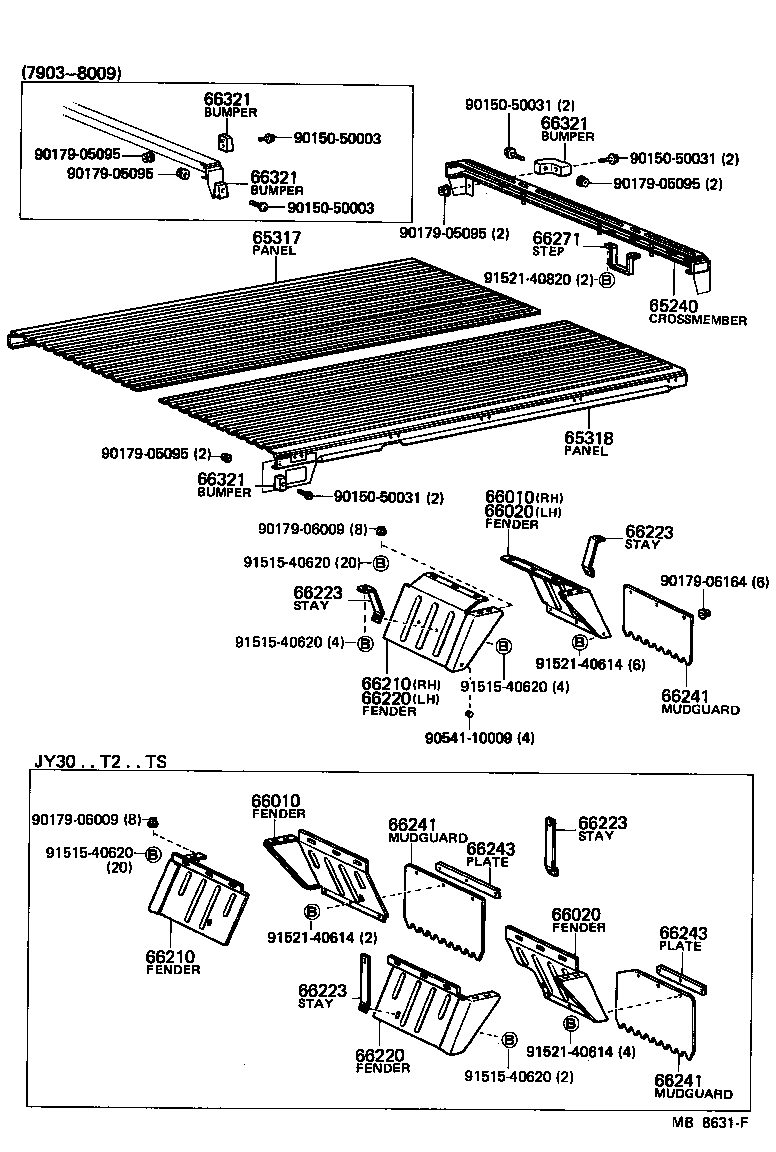

Figure MB8630I MB8630I 1979-03 → — Figure MB8631F MB8631F 1979-03 → — Figure MB8632J MB8632J 1979-03 → — Figure MB8632J MB8632J 1982-01 → — Figure MB8633F MB8633F 1979-03 → — Figure MB8634K MB8634K 1979-03 → — Figure MB8635D MB8635D 1979-03 → — Figure MBB140B MBB140B 1980-04 → — Figure MBG141 MBG141 1983-12 → —

Part groups

PNCDescription
65110 Sill Assy, Main, RH
65120 Sill Assy, Main, LH
65240 Crossmember, Rear Body Floor, Tail
65301 Plate Sub-assy, Rear Fender Outer, Upper
65311 Panel, Floor, Center
65317 Panel, Floor Side, RH
65318 Panel, Floor Side, LH
65357 Cover, Front Floor Corner
65389 Cover, Rear Step
66010 Fender Assy, Rear Body, Rear RH
66020 Fender Assy, Rear Body, Rear LH
66210 Fender Assy, Rear Body, Front RH
66213 Stay, Rear Fender Front Plate
66220 Fender Assy, Rear Body, Front LH
66223 Stay, Rear Fender Rear Plate
66241 Mudguard, Rear
66243 Plate, Rear Fender Set
66250 Step Assy, Rear
66271 Step, Rear Body
66311A Hook, Rope, NO.1
66313 Support, Rear Fender
66321 Bumper, Gate Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
