Toyota Toyoace

1979-03 → 1985-07 · chassis RY2#,3#,LY2#,3#,JY30,BY3# · catalogue 731130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

53 part groups · 8 illustrations

Illustrations

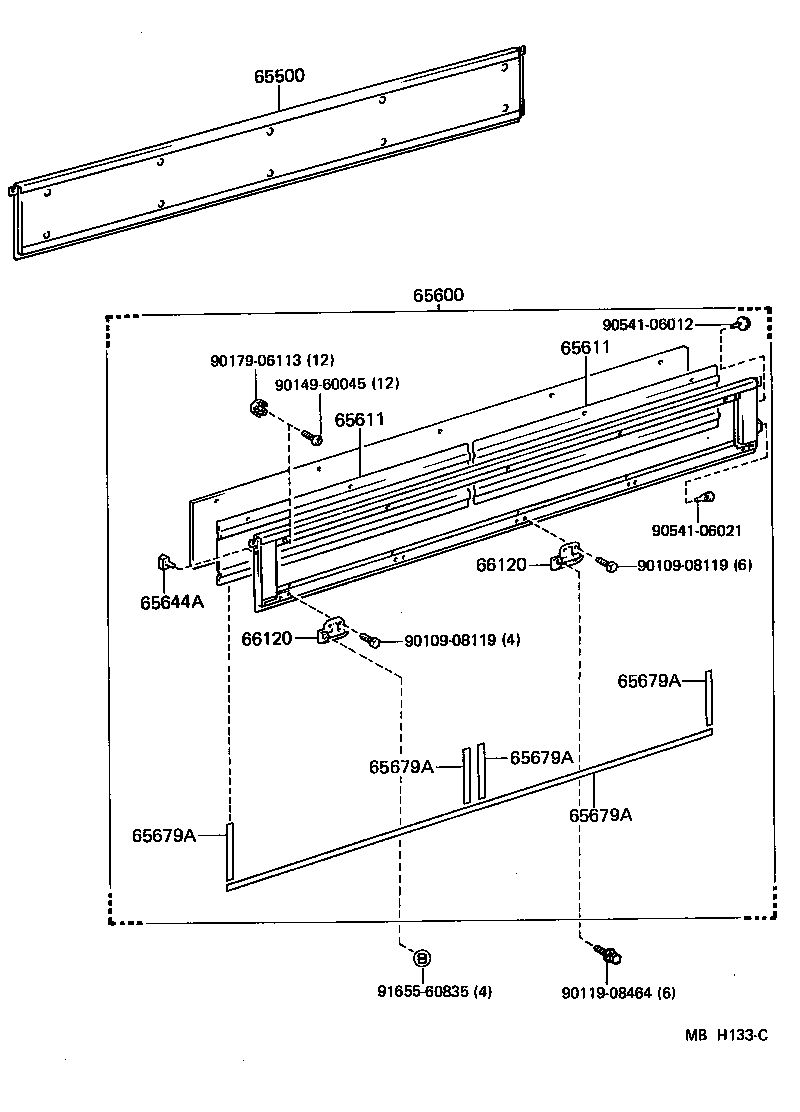

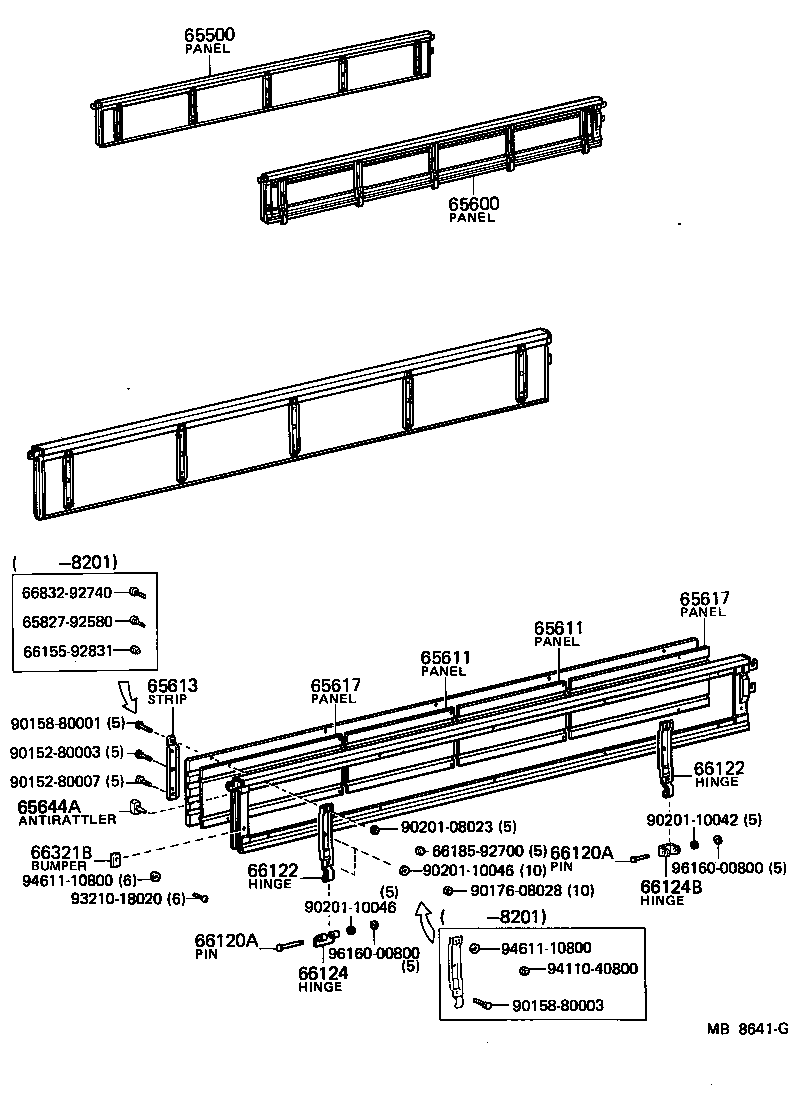

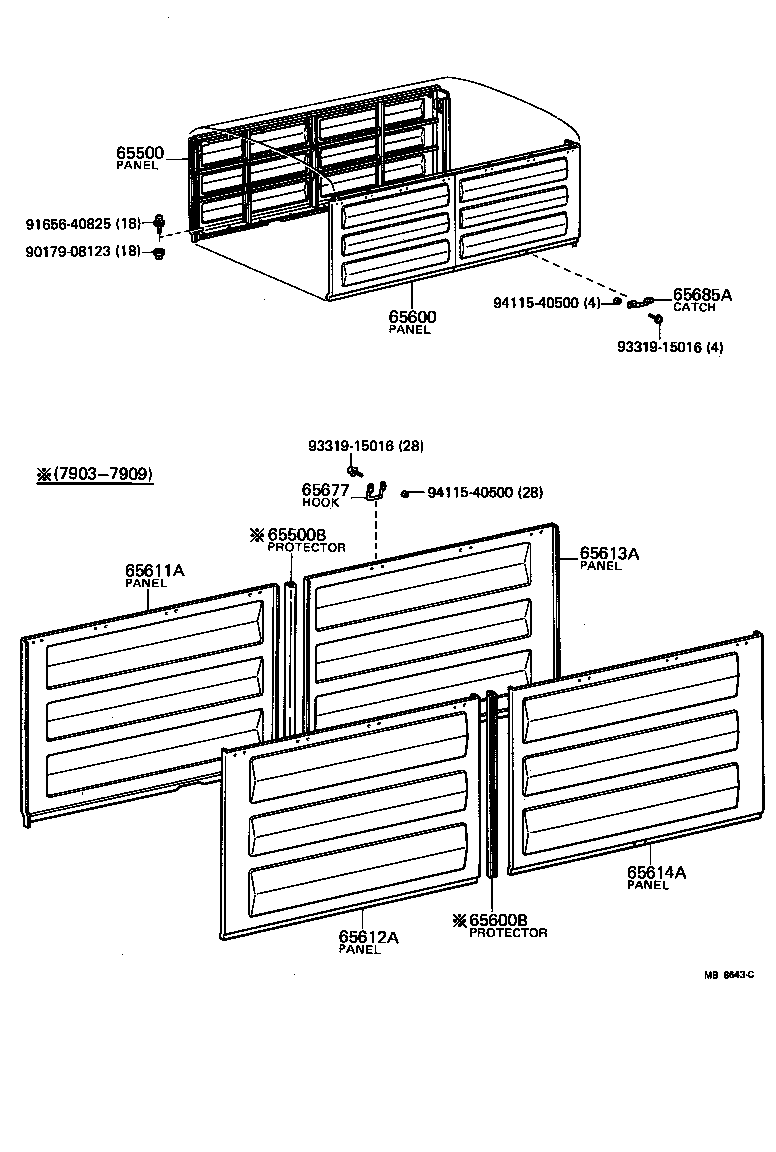

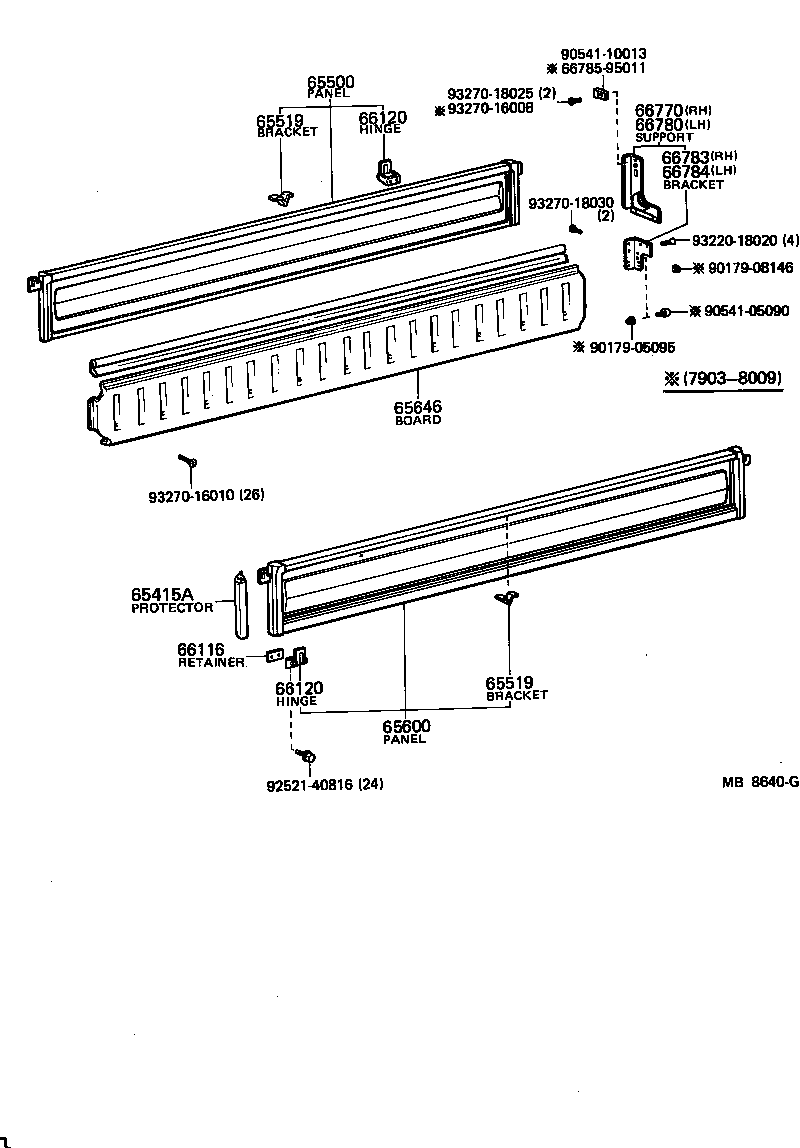

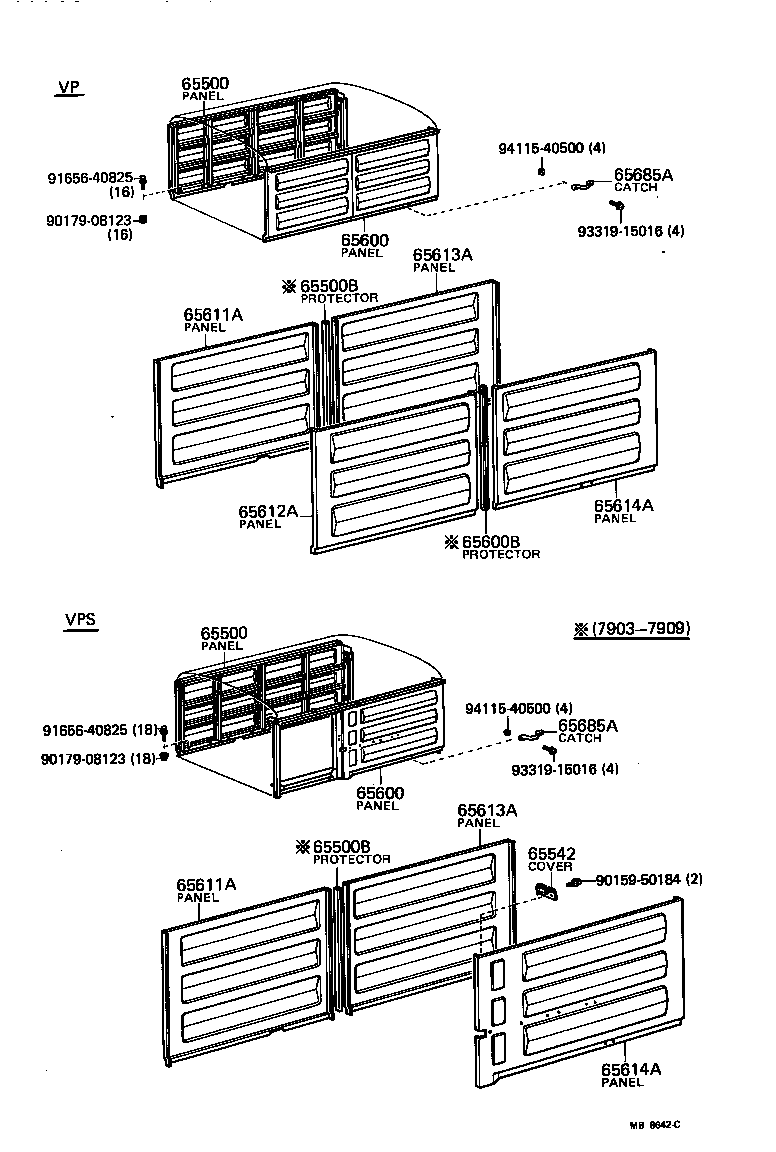

Figure MB8639C MB8639C 1979-03 → — Figure MB8640G MB8640G 1979-03 → — Figure MB8641G MB8641G 1979-03 → 1984-08 Figure MBH133C MBH133C 1984-08 → — Figure MB8642C MB8642C 1979-03 → — Figure MB8643C MB8643C 1979-03 → — Figure MBB142A MBB142A 1980-04 → 1983-08 Figure MBF436A MBF436A 1983-08 → —

Part groups

PNCDescription
65313 Panel, Floor Front Corner, RH
65314 Panel, Floor Front Corner, LH
65315 Panel, Floor Rear Corner, RH
65316 Panel, Floor Rear Corner, LH
65350 Cover Assy, Battery Service Hole
65352 Packing, Battery Service Hole Cover
65415A Protector, Guard Flame
65500 Panel Assy, Rear Body Side, RH
65500B Protector, Rear Body Side Panel, RH
65519 Bracket, Top Rail
65542 Cover, Side Rear Pillar, Upper
65550 Post Assy, Side Panel Front End, RH
65560 Post Assy, Side Panel Front End, LH
65570 Post Assy, Side Panel Rear End, RH
65580 Post Assy, Side Panel Rear End, LH
65600 Panel Assy, Rear Body Side, LH
65600B Protector, Rear Body Side Panel, LH
65603 Bracket Sub-assy, Roller Arm, RH
65604 Bracket Sub-assy, Roller Arm, LH
65611 Panel, Side Gate
65611A Panel, Side Outer, Front RH
65612A Panel, Side Outer, Front LH
65613 Strip, Side Gate Hinge, Inside
65613A Panel, Side Outer, Rear RH
65614A Panel, Side Outer, Rear LH
65617 Panel, Side Gate, Corner
65644A Anti-rattler, Side Gate
65646 Board, Side Gate
65677 Hook, Top Curtain, Side
65679A Seal, Side Gate
65685A Catch, Back Door Stopper
66116 Retainer, Gate Hinge, Lower
66120 Hinge Assy, Side Gate
66120A Pin, Side Gate Hinge
66122 Hinge, Side Gate, Male
66124 Hinge, Side Gate, Female
66124B Hinge, Side Gate, Female
66153 Latch, Tail Gate Female, RH
66154 Latch, Tail Gate Female, LH
66251 Lever, Side Gate Stopper, RH
66252 Pin, Side Gate Stopper
66252A Sleeve, Side Gate Stopper
66257 Spring, Side Gate Lock, RH
66258 Spring, Side Gate Lock, LH
66259 Spring, Side Gate Stopper
66261 Lever, Side Gate Stopper, LH
66321B Bumper, Gate Rubber
66411A Bracket,Guard Frame, RH
66412A Bracket,Guard Frame, LH
66770 Support Sub-assy, Side Gate, RH
66780 Support Sub-assy, Side Gate, LH
66783 Bracket, Side Gate Support, RH
66784 Bracket, Side Gate Support, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
