Toyota Toyoace

1979-03 → 1985-07 · chassis RY2#,3#,LY2#,3#,JY30,BY3# · catalogue 731130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Top Curtain & Roof Panel

19 part groups · 4 illustrations

Illustrations

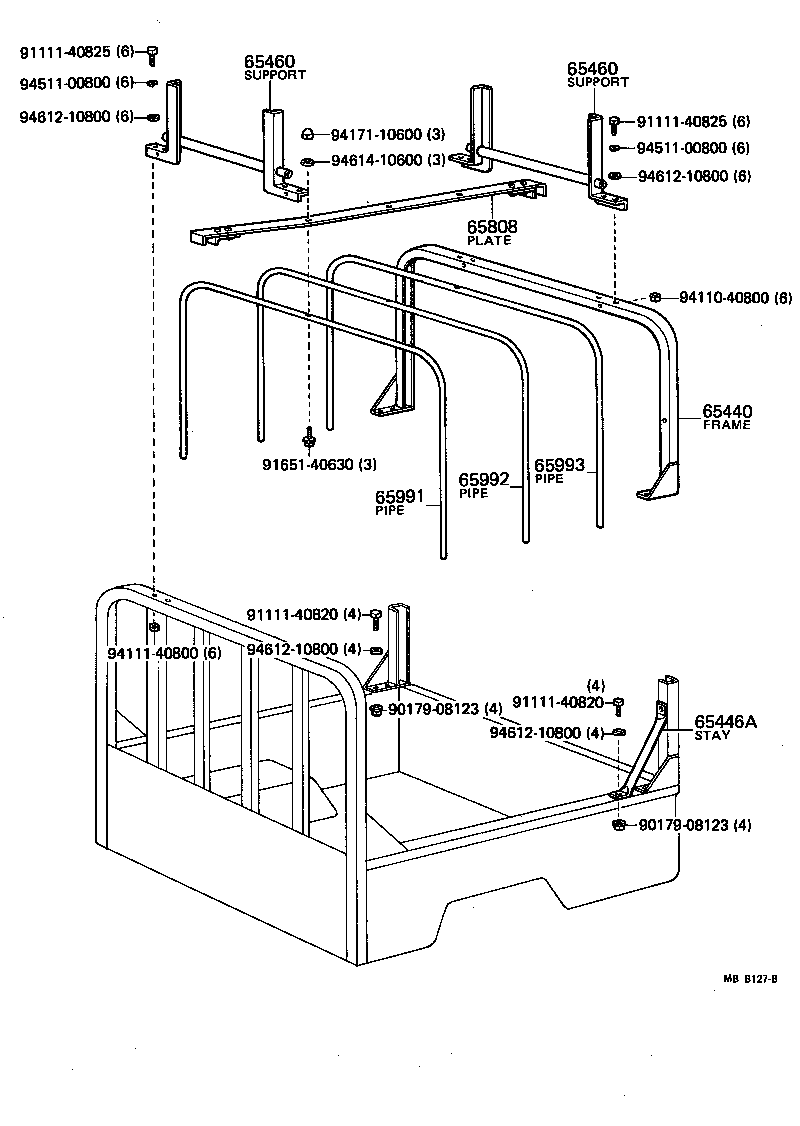

Figure MBB155B MBB155B 1979-03 → — Figure MBB127B MBB127B 1979-03 → — Figure MB8644A MB8644A 1979-03 → — Figure MB8645B MB8645B 1979-03 → —

Part groups

PNCDescription
64161 Frame, Back Gate, Upper
64161A Frame, Front Panel, Upper
65440 Frame Assy, Top & Curtain Support, Rear
65446A Stay, Top & Curtain Support Frame
65460 Support Assy, Ladder
65801 Reinforcement Sub-assy, Roof, NO.1
65802 Reinforcement Sub-assy, Roof, NO.2
65803 Reinforcement Sub-assy, Roof, NO.3
65808 Plate Sub-assy, Top Bow
65811A Panel, Roof Center
65813 Shim, Rear Body Roof Set
65813A Panel, Roof, RH
65814A Panel, Roof, LH
65820 Panel Sub-assy, Roof, Rear
65901 Vinyl Sub-assy, Top
65991 Pipe, Vinyl Top Guard, NO.1
65992 Pipe, Vinyl Top Guard, NO.2
65993 Pipe, Vinyl Top Guard, NO.3
65994 Pipe, Vinyl Top Guard
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
