Toyota Toyoace
1979-03 → 1985-07 · chassis RY2#,3#,LY2#,3#,JY30,BY3# · catalogue 731130 · Japan
Discontinued model
Data version 1986-05

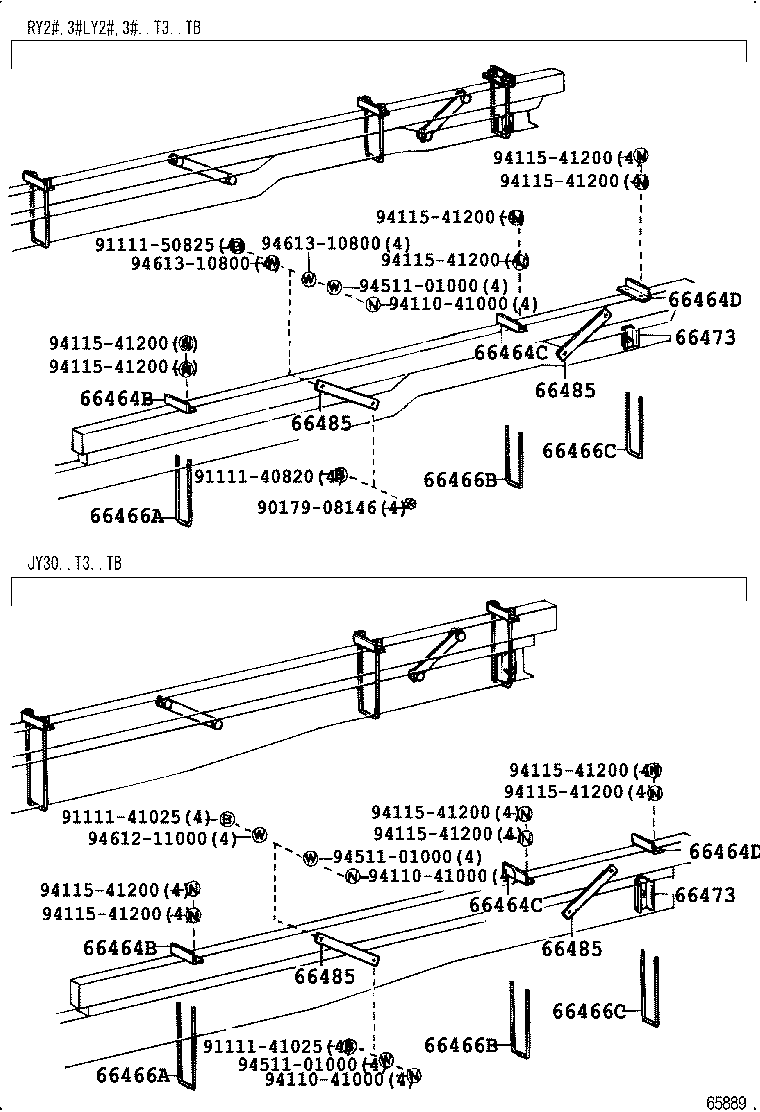

Rear Body Mounting
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 66418 | Bolt, Mounting |
| 66418B | Shim, Mounting |
| 66439 | Shim, Support |
| 66464B | Plate, U Bolt, NO.1 |
| 66464C | Plate, U Bolt, NO.2 |
| 66464D | Plate, U Bolt, NO.3 |
| 66466A | Bolt, U, NO.1 |
| 66466B | Bolt, U, NO.2 |
| 66466C | Bolt, U, NO.3 |
| 66473 | Block, U Bolt, NO.3 |
| 66485 | Plate, Body Slide Stop |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
