Toyota Toyoace

1979-03 → 1985-07 · chassis RY2#,3#,LY2#,3#,JY30,BY3# · catalogue 731130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

11 part groups · 2 illustrations

Illustrations

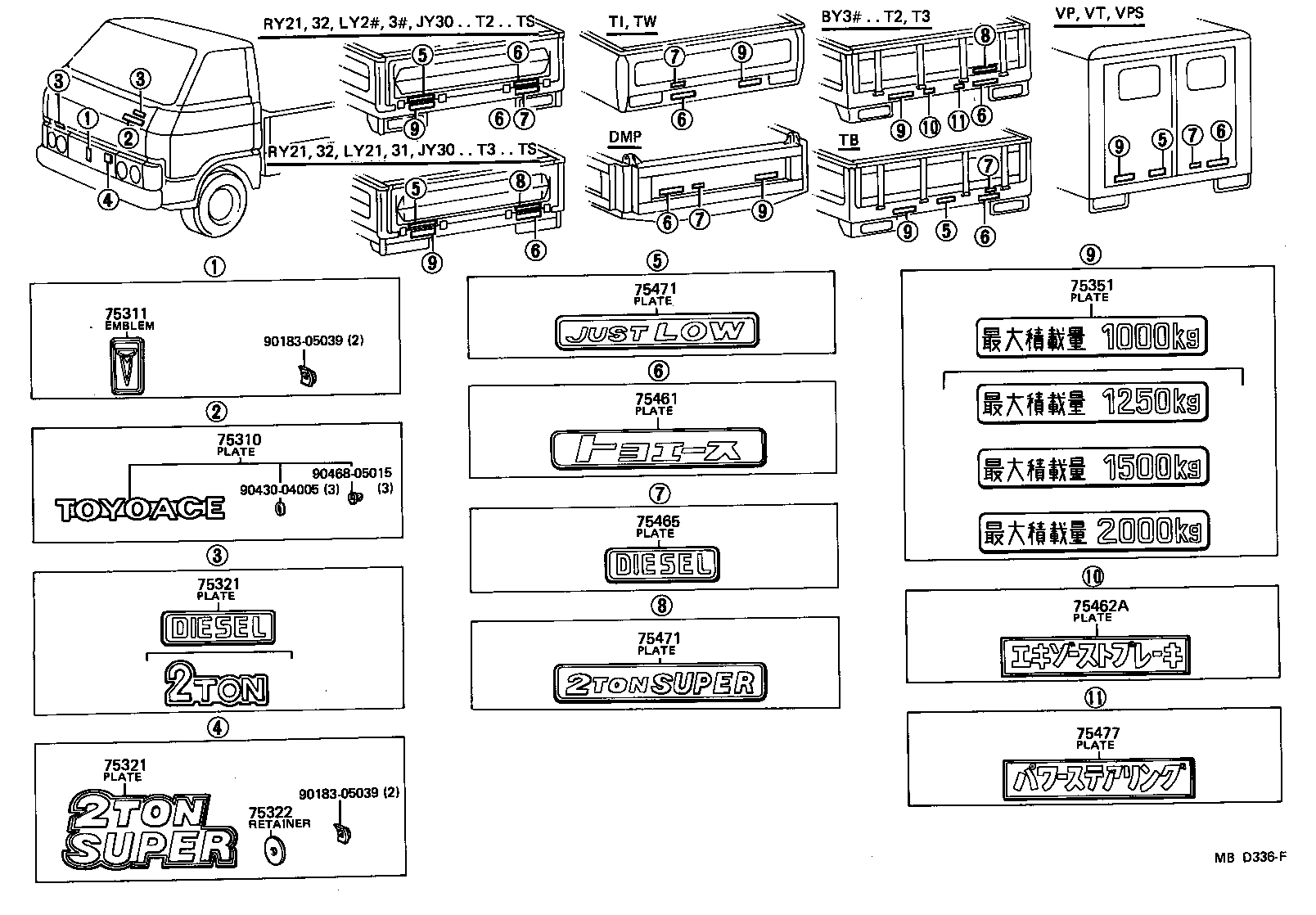

Figure MB8680H MB8680H 1979-03 → 1982-01 Figure MBD336F MBD336F 1982-01 → —

Part groups

PNCDescription
75310 Plate Assy, Front Panel
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75321 Plate, Radiator Grille OR Front Panel Name
75322 Retainer, Radiator Grille Name Plate
75351 Plate, Rear Name, NO.6 (MAXIMUM LOAD)
75371A Emblem, Quarter Panel
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75462A Plate, Exhaust Brake Mark
75465 Plate, Rear Name, NO.5 (MECHANISM)
75471 Plate, Rear Body Name, NO.1(MODEL MARK)
75477 Plate, Power Steering Mark
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
