Toyota Toyoace

1979-03 → 1985-07 · chassis RY2#,3#,LY2#,3#,JY30,BY3# · catalogue 731130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

10 part groups · 3 illustrations

Illustrations

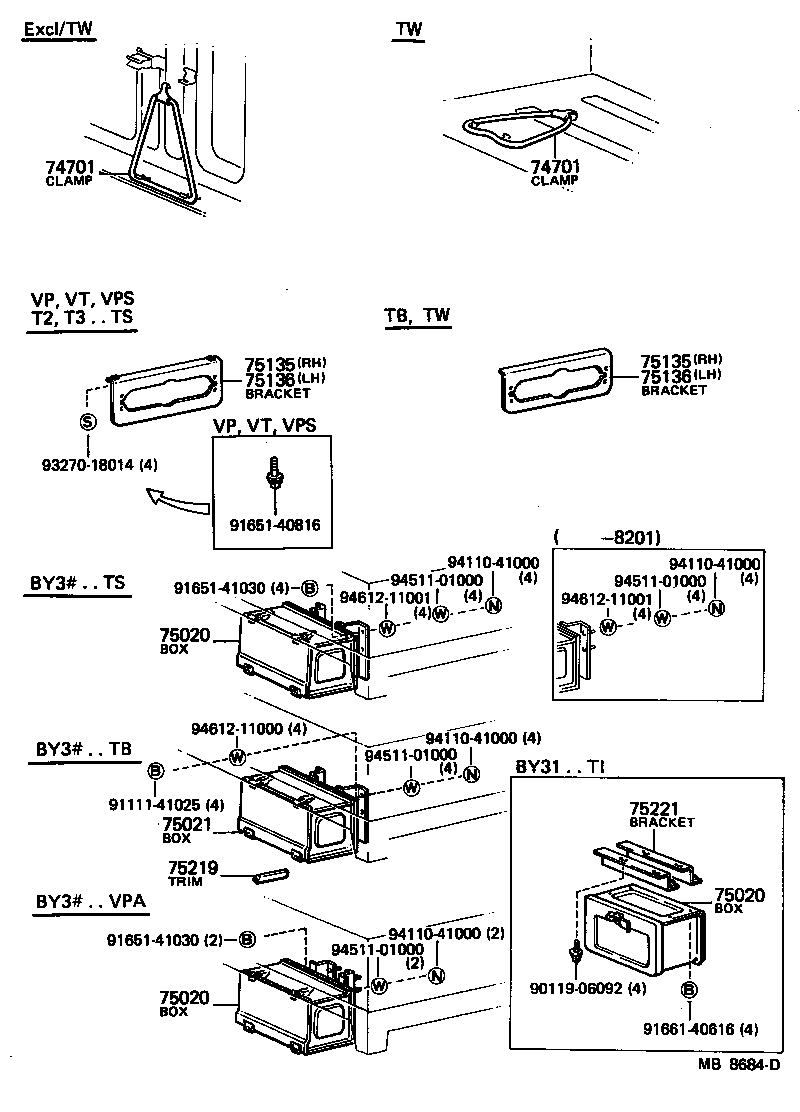

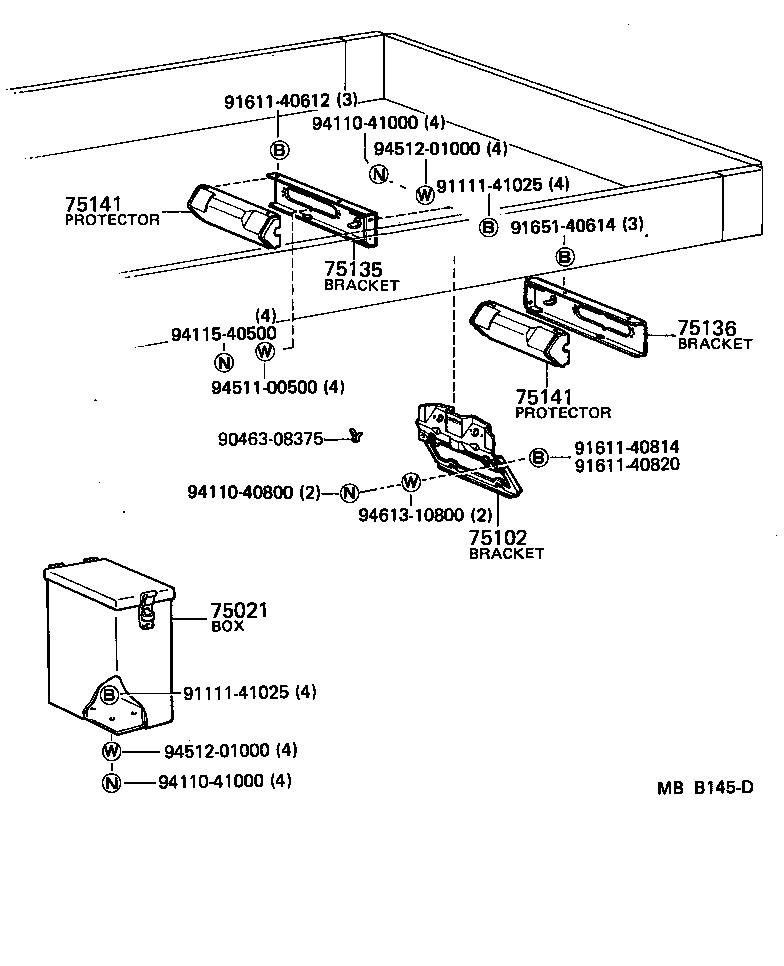

Figure MB8683E MB8683E 1979-03 → — Figure MB8684D MB8684D 1979-03 → — Figure MBB145D MBB145D 1980-04 → —

Part groups

PNCDescription
74701 Clamp Sub-assy, Tool Bag
75020 Box Assy, Tool
75021 Box Sub-assy, Tool
75102 Bracket Sub-assy, Rear License Plate
75126 Stay, Rear License Plate Bracket, Lower
75135 Bracket, Combination Rear Lamp, RH
75136 Bracket, Combination Rear Lamp, LH
75141 Protector, Rear Combination Lamp
75219 Trim, Cradle Jack
75221 Bracket, Tool Box
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
