Toyota Toyoace

1979-03 → 1985-07 · chassis RY2#,3#,LY2#,3#,JY30,BY3# · catalogue 731130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

20 part groups · 5 illustrations

Illustrations

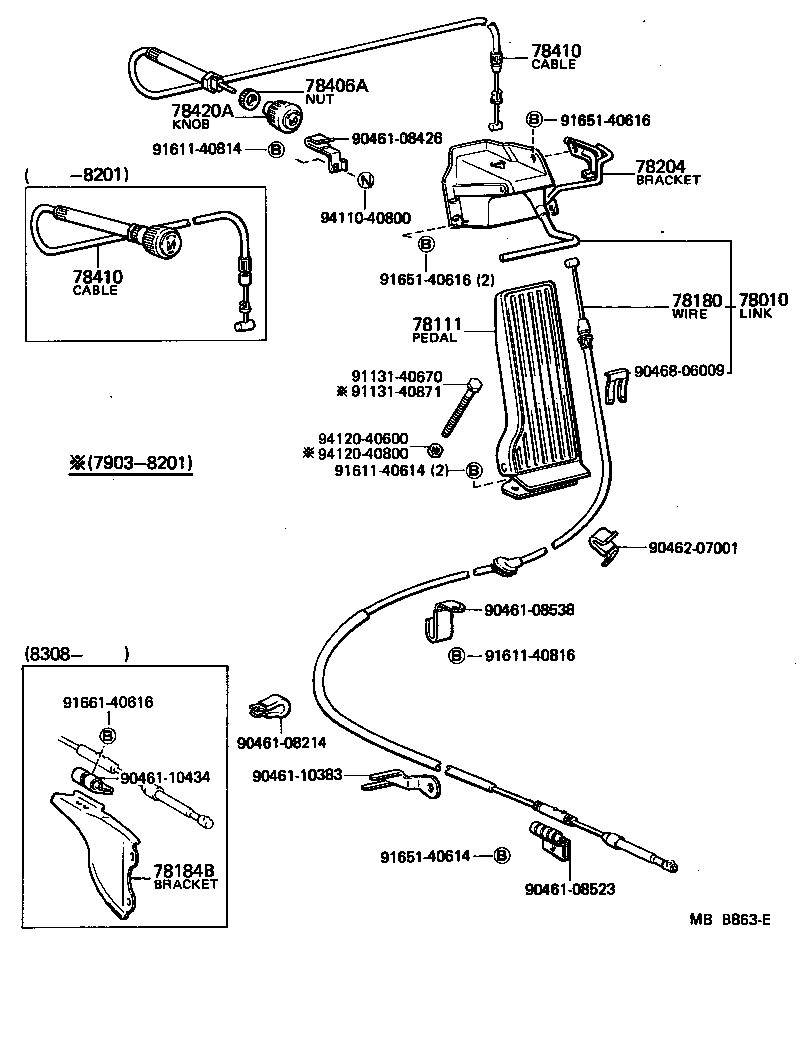

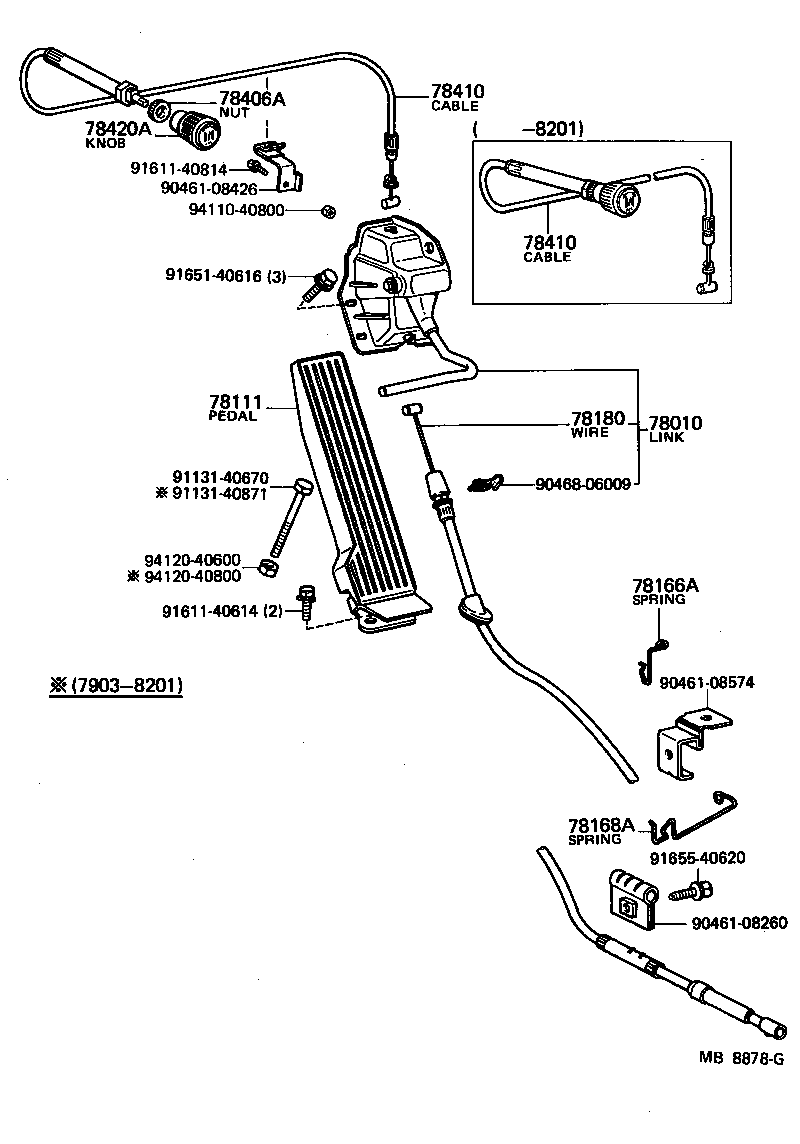

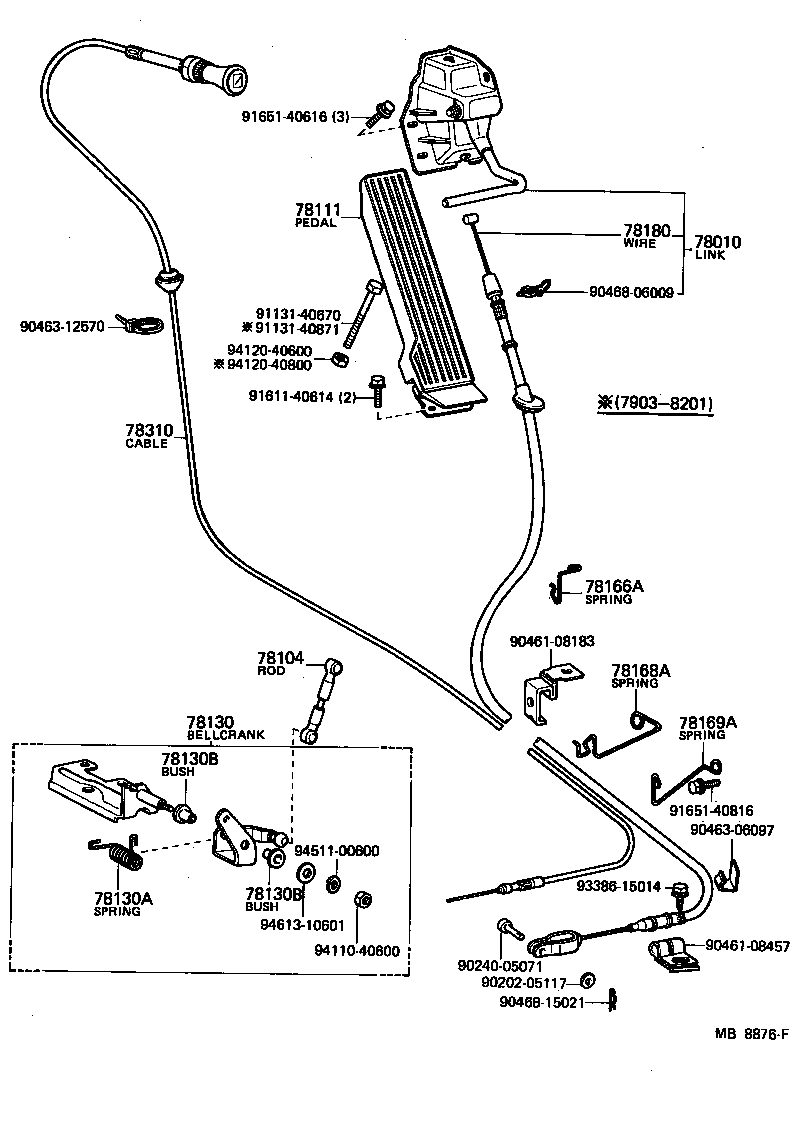

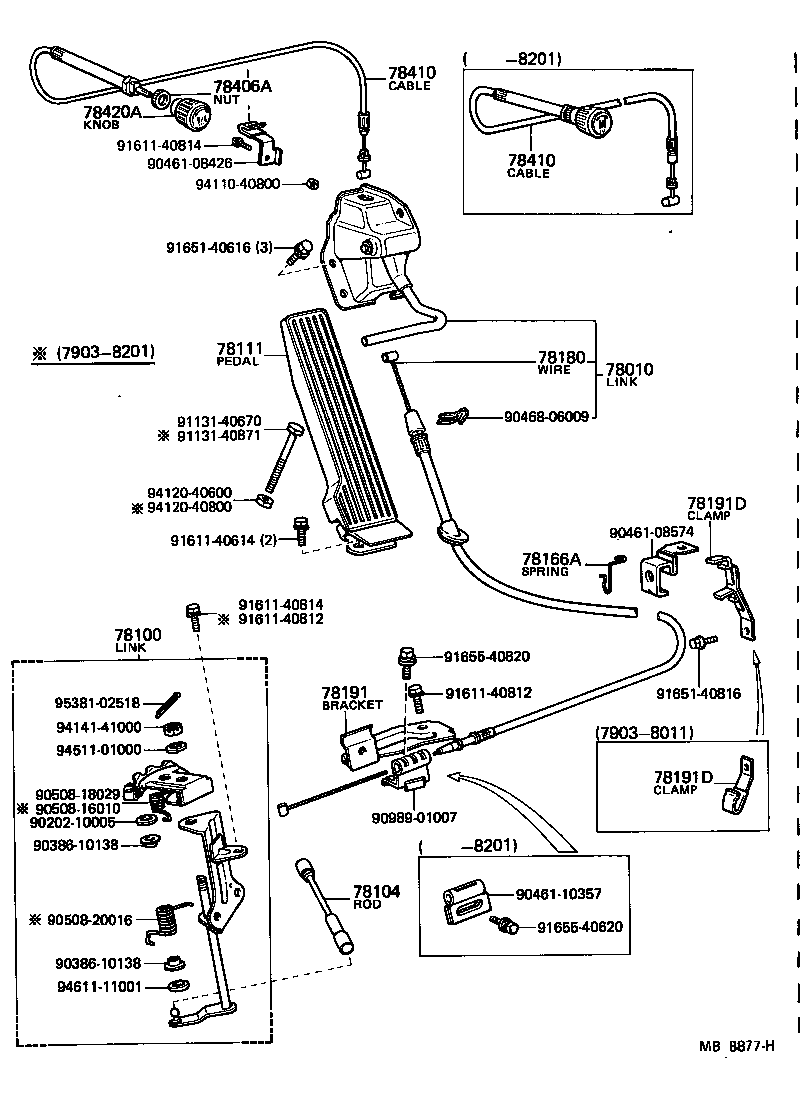

Figure MB8875F MB8875F 1979-03 → — Figure MB8876F MB8876F 1979-03 → — Figure MB8877H MB8877H 1979-03 → — Figure MB8878G MB8878G 1979-03 → 1983-08 Figure MBB863E MBB863E 1980-09 → —

Part groups

PNCDescription
78010 Link, Accelerator
78100 Link Assy, Accelerator
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78111 Pedal, Accelerator
78130 Bellcrank Assy, Accelerator
78130A Spring (FOR ACCELERATOR ROD RETURN)
78130B Bush, Accelerator Bellcrank
78166A Spring, Clamp, NO.1
78168A Spring, Clamp, NO.3
78169A Spring, Clamp, NO.4
78180 Wire Assy, Accelerator
78184B Bracket, Accelerator Control Cable
78191 Bracket, Accelerator Wire Support
78191D Clamp, Accelerator Control Cable
78204 Bracket Sub-assy, Accelerator Switch
78310 Cable Assy, Choke
78343 Bracket, Choke Rod
78406A Nut, Holder (FOR THROTTLE BUTTON)
78410 Cable Assy, Throttle Control
78420A Knob, Throttle Control Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
