Toyota Toyoace

1979-03 → 1985-07 · chassis RY2#,3#,LY2#,3#,JY30,BY3# · catalogue 731130 · Japan

Discontinued model Data version 1986-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

6 part groups · 2 illustrations

Illustrations

Figure ME7921

ME7921 1979-03 → 1982-01

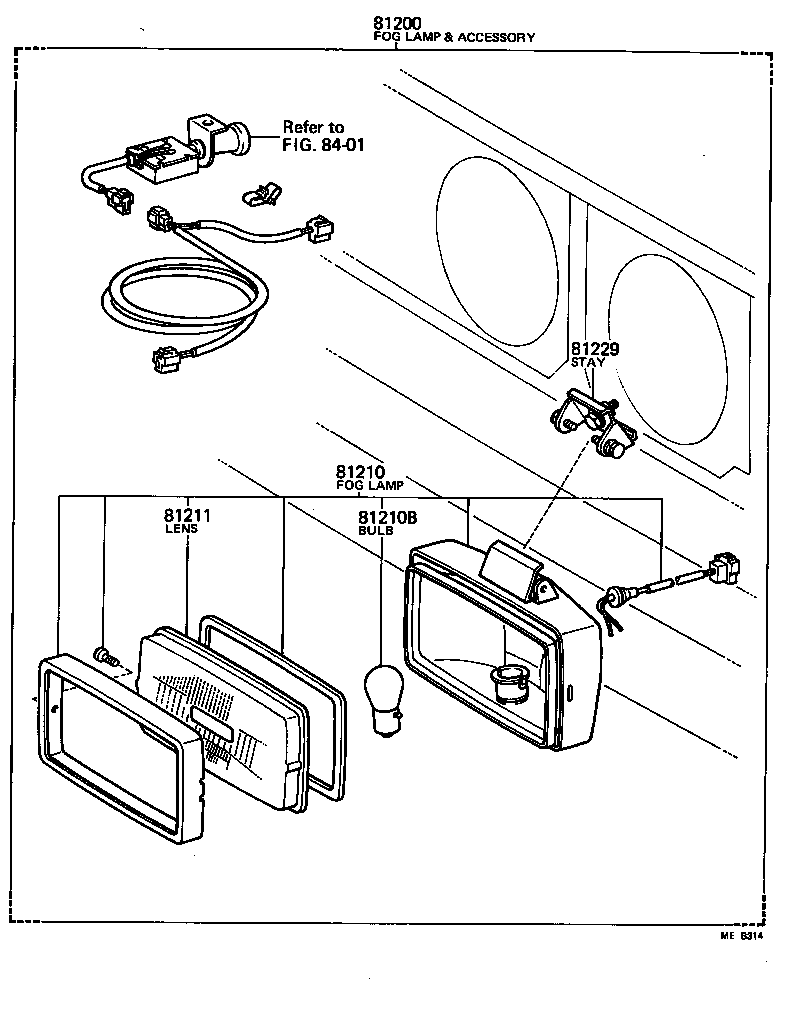

Figure MEB314

MEB314 1982-01 → —

Part groups

PNC	Description
81200	Lamp Assy, Fog
81210	Lamp Assy, Fog
81210B	Bulb, Fog Lamp
81211	Lens, Fog Lamp
81225	Cord, Fog Lamp
81229	Bracket, Fog Lamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
