Toyota Toyoace

1979-03 → 1985-07 · chassis RY2#,3#,LY2#,3#,JY30,BY3# · catalogue 731130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

10 part groups · 2 illustrations

Illustrations

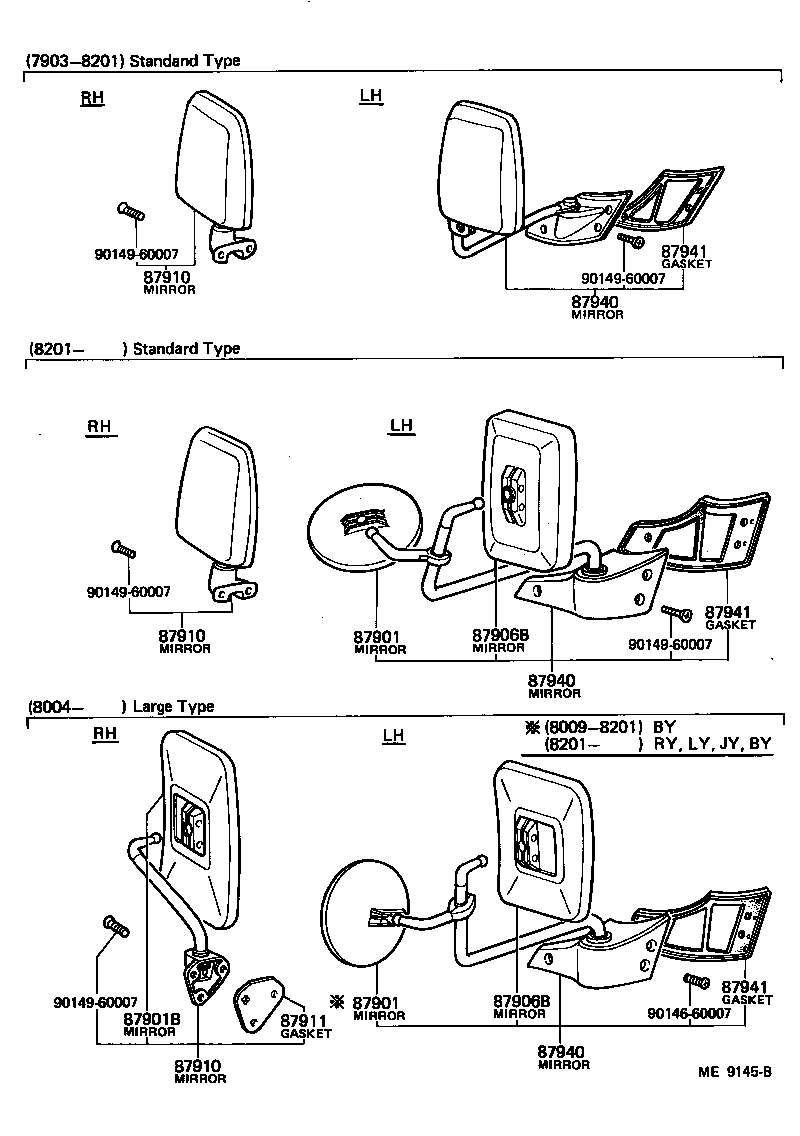

Figure ME9144 ME9144 1979-03 → — Figure ME9145B ME9145B 1979-03 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87810B Bulb, Inner Rear View Mirror Lamp
87827 Absorber, Inner Rear View Mirror
87901 Mirror Sub-assy, Outer Under View
87901B Mirror Sub-assy, Outer Rear View, RH
87906B Mirror Sub-assy, Outer Rear View, LH
87910 Mirror Assy, Outer Rear View, RH
87911 Gasket, Outer Rear View Mirror, RH
87940 Mirror Assy, Outer Rear View, LH
87941 Gasket, Outer Rear View Mirror, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
