Toyota Toyoace

1979-03 → 1985-07 · chassis RY2#,3#,LY2#,3#,JY30,BY3# · catalogue 731130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Set

4 part groups · 3 illustrations

Illustrations

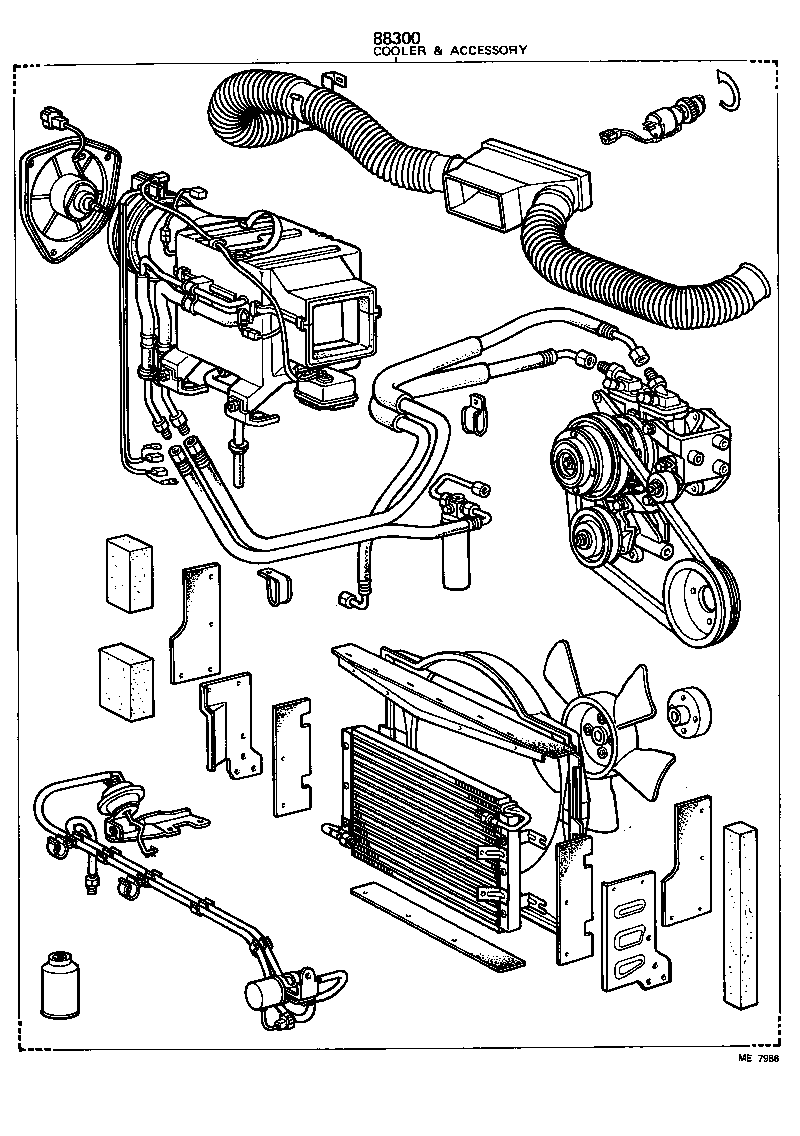

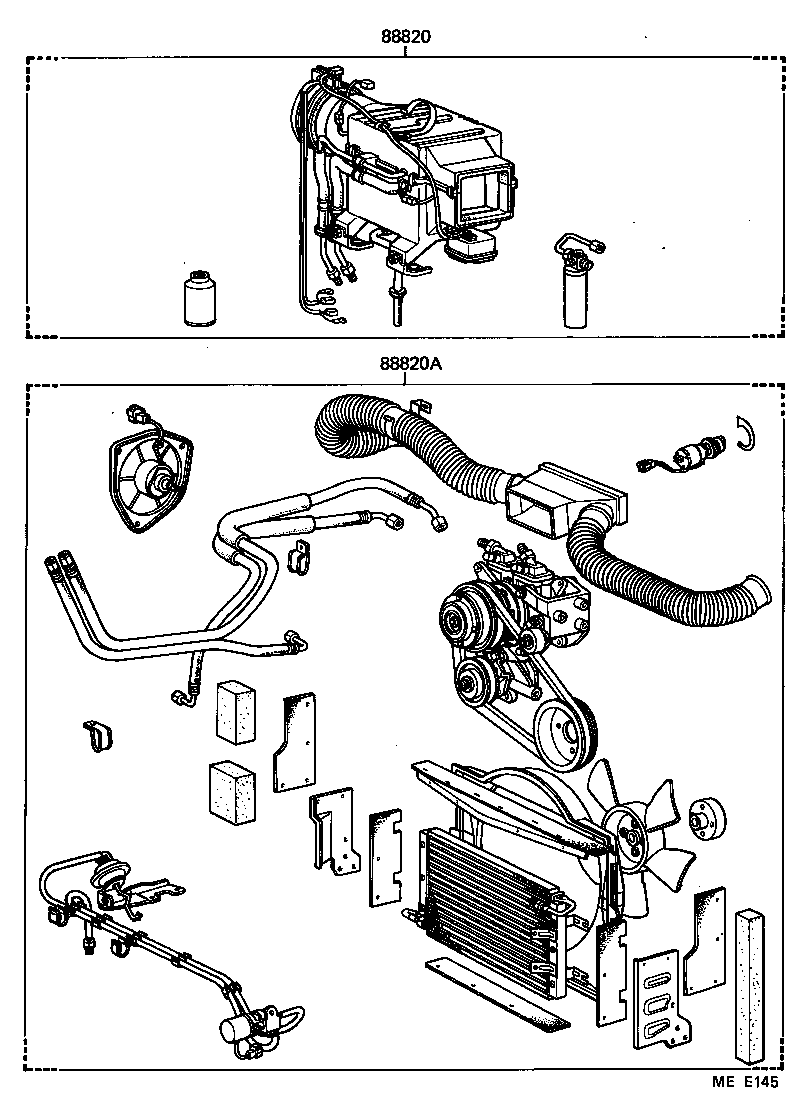

Figure ME7774A ME7774A 1979-03 → — Figure ME7966 ME7966 1979-03 → — Figure MEE145 MEE145 1983-08 → —

Part groups

PNCDescription
87200 Heater & Accessory, Rear
88300 Cooler & Accessory Assy
88820 Air Conditioner & Accessory Sub-assy, NO.1
88820A Air Conditioner & Accessory Sub-assy, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
