Toyota Toyoace

1979-03 → 1985-07 · chassis RY2#,3#,LY2#,3#,JY30,BY3# · catalogue 731130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

16 part groups · 4 illustrations

Illustrations

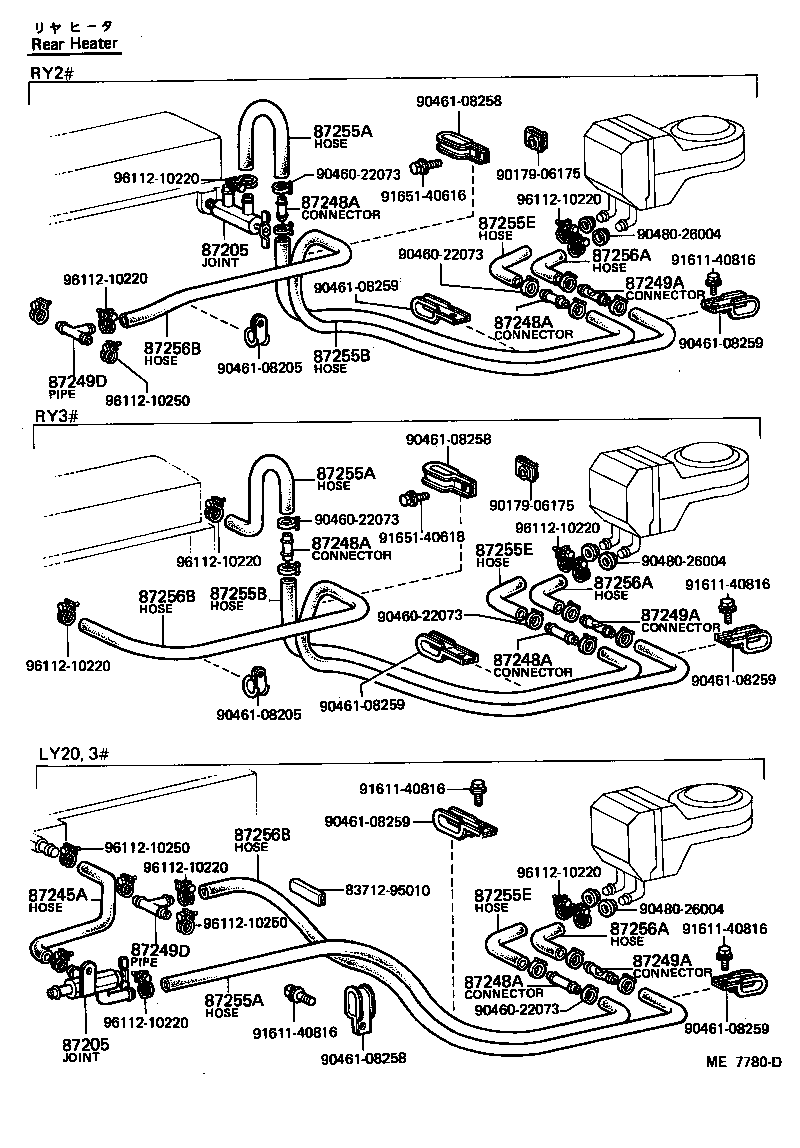

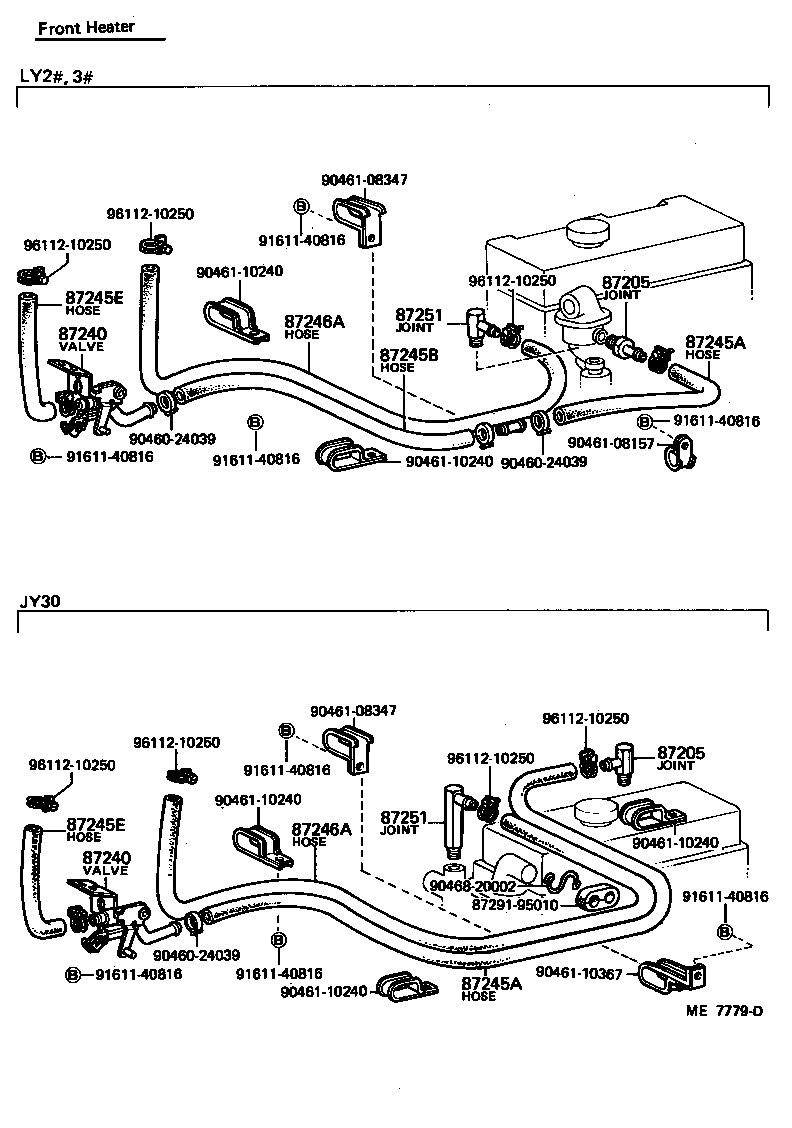

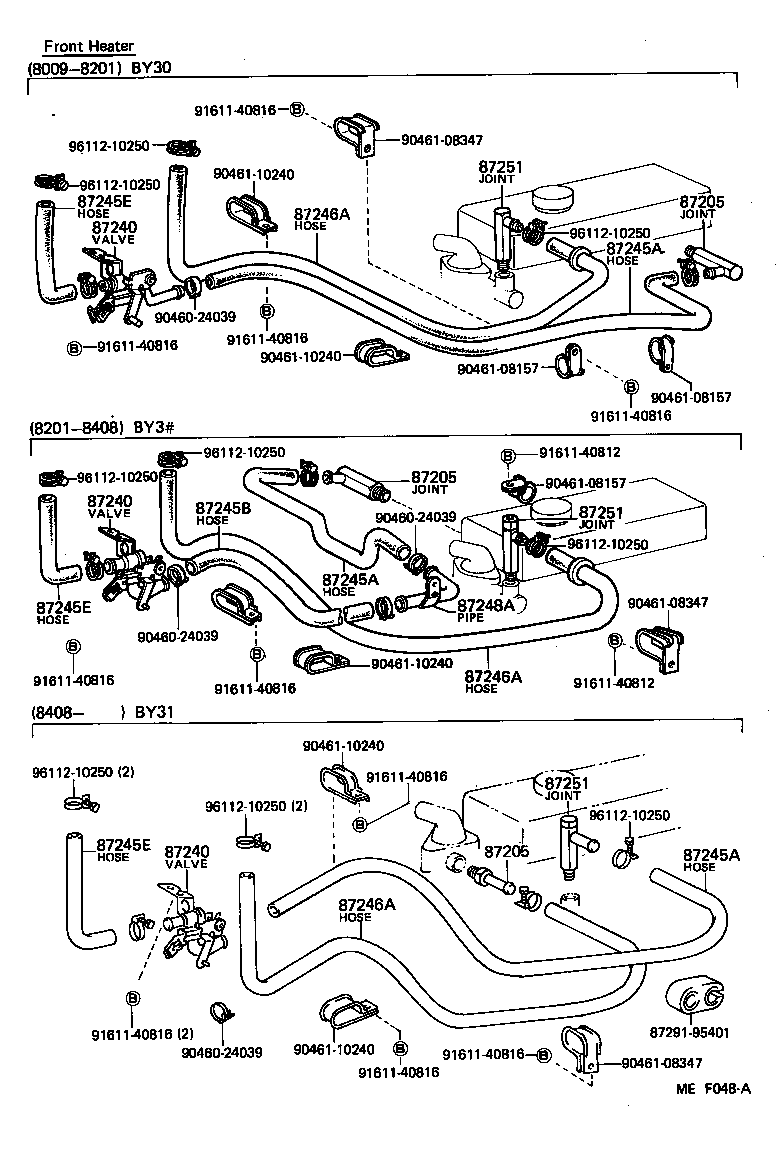

Figure MEB279B MEB279B 1979-03 → — Figure ME7779D ME7779D 1979-03 → — Figure MEF048A MEF048A 1980-09 → — Figure ME7780D ME7780D 1979-03 → —

Part groups

PNCDescription
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
87249D Pipe, Heater Water Outlet, D
87251 Joint OR Union, Water Hose Through
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87264 Bracket, Heater Water Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
