Toyota Toyoace

1979-03 → 1985-07 · chassis RY2#,3#,LY2#,3#,JY30,BY3# · catalogue 731130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

9 part groups · 4 illustrations

Illustrations

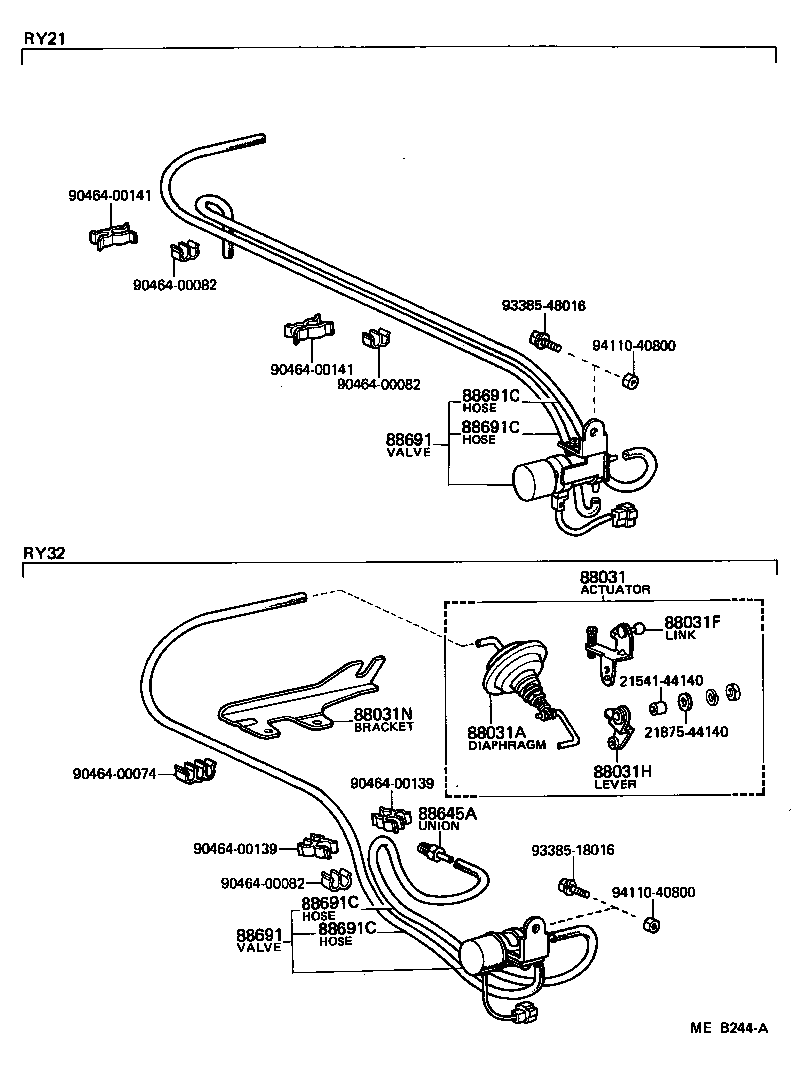

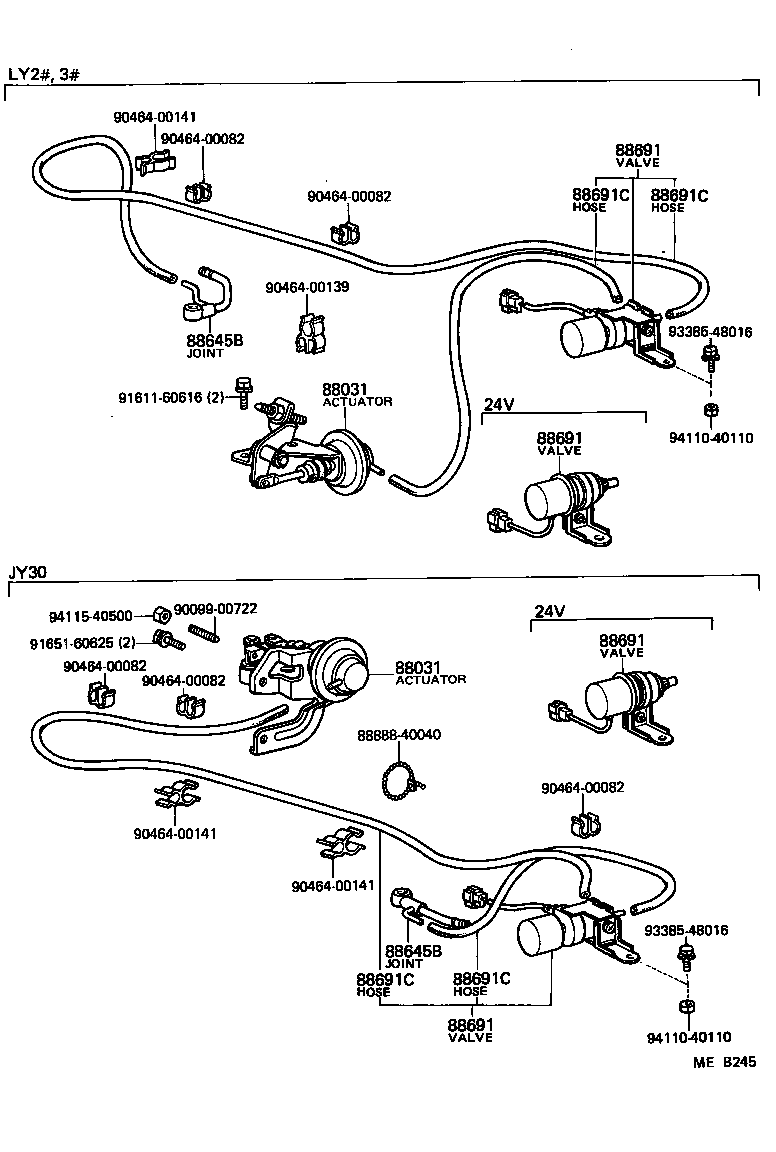

Figure ME7967A ME7967A 1979-03 → 1982-01 Figure MEB244A MEB244A 1982-01 → — Figure MEB245 MEB245 1979-03 → — Figure MEB911A MEB911A 1982-01 → —

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88031F Link(FOR IDLE-UP ACTUATOR)
88031H Lever(FOR IDLE-UP ACTUATOR)
88031N Bracket, Idle-up Actuator
88645A Union (FOR IDLE UP DEVICE)
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
