Toyota Toyoace

1979-03 → 1985-07 · chassis RY2#,3#,LY2#,3#,JY30,BY3# · catalogue 731130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

19 part groups · 6 illustrations

Illustrations

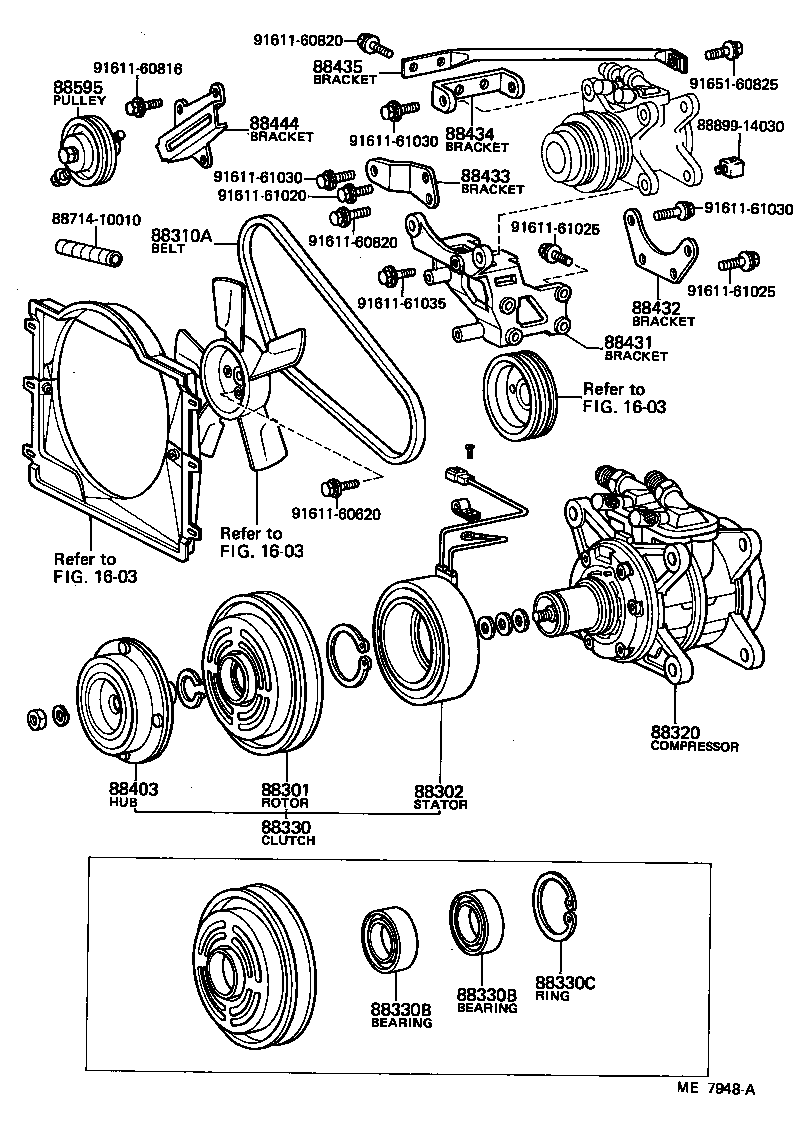

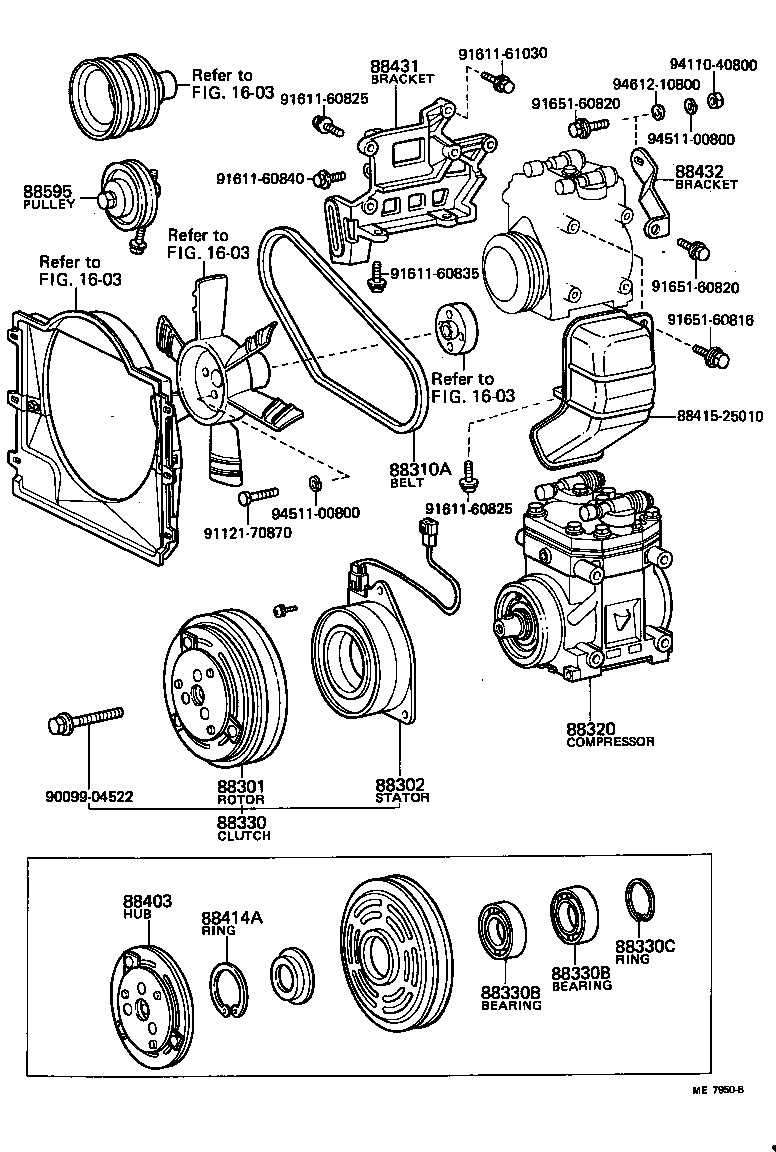

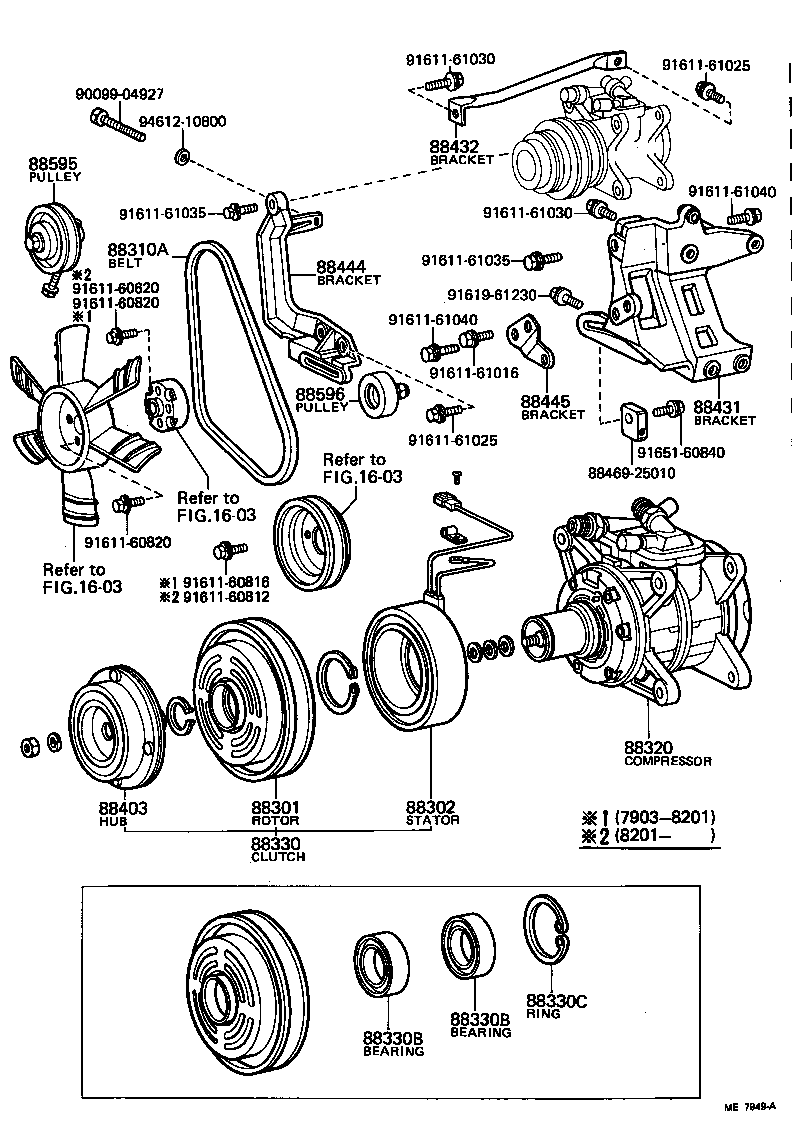

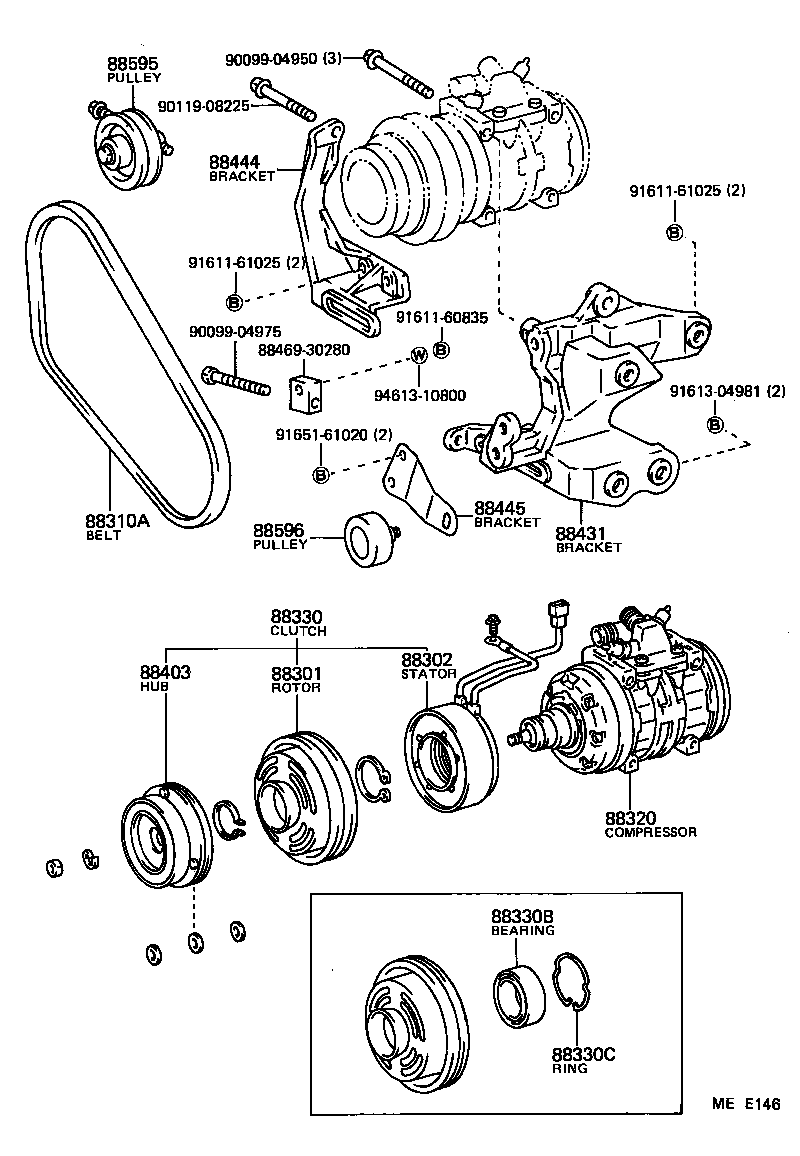

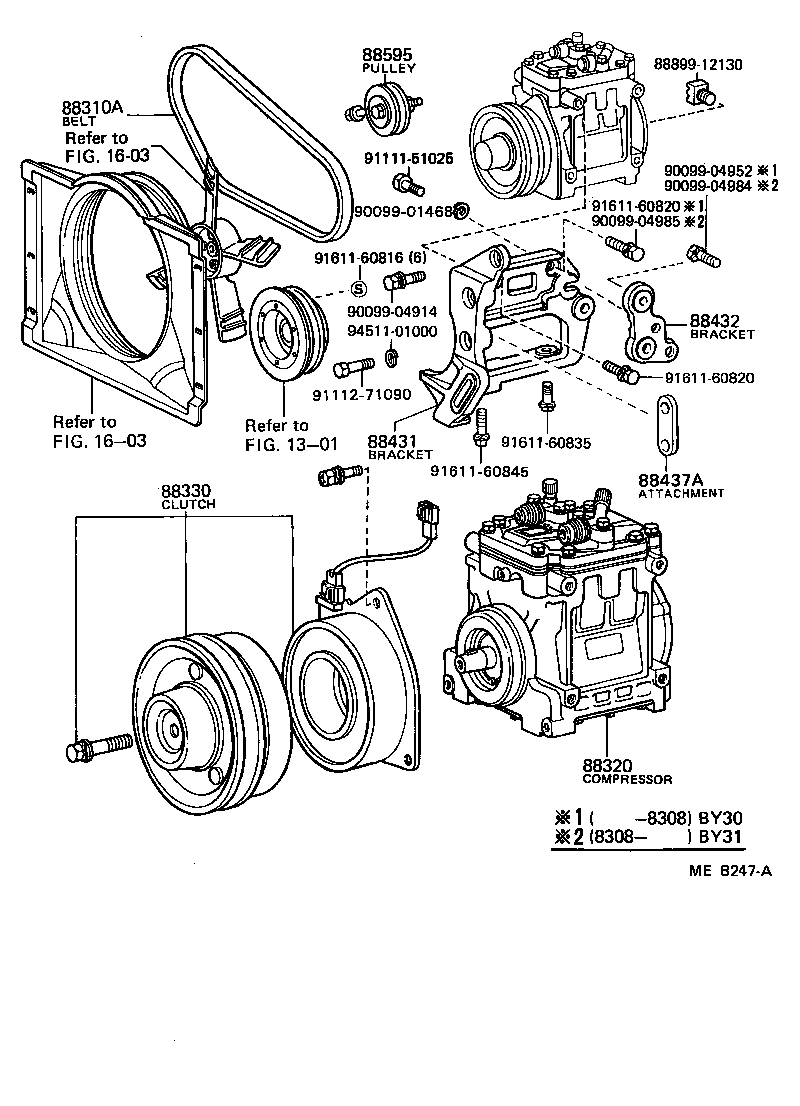

Figure ME7947A ME7947A 1979-03 → — Figure ME7948A ME7948A 1979-03 → — Figure ME7949A ME7949A 1979-03 → 1983-08 Figure MEE146 MEE146 1983-08 → — Figure ME7950B ME7950B 1979-03 → — Figure MEB247A MEB247A 1980-09 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88310A Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
88320 Compressor Assy, Cooler
88330 Clutch Assy, Magnet
88330B Bearing, Magnet Clutch
88330C Ring, Snap (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88414A Ring, Shield Snap
88431 Bracket, Compressor Mounting, NO.1
88432 Bracket, Compressor Mounting, NO.2
88433 Bracket, Compressor Mounting, NO.3
88434 Bracket, Compressor Mounting, NO.4
88435 Bracket, Compressor Mounting, NO.5
88437A Attachment, Compressor
88444 Bracket, Idle Pulley
88445 Bracket, Idle Pulley
88595 Pulley, Cooler Compressor Idle
88596 Pulley Assy, Idle, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
