Toyota Toyoace/Dyna

1985-08 → 1987-08 · chassis YY5#,61,LY50,60 · catalogue 731140 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

33 part groups · 4 illustrations

Illustrations

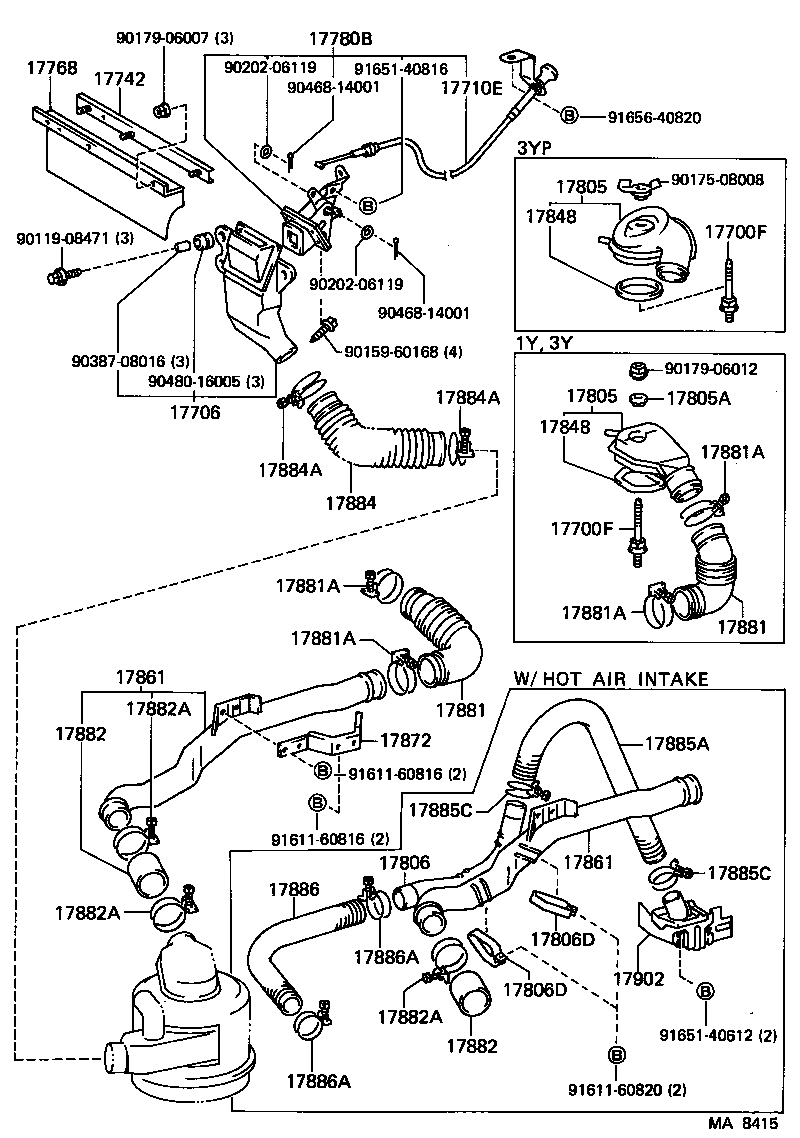

Figure MA8414B MA8414B 1985-08 → — Figure MA8415 MA8415 1985-08 → — Figure MA8414B MA8414B 1985-08 → — Figure MA8415 MA8415 1985-08 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17700X Bracket, Air Cleaner
17701 Case Sub-assy, Air Cleaner
17706 Inlet Sub-assy, Air Cleaner, NO.2
17710E Cable Sub-assy
17736 Nut, Air Cleaner Case
17742 Plate, Air Cleaner Inlet Cover
17768 Cover, Air Cleaner Inlet
17780B Bracket Sub-assy, Air Cleaner Shutter
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805A Gasket & Washer, Seal
17806 Pipe Sub-assy, Air Cleaner, NO.2
17806D Clamp(FOR AIR CLEANER PIPE)
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17861 Connector, Intake Air
17872 Bracket, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17884 Hose, Air Cleaner, NO.4
17884A Clamp(FOR AIR CLEANER HOSE, NO.4)
17885A Hose, Air Cleaner, NO.5
17885C Clamp(FOR AIR CLEANER HOSE, NO.5)
17886 Hose, Air Cleaner, NO.6
17886A Clamp(FOR AIR CLEANER HOSE, NO.6)
17902 Inlet Sub-assy, Hot Air Intake, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
