Toyota Toyoace/Dyna
1985-08 → 1987-08 · chassis YY5#,61,LY50,60 · catalogue 731140 · Japan
Discontinued model
Data version 1987-12

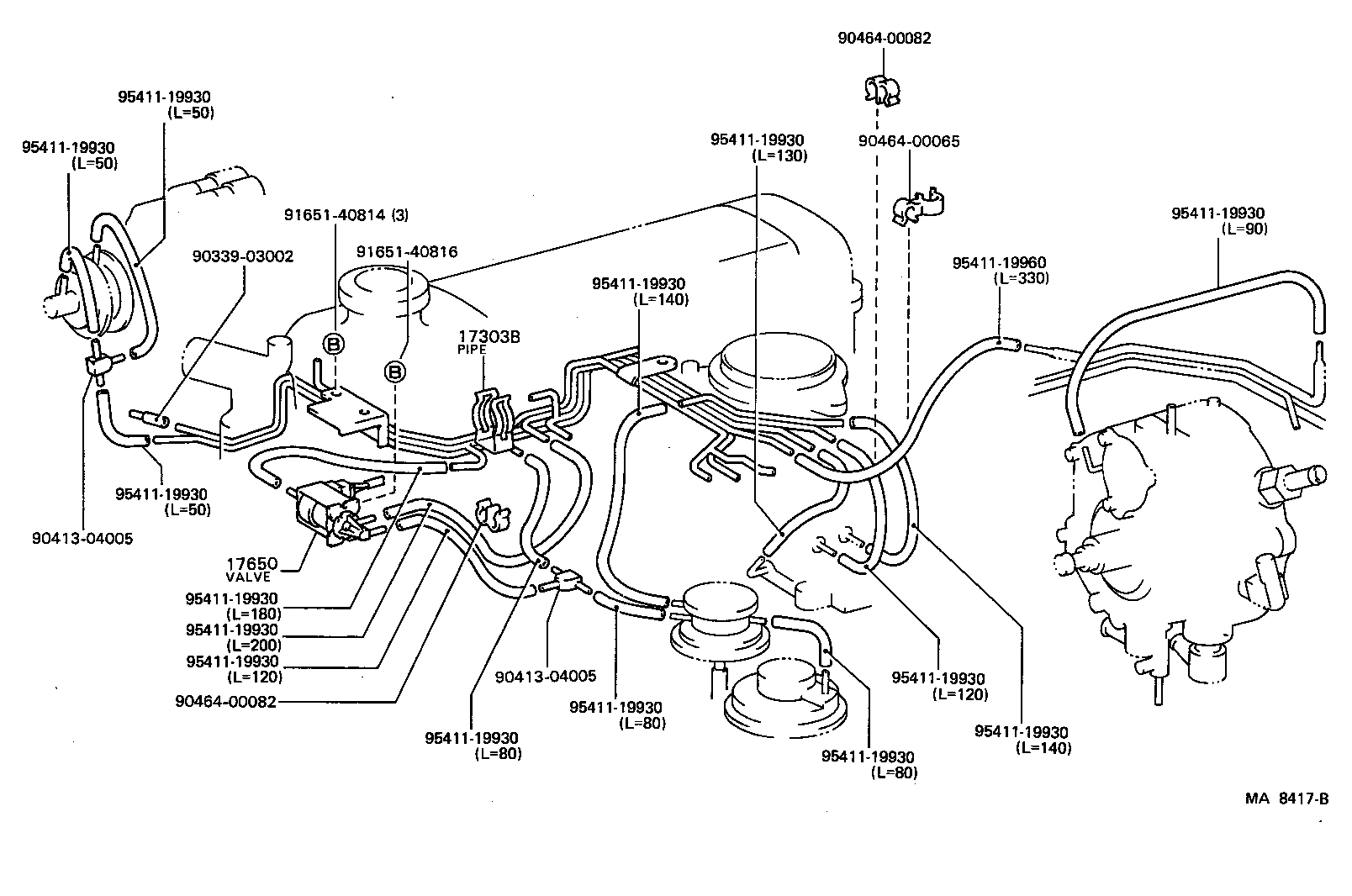

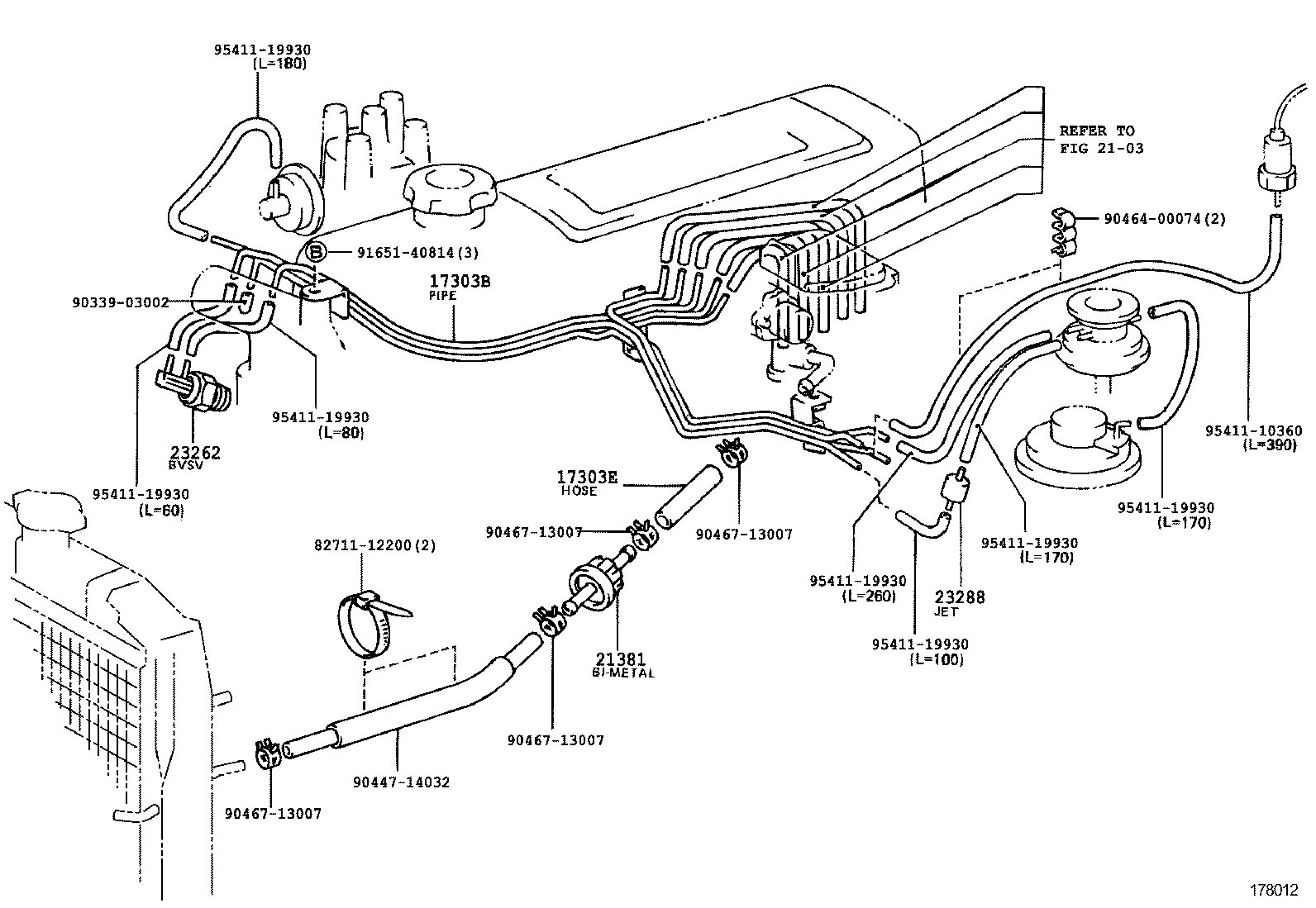

Vacuum Piping
6 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17303B | Pipe Sub-assy, Air, NO.1 |
| 17303E | Hose, NO.1(FOR AIR PIPE) |
| 17650 | Valve Assy, Vacuum Switching |
| 21381 | Bimetal, Thermostatic |
| 23262 | Valve, Bimetal Vacuum Switching, NO.1 |
| 23288 | Jet, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
