Toyota Toyoace/Dyna
1985-08 → 1987-08 · chassis YY5#,61,LY50,60 · catalogue 731140 · Japan
Discontinued model
Data version 1987-12

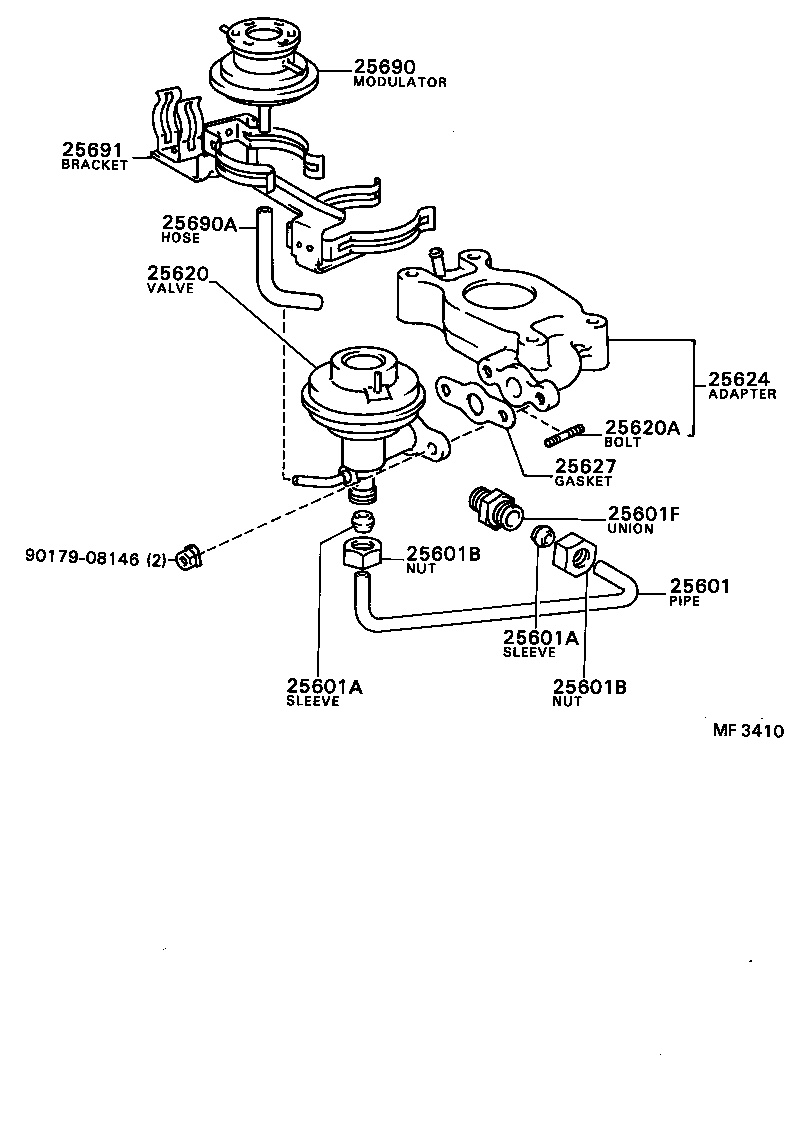

Exhaust Gas Recirculation System
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 25601 | Pipe Sub-assy, Egr, NO.1 |
| 25601A | Sleeve, Ball, Egr Pipe, NO.1 |
| 25601B | Nut, Union, Egr Pipe, NO.1 |
| 25601F | Union(FOR EGR PIPE, NO.1) |
| 25620 | Valve Assy, Egr |
| 25620A | Bolt, Stud(FOR EGR VALVE) |
| 25624 | Adapter, Egr Valve |
| 25627 | Gasket, Egr Valve |
| 25690 | Modulator Assy, Egr Vacuum |
| 25690A | Hose(FOR EGR VACUUM MODULATOR) |
| 25691 | Bracket, Egr Vacuum Modulator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
