Toyota Toyoace/Dyna
1985-08 → 1987-08 · chassis YY5#,61,LY50,60 · catalogue 731140 · Japan
Discontinued model
Data version 1987-12

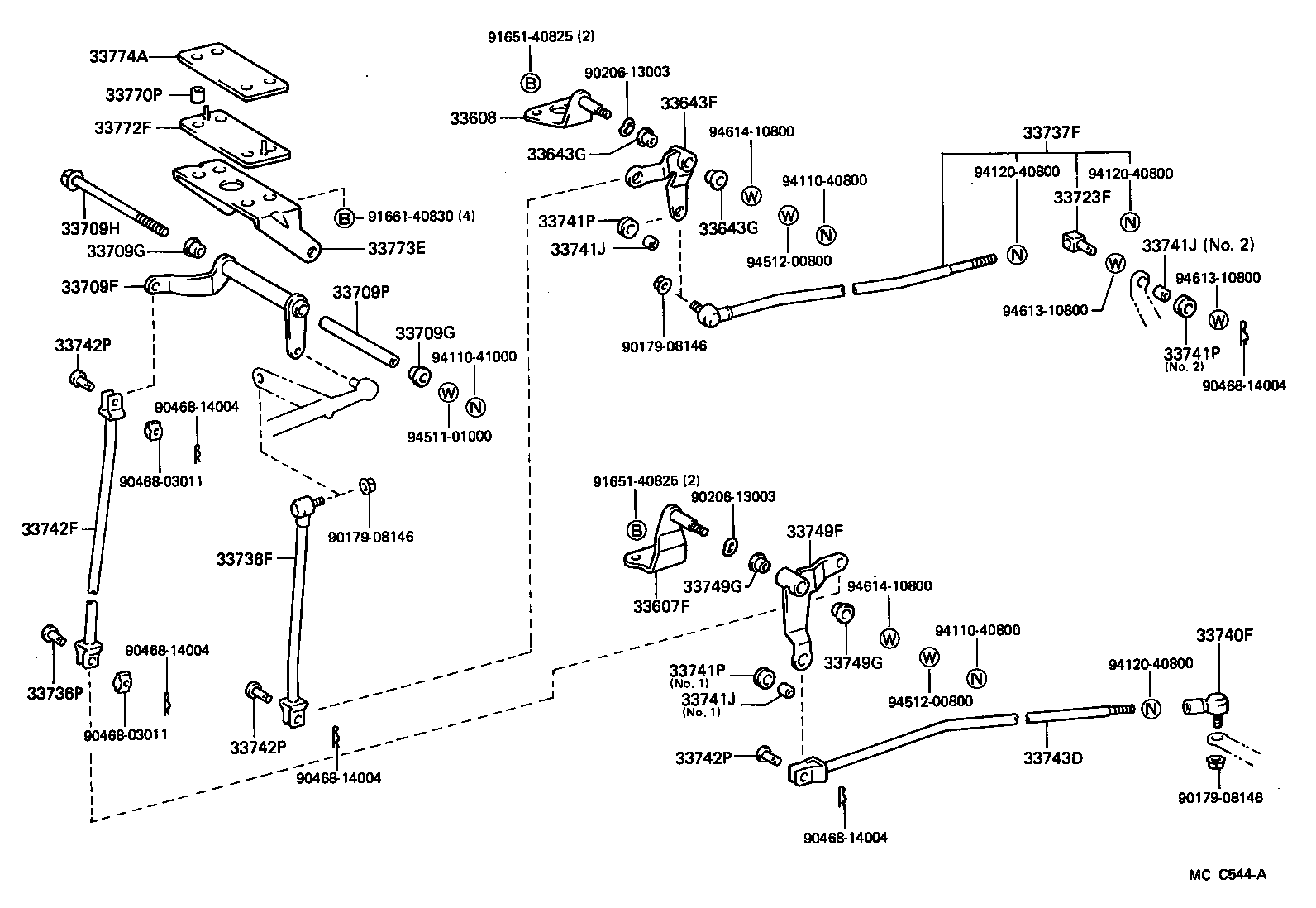

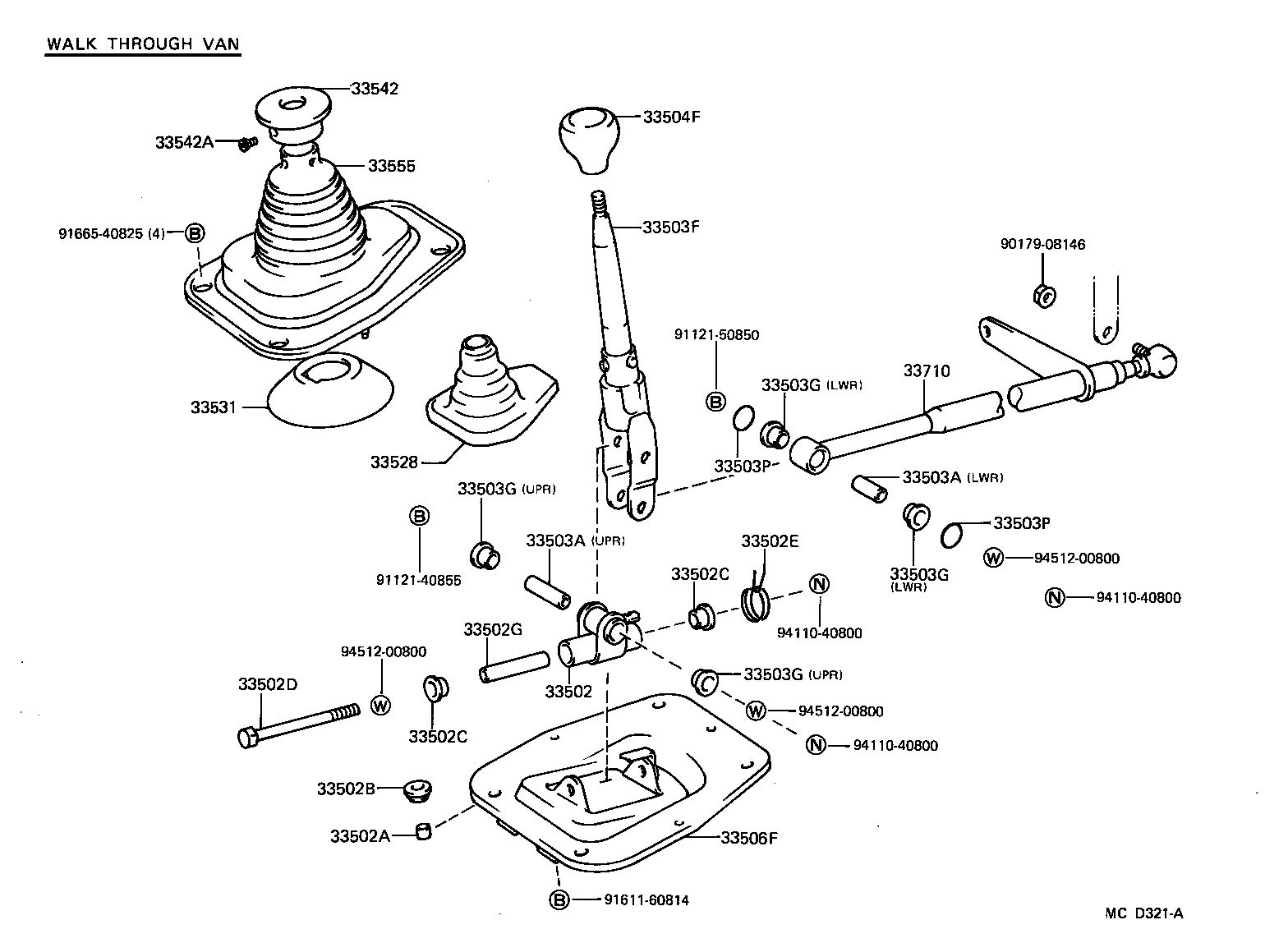

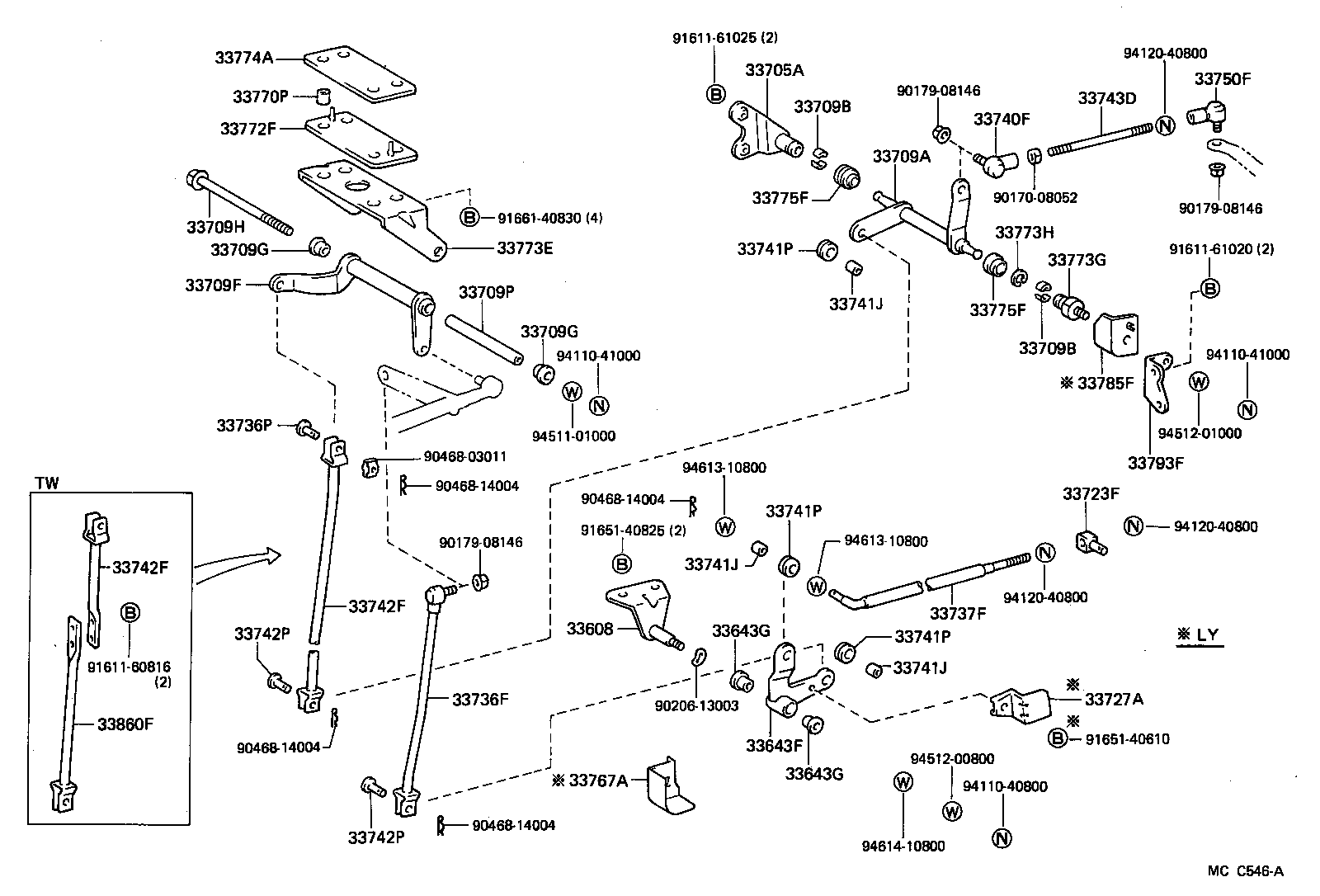

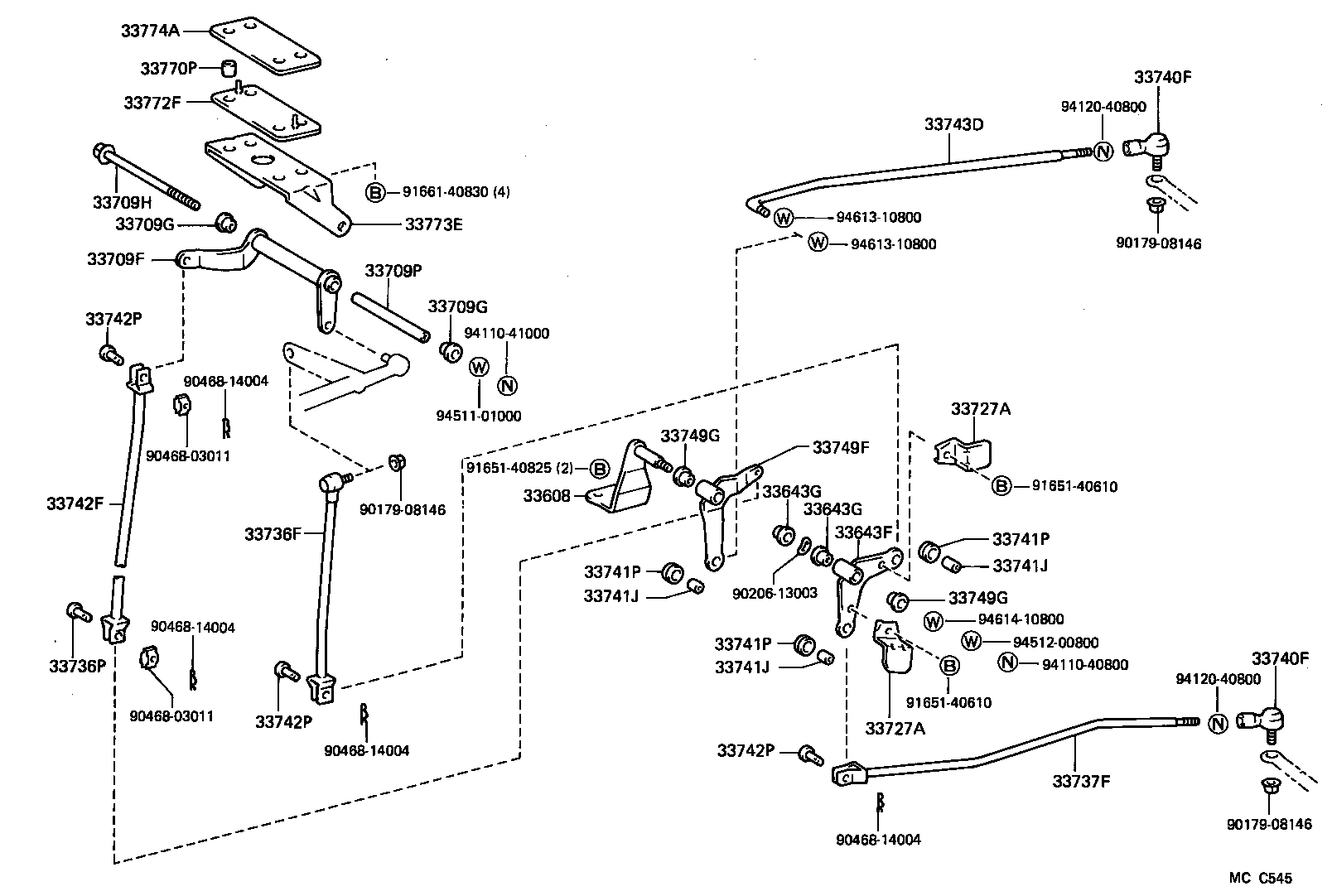

Shift Lever & Retainer
55 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 33502 | Plate Sub-assy, Shift Lever |
| 33502A | Collar (FOR FLOOR SHIFT SETTING) |
| 33502B | Grommet (FOR SHIFT LEVER PLATE) |
| 33502C | Bush (FOR FLOOR SHIFT SETTING) |
| 33502D | Bolt, Hexagon (FOR SHIFT LEVER PLATE) |
| 33502E | Spring, Torsion (FOR SHIFT LEVER PLATE) |
| 33502G | Collar (FOR SHIFT LEVER PLATE) |
| 33503A | Collar(FOR SHIFT LEVER) |
| 33503F | Lever Sub-assy, Shift(FOR FLOOR SHIFT) |
| 33503G | Bush(FOR SHIFT LEVER) |
| 33503P | Ring, O(FOR SHIFT LEVER) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33506F | Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT) |
| 33528 | Cover, Control Shaft |
| 33531 | Boot, Dust (FOR CONTROL SHIFT LEVER) |
| 33542 | Knob, Spring Back Shift Lever |
| 33542A | Screw, W/Washer(FOR SPRING BACK SHIFT LEVER KNOB) |
| 33555 | Boot, Shift Lever |
| 33607F | Support Sub-assy, Control Rod (FOR FLOOR SHIFT) |
| 33608 | Support Sub-assy, Selecting Bellcrank |
| 33643F | Lever, Gear Selecting, NO.3 |
| 33643G | Bush (FOR GEAR SELECTING LEVER) |
| 33705A | Support Sub-assy, Cross Shaft |
| 33709A | Shaft Sub-assy, Cross |
| 33709B | Bush (FOR CROSS SHAFT) |
| 33709F | Shaft Sub-assy, Cross, NO.1 (FOR FLOOR SHIFT) |
| 33709G | Bush (For Cross Shaft, NO.1 |
| 33709H | Bolt, Hexagon (FOR CROSS SHAFT) |
| 33709P | Collar (FOR CROSS SHAFT) |
| 33710 | Rod Assy, Gear Shifting, NO.1 |
| 33723F | Swivel, Connecting Rod (FOR FLOOR SHIFT) |
| 33727A | Insulator Connecting Rod Bush Heat |
| 33736F | Rod, Gear Selecting, NO.2(FOR FLOOR SHIFT) |
| 33736P | Pin, W/Hole(FOR GEAR SELECTING NO.2 ROD) |
| 33737F | Rod, Gear Selecting, NO.3 (FOR FLOOR SHIFT) |
| 33740F | End Assy, Connecting Rod, NO.1(FOR FLOOR SHIFT) |
| 33741J | Bush, NO.2 (FOR SHIFTING OR SELECTING ROD) |
| 33741P | Grommet, NO.2 (FOR SHIFTING OR SELECTING ROD) |
| 33742F | Rod, Gear Shifting, NO.2(FOR FLOOR SHIFT) |
| 33742P | Pin, W/Hole |
| 33743D | Rod, Gear Shifting, NO.3 (FOR FLOOR SHIFT) |
| 33749F | Lever, Gear Shift, NO.3 (FOR FLOOR SHIFT) |
| 33749G | Bush (FOR FLOOR SHIFT GEAR SHIFTING LEVER) |
| 33750F | End, Connecting Rod, NO.2 (FOR FLOOR SHIFT) |
| 33767A | Insulator, Connecting Rod Heat (FOR FLOOR SHIFT) |
| 33770P | Coller (FOR CROSS SHAFT) |
| 33772F | Bush, Cross Shaft Support, NO.1 (FOR FLOOR SHIFT) |
| 33773E | Support, Cross Shaft, NO.1 |
| 33773G | Support, Cross Shaft |
| 33773H | Ring, Snap (FOR CROSS SHAFT SUPPORT SNAP) |
| 33774A | Support, Cross Shaft, NO.2 |
| 33775F | Cover, Cross Shaft Dust, NO.1 (FOR FLOOR SHIFT) |
| 33785F | Insulator, Cross Shaft Lever Heat, NO.1 (FOR FLOOR SHIFT) |
| 33793F | Bracket, Cross Shaft, NO.2(FOR FLOOR SHIFT) |
| 33860F | Rod Assy, Gear Shifting, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
