Toyota Toyoace/Dyna
1985-08 → 1987-08 · chassis YY5#,61,LY50,60 · catalogue 731140 · Japan
Discontinued model
Data version 1987-12

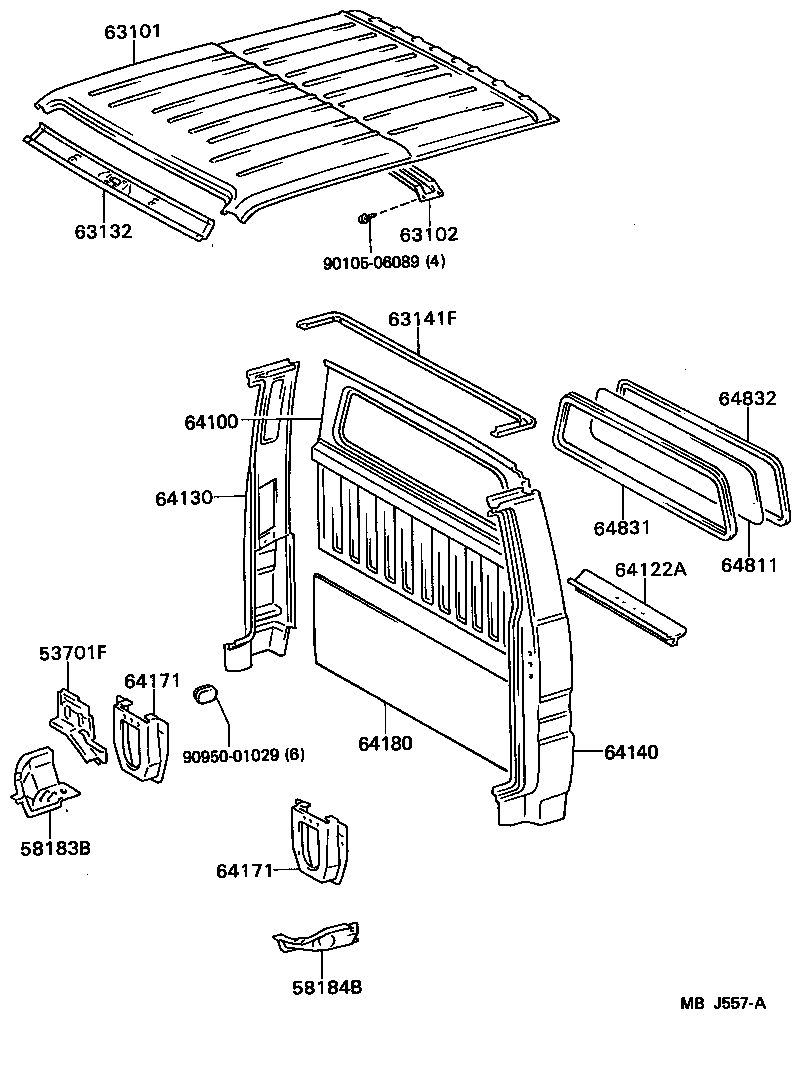

Roof Panel & Back Panel
35 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53701F | Apron Sub-assy, Front Fender, NO.2 RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53702F | Apron Sub-assy, Front Fender, NO.2 LH |
| 58183B | Reinforcement, Rear Mounting, RH |
| 58184B | Reinforcement, Rear Mounting, LH |
| 58236D | Bracket, Clutch Tube |
| 59192 | Bracket, Noise Shutter, NO.2 |

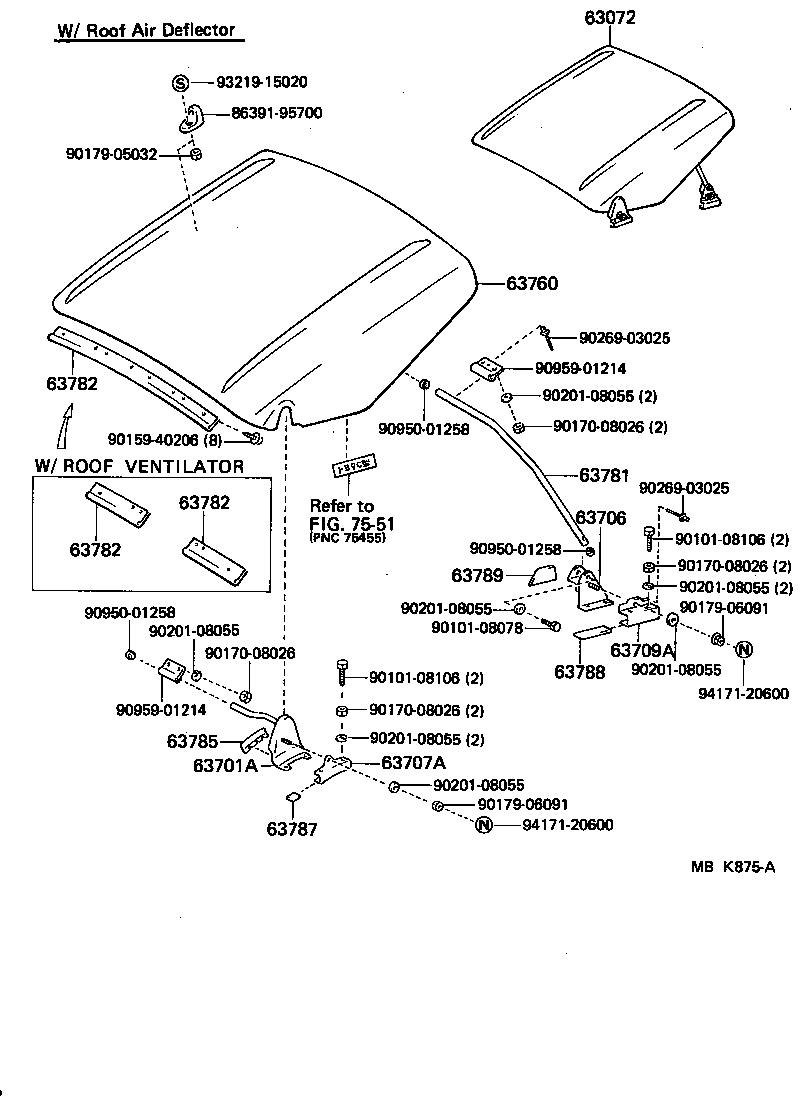

| 63072 | Deflector Set, Roof Air |
| 63101 | Panel Sub-assy, Roof |
| 63102 | Reinforcement Sub-assy, Roof Panel, Front |
| 63132 | Panel, Windshield Header, Inner |
| 63141F | Channel, Roof Drip, Rear |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63701A | Bracket Sub-assy, Roof Air Deflector, Front |
| 63706 | Bracket Sub-assy, Roof Air Deflector, Rear |
| 63707A | Holder Sub-assy, Roof Deflector, Front |
| 63709A | Holder Sub-assy, Roof Deflector, Rear |
| 63760 | Panel Assy, Roof Air Deflector |
| 63781 | Stay, Roof Air Deflector |
| 63782 | Seal, Roof Air Deflector |
| 63785 | Pad, Roof Air Deflector, Front |
| 63787 | Pad, Roof Air Deflector, NO.1 |
| 63788 | Pad, Roof Air Deflector, NO.2 |
| 63789 | Pad, Roof Air Deflector, NO.3 |
| 64100 | Panel Assy, Back, Outer |
| 64122A | Baffle, Dust Rear Body |
| 64130 | Panel Assy, Back Corner, RH |
| 64140 | Panel Assy, Back Corner, LH |
| 64171 | Bracket, Cab Rear Mounting |
| 64180 | Silencer Assy, Back Panel |
| 64189 | Clamp, Back Panel Silencer |
| 64811 | Glass, Back Window |
| 64831 | Weatherstrip, Back Window Glass |
| 64832 | Key, Back Window Weatherstrip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
