Toyota Toyoace/Dyna

1985-08 → 1987-08 · chassis YY5#,61,LY50,60 · catalogue 731140 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

32 part groups · 8 illustrations

Illustrations

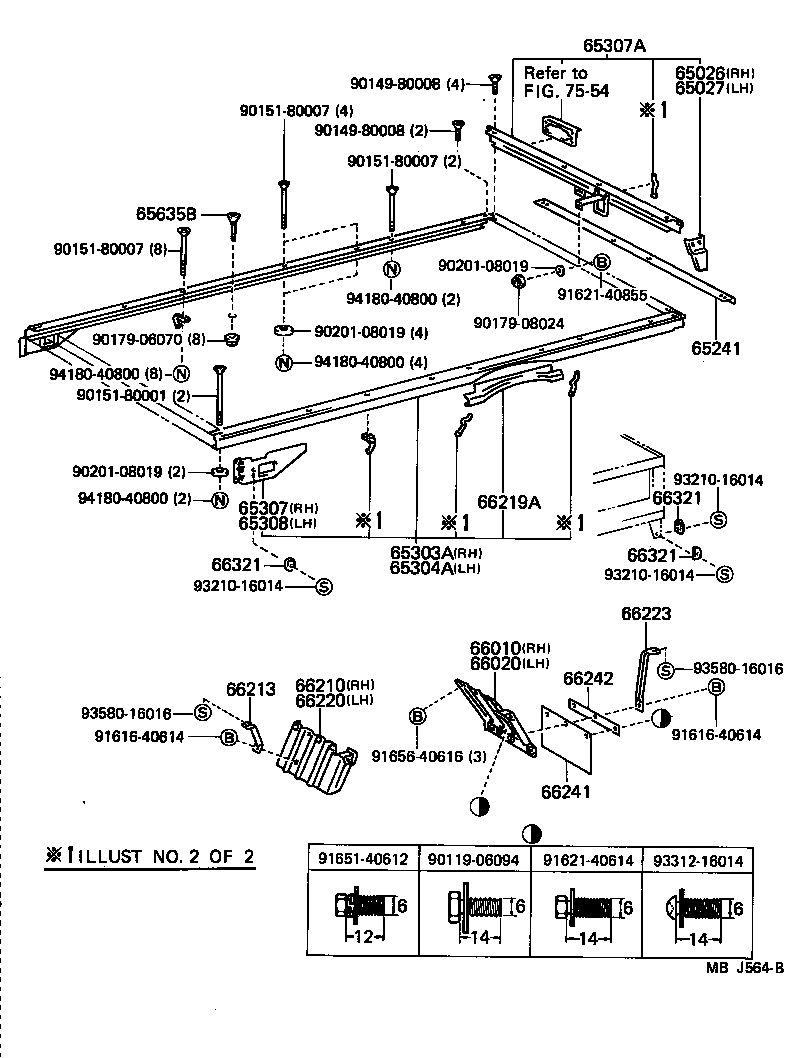

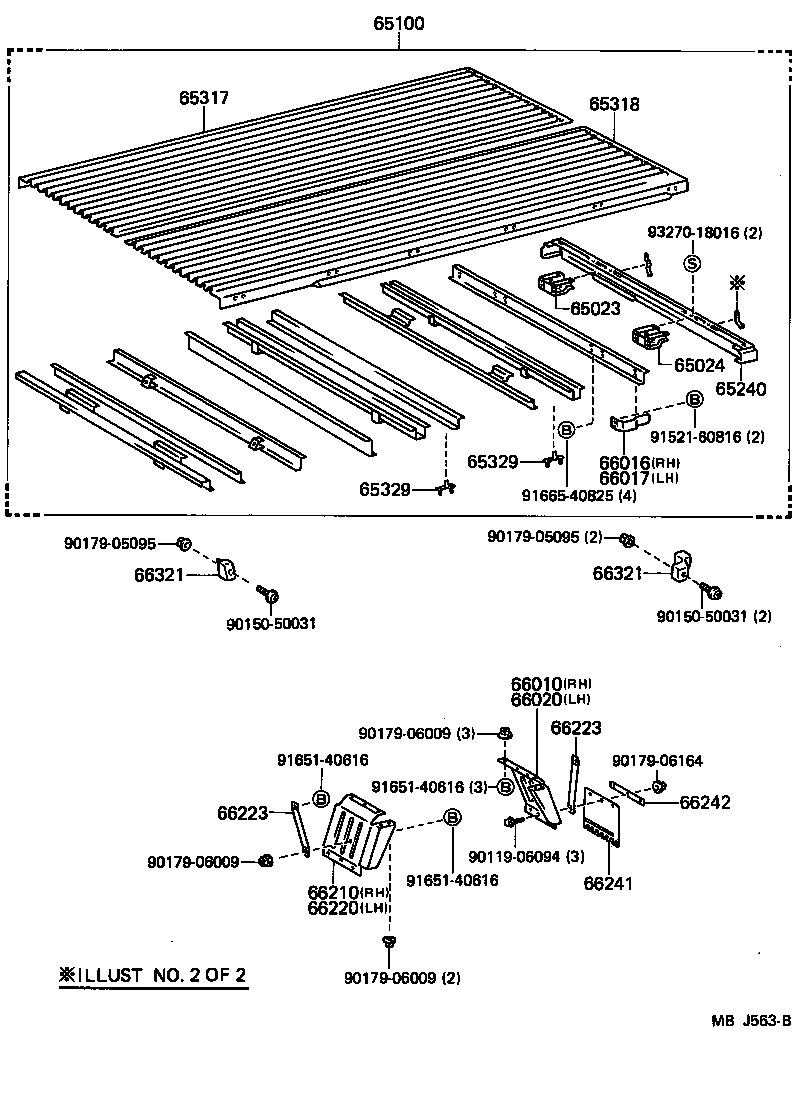

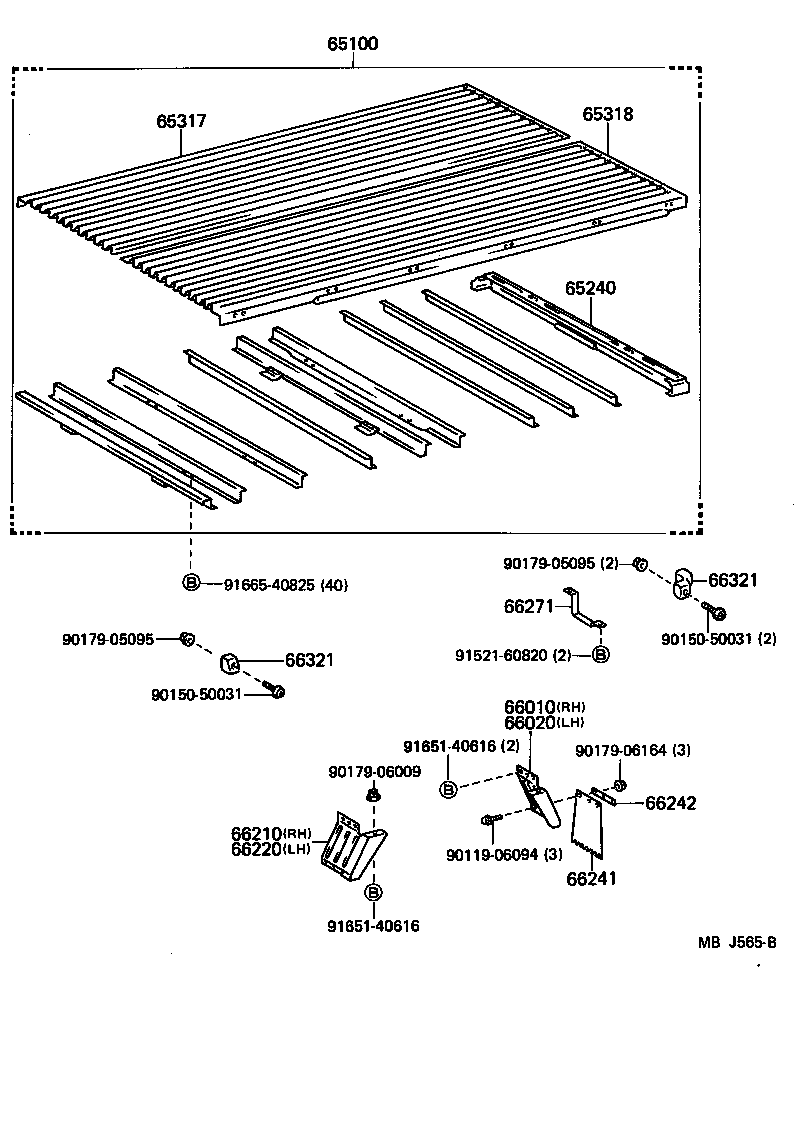

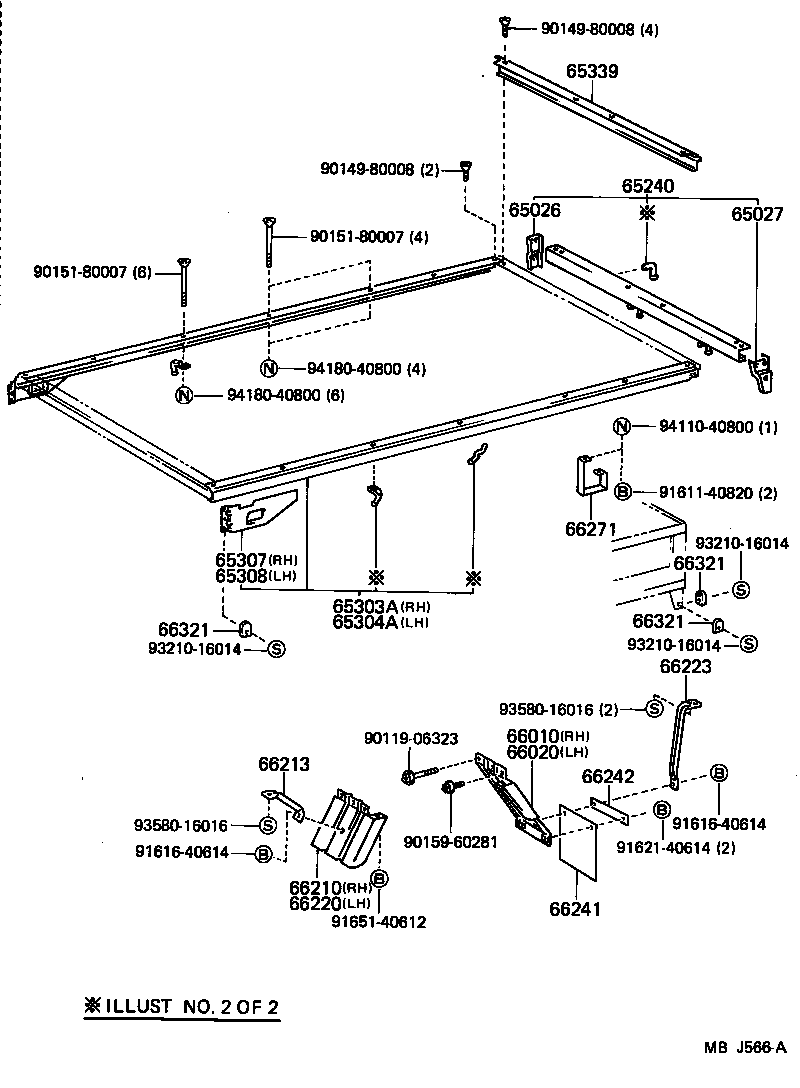

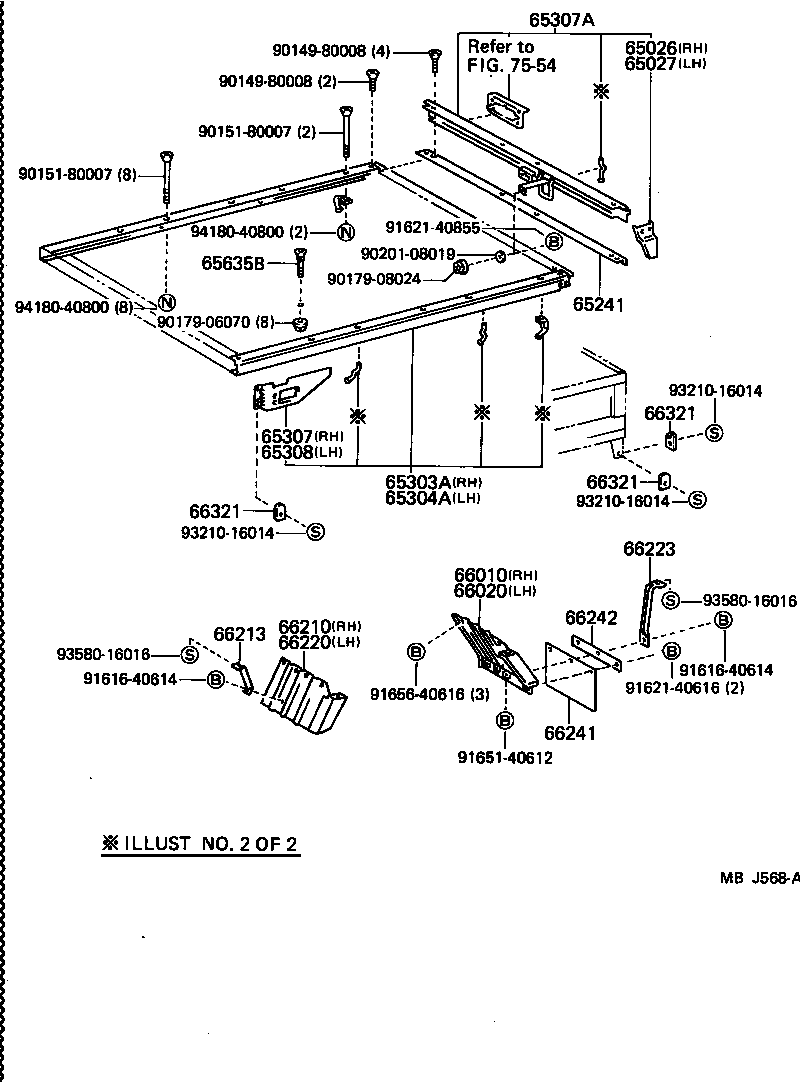

Figure MBJ562B MBJ562B 1985-08 → — Figure MBJ563B MBJ563B 1985-08 → — Figure MBJ564B MBJ564B 1985-08 → — Figure MBJ565B MBJ565B 1985-08 → — Figure MBJ566A MBJ566A 1985-08 → — Figure MBJ567B MBJ567B 1985-08 → — Figure MBJ568A MBJ568A 1985-08 → — Figure MBJ569 MBJ569 1985-08 → —

Part groups

PNCDescription
65023 Bracket Sub-assy, Rear Cross Sill Mounting, RH
65024 Bracket Sub-assy, Rear Cross Sill Mounting, LH
65026 Bracket Sub-assy, Gate Rubber Bumper, RH
65027 Bracket Sub-assy, Gate Rubber Bumper, LH
65100 Floor Assy, Rear Body
65240 Crossmember, Rear Body Floor, Tail
65241 Sill, Rear Cross
65303A Frame Sub-assy, Floor Side, RH
65304A Frame Sub-assy, Floor Side, LH
65307 Bracket Sub-assy, Guad Frame, RH
65307A Frame Sub-assy, Floor, Rear
65308 Bracket Sub-assy, Guad Frame, LH
65311 Panel, Floor, Center
65317 Panel, Floor Side, RH
65318 Panel, Floor Side, LH
65329 Bracket, Rear Fender
65339 Frame, Floor, Rear
65635B Bolt, Counter Sunk Head Square Neck
66010 Fender Assy, Rear Body, Rear RH
66016 Gusset Sub-assy, Gate Hinge, RH
66017 Gusset Sub-assy, Gate Hinge, LH
66020 Fender Assy, Rear Body, Rear LH
66210 Fender Assy, Rear Body, Front RH
66213 Stay, Rear Fender Front Plate
66219A Extension, Rear Fender
66220 Fender Assy, Rear Body, Front LH
66223 Stay, Rear Fender Rear Plate
66241 Mudguard, Rear
66242 Plate, Rear Mudguard Set Retainer
66271 Step, Rear Body
66311A Hook, Rope, NO.1
66321 Bumper, Gate Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
