Toyota Toyoace/Dyna

1985-08 → 1987-08 · chassis YY5#,61,LY50,60 · catalogue 731140 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Mounting

11 part groups · 4 illustrations

Illustrations

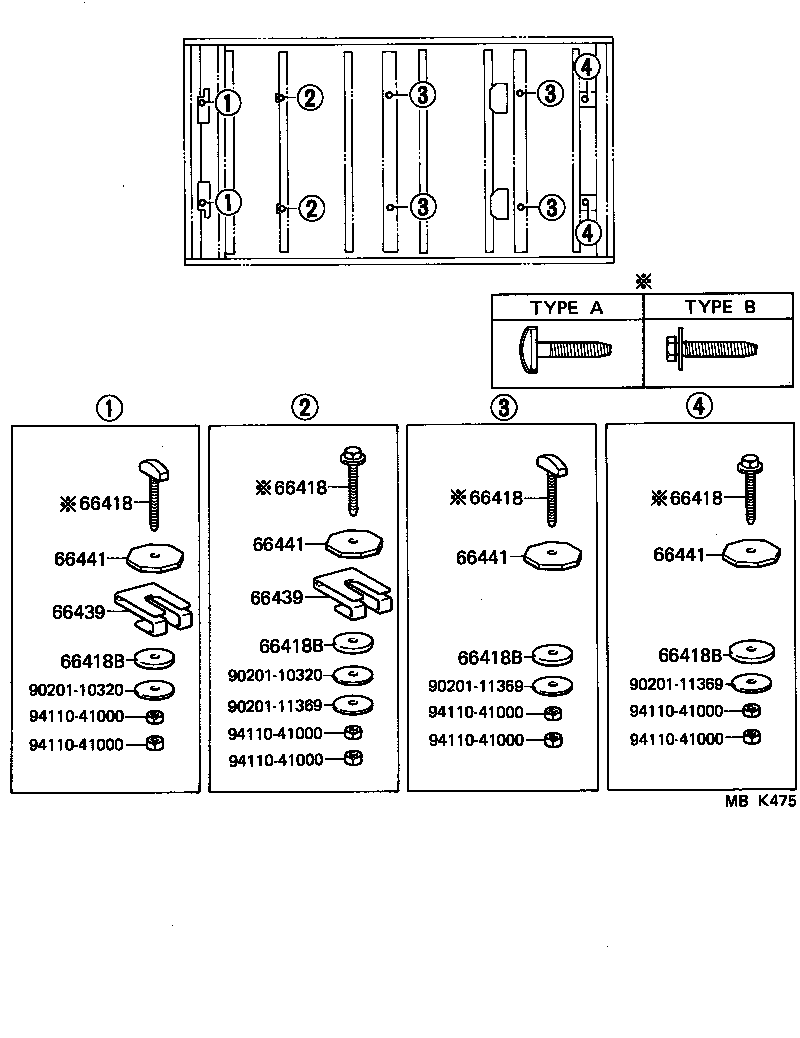

Figure MBK474 MBK474 1985-08 → — Figure MBK475 MBK475 1985-08 → — Figure MBK476 MBK476 1985-08 → — Figure MBJ577A MBJ577A 1985-08 → —

Part groups

PNCDescription
66418 Bolt, Mounting
66418B Shim, Mounting
66439 Shim, Support
66441 Shim, Mounting, NO.1
66464A Plate, U Bolt
66466A Bolt, U, NO.1
66466B Bolt, U, NO.2
66466C Bolt, U, NO.3
66471A Reinforcement, Frame U Bolt
66481 Brace, Sill TO Frame, RH
66482 Brace, Sill TO Frame, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
