Toyota Toyoace/Dyna

1985-08 → 1987-08 · chassis YY5#,61,LY50,60 · catalogue 731140 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

36 part groups · 5 illustrations

Illustrations

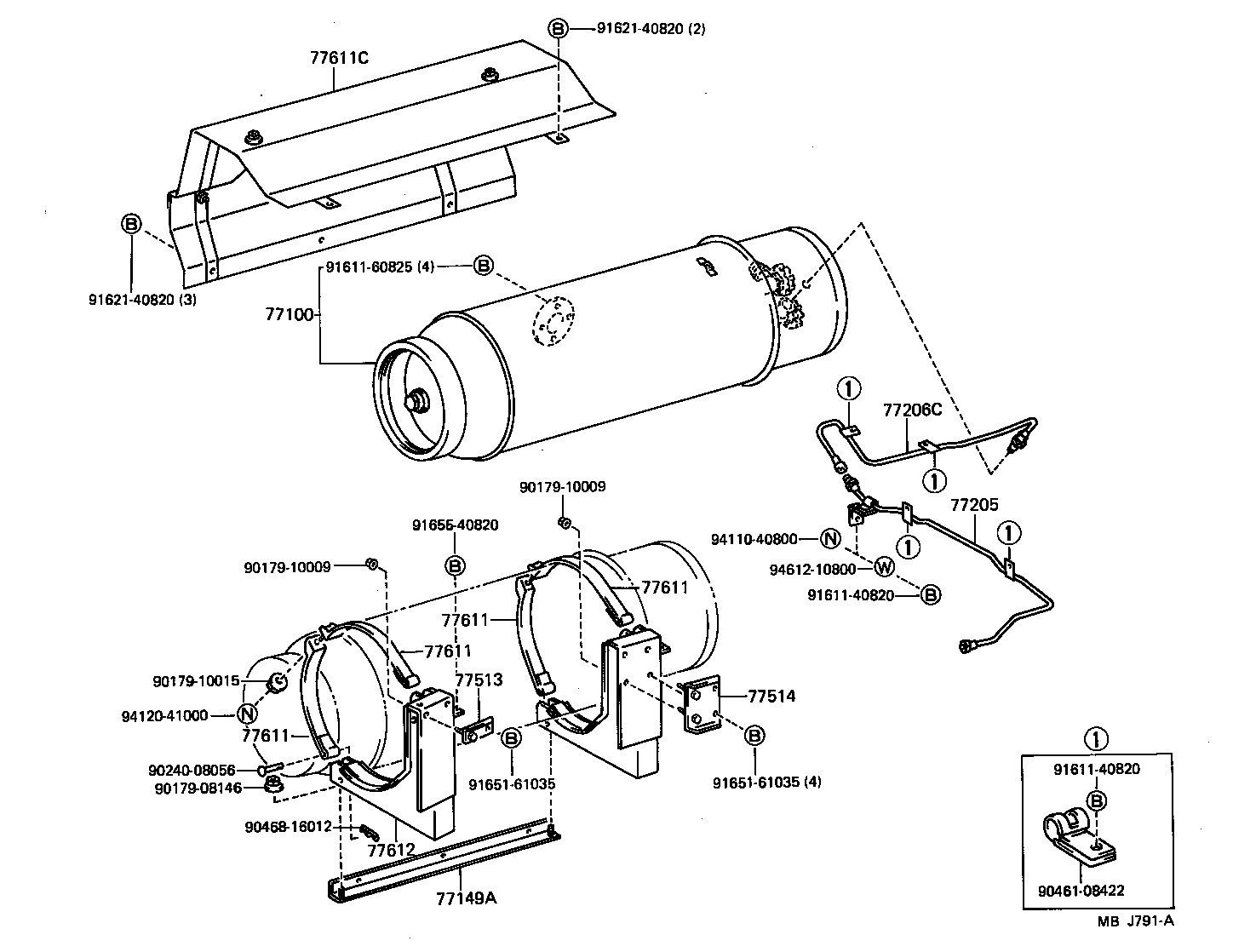

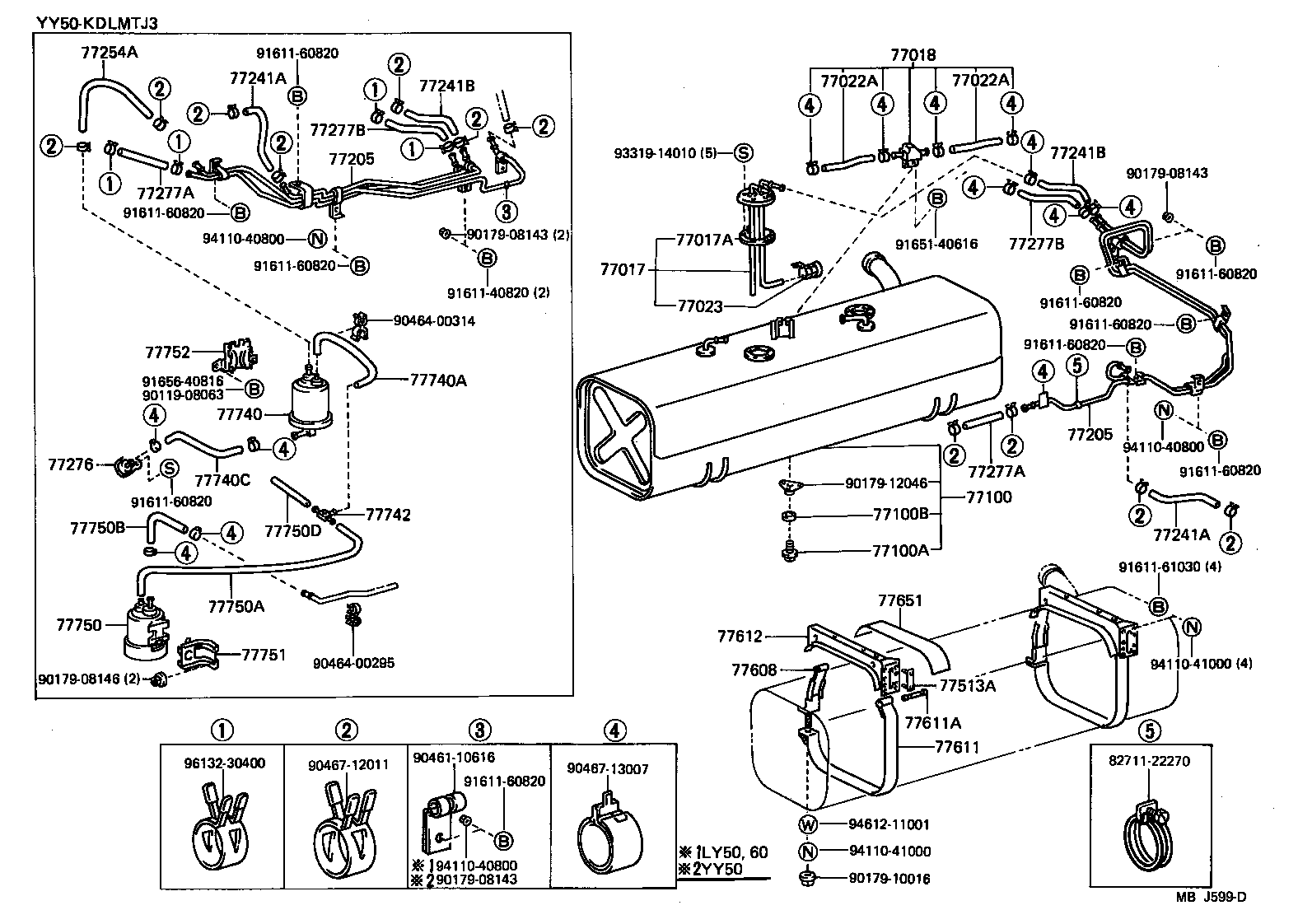

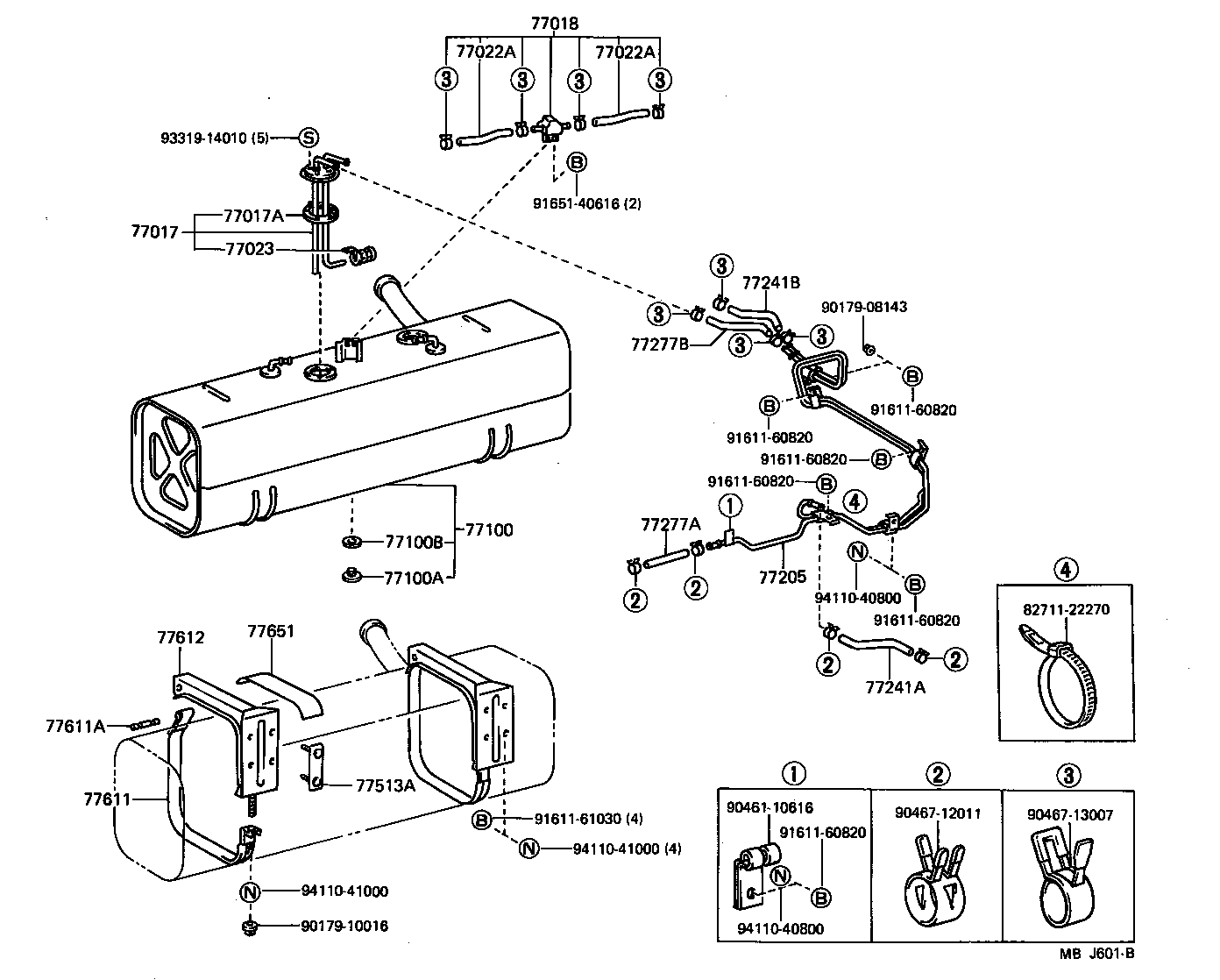

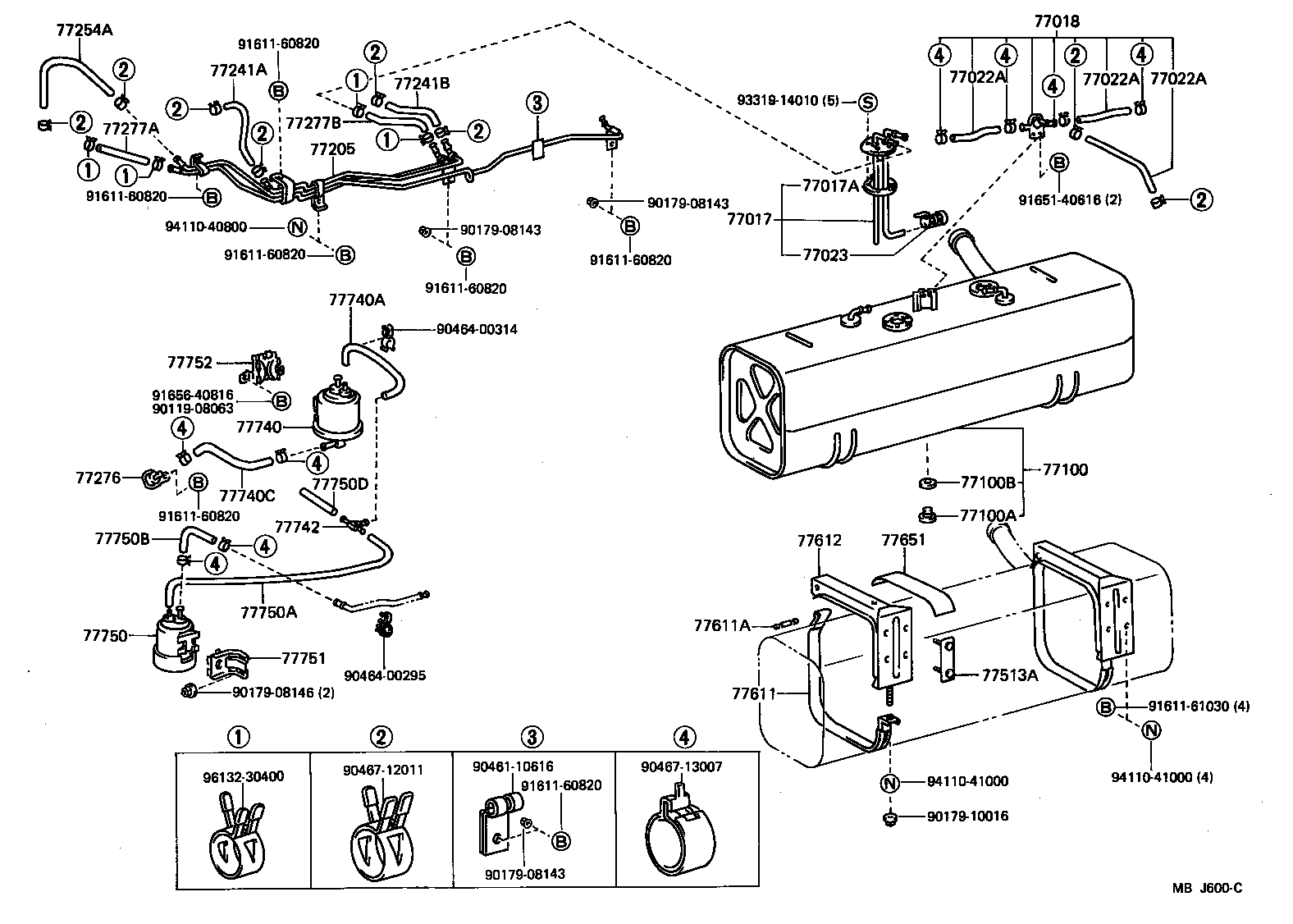

Figure MBJ598C MBJ598C 1985-08 → — Figure MBJ599D MBJ599D 1985-08 → — Figure MBJ600C MBJ600C 1985-08 → — Figure MBJ601B MBJ601B 1985-08 → — Figure MBJ791A MBJ791A 1985-08 → —

Part groups

PNCDescription
77017 Tube Sub-assy, Fuel And Evaporation Vent
77017A Gasket, Fuel Tank Vent
77018 Valve Sub-assy, Fuel Vapour Separate
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77149A Reinforcement, Fuel Tank Side
77205 Tube Sub-assy, Fuel Main
77206C Tube Sub-assy, Fuel Main, NO.2
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77276 Protector, Fuel Hose
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77513 Retainer, Lpg Tank Bracket, Front
77513A Retainer, Tank Bracket
77514 Retainer, Lpg Tank Bracket, Rear
77608 Band Sub-assy, Fuel Tank, NO.2
77611 Band, Fuel Tank
77611A Pin (FOR FUEL TANK BAND)
77611C Cover, Fuel Tank Guard
77612 Bracket Sub-assy, Fuel Tank
77651 Packing, Fuel Tank Bracket
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740C Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
77742 Way, 3(FOR CANISTER)
77750 Canister Assy, Charcoal
77750A Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
77750B Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER)
77750D Hose, Fuel, NO.4 (FOR CHARCOAL CANISTER)
77751 Bracket, Charcoal Canister Base
77752 Bracket, Charcoal Canister Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
