Toyota Toyoace/Dyna

1985-08 → 1987-08 · chassis YY5#,61,LY50,60 · catalogue 731140 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

15 part groups · 3 illustrations

Illustrations

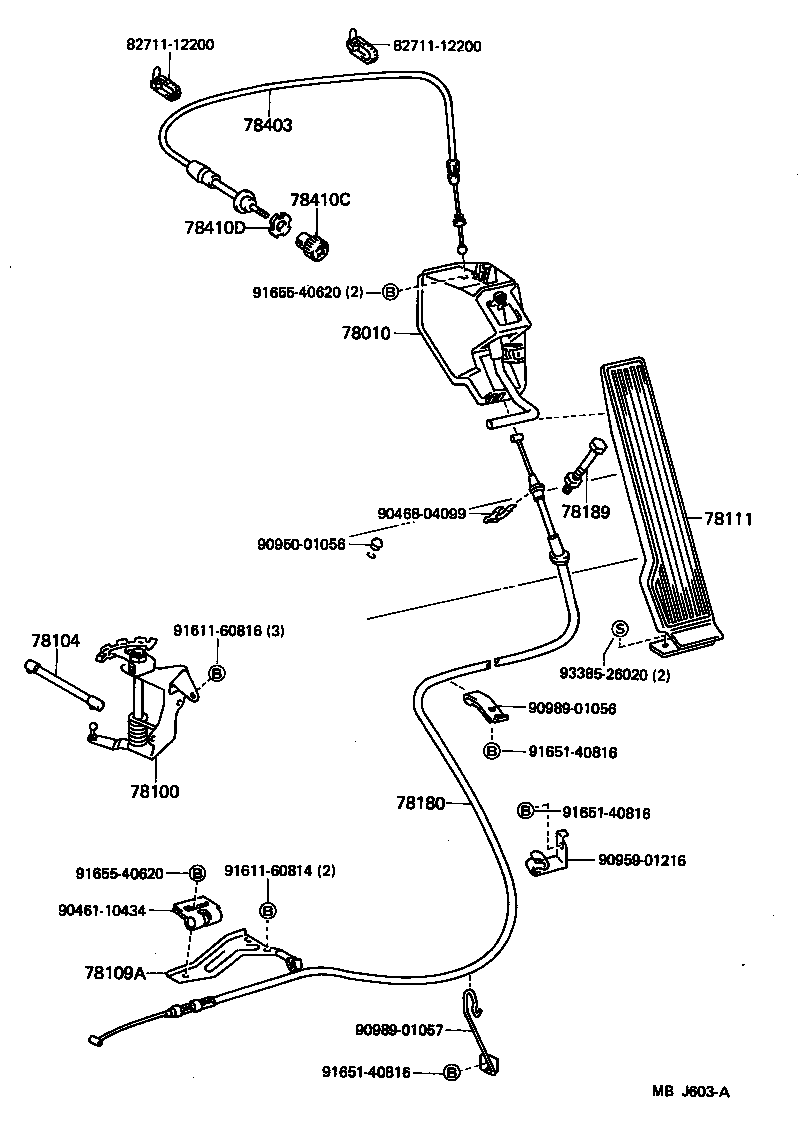

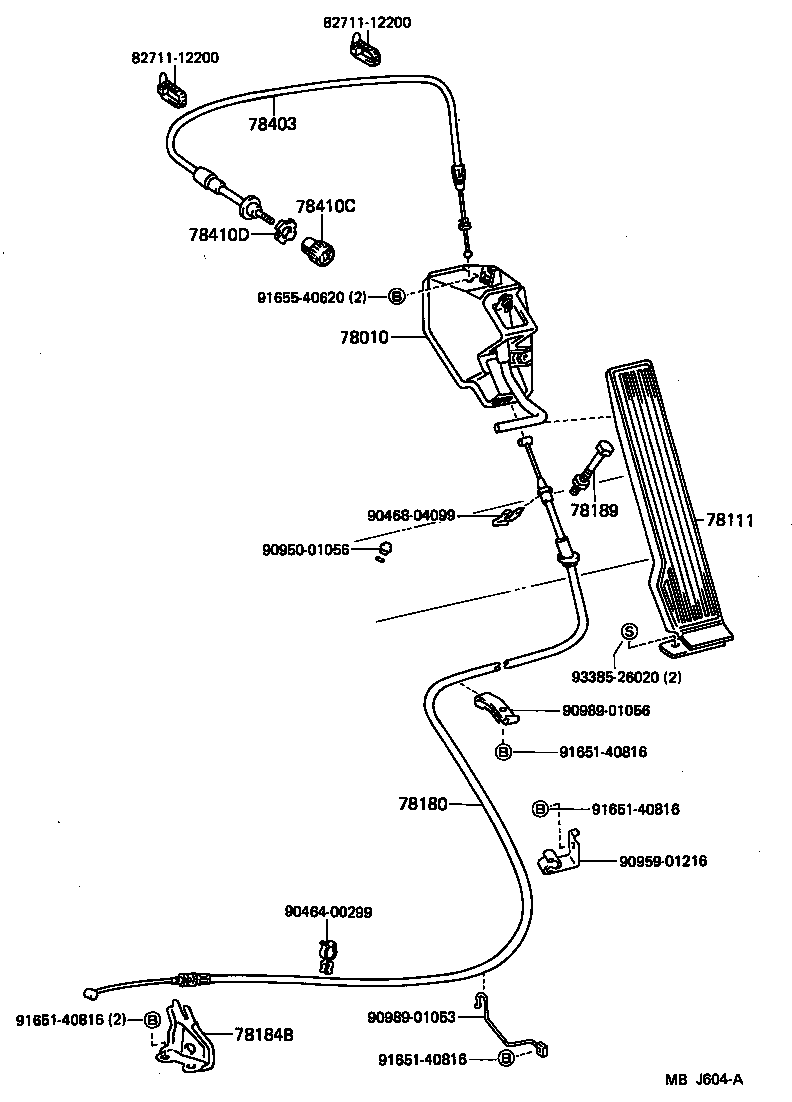

Figure MBJ602A MBJ602A 1985-08 → — Figure MBJ603A MBJ603A 1985-08 → — Figure MBJ604A MBJ604A 1985-08 → —

Part groups

PNCDescription
78010 Link, Accelerator
78100 Link Assy, Accelerator
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78109A Bracket Sub-assy, Accelerator Wire Clamp
78111 Pedal, Accelerator
78180 Wire Assy, Accelerator
78184B Bracket, Accelerator Control Cable
78189 Bolt, Accelerator Pedal Stopper
78302 Knob Sub-assy, Choke Rod
78310 Cable Assy, Choke
78310A Grommet, Choke Cable
78310F Nut, Choke
78403 Cable Sub-assy, Throttle Control
78410C Knob, Throttle Cable
78410D Nut, Throttle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
