Toyota Toyoace/Dyna

1985-08 → 1987-08 · chassis YY5#,61,LY50,60 · catalogue 731140 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

18 part groups · 4 illustrations

Illustrations

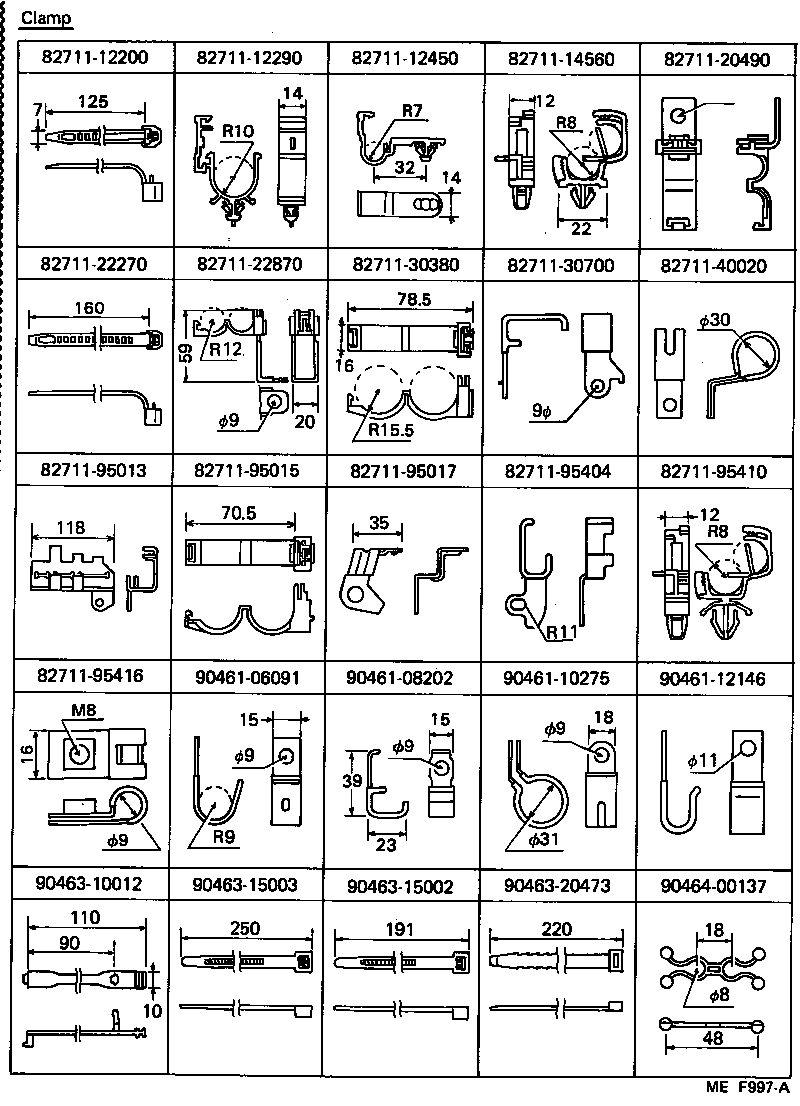

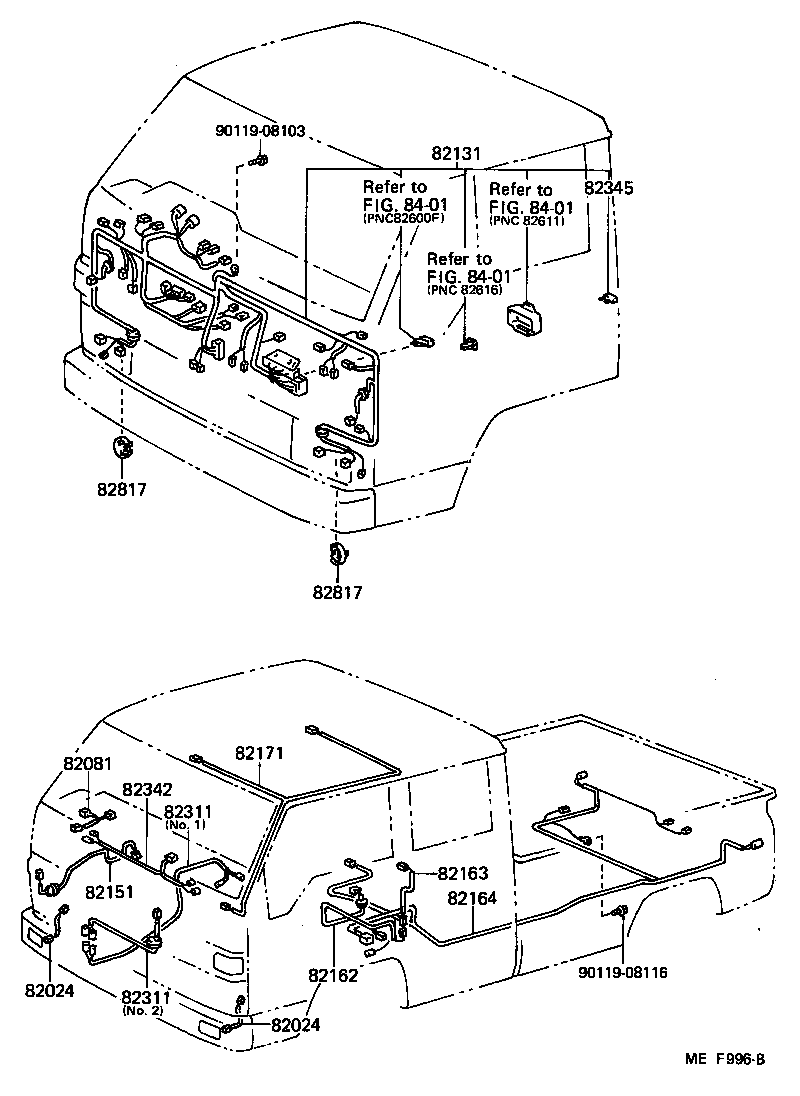

Figure MEF995B MEF995B 1985-08 → — Figure MEF996B MEF996B 1985-08 → — Figure MEF997A MEF997A 1985-08 → — Figure MEF998E MEF998E 1985-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82024 Wire Sub-assy, Fog Lamp Feed
82031 Wire Sub-assy, Ignition Coil
82081 Wiring Assy, Door Lock
82121 Wire, Engine
82122 Wire, Engine, NO.2
82131 Wire, Cowl
82151 Wire, Front Door, RH
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82171 Wire, Roof, NO.1
82203 Wire Sub-assy, Alternator
82210C Fusible Link
82311 Harness Assy, Cooler
82342 Wire, Clock
82345 Diode
82817 Protector, Wiring Harness, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
