Toyota Toyoace/Dyna
1985-08 → 1987-08 · chassis YY5#,61,LY50,60 · catalogue 731140 · Japan
Discontinued model
Data version 1987-12
Heating & Air Conditioning - Water Piping

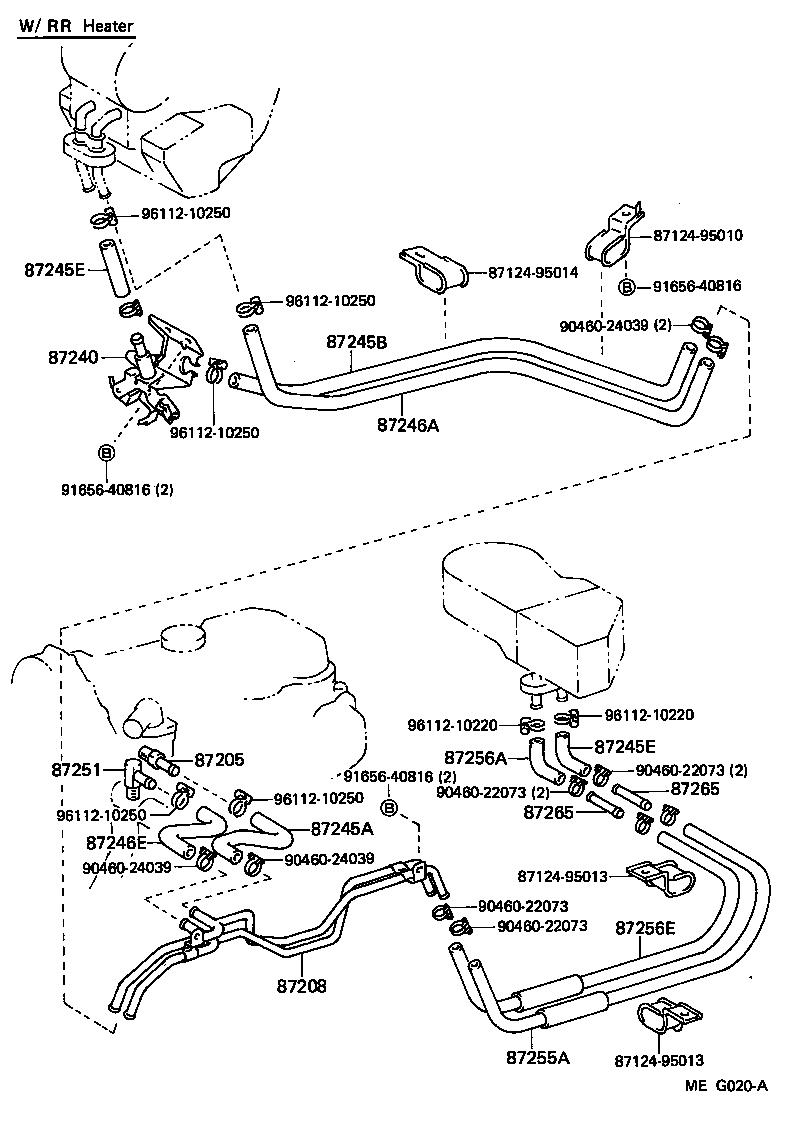

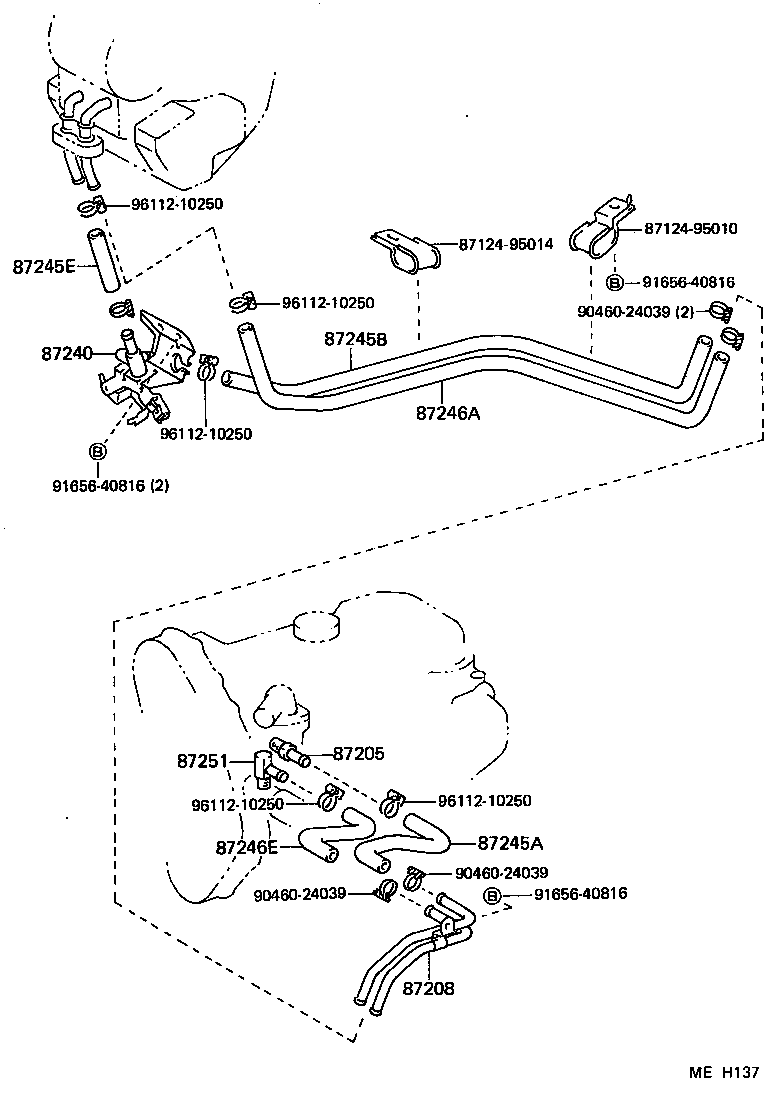

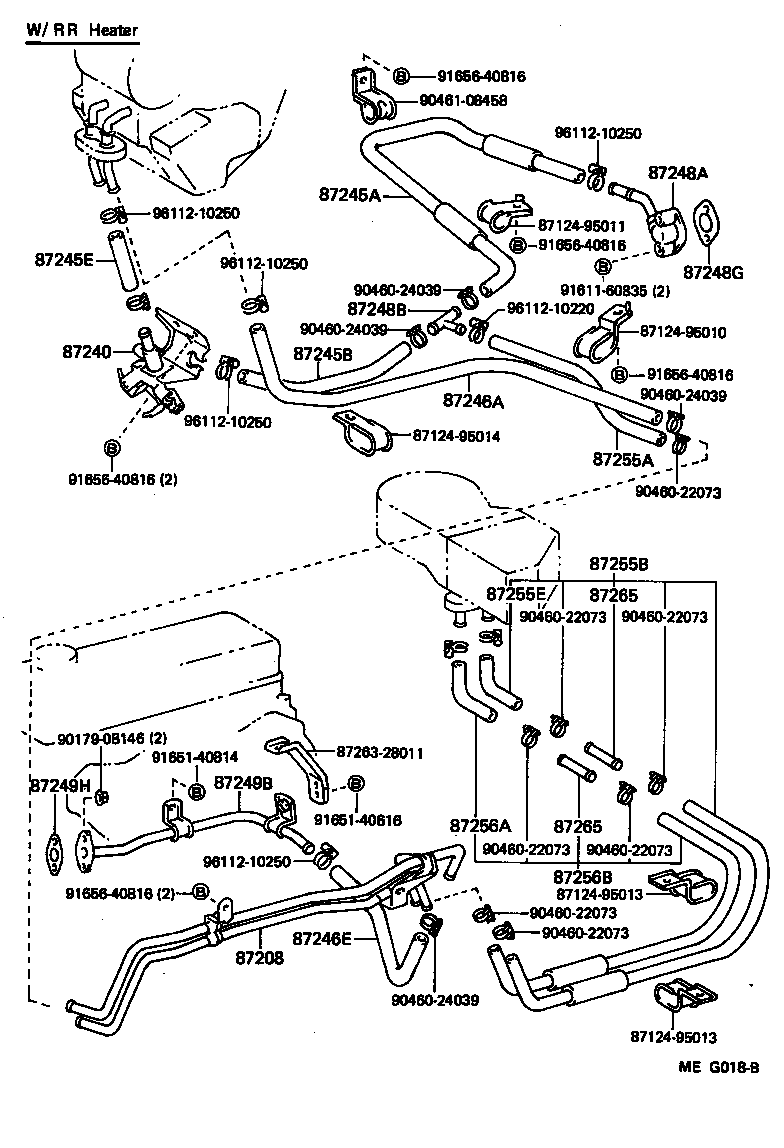

22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 87205 | Joint OR Union, Front Heater Hose Through OR Inlet Valve |
| 87208 | Pipe Sub-assy, Heater Water |
| 87240 | Valve Assy, Heater Water |
| 87245A | Hose, Heater Water, Inlet A |
| 87245B | Hose, Heater Water, Inlet B |
| 87245E | Hose, Heater Water, Inlet E |
| 87246A | Hose, Heater Water, Outlet A |
| 87246E | Hose, Heater Water, Outlet E |
| 87248A | Pipe, Heater Water Inlet, A |
| 87248B | Pipe, Heater Water Inlet, B |
| 87248G | Gasket, Water Inlet Pipe |
| 87249A | Pipe, Heater Water Outlet, A |
| 87249B | Pipe, Heater Water Outlet, B |
| 87249H | Gasket, Water Outlet Pipe |
| 87251 | Joint OR Union, Water Hose Through |
| 87255A | Hose, Rear Heater Water Inlet, A(FROM ENGINE) |
| 87255B | Hose, Rear Heater Water Inlet, B |
| 87255E | Hose, Rear Heater Water Inlet, E(TO HEATER UNIT) |
| 87256A | Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT) |
| 87256B | Hose, Rear Heater Water Outlet, B |
| 87256E | Hose, Rear Heater Water Outlet, E (TO ENGINE) |
| 87265 | Connector, Heater Water Hose |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
