Toyota Toyoace/Dyna

1987-08 → 1995-05 · chassis LY5#,LY6#,YY5#,YY61 · catalogue 731150 · Japan

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

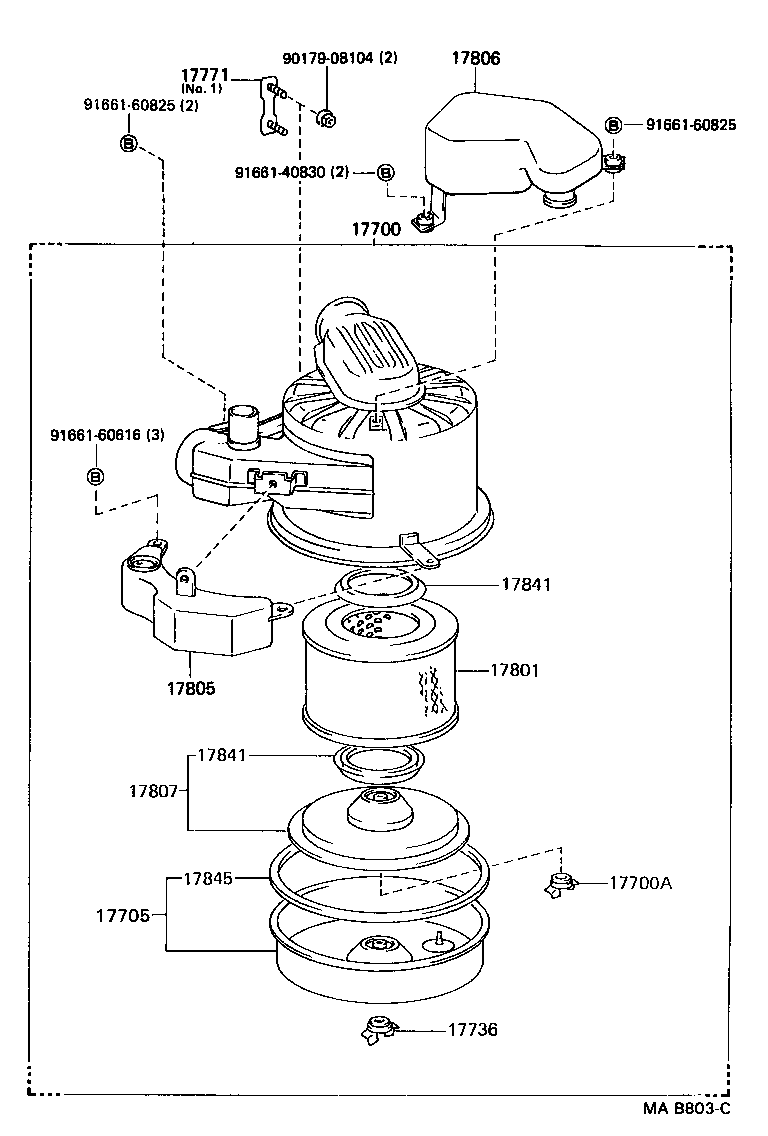

Exploded illustration MAB803C 17806 — PIPE SUB-ASSY, AIR CLEANER, NO.2 (2 parts) 9017908104 — not listed in this catalogue 17771 — BRACKET, AIR CLEANER INLET DUCT (8 parts) 9166160825 — not listed in this catalogue 9166160825 — not listed in this catalogue 9166140830 — not listed in this catalogue 17700 — CLEANER ASSY, AIR (4 parts) 9166160616 — not listed in this catalogue 17841 — GASKET, FILTER ELEMENT (4 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (4 parts) 17805 — CONNECTOR SUB-ASSY, INTAKE AIR (5 parts) 17841 — GASKET, FILTER ELEMENT (4 parts) 17807 — PLATE SUB-ASSY, AIR CLEANER FILTER SET (4 parts) 17845 — GASKET, AIR CLEANER CAP (4 parts) 17700A — NUT, WING(FOR AIR CLEANER) (2 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (4 parts) 17736 — NUT, AIR CLEANER CASE (2 parts)
MAB803C · 12 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
17700 — Cleaner Assy, Air
17700-54350 Cleaner Assy, Air
1987-08 → 1988-08 ended
2L LY50,60 ¥31,400
17700-54350 Cleaner Assy, Air
1988-08 → 1995-05 ended
3YP YY61 ¥31,400
17700-54530 Cleaner Assy, Air
1988-08 → 1995-05 ended
2L,3L LY5#,61 ¥31,400
17700-71110 Cleaner Assy, Air
1987-08 → 1995-05 ended
2Y,3Y YY5#,61 ¥41,300
17700A — Nut, Wing(FOR AIR CLEANER)
90175-08008 Nut, Wing(FOR AIR CLEANER)
1987-08 → 1995-05 ended
2Y,3Y# YY5#,61 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1987-08 → 1995-05 ended
2L,3L LY5#,6# —
17705 — Cap Sub-assy, Air Cleaner
17701-54200 Cap Sub-assy, Air Cleaner
1987-08 → 1988-08 ended
2L LY50,60 —
17701-54200 Cap Sub-assy, Air Cleaner
1987-08 → 1988-08 ended
2Y,3Y YY5#,61 —
17701-54200 Cap Sub-assy, Air Cleaner
1988-08 → 1995-05 ended
2Y,3Y# YY5#,61 —
17705-54260 Cap Sub-assy, Air Cleaner
1988-08 → 1995-05 ended
2L,3L LY5#,61 —
17736 — Nut, Air Cleaner Case
90175-06003 Nut, Air Cleaner Case
1987-08 → 1995-05 ended
2L,3L LY5#,6# —
90175-06003 Nut, Air Cleaner Case
1987-08 → 1995-05 ended
2Y,3Y# YY5#,61 —
17771 — Bracket, Air Cleaner Inlet Duct
17771-54010 Bracket, Air Cleaner Inlet Duct
1987-08 → 1988-08 ended
2L LY50,60 ¥3,300
17771-54010 note Bracket, Air Cleaner Inlet Duct
1987-08 → 1995-05 ended
2Y,3Y YY5#;3Y YY61 ST,WT2;3Y# +7 ¥3,300
17771-54050 note Bracket, Air Cleaner Inlet Duct
1988-08 → 1995-05 ended
2L,3L LY5#,61 ¥2,490
17771-71010 note Bracket, Air Cleaner Inlet Duct
1987-08 → 1988-08 ended
2Y,3Y YY5#,61 ¥1,670
17771-71010 note Bracket, Air Cleaner Inlet Duct
1987-08 → 1988-08 ended
2L LY50,60 ¥1,670
17771-71010 Bracket, Air Cleaner Inlet Duct
1987-08 → 1995-05 ended
3YP YY61 ¥1,670
17771-71010 note Bracket, Air Cleaner Inlet Duct
1988-08 → 1995-05 ended
2L,3L LY5#,61 ¥1,670
17771-71010 note Bracket, Air Cleaner Inlet Duct
1988-08 → 1995-05 ended
2Y,3Y YY5#,61 ¥1,670
17801 — Element Sub-assy, Air Cleaner Filter
17801-31060 Element Sub-assy, Air Cleaner Filter
1987-08 → 1995-05 ended
2Y,3Y YY5#,61 ¥1,470
17801-54070 Element Sub-assy, Air Cleaner Filter
1988-08 → 1995-05 ended
3YP YY61 ¥3,150
17801-54070 Element Sub-assy, Air Cleaner Filter
1987-08 → 1988-08 ended
2L LY50,60 ¥3,150
17801-56020 Element Sub-assy, Air Cleaner Filter
1988-08 → 1995-05 ended
2L,3L LY5#,61 ¥4,100
17805 — Connector Sub-assy, Intake Air
17805-54160 Connector Sub-assy, Intake Air
1988-08 → 1995-05 ended
2L,3L LY5#,61 ¥6,300
17805-71020 Connector Sub-assy, Intake Air
1987-08 → 1990-08 ended
2Y,3Y YY5#,61 ¥10,900
17805-72030 Connector Sub-assy, Intake Air
1990-08 → 1993-09 ended
2Y,3Y YY5#,61 ¥9,200
17805-73040 Connector Sub-assy, Intake Air
1994-06 → 1995-05 ended
3YP YY61 ¥3,110
17805-73190 Connector Sub-assy, Intake Air
1993-09 → 1995-05 ended
3Y YY52,61 ¥11,200
17806 — Pipe Sub-assy, Air Cleaner, NO.2
17806-54080 Pipe Sub-assy, Air Cleaner, NO.2
1988-08 → 1995-05 ended
2L,3L LY5#,61 ¥9,300
17886-71010 Pipe Sub-assy, Air Cleaner, NO.2
1987-08 → 1995-05 ended
2Y,3Y YY5#,61 ¥4,020
17807 — Plate Sub-assy, Air Cleaner Filter Set
17807-54010 Plate Sub-assy, Air Cleaner Filter Set
1987-08 → 1988-08 ended
2Y,3Y YY5#,61 —
17807-54010 Plate Sub-assy, Air Cleaner Filter Set
1988-08 → 1995-05 ended
2Y,3Y# YY5#,61 —
17807-54010 Plate Sub-assy, Air Cleaner Filter Set
1987-08 → 1988-08 ended
2L LY50,60 —
17807-58010 Plate Sub-assy, Air Cleaner Filter Set
1988-08 → 1995-05 ended
2L,3L LY5#,61 —
17841 — Gasket, Filter Element
17841-44030 Gasket, Filter Element
1988-08 → 1995-05 ended
2L,3L LY5#,61 —
17841-54010 Gasket, Filter Element
1987-08 → 1988-08 ended
2L LY50,60 —
17841-54010 Gasket, Filter Element
1987-08 → 1988-08 ended
2Y,3Y YY5#,61 —
17841-54010 Gasket, Filter Element
1988-08 → 1995-05 ended
2Y,3Y# YY5#,61 —
17845 — Gasket, Air Cleaner Cap
17845-54010 Gasket, Air Cleaner Cap
1987-08 → 1988-08 ended
2L LY50,60 ¥1,030
17845-54010 Gasket, Air Cleaner Cap
1987-08 → 1988-08 ended
2Y,3Y YY5#,61 ¥1,030
17845-54010 Gasket, Air Cleaner Cap
1988-08 → 1995-05 ended
2Y,3Y# YY5#,61 ¥1,030
17845-56020 Gasket, Air Cleaner Cap
1988-08 → 1995-05 ended
2L,3L LY5#,61 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
