Toyota Toyoace/Dyna
1987-08 → 1995-05 · chassis LY5#,LY6#,YY5#,YY61 · catalogue 731150 · Japan
Discontinued model
Data version 1995-10
Air Cleaner
33 part groups · 9 illustrations
Part groups

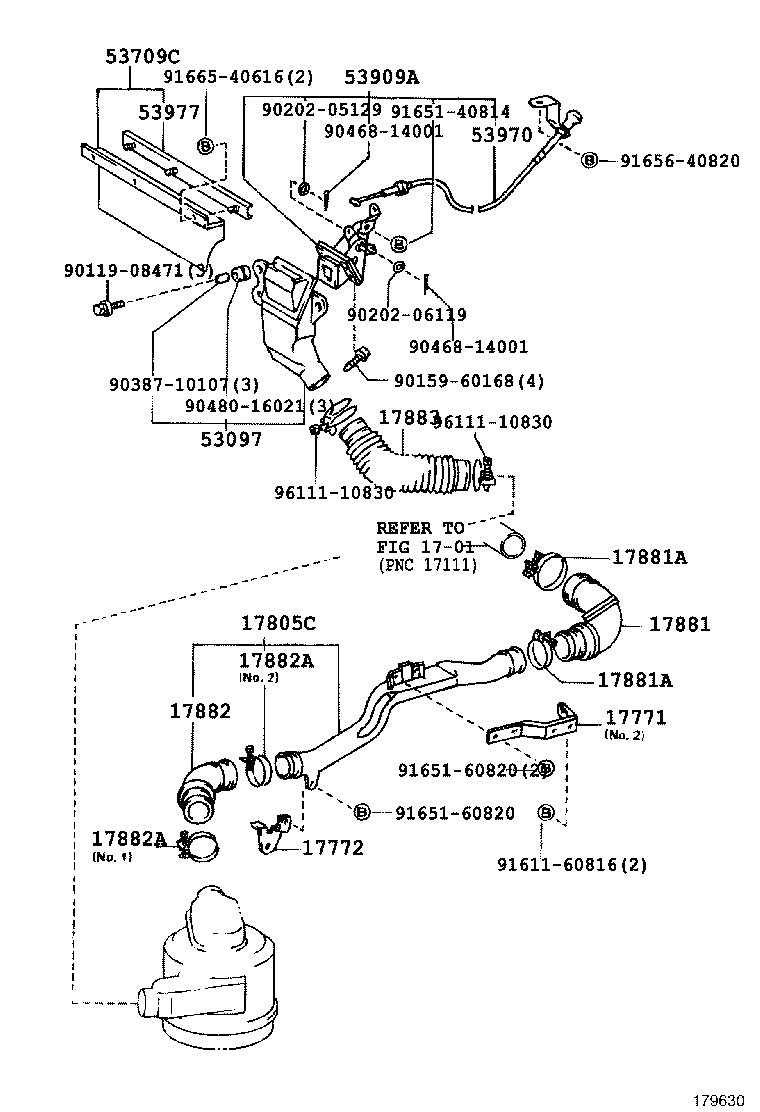

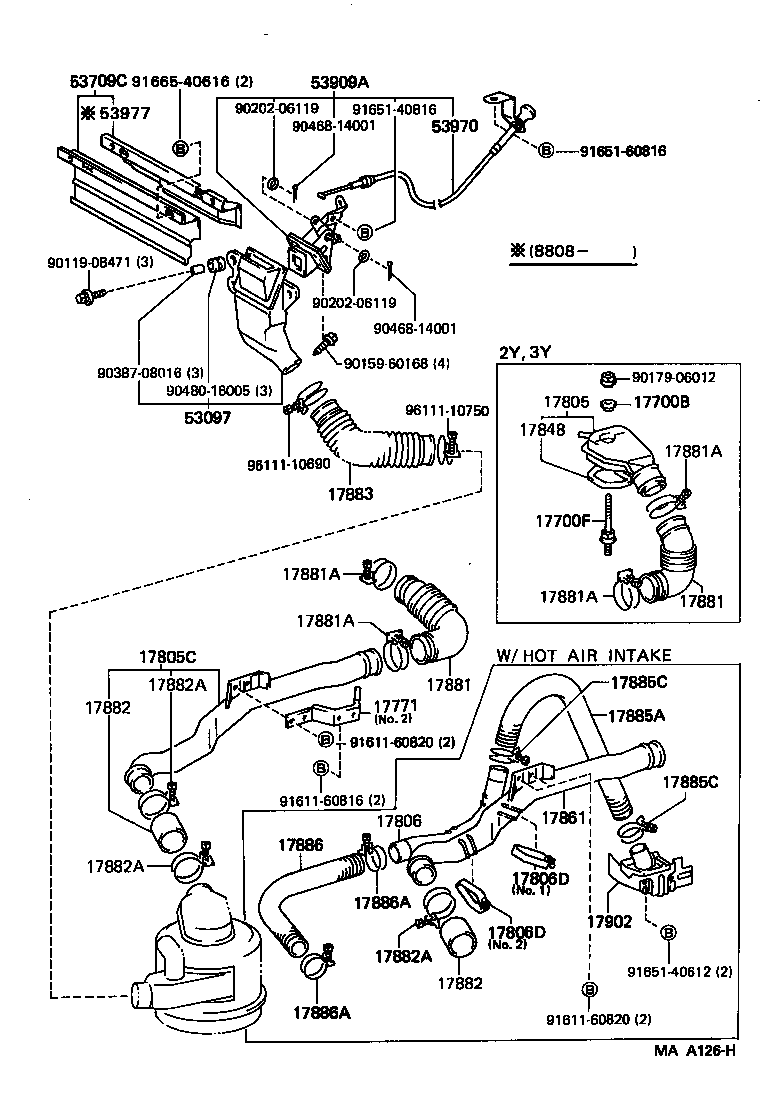

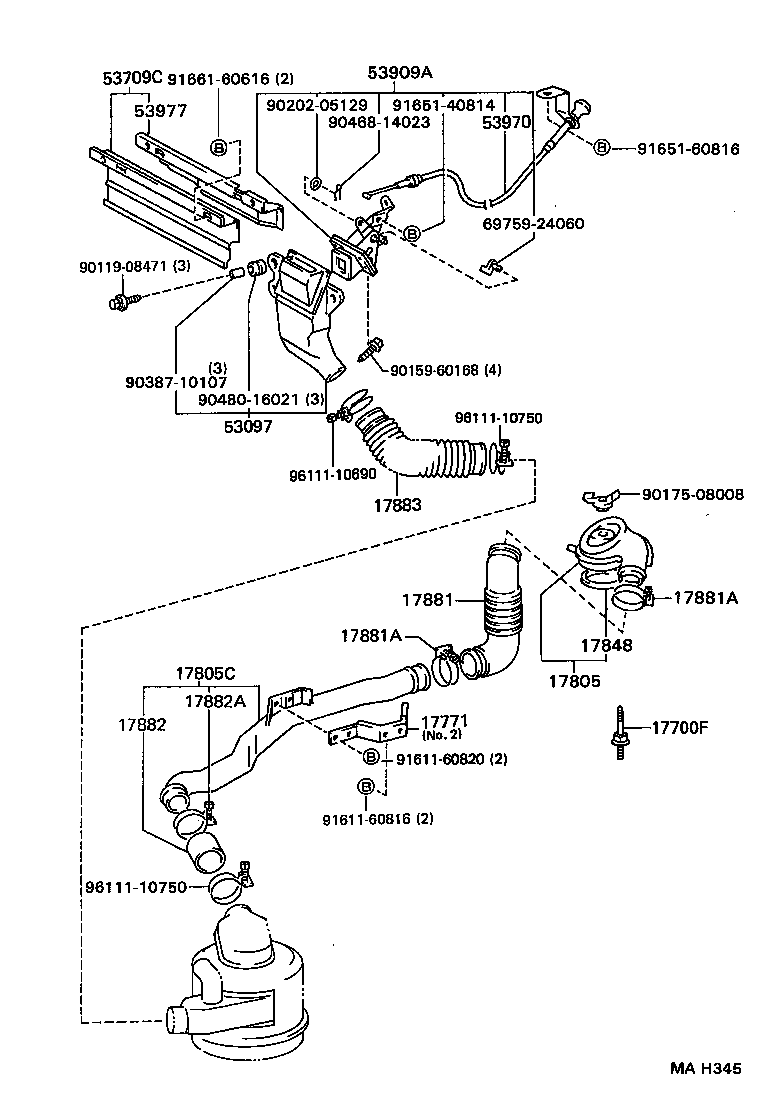

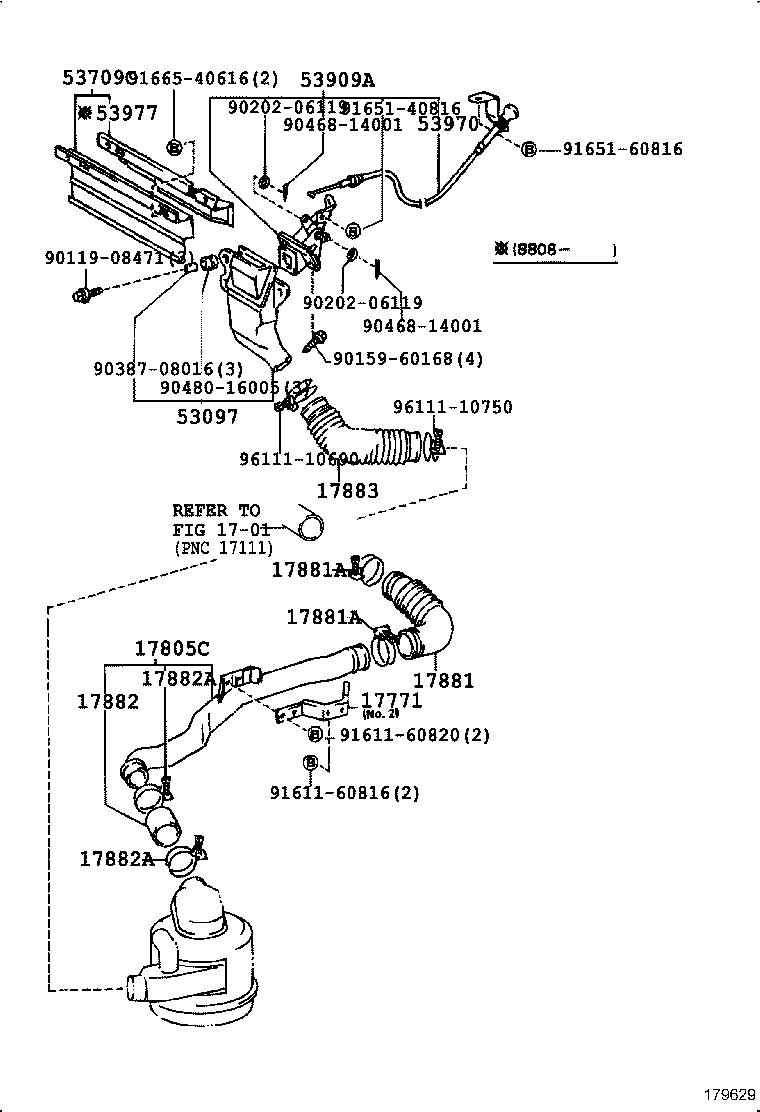

| PNC | Description |
|---|---|
| 17700 | Cleaner Assy, Air |
| 17700A | Nut, Wing(FOR AIR CLEANER) |
| 17700B | Washer, Seal(FOR AIR CLEANER) |
| 17700F | Bolt, Stud(FOR AIR CLEANER SETTING) |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17736 | Nut, Air Cleaner Case |
| 17771 | Bracket, Air Cleaner Inlet Duct |
| 17772 | Bracket, Intake Air Connector, NO.2 |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17805 | Connector Sub-assy, Intake Air |
| 17805C | Pipe Sub-assy, Air Cleaner, NO.1 |
| 17806 | Pipe Sub-assy, Air Cleaner, NO.2 |
| 17806D | Clamp(FOR AIR CLEANER PIPE) |
| 17807 | Plate Sub-assy, Air Cleaner Filter Set |
| 17841 | Gasket, Filter Element |
| 17845 | Gasket, Air Cleaner Cap |
| 17848 | Gasket, Air Cleaner TO Carburetor |
| 17861 | Connector, Intake Air |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17883 | Hose, Air Cleaner, NO.3 |
| 17885A | Hose, Air Cleaner, NO.5 |
| 17885C | Clamp(FOR AIR CLEANER HOSE, NO.5) |
| 17886 | Hose, Air Cleaner, NO.6 |
| 17886A | Clamp(FOR AIR CLEANER HOSE, NO.6) |
| 17902 | Inlet Sub-assy, Hot Air Intake, NO.1 |
| 53097 | Inlet Sub-assy |
| 53709C | Cover Sub-assy, Air Cleaner Inlet |
| 53909A | Bracket Sub-assy, Air Cleaner Shutter, NO.1 |
| 53970 | Cable Assy, Air Cleaner Inlet Shutter Control |
| 53977 | Plate, Air Cleaner Inlet Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
