Toyota Toyoace/Dyna
1987-08 → 1995-05 · chassis LY5#,LY6#,YY5#,YY61 · catalogue 731150 · Japan
Discontinued model
Data version 1995-10

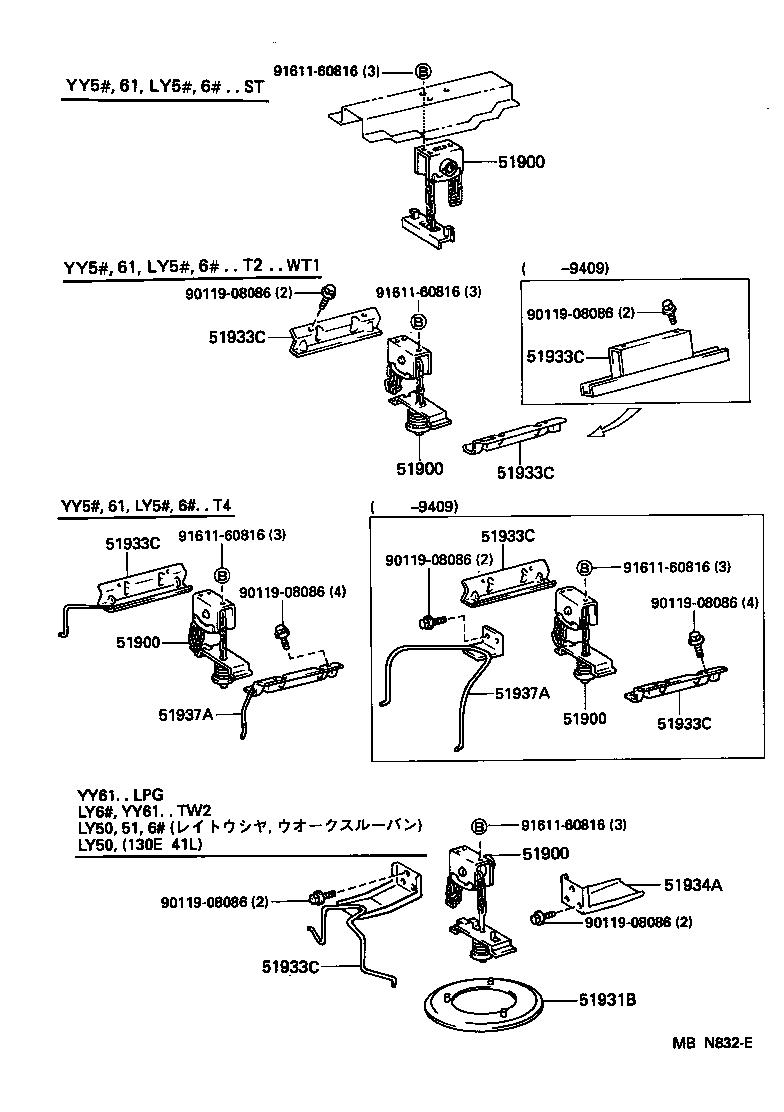

Spare Wheel Carrier
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51900 | Carrier Assy, Spare Wheel |
| 51931B | Plate, Spare Wheel Carrier Base |
| 51933C | Stopper, Spare Wheel |
| 51934A | Stopper, Spare Wheel, NO.2 |
| 51937A | Guide, Spare Wheel Support |
| 51944 | Bracket, Spare Wheel Carrier, NO.2 |
| 51947A | Plate, Spare Wheel Carrier Hinge |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
