Toyota Toyoace/Dyna

1987-08 → 1995-05 · chassis LY5#,LY6#,YY5#,YY61 · catalogue 731150 · Japan

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

16 part groups · 2 illustrations

Illustrations

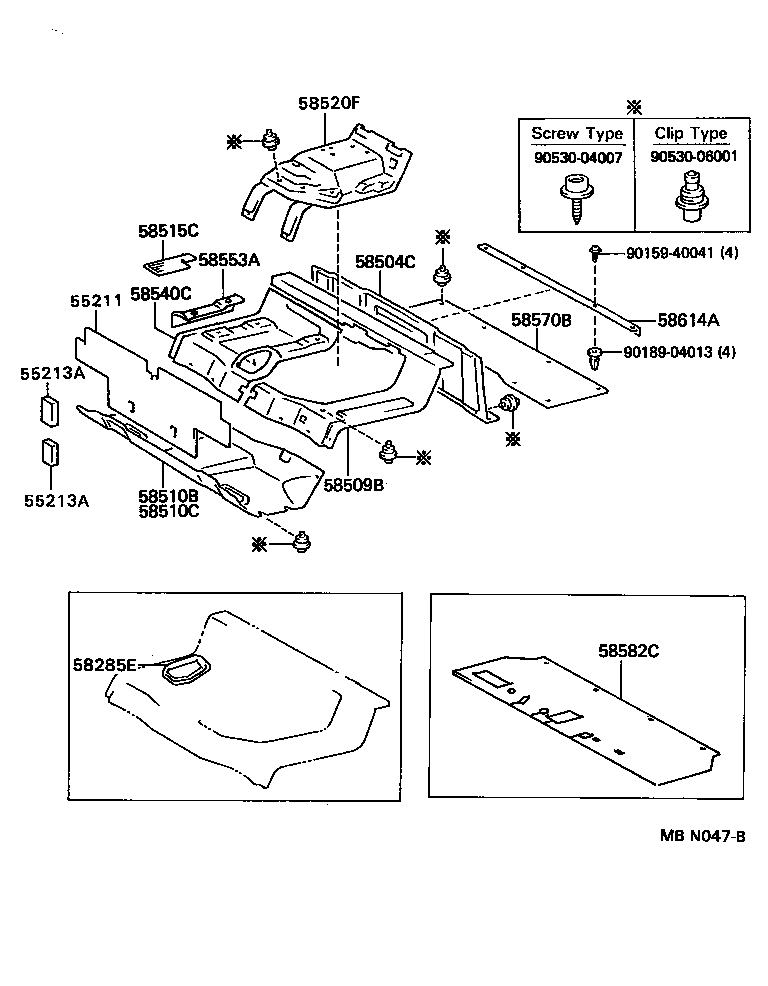

Figure MBN045A MBN045A 1987-08 → — Figure MBN047B MBN047B 1987-08 → —

Part groups

PNCDescription
55211 Silencer, Front Panel
55213A Pad, Dash Panel Silencer
58285E Cover, Center Floor Hole
58504C Mat Sub-assy, Header
58509B Mat Sub-assy, Seat Floor
58510B Mat, Front Floor, Front
58510C Carpet Assy, Front Floor, Front
58515C Mat, Front Floor, Rear NO.1
58520F Mat Assy, Engine Cover
58540C Mat Assy, Floor, Rear
58553A Carpet, Floor Rear Seat Side
58570B Mat Assy, Rear Floor
58582C Mat, Rear Floor, Rear
58614A Plate, Mat Set, NO.4
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
