Toyota Toyoace/Dyna

1987-08 → 1995-05 · chassis LY5#,LY6#,YY5#,YY61 · catalogue 731150 · Japan

Discontinued model Data version 1995-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Mounting

6 part groups · 5 illustrations

Illustrations

Figure MBN100

MBN100 1987-08 → —

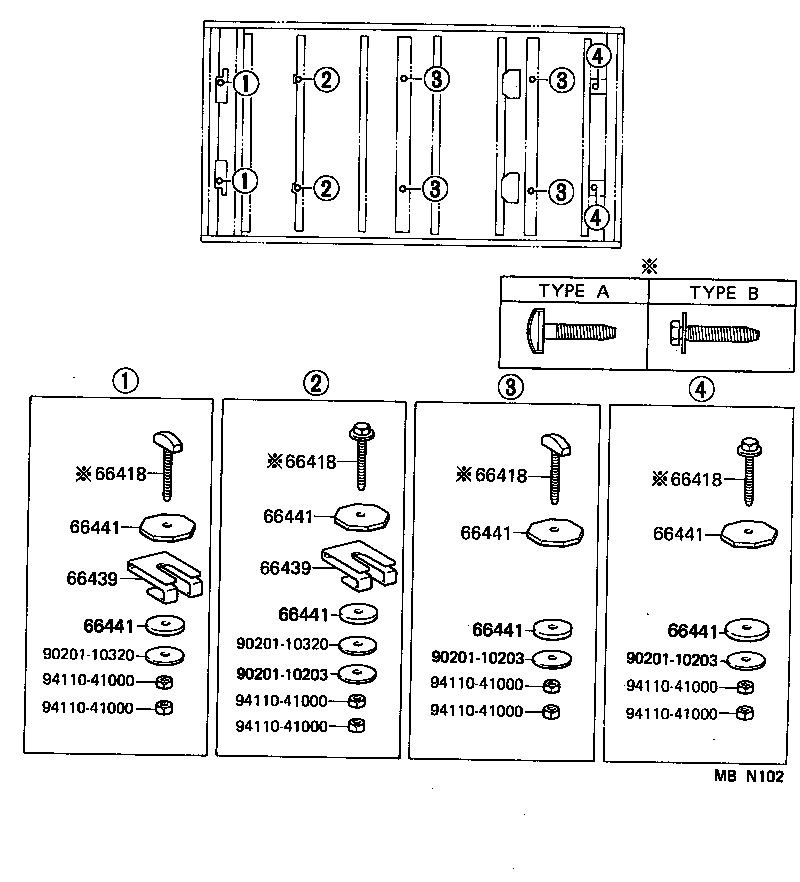

Figure MBN102

MBN102 1987-08 → —

Figure MBN104

MBN104 1987-08 → —

Figure MBN107A

MBN107A 1987-08 → —

Figure MBU982A

MBU982A 1990-08 → —

Part groups

PNC	Description
66418	Bolt, Mounting
66439	Shim, Support
66441	Shim, Mounting, NO.1
66446	Brace, Frame Floor
66451B	Plate, U Bolt
66471A	Reinforcement, Frame U Bolt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
