Toyota Toyoace/Dyna

1987-08 → 1995-05 · chassis LY5#,LY6#,YY5#,YY61 · catalogue 731150 · Japan

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

19 part groups · 3 illustrations

Illustrations

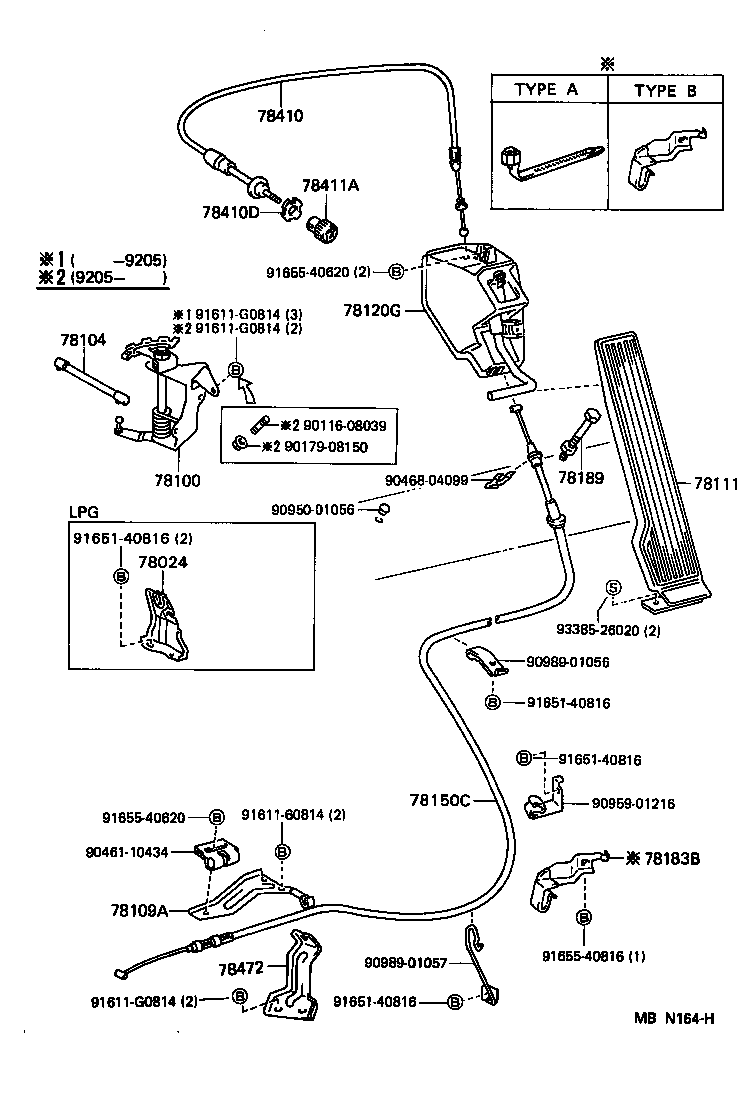

Figure MBN161F MBN161F 1987-08 → — Figure MBN164H MBN164H 1987-08 → — Figure MBN164H MBN164H 1994-06 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78100 Link Assy, Accelerator
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78109A Bracket Sub-assy, Accelerator Wire Clamp
78111 Pedal, Accelerator
78120G Rod Assy, Accelerator Pedal
78129B Seal, Accelerator Pedal Arm
78150C Wire Assy, Accelerator Flexible
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78189 Bolt, Accelerator Pedal Stopper
78310 Cable Assy, Choke
78310B Clamp, Choke Cable
78311 Knob, Choke Control Cable
78311A Nut, Choke Shaft Set
78410 Cable Assy, Throttle Control
78410D Nut, Throttle
78411A Knob, Throttle Control Cable
78472 Support, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
