Toyota Toyoace/Dyna

1987-08 → 1995-05 · chassis LY5#,LY6#,YY5#,YY61 · catalogue 731150 · Japan

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

22 part groups · 6 illustrations

Illustrations

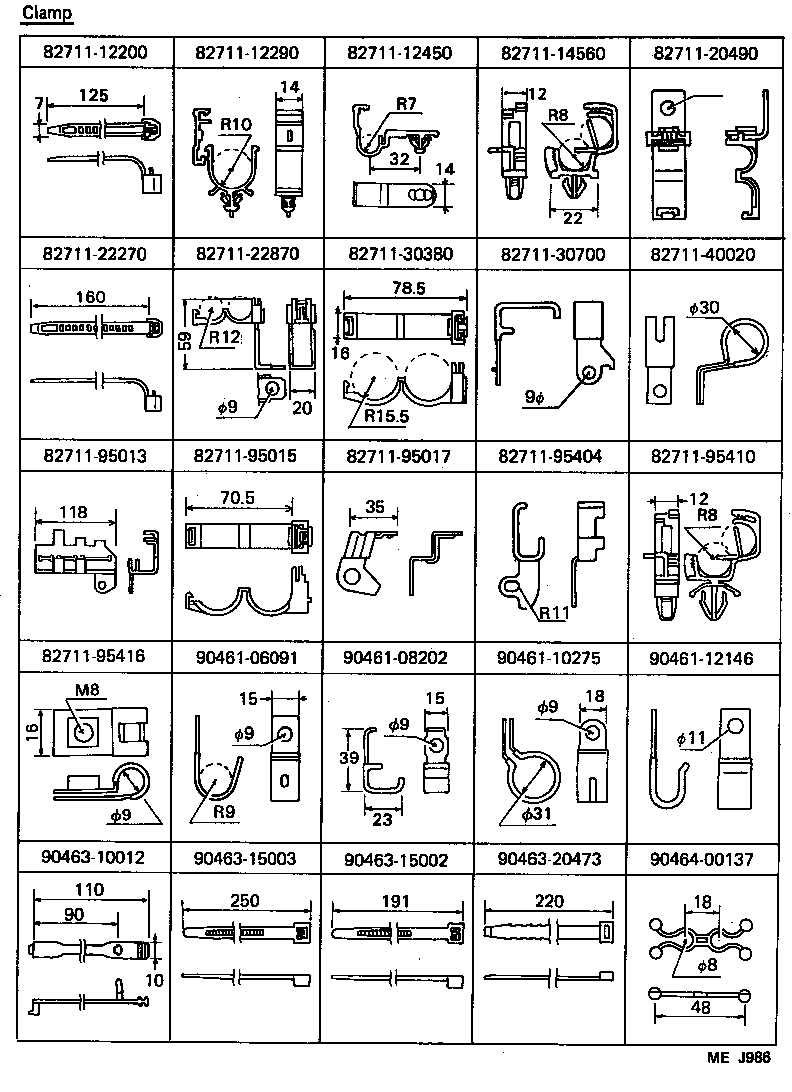

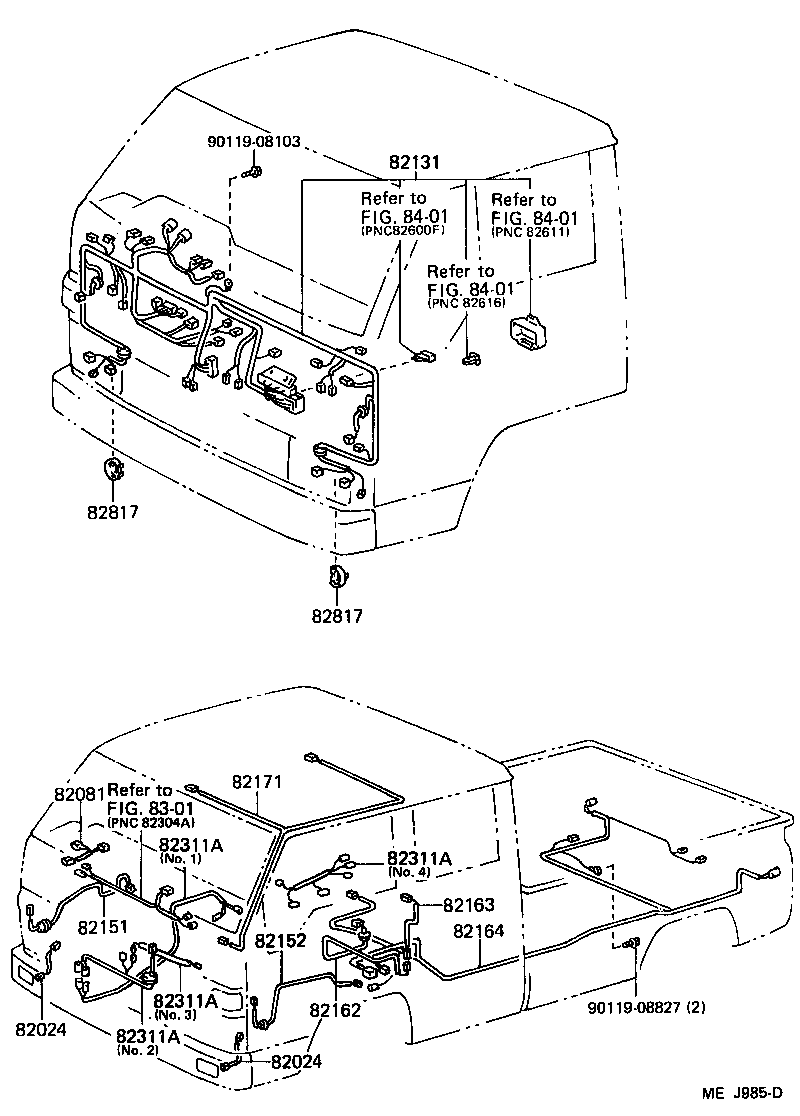

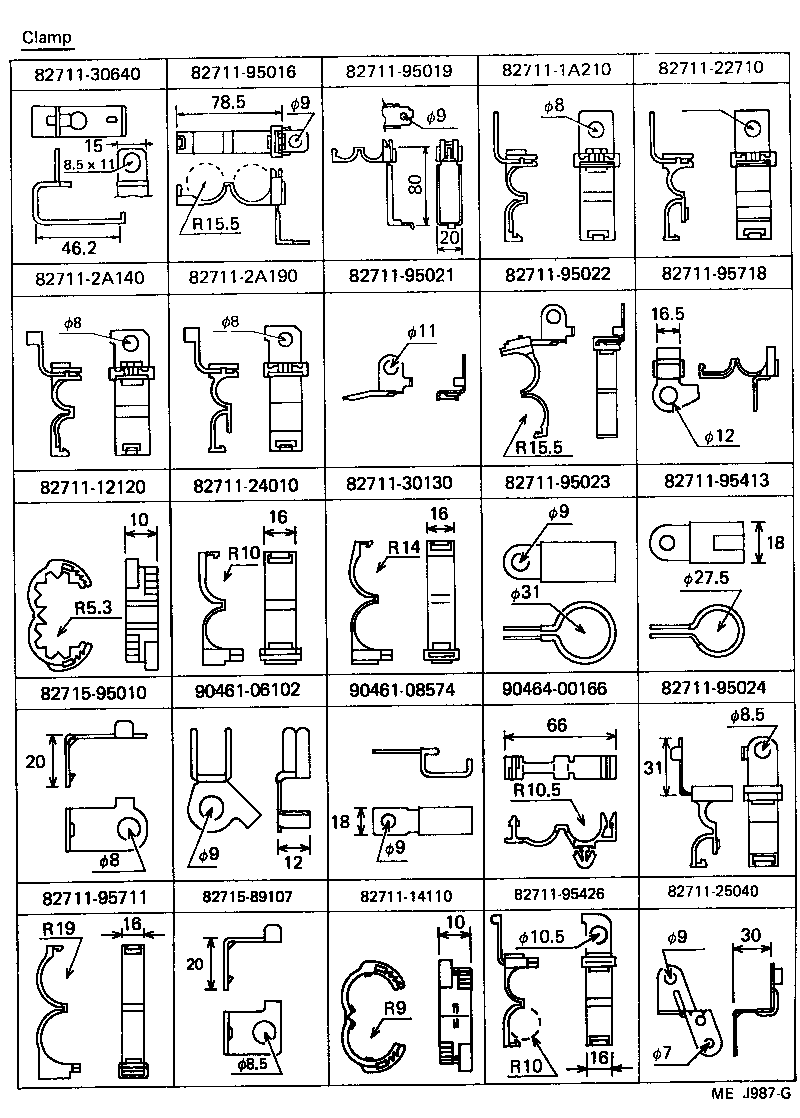

Figure MEJ984F MEJ984F 1987-08 → — Figure MEJ985D MEJ985D 1987-08 → — Figure MEJ986 MEJ986 1987-08 → — Figure MEJ987G MEJ987G 1987-08 → — Figure MES415A MES415A 1987-08 → — Figure MEL566 MEL566 1987-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82024 Wire Sub-assy, Fog Lamp Feed
82031 Wire Sub-assy, Ignition Coil
82060A Wire Assy, Engine, NO.2
82081 Wiring Assy, Door Lock
82121 Wire, Engine
82122 Wire, Engine, NO.2
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82171 Wire, Roof, NO.1
82203 Wire Sub-assy, Alternator
82210C Fusible Link
82305 Wire Sub-assy, TO Tachograph
82311A Wire, Air Conditioner
82412 Wire, Fuel Gage
82670 Block Assy, Junction, NO.1
82817 Protector, Wiring Harness, NO.1
85999U Bracket, Relay Block
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
