Toyota Toyoace/Dyna
1987-08 → 1995-05 · chassis LY5#,LY6#,YY5#,YY61 · catalogue 731150 · Japan
Discontinued model
Data version 1995-10
Meter
25 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 82304A | Wire Sub-assy, Clock |

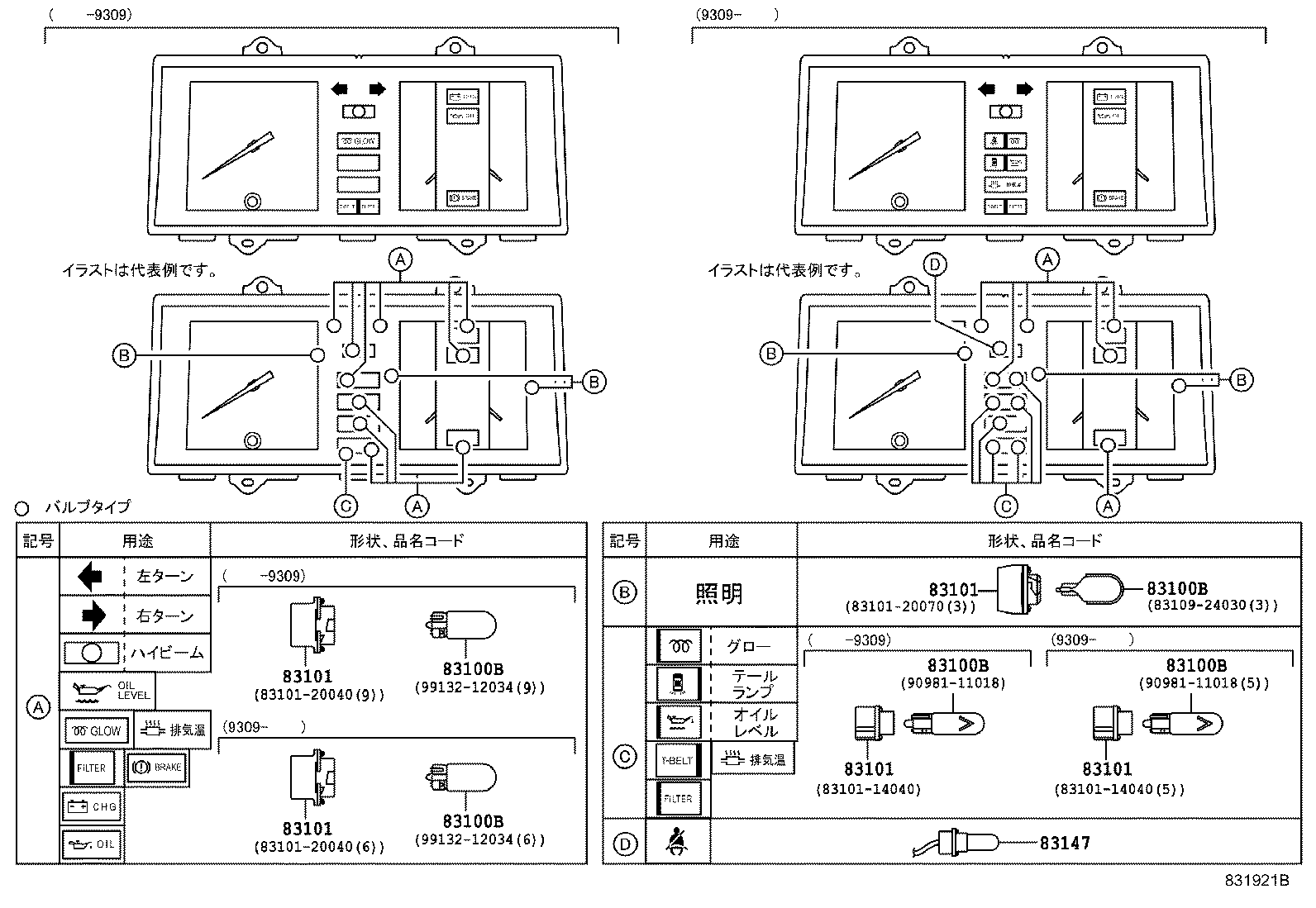

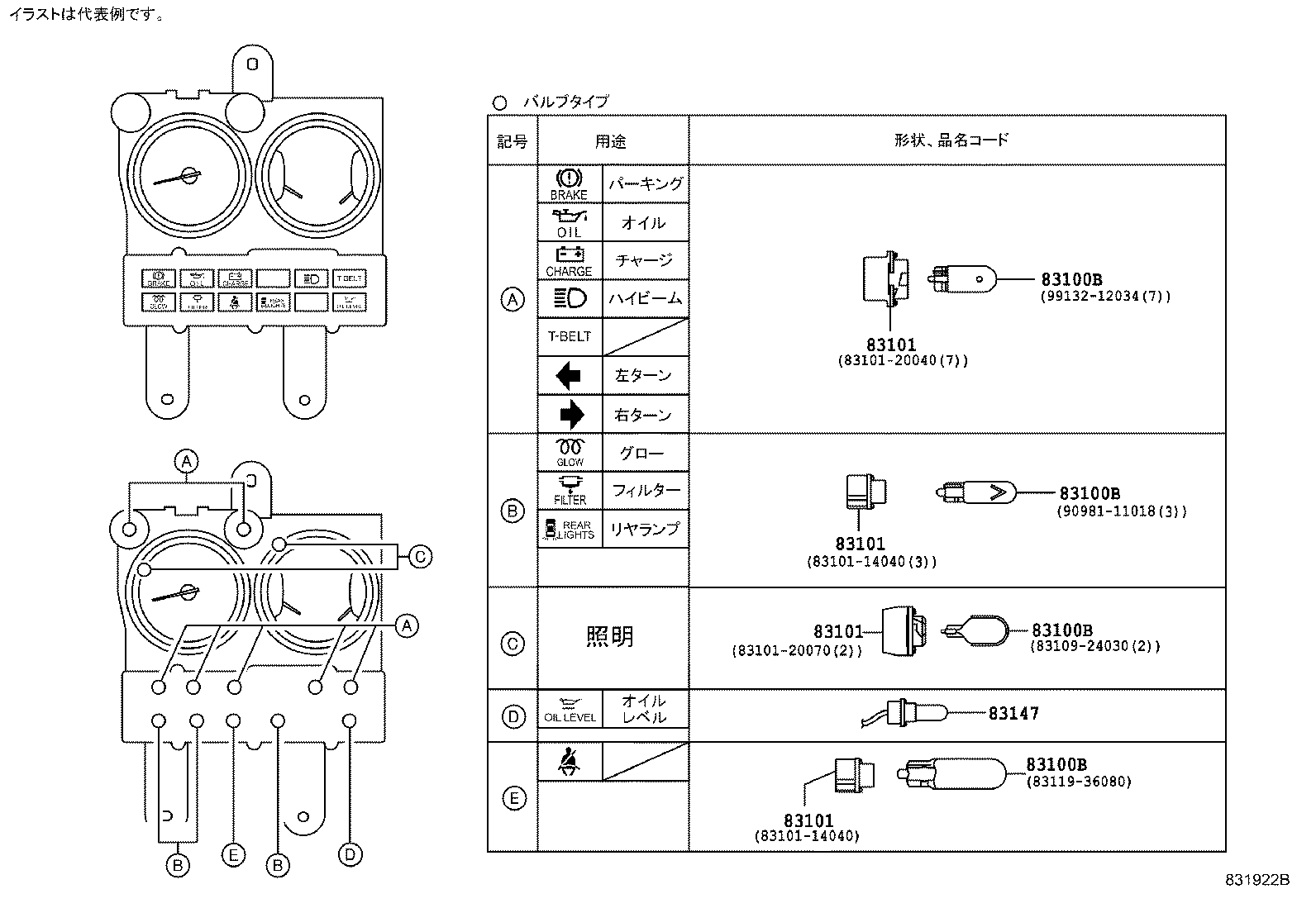

| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |

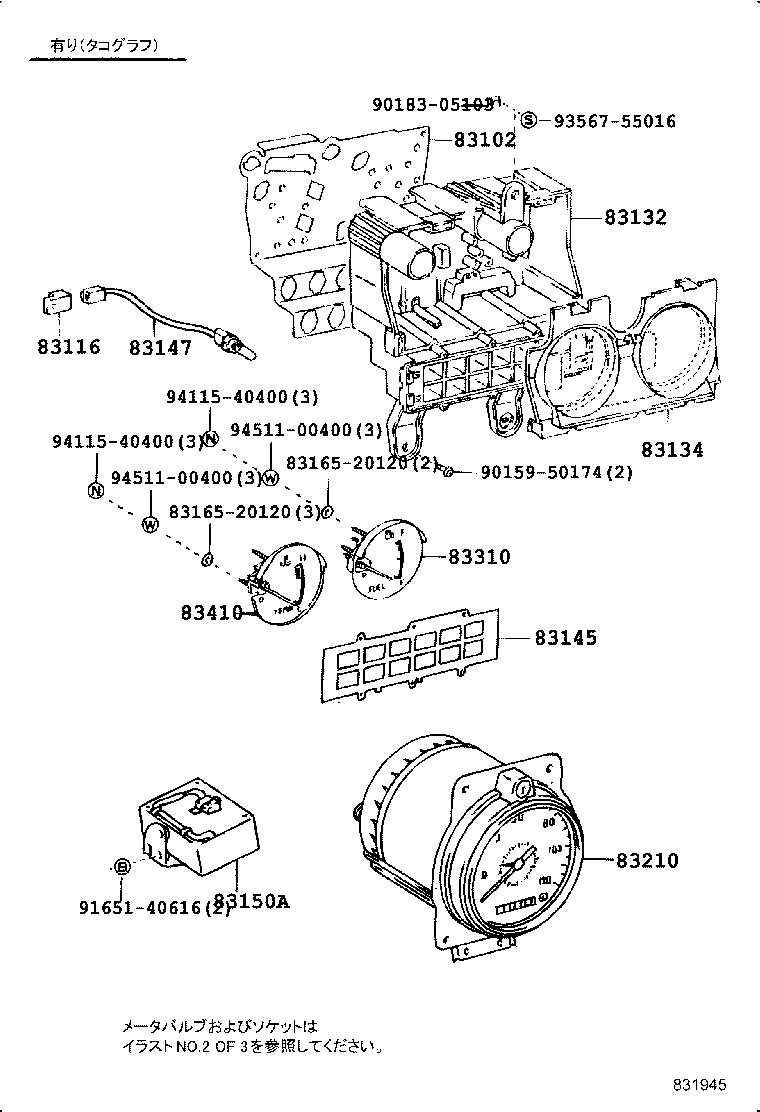

| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83116 | Bracket, Speedometer |
| 83125 | Switch Assy, Meter |
| 83128 | Knob, Trip Counter |
| 83132 | Case, Combination Meter |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138 | Glass, Speedometer |
| 83145 | Lens, Meter, NO.1 |
| 83146 | Grommet, Meter Glass |
| 83147 | Lamp, Meter NO.1 |
| 83150A | Indicator Assy |
| 83188 | Bracket, Meter, NO.1 |
| 83210 | Tachograph Assy |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |

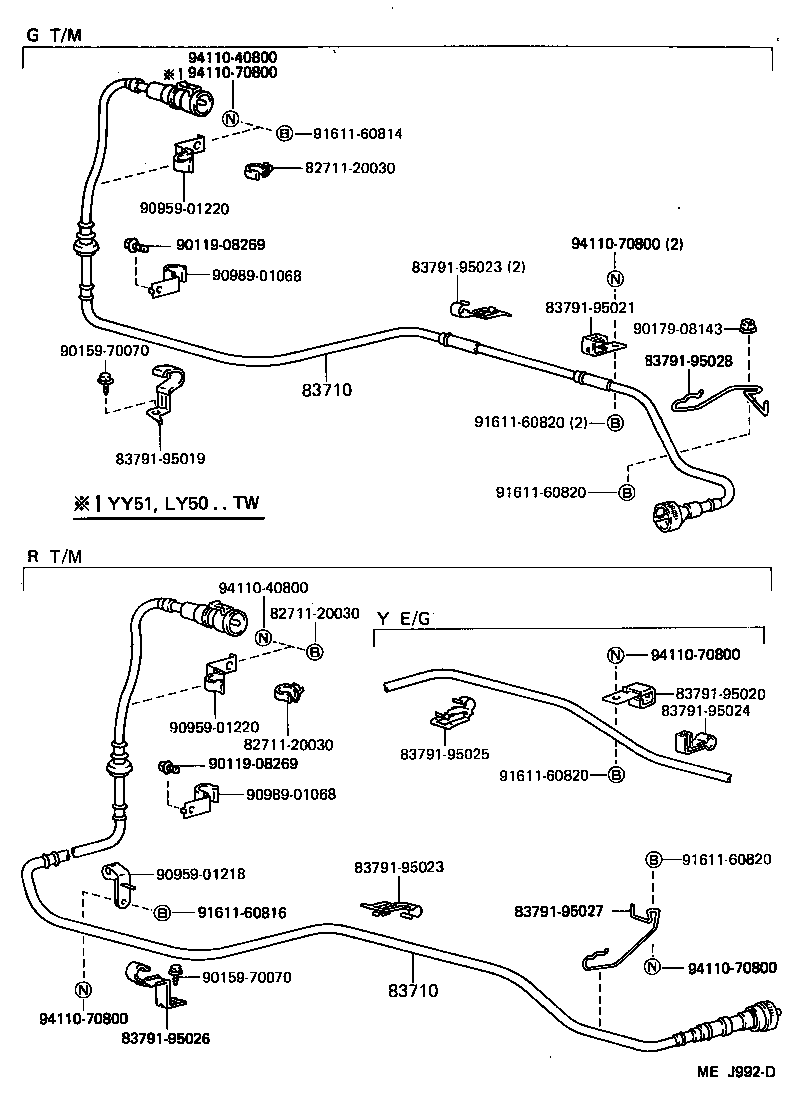

| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83710A | Cable Assy, Speedometer Drive, NO.2 |

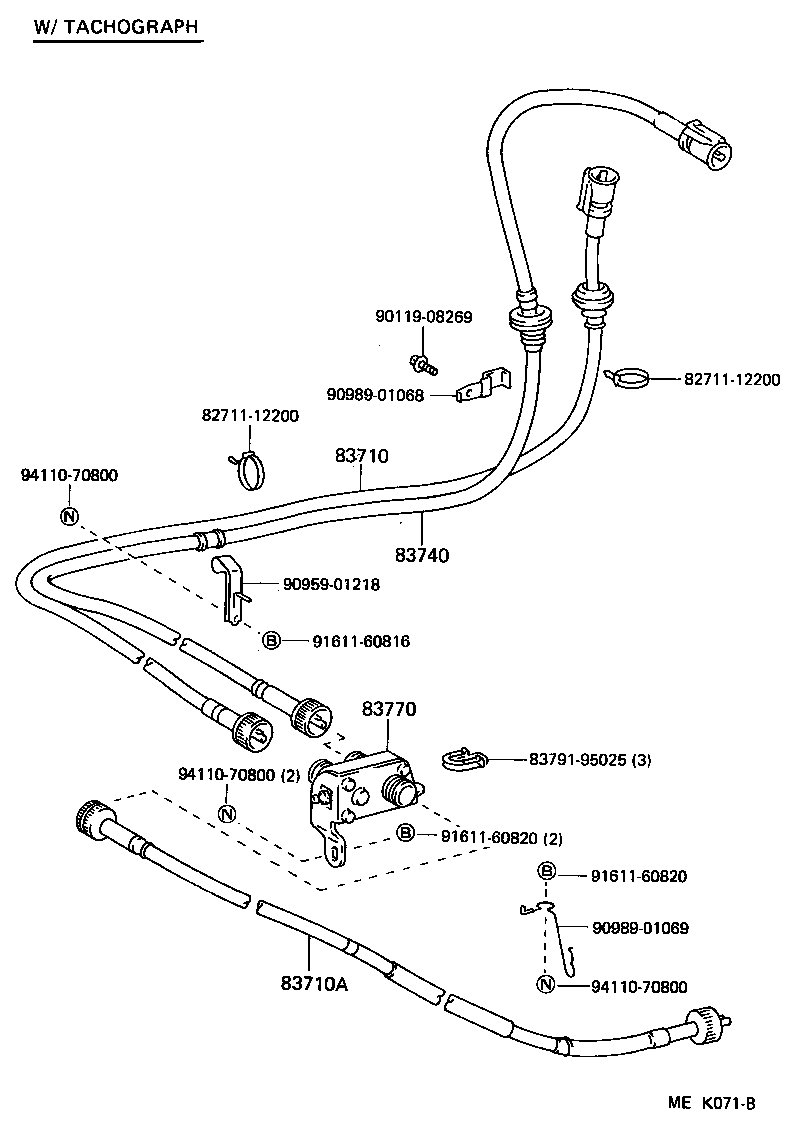

| 83740 | Cable Assy, Tachograph Drive |
| 83770 | Adapter Assy, Speedometer Cable |
| 83910 | Clock Assy |
| 86650G | Buzzer Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
