Toyota Toyoace/Dyna
1987-08 → 1995-05 · chassis LY5#,LY6#,YY5#,YY61 · catalogue 731150 · Japan
Discontinued model
Data version 1995-10
Switch & Relay & Computer
82 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

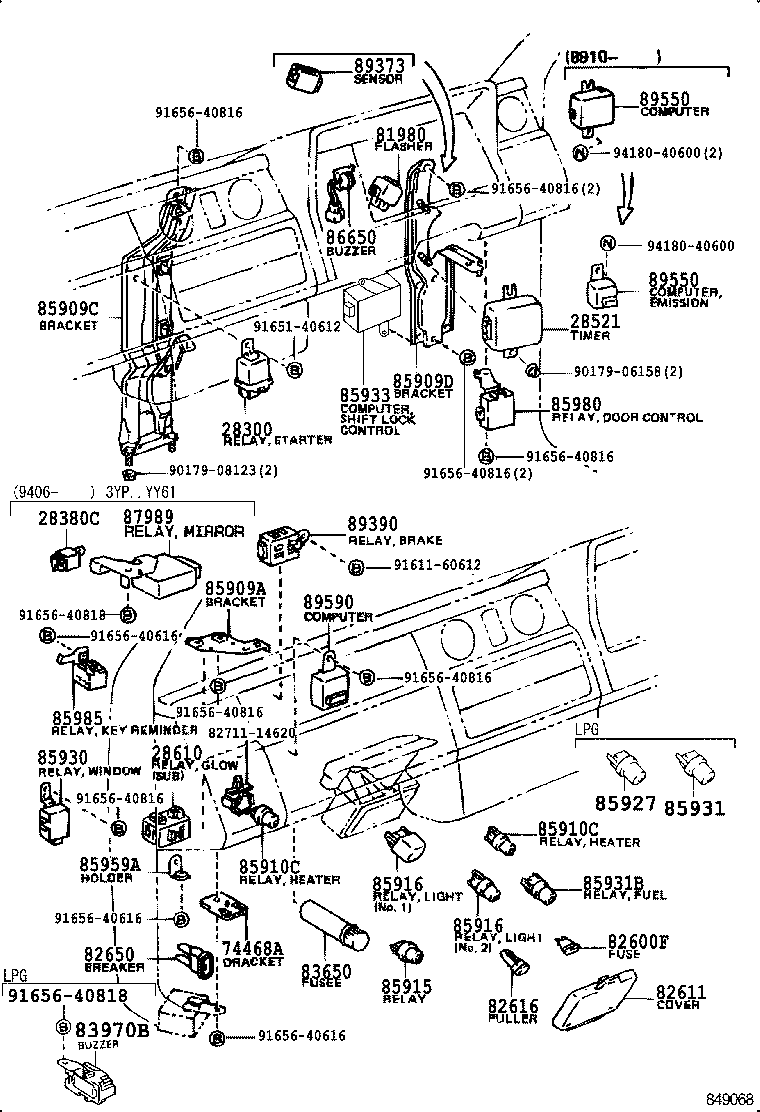

| 28300 | Relay Assy, Starter |
| 28380C | Relay Assy, Fuel Pump |

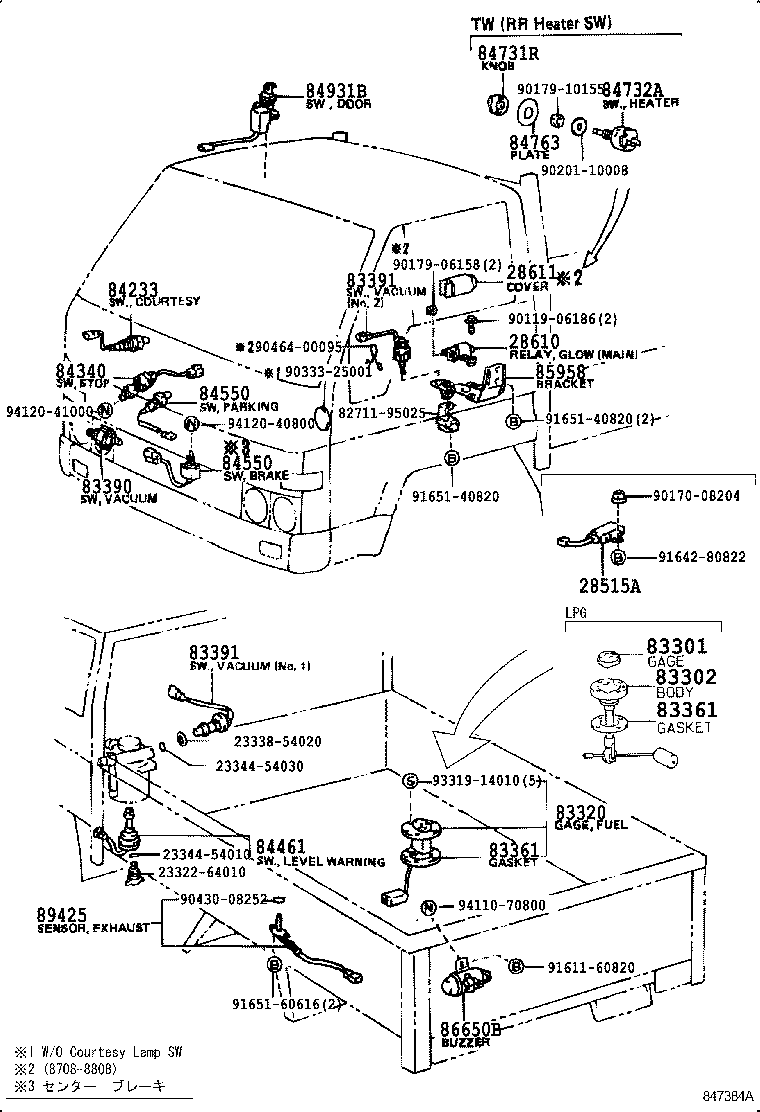

| 28515A | Resistor, Solenoid |
| 28521 | Timer, Preheating |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28611 | Cover, Glow Plug Relay |
| 28621 | Resistor, Glow Plug |
| 28631 | Sensor, Glow Plug Current |
| 74468A | Bracket, Relay Block |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82611 | Cover, Fuse Block |
| 82616 | Puller, Fuse |
| 82650 | Breaker Assy, Wiring Circuit, NO.1 |
| 83301 | Gage Sub-assy, Fuel Sender (FOR LPG TANK) |
| 83302 | Body Sub-assy, Fuel Sender Gage |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83390 | Switch Assy, Vacuum Warning |
| 83391 | Switch, Vacuum |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 83970B | Buzzer Assy, Reverse Warning |

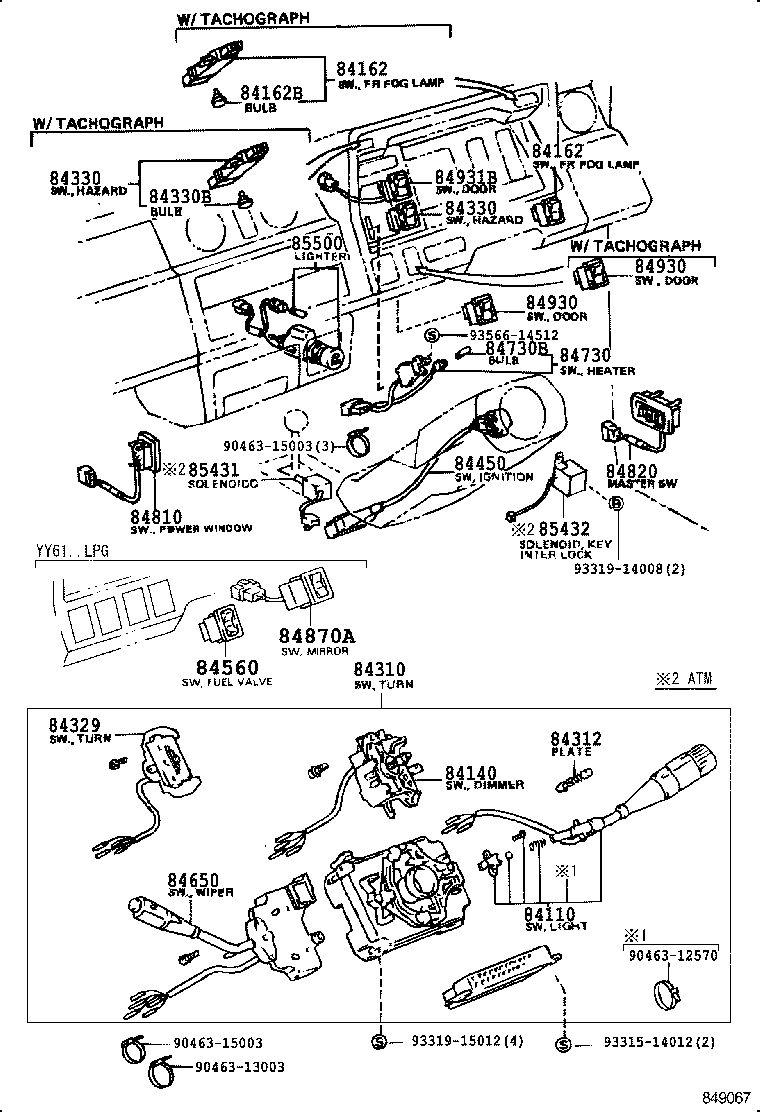

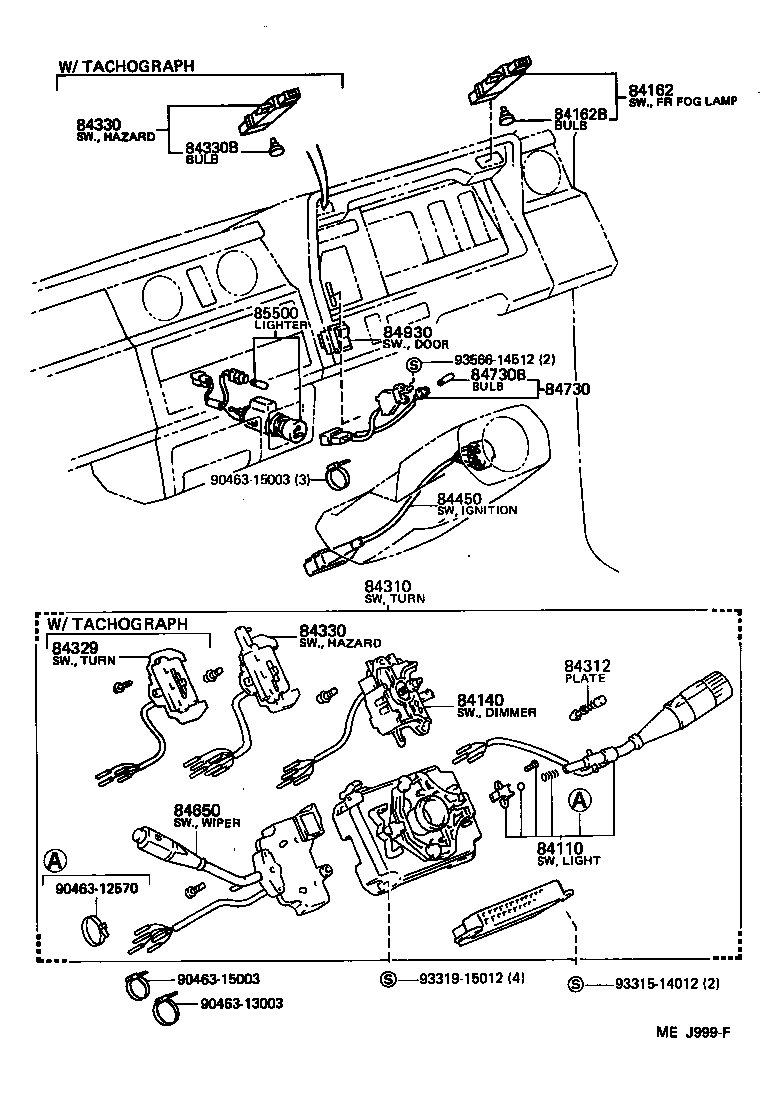

| 84110 | Switch Assy, Light Control, NO.1 |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84162 | Switch, Front Fog Lamp |
| 84162B | Bulb, Fog Lamp Switch |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84329 | Switch, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84461 | Switch, Level Warning |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84560 | Switch Assy, Fuel Valve Control |
| 84650 | Switch Assy, Windshield Wiper |
| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |
| 84731R | Knob, Rear Heater Blower Switch |
| 84732A | Switch, Rear Heater Blower |
| 84763 | Plate, Switch |
| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84930 | Switch Assy, Door Control |
| 84931B | Switch, Door Control |
| 85431 | Solenoid, Shift Lock |
| 85432 | Solenoid, Key Interlock |
| 85500 | Lighter Assy, Cigarette |
| 85909A | Bracket Sub-assy, Relay Block |
| 85909C | Bracket Sub-assy, Relay, NO.1 |
| 85909D | Bracket Sub-assy, Relay, NO.2 |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85915 | Relay, Main |
| 85916 | Relay, Light Control |
| 85927 | Relay, Cooling Fan |
| 85930 | Relay Assy, Power Window |
| 85931 | Relay, Emission Control |
| 85931B | Relay, Fuel Heater |
| 85933 | Computer, Shift Lock Control |
| 85958 | Bracket, Main Relay |
| 85959A | Holder, Relay |
| 85980 | Relay Assy, Door Control |
| 85985 | Relay, Key Reminder |
| 86650 | Buzzer Assy, Vacuum Indicator |
| 86650B | Buzzer Assy, Reverse Warning |
| 87989 | Relay, Mirror Control |
| 89373 | Sensor, Lamp Failure Indicator |
| 89390 | Relay, Brake Warning |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89429 | Sensor, Oil Temperature |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89491 | Sensor, Engine Oil Level |
| 89550 | Computer Assy, Emission Control |
| 89590 | Computer Assy, Condition Indicator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
