Toyota Toyoace/Dyna

1987-08 → 1995-05 · chassis LY5#,LY6#,YY5#,YY61 · catalogue 731150 · Japan

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

25 part groups · 11 illustrations

Illustrations

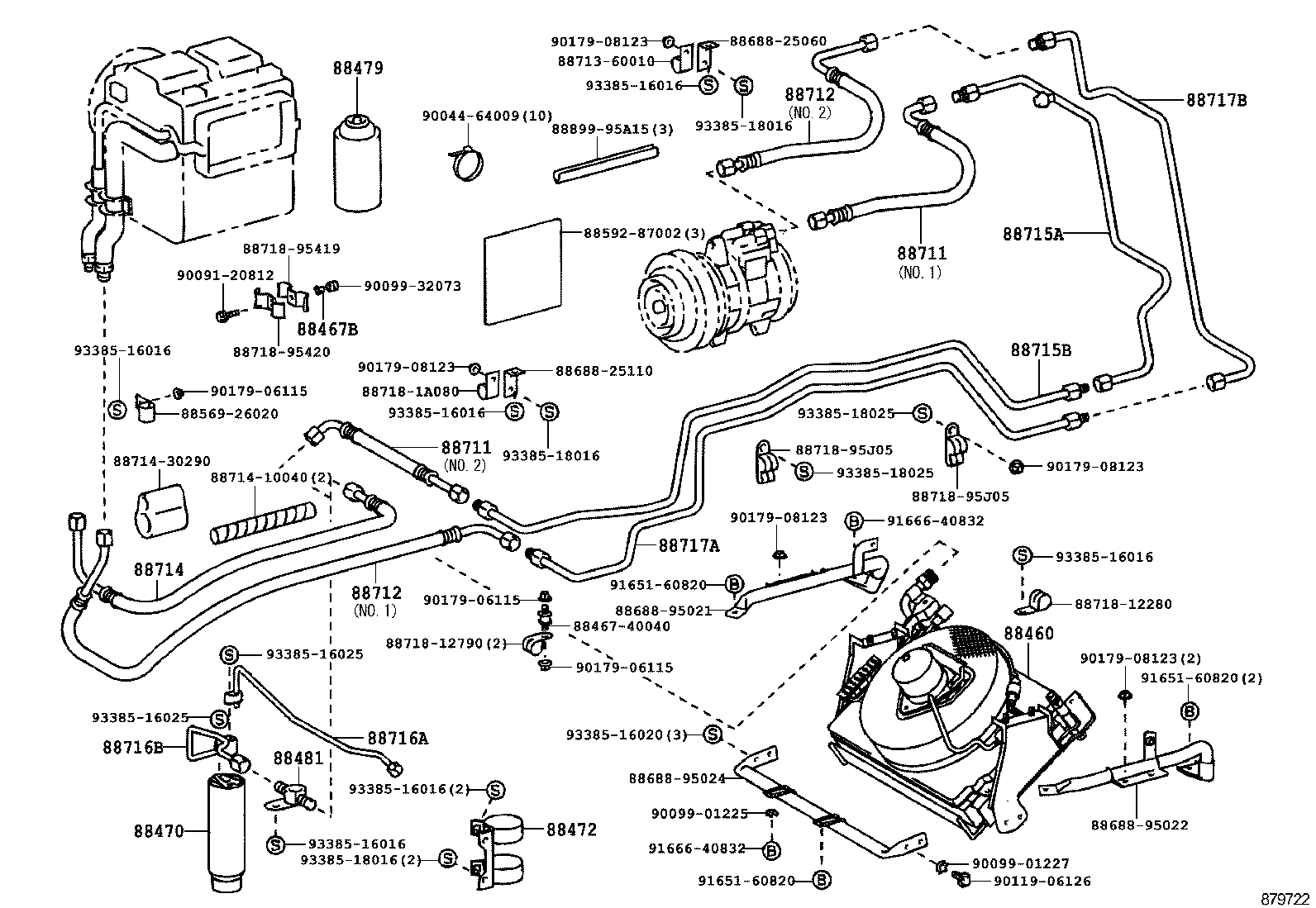

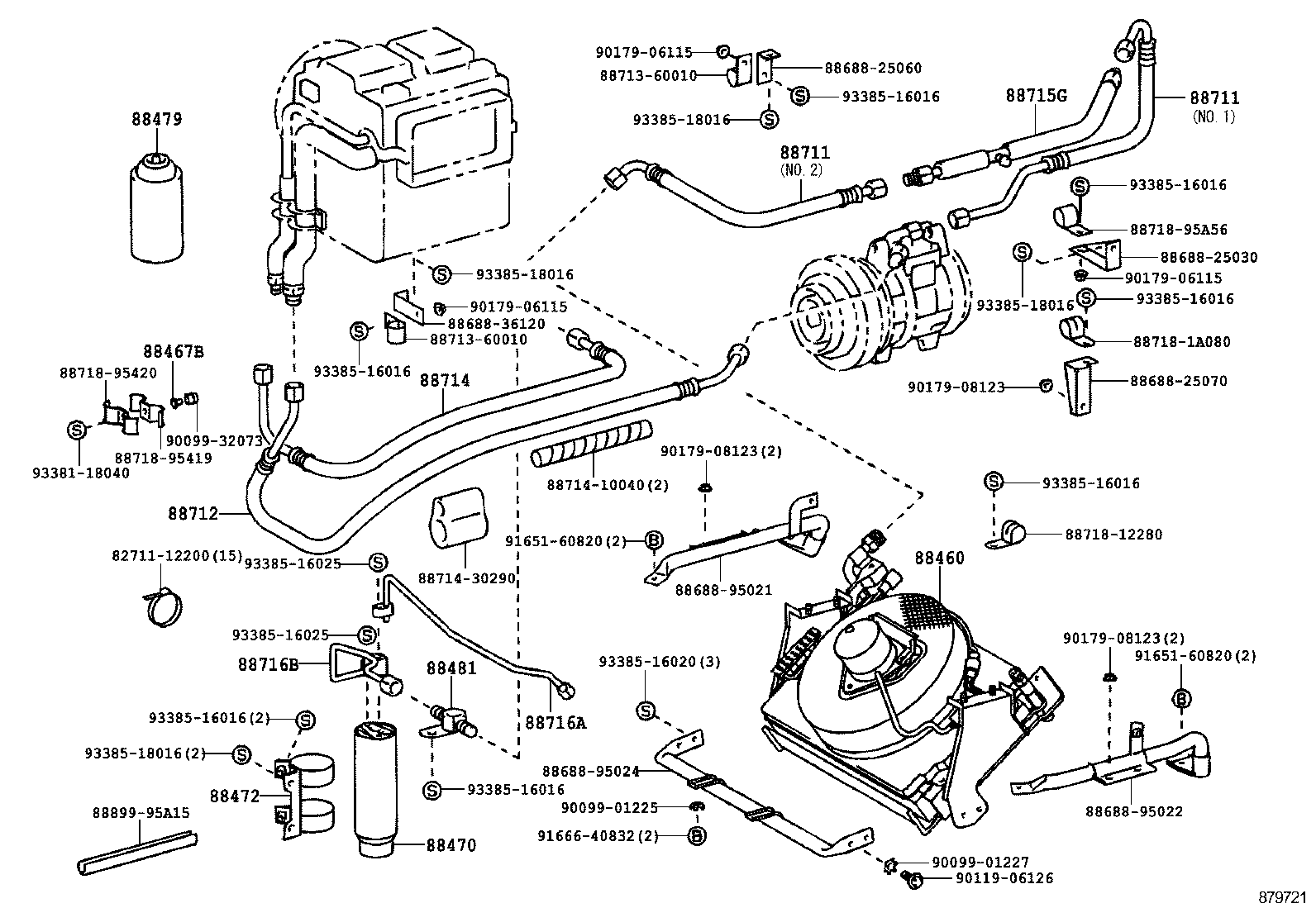

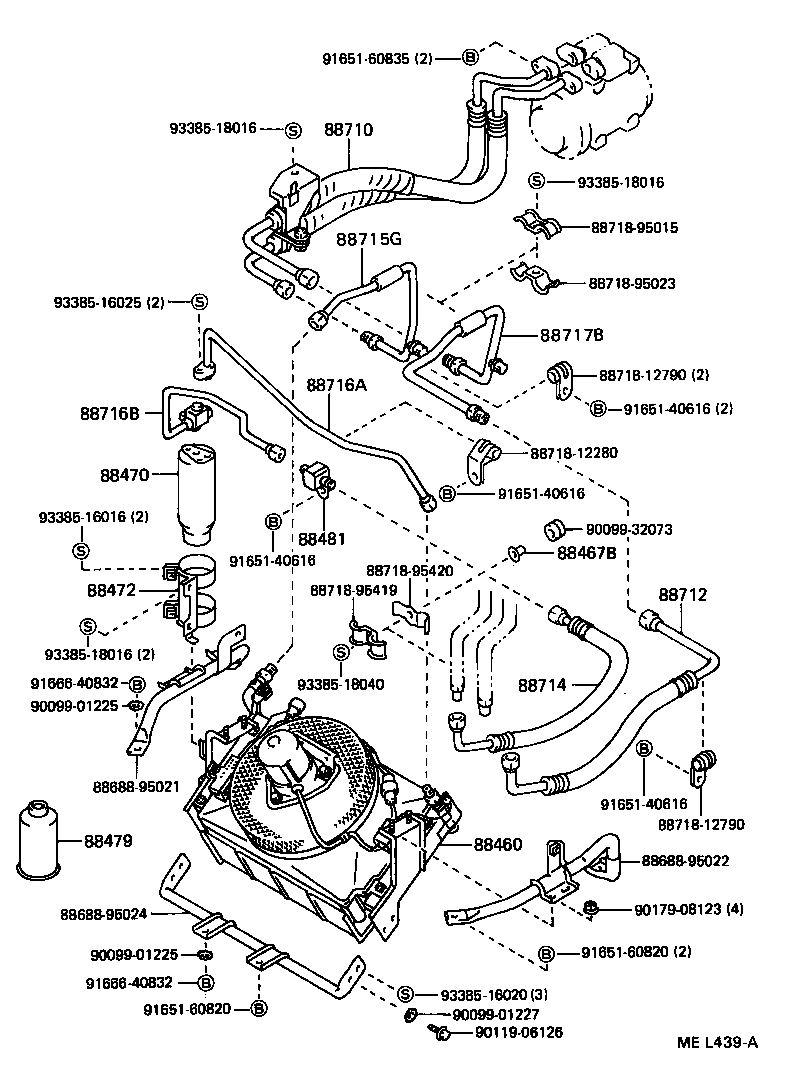

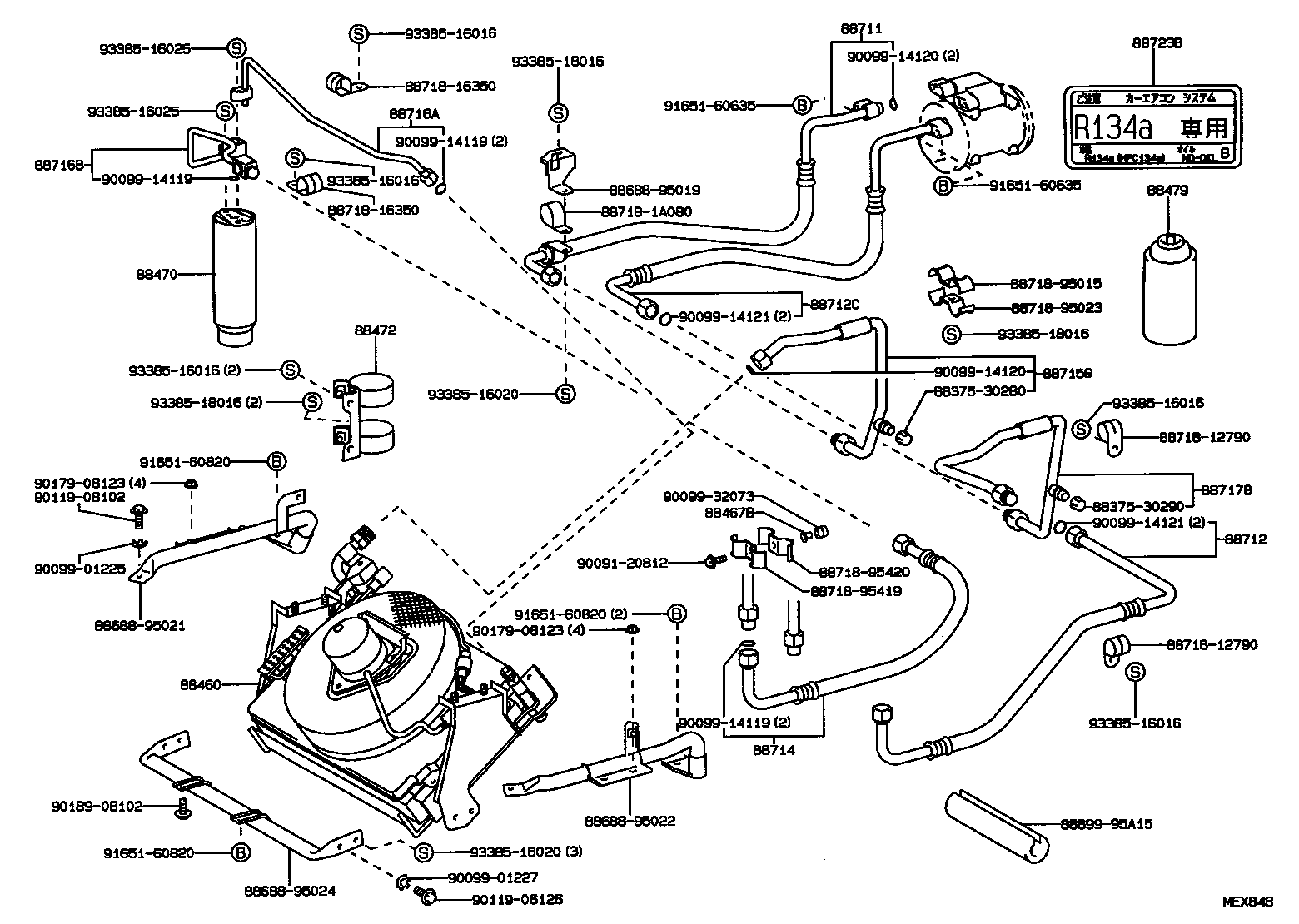

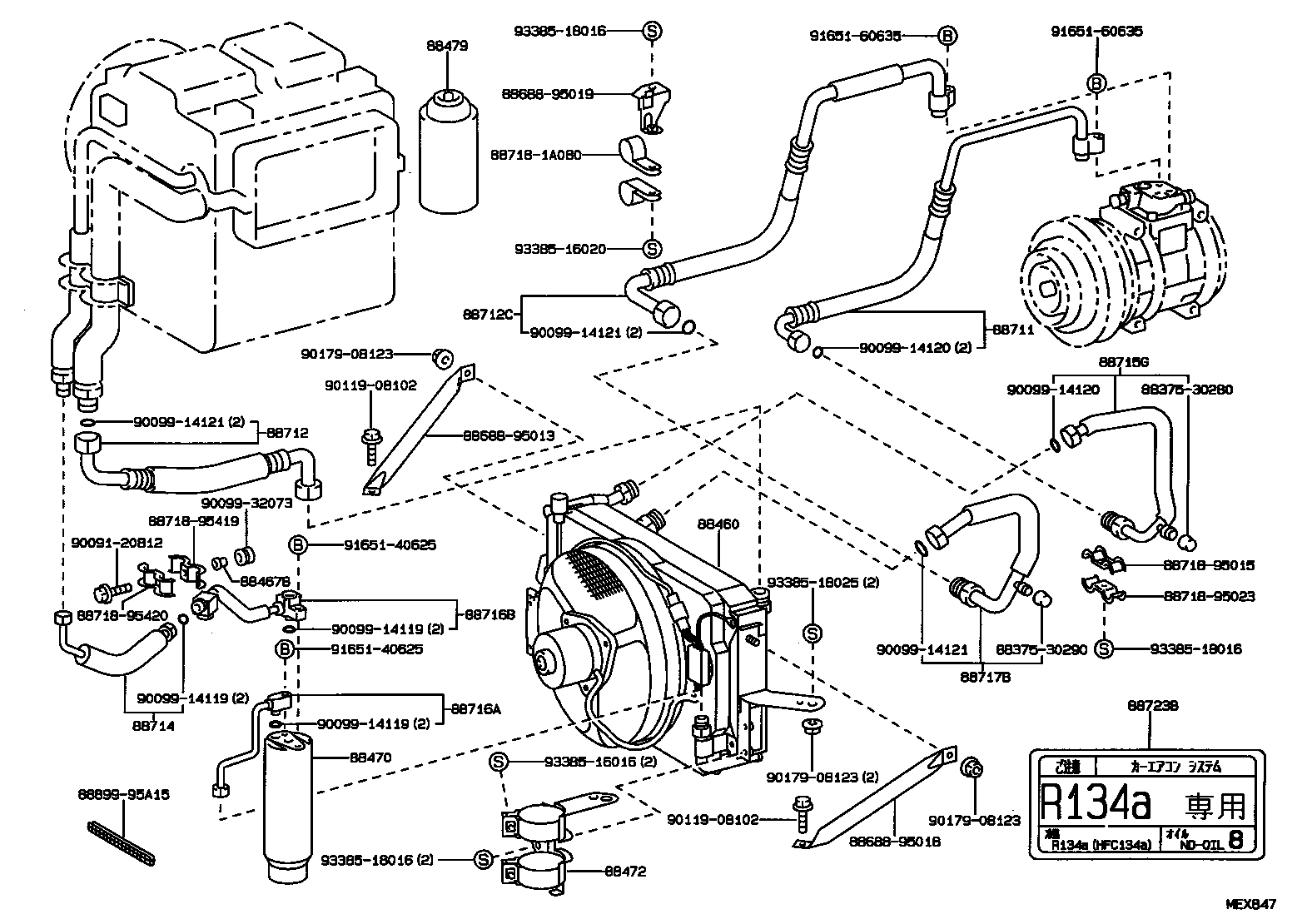

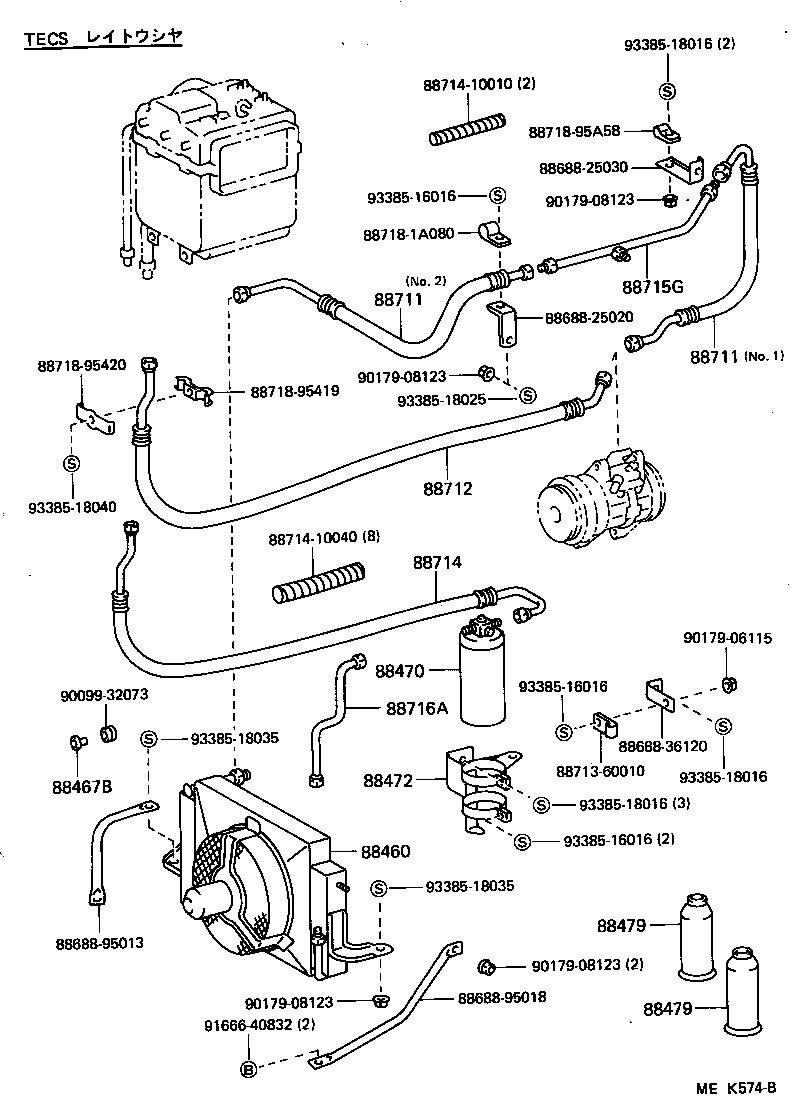

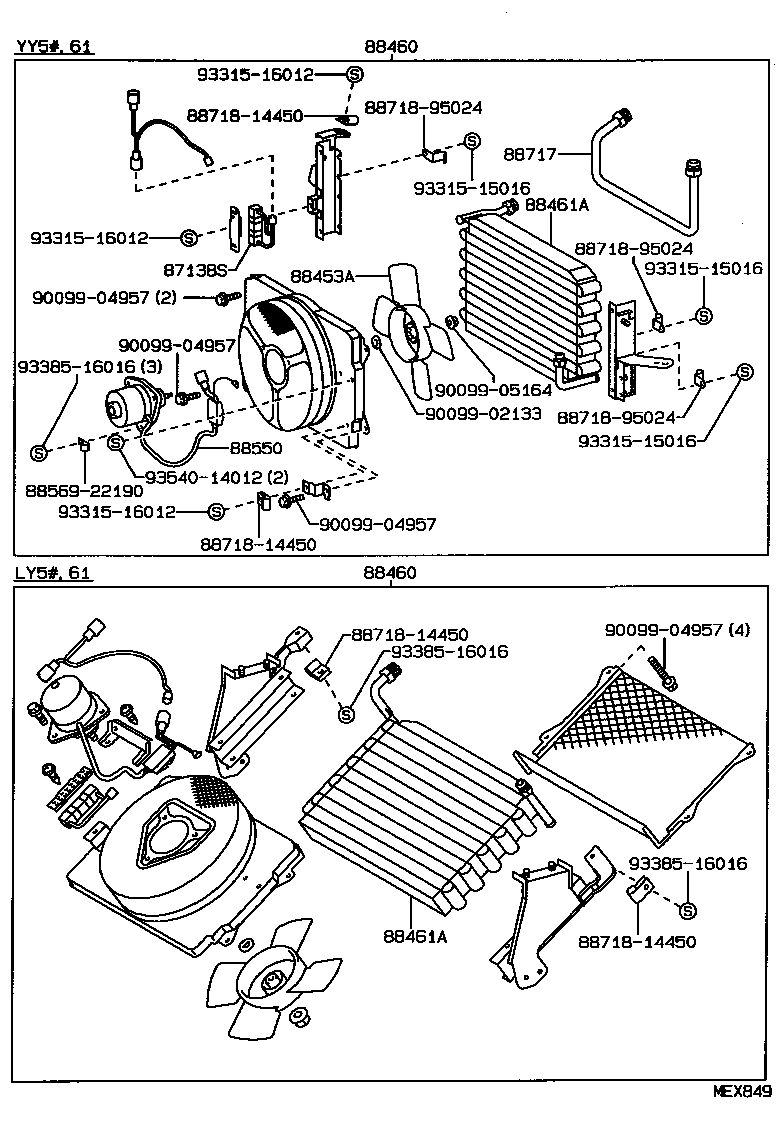

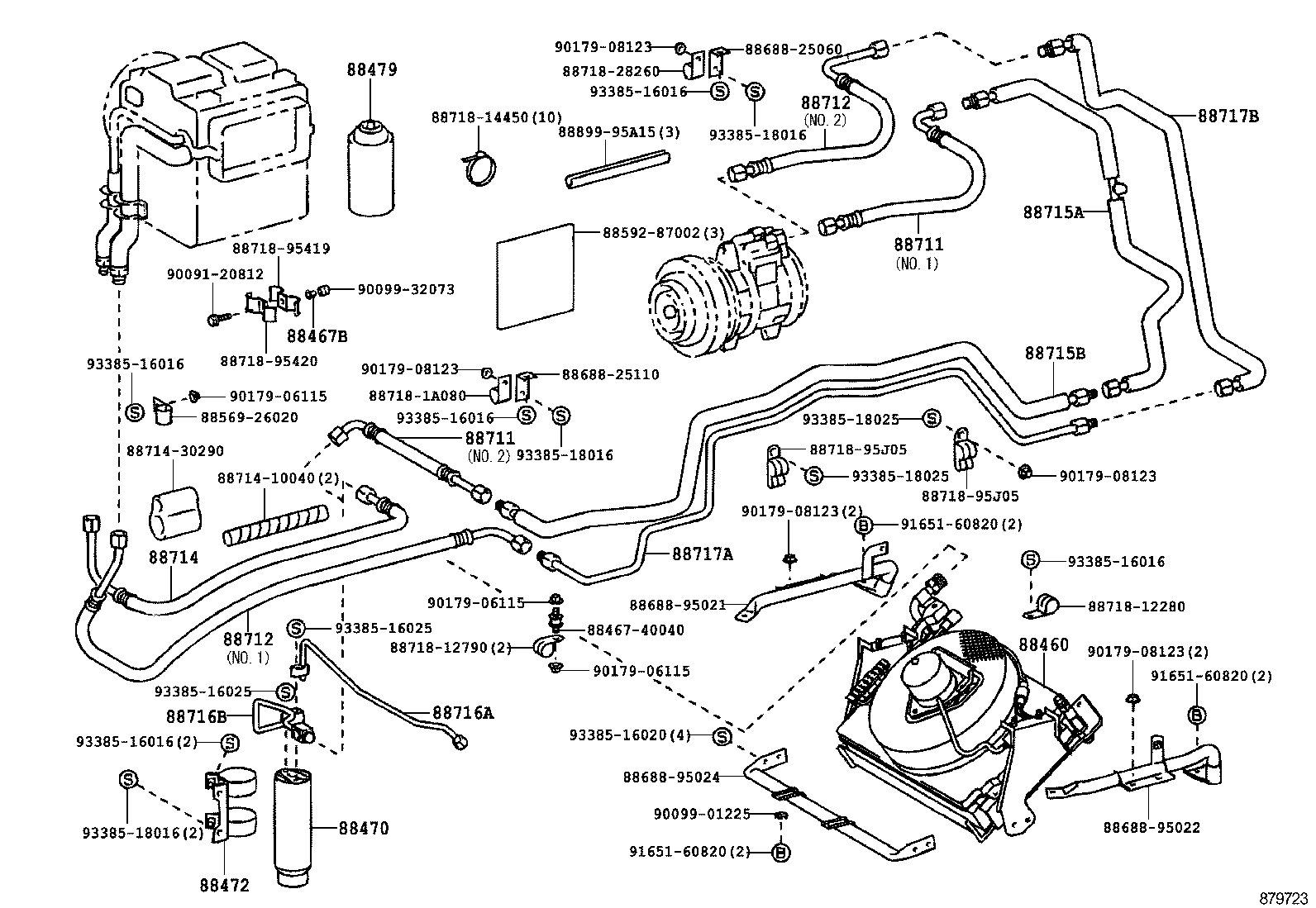

Figure MEK047B MEK047B 1987-08 → 1988-08 Figure MEK047B MEK047B 1988-08 → 1993-09 Figure MEL439A MEL439A 1988-08 → 1993-09 Figure MEX847 MEX847 1993-09 → — Figure MEX848 MEX848 1993-09 → — Figure MEX849 MEX849 1993-09 → — Figure MEK574B MEK574B 1987-08 → 1988-08 Figure 879721 879721 1988-08 → 1993-01 Figure 879722 879722 1993-01 → 1993-09 Figure 879723 879723 1993-09 → — Figure MEK048C MEK048C 1987-08 → —

Part groups

PNCDescription
87138S Resistor, Blower
88453A Fan, Cooling
88460 Condenser Assy, Cooler
88461A Core, Cooler Condenser
88467B Insulator, Cooler Condenser Mounting
88470 Receiver & Dryer Assy, Cooler
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88481 Glass, Sight
88550 Motor Assy, Blower (FOR CONDENSER)
88605J Harness Sub-assy, Air Conditioner Wiring
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88712C Hose, Suction
88714 Hose, Cooler Refrigerant Liquid, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88715G Tube, Discharge, G
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88723B Label, Cooler Service Caution
