Toyota Dyna 150/Toyoace G15

1995-05 → 2001-07 · chassis LY1##,2##,YY1##,2## · catalogue 731160 · Japan

Discontinued model Data version 1999-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

16 part groups · 8 illustrations

Illustrations

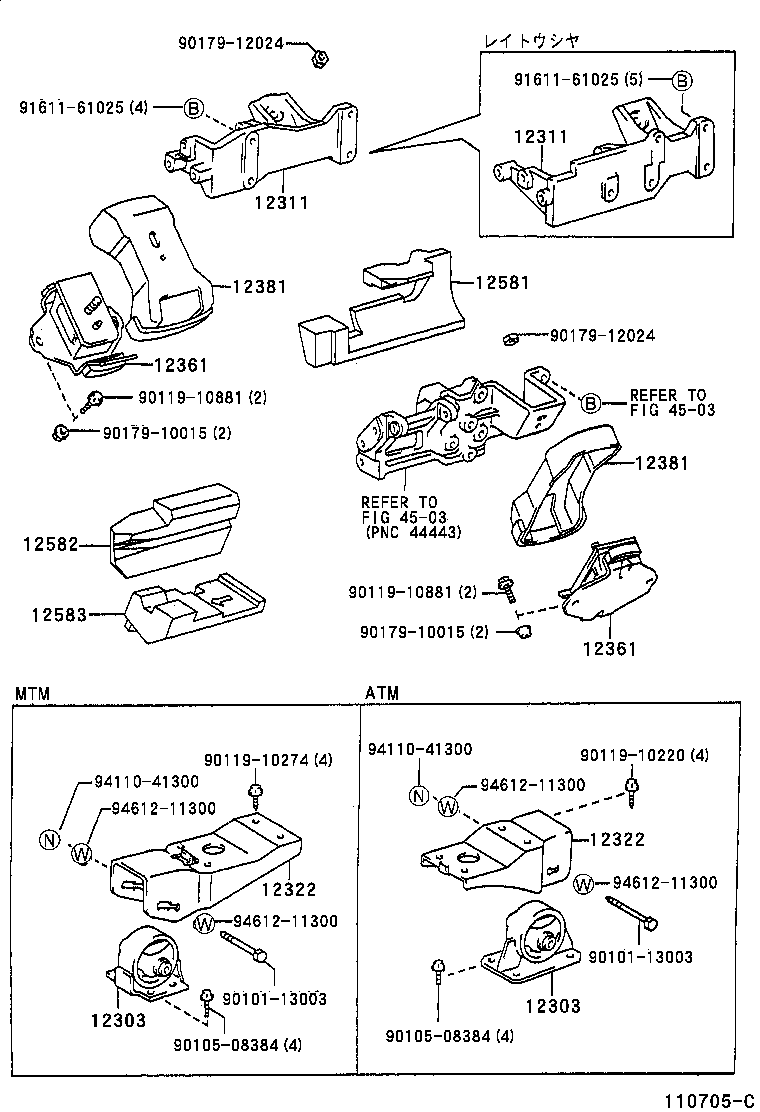

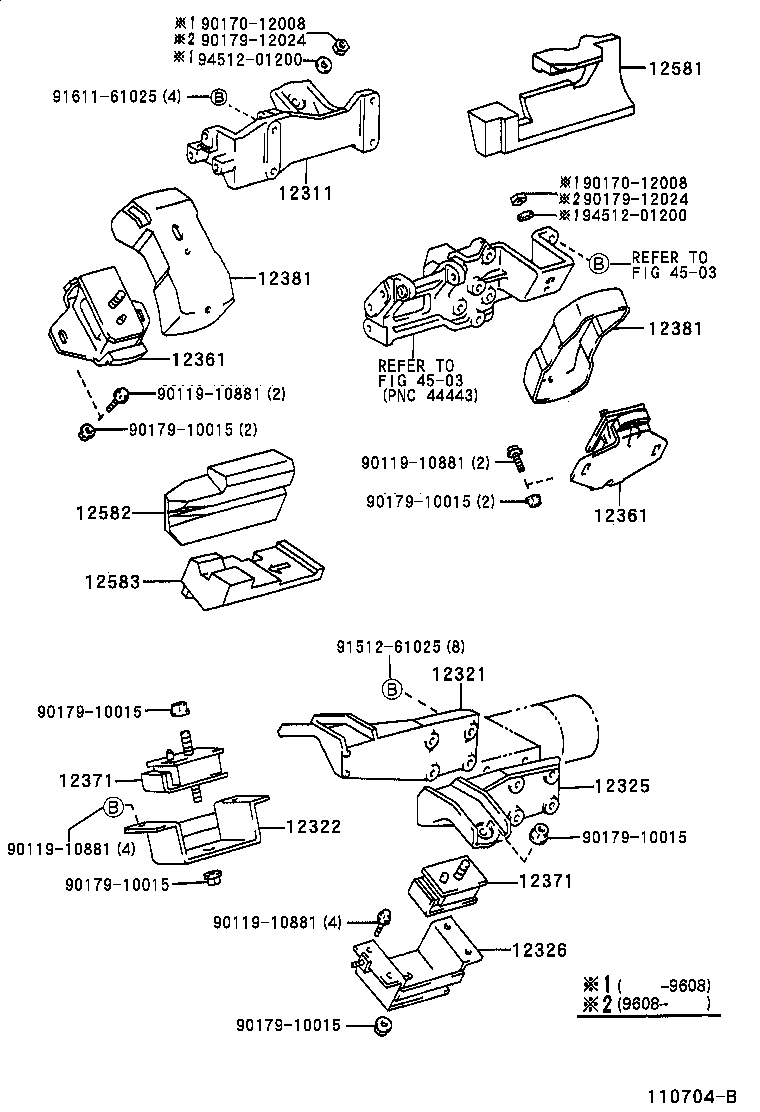

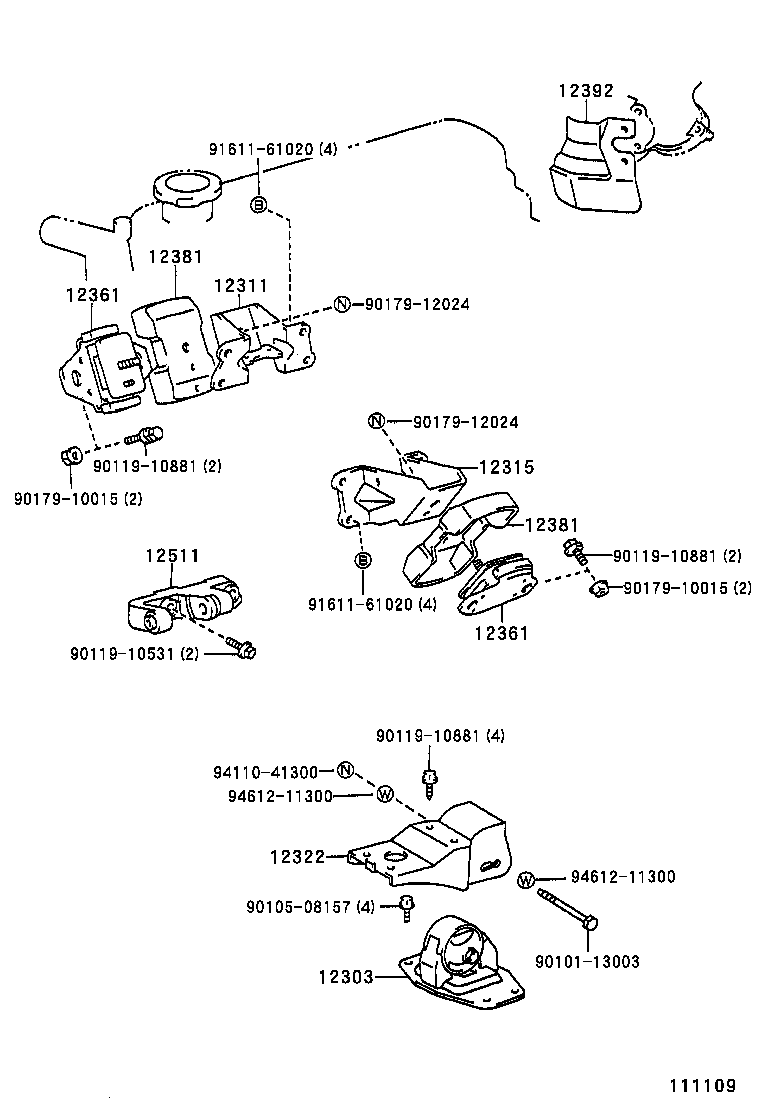

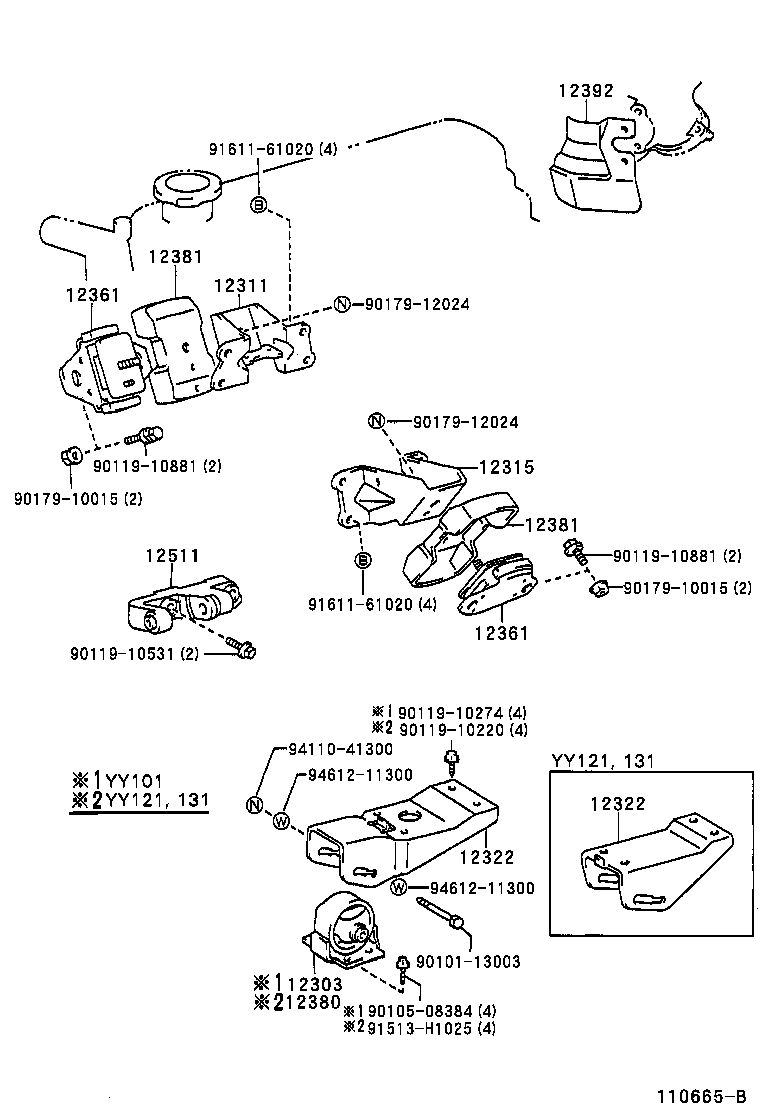

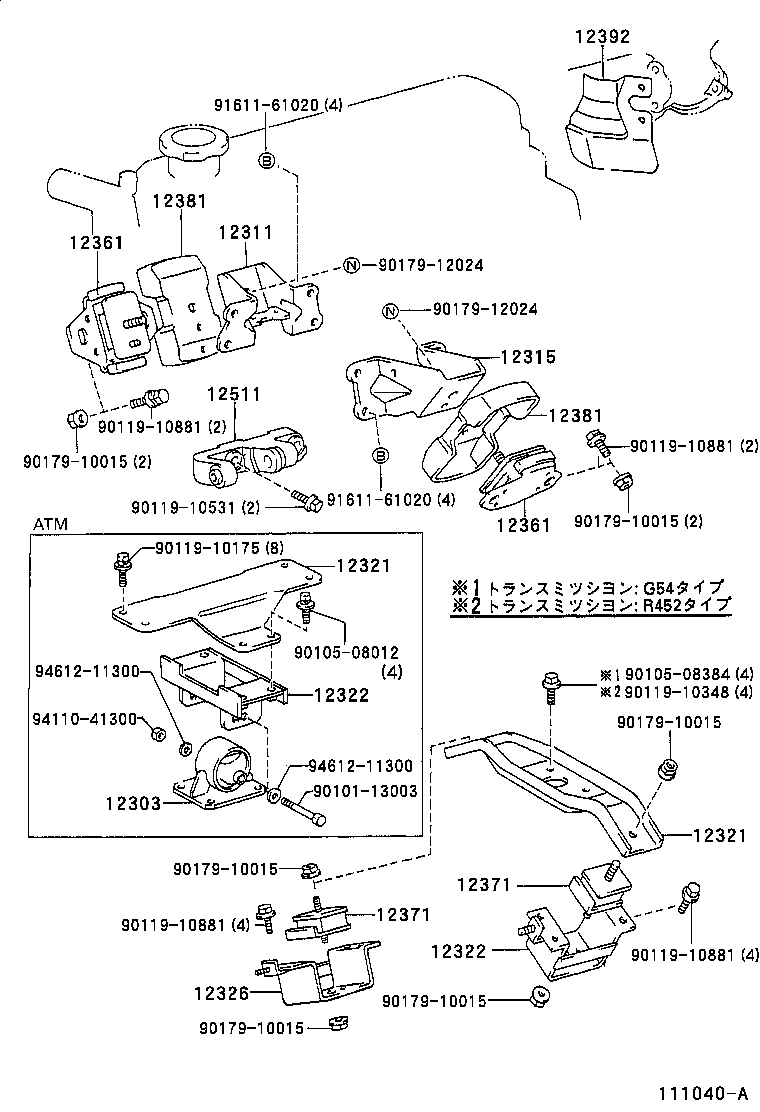

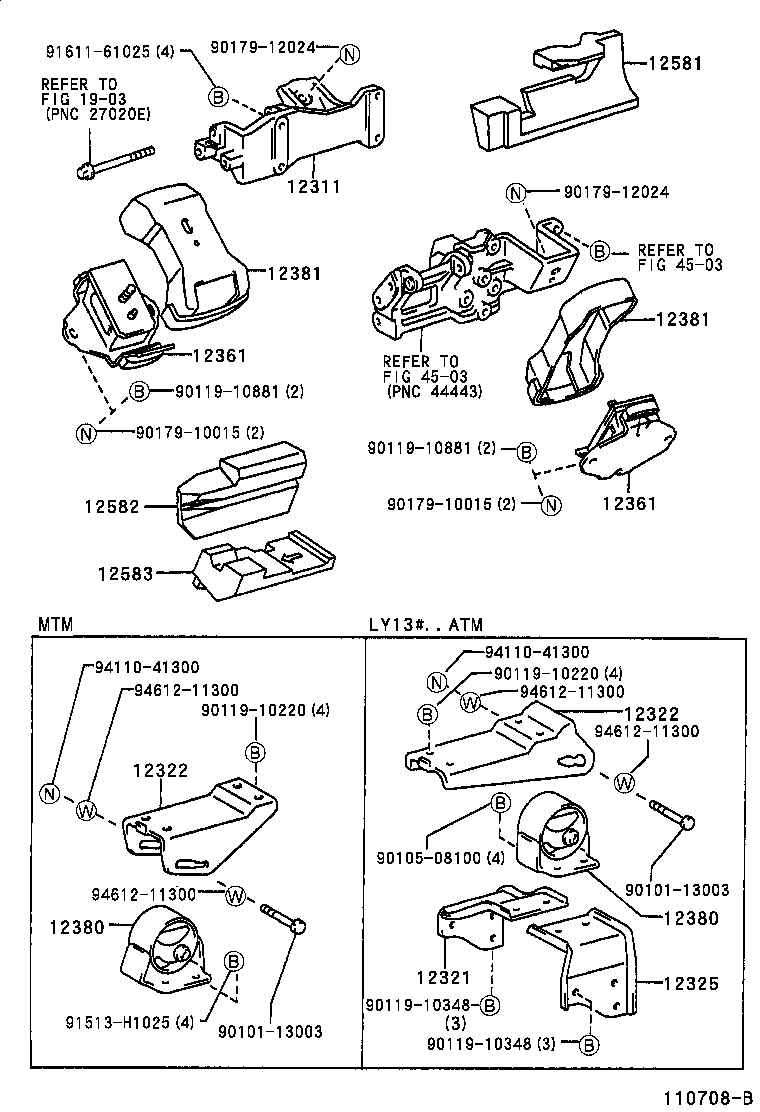

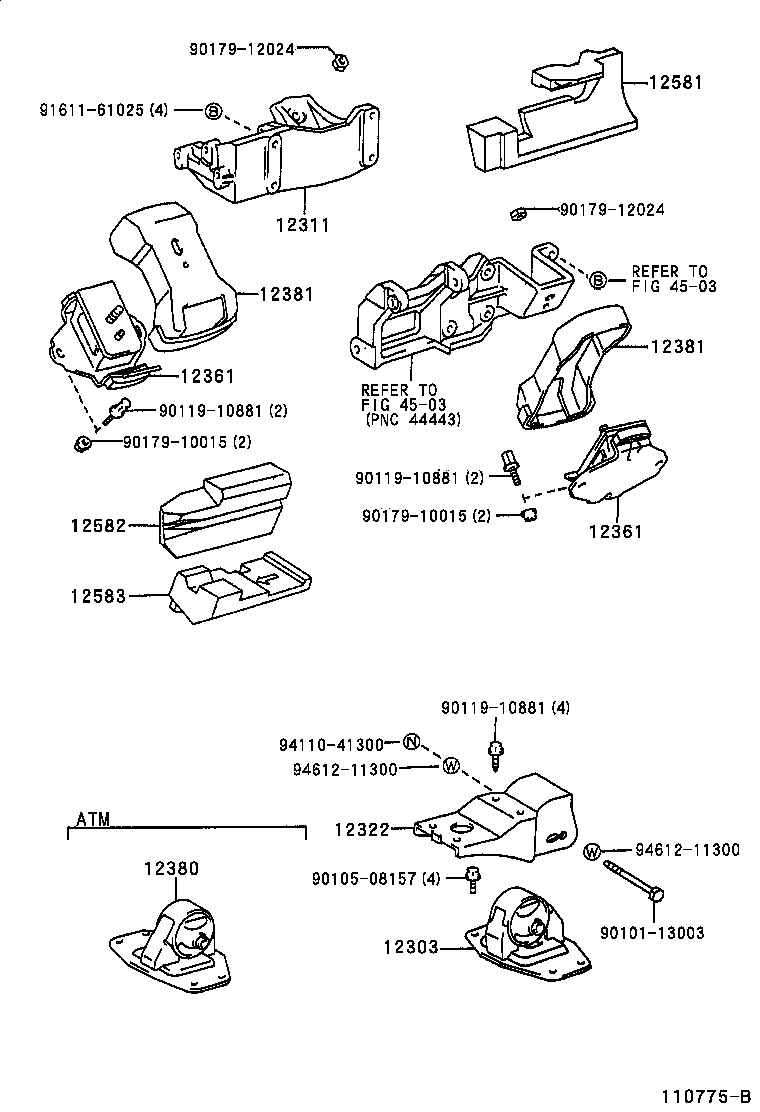

Figure 110703C 110703C 1995-05 → — Figure 110704B 110704B 1995-05 → — Figure 110708B 110708B 1996-10 → — Figure 110705C 110705C 1996-10 → — Figure 110775B 110775B 1996-10 → — Figure 111109 111109 1998-05 → — Figure 111040A 111040A 1995-05 → — Figure 110665B 110665B 1996-10 → —

Part groups

PNCDescription
12303 Bracket Sub-assy, Engine Mounting, Rear
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12322 Bracket, Engine Mounting, Rear NO.2
12325 Bracket, Engine Mounting, NO.3
12326 Bracket, Engine Mounting Stay
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12380 Insulator Assy, Engine Mounting, Rear
12381 Stabilizer, Engine Mounting
12392 Insulator, Engine Mounting Heat, Front LH
12511 Bracket, Alternator, NO.1
12581 Insulator, Cylinder Block, NO.1
12582 Insulator, Cylinder Block, NO.2
12583 Insulator, Cylinder Block, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
