Toyota Dyna 150/Toyoace G15
1995-05 → 2001-07 · chassis LY1##,2##,YY1##,2## · catalogue 731160 · Japan
Discontinued model
Data version 1999-05

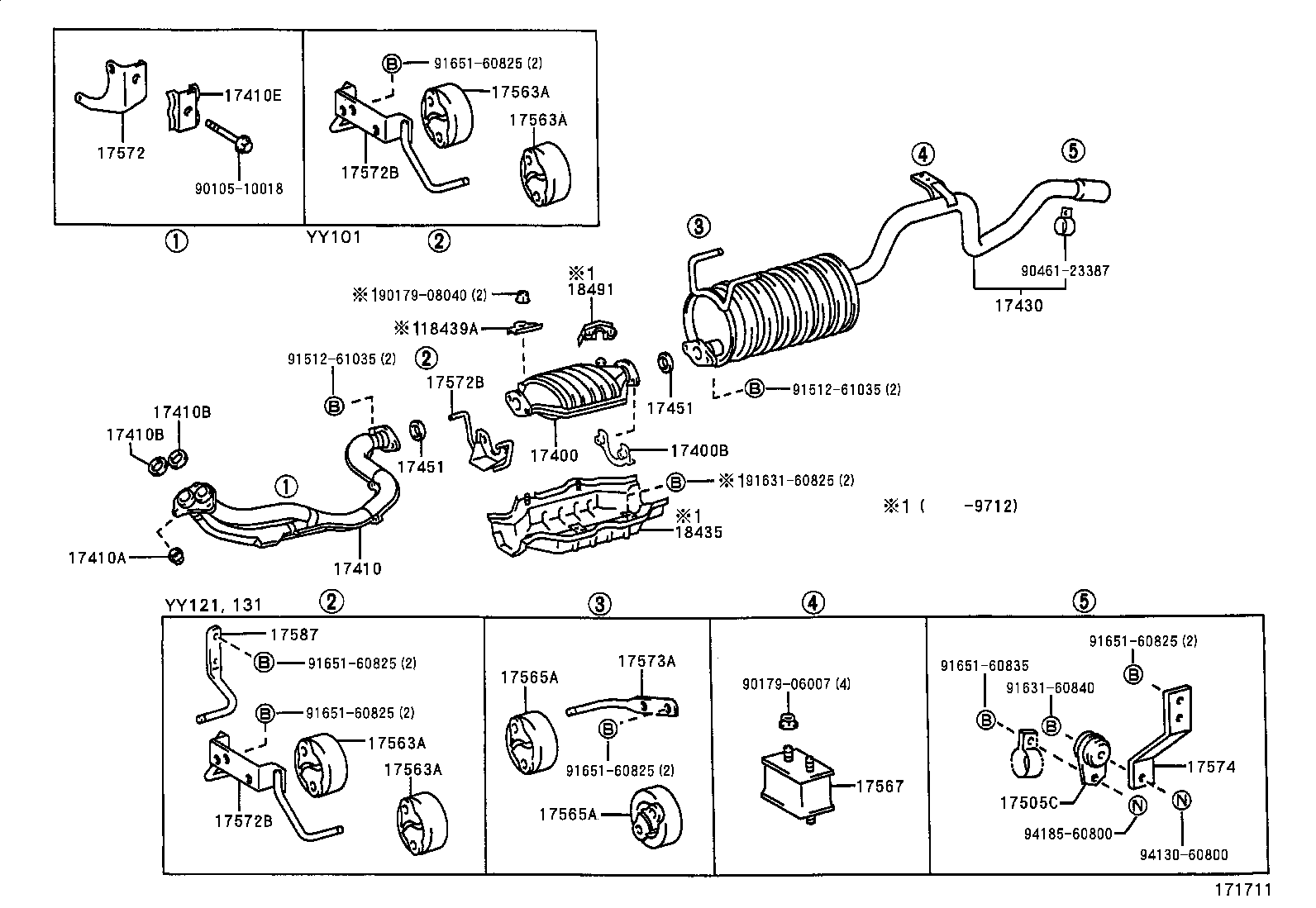

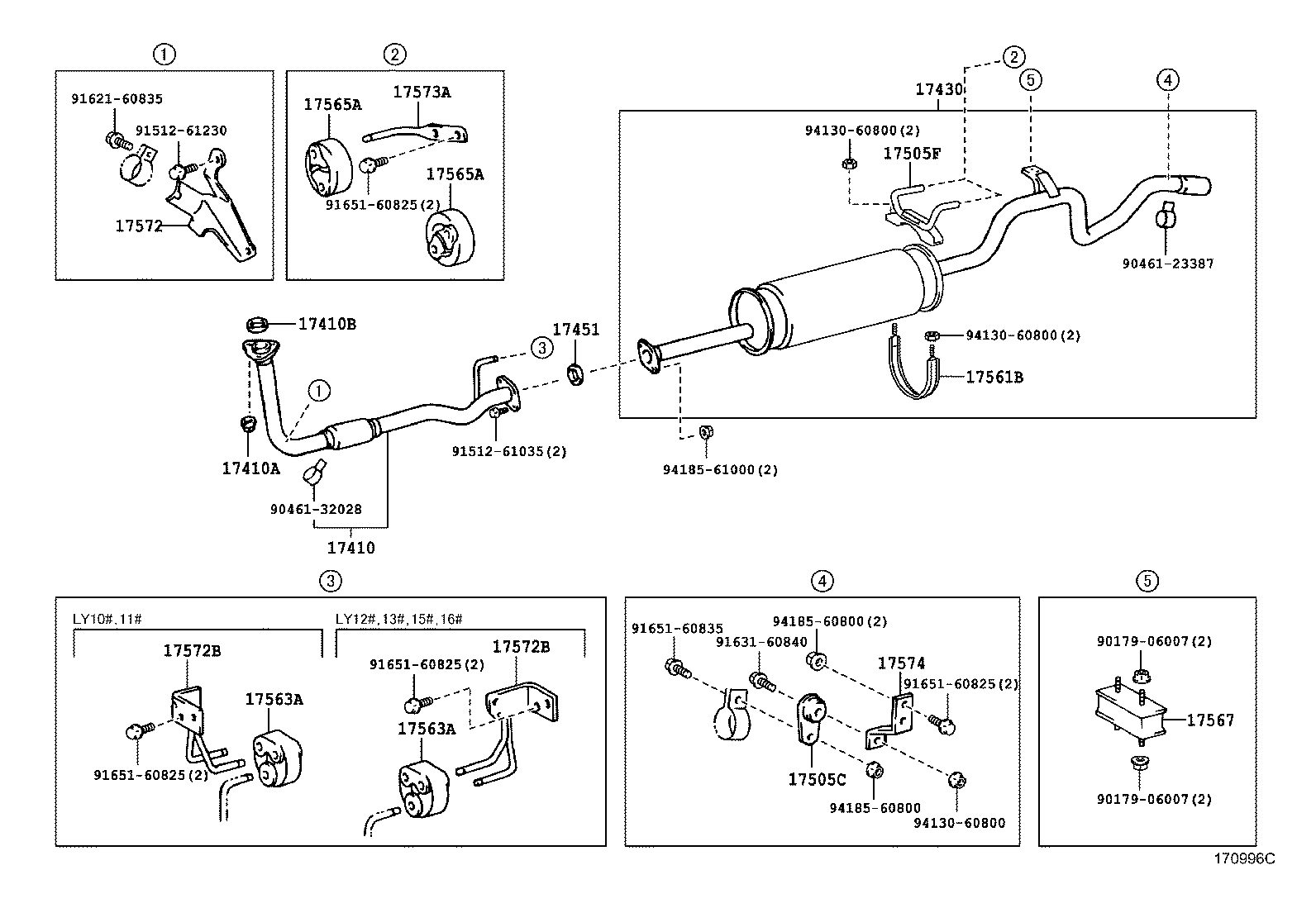

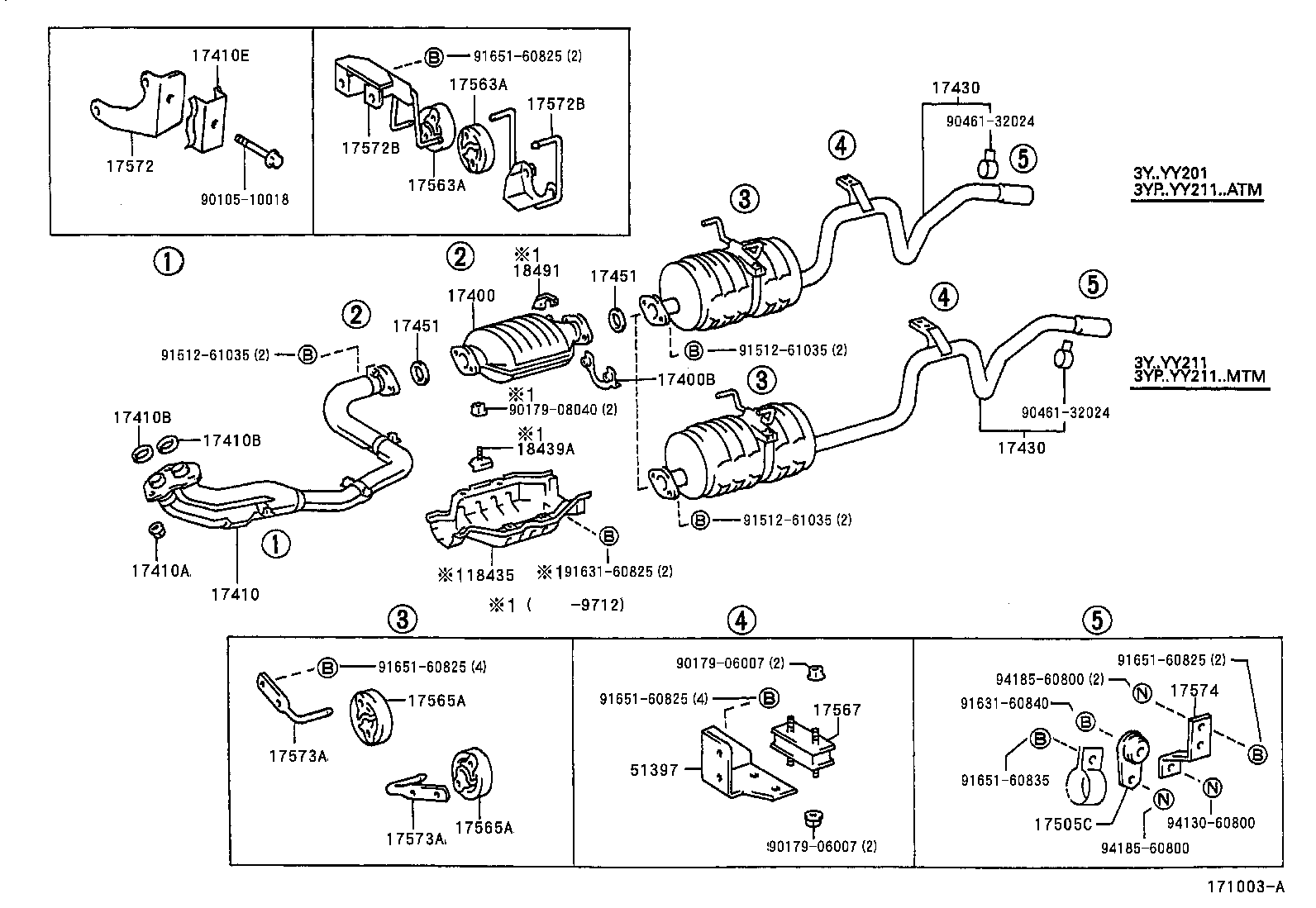

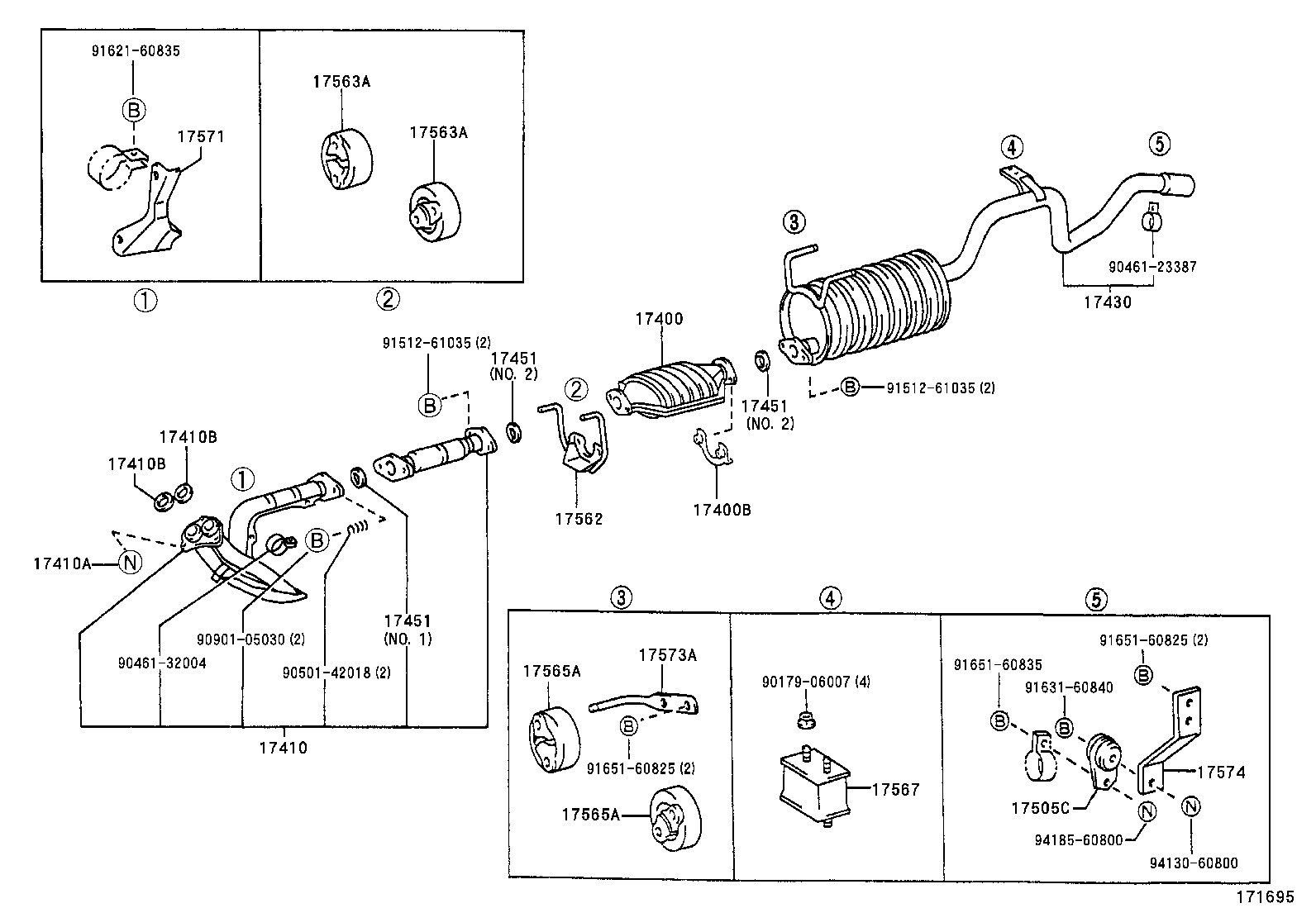

Exhaust Pipe
25 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 17400 | Converter Assy, W/Catalyst |
| 17400B | Retainer, Exhaust Pipe |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17410E | Clamp NO.1, Exhaust Pipe Front (FOR FRONT) |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17451 | Gasket, Exhaust Pipe |
| 17505C | Cushion, Exhaust Pipe(FOR HEAT INSULATOR) |
| 17505F | Support Sub-assy, Exhaust Pipe |
| 17561B | Support, Exhaust Pipe, NO.1 |
| 17562 | Support, Exhaust Pipe, NO.2 |
| 17563A | Support, Exhaust Pipe, NO.3 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17567 | Cushion, Exhaust Pipe Support |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17572 | Bracket, Exhaust Pipe NO.1 Support |
| 17572B | Bracket, Exhaust Pipe Support, NO.2 |
| 17573A | Bracket, Exhaust Pipe Support, NO.3 |
| 17574 | Bracket, Exhaust Pipe Support, NO.4 |
| 17587 | Bracket, Heat Insulator, NO.2 |
| 18435 | Protector, Catalytic Converter |
| 18439A | Bracket, Converter Protector, RH |
| 18491 | Flange, Thermosensor Inlet |
| 51397 | Bracket, Exhaust Pipe Clamp, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
