Toyota Dyna 150/Toyoace G15

1995-05 → 2001-07 · chassis LY1##,2##,YY1##,2## · catalogue 731160 · Japan

Discontinued model Data version 1999-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

12 part groups · 7 illustrations

Illustrations

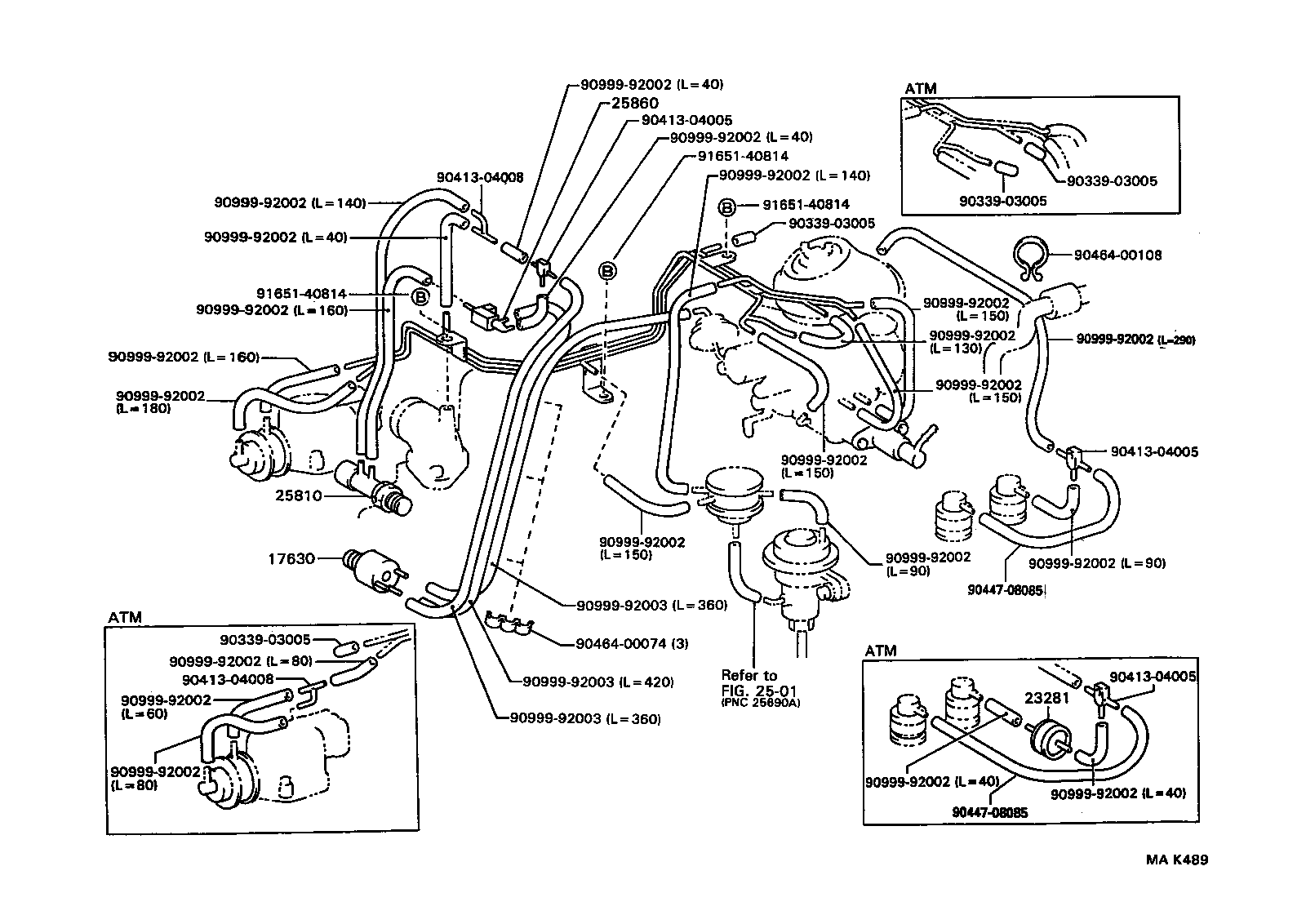

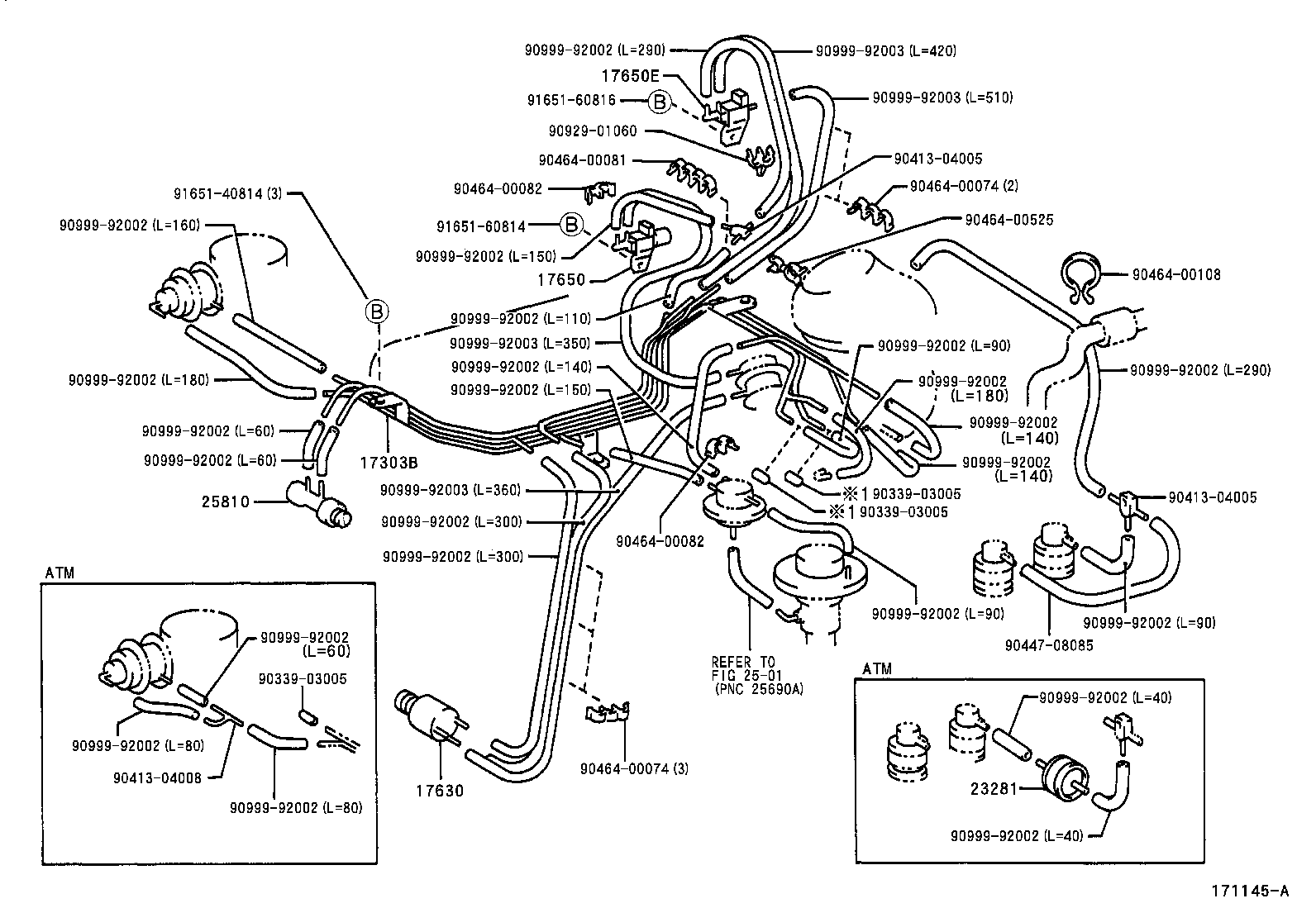

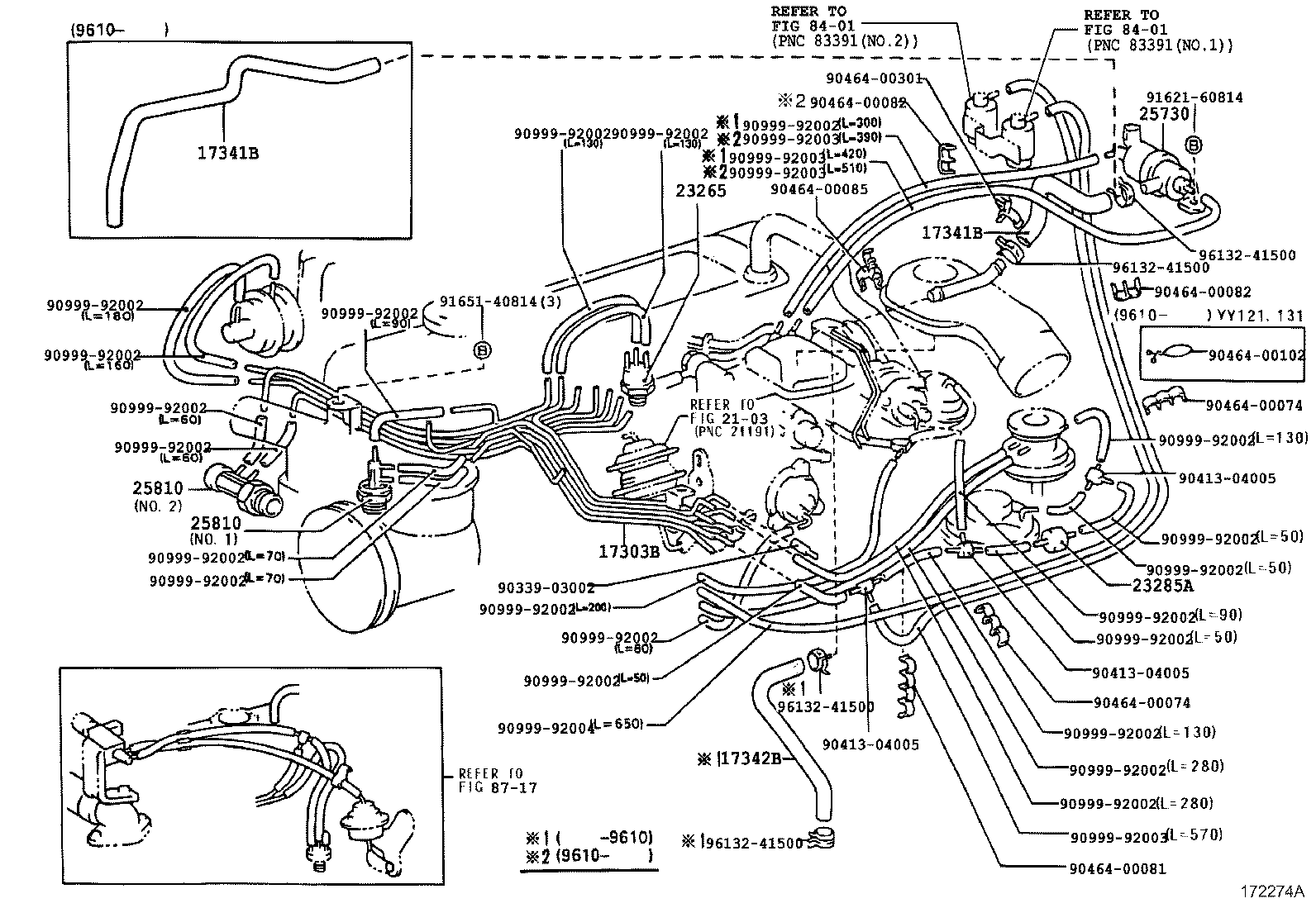

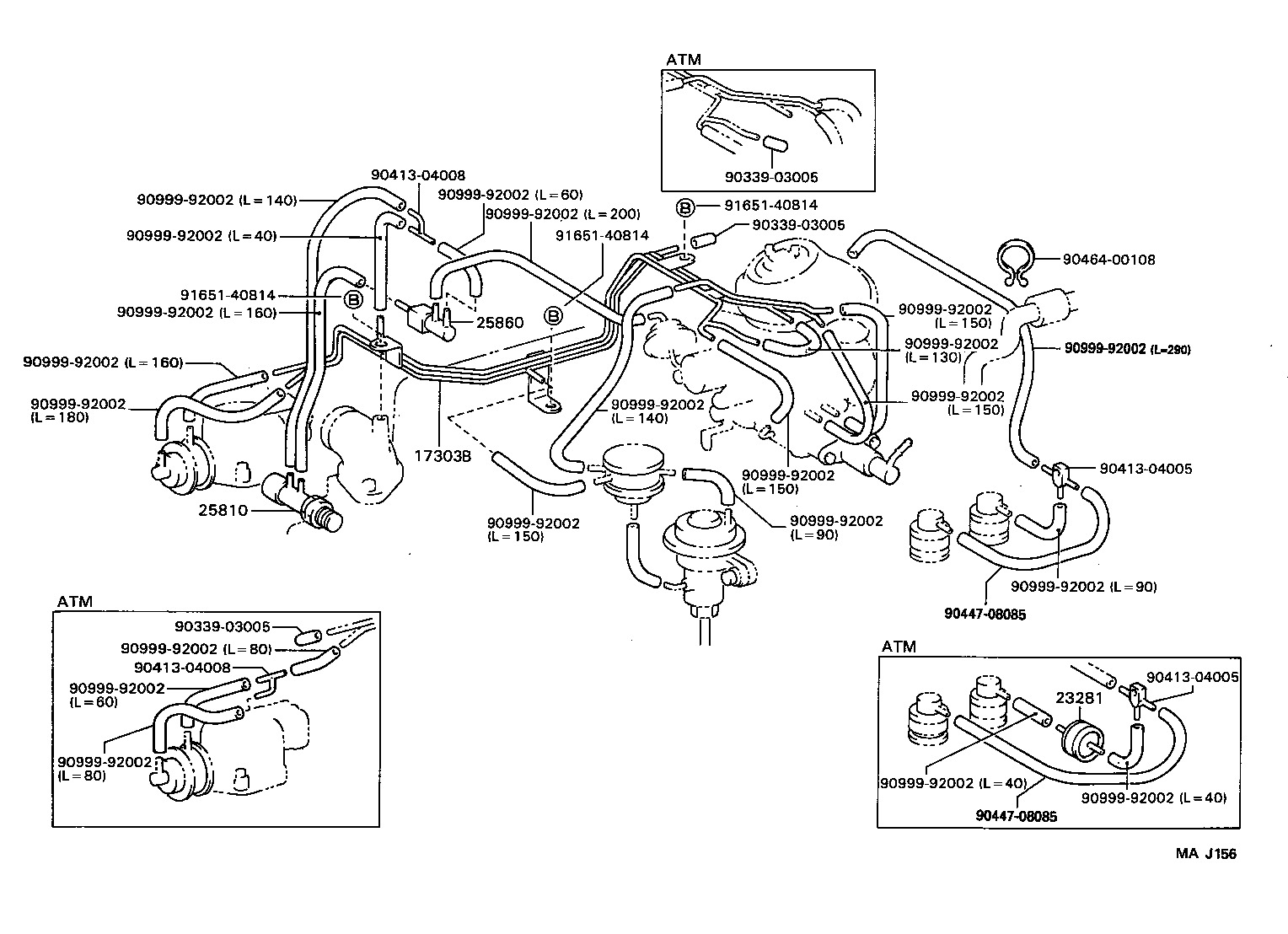

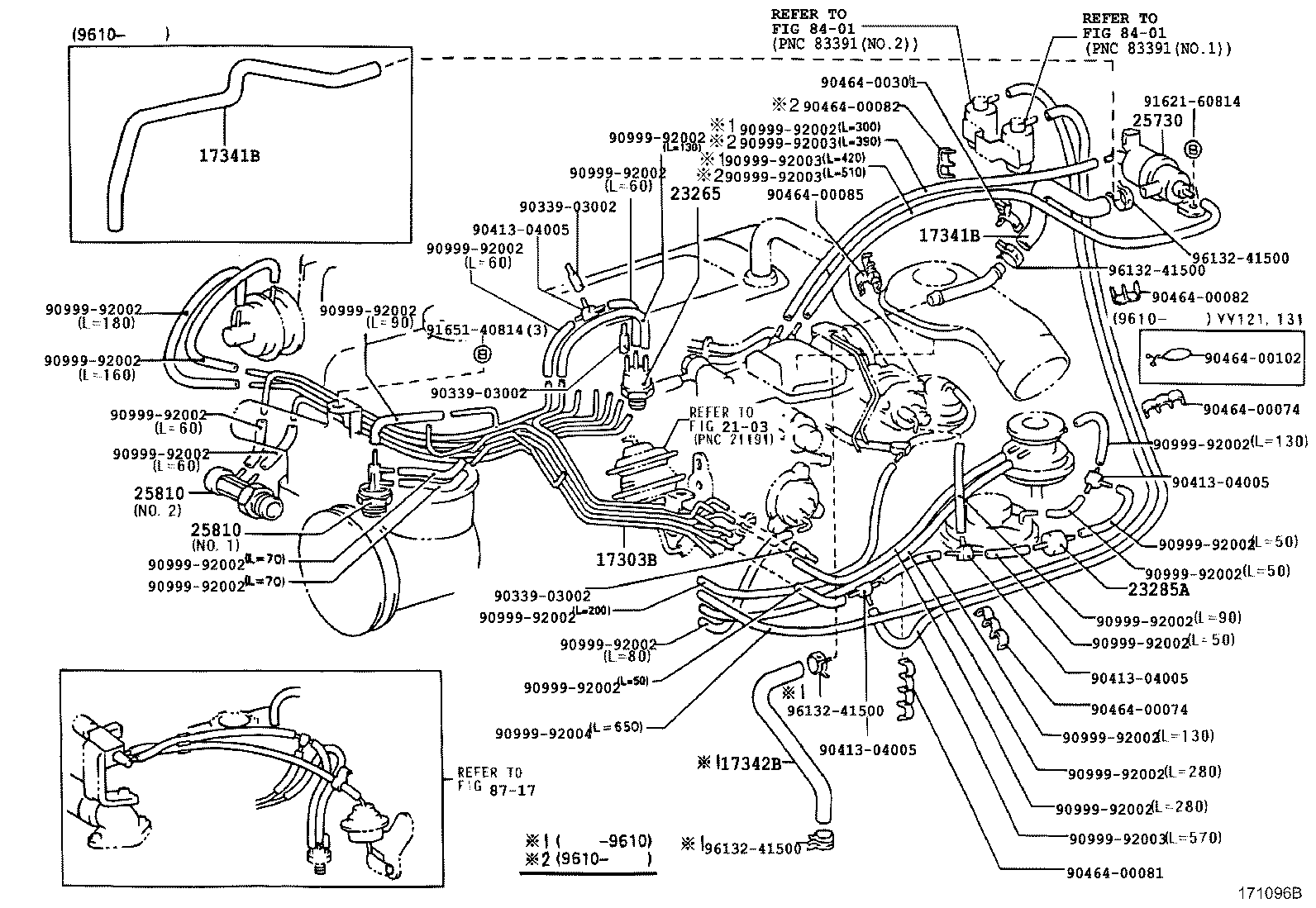

Figure 171728A 171728A 1998-05 → — Figure 170020 170020 1995-05 → — Figure 172274A 172274A 1995-05 → 1999-05 Figure 171096B 171096B 1999-05 → — Figure MAJ156 MAJ156 1995-05 → 1996-10 Figure MAK489 MAK489 1996-10 → 1997-08 Figure 171145A 171145A 1997-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17342B Hose, NO.2(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
23265 Filter, Gas, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
25730 Valve Assy, Electric Bleed Air Control
25810 Valve Assy, Bimetal
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
