Toyota Dyna 150/Toyoace G15

1995-05 → 2001-07 · chassis LY1##,2##,YY1##,2## · catalogue 731160 · Japan

Discontinued model Data version 1999-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

3 part groups · 4 illustrations

Illustrations

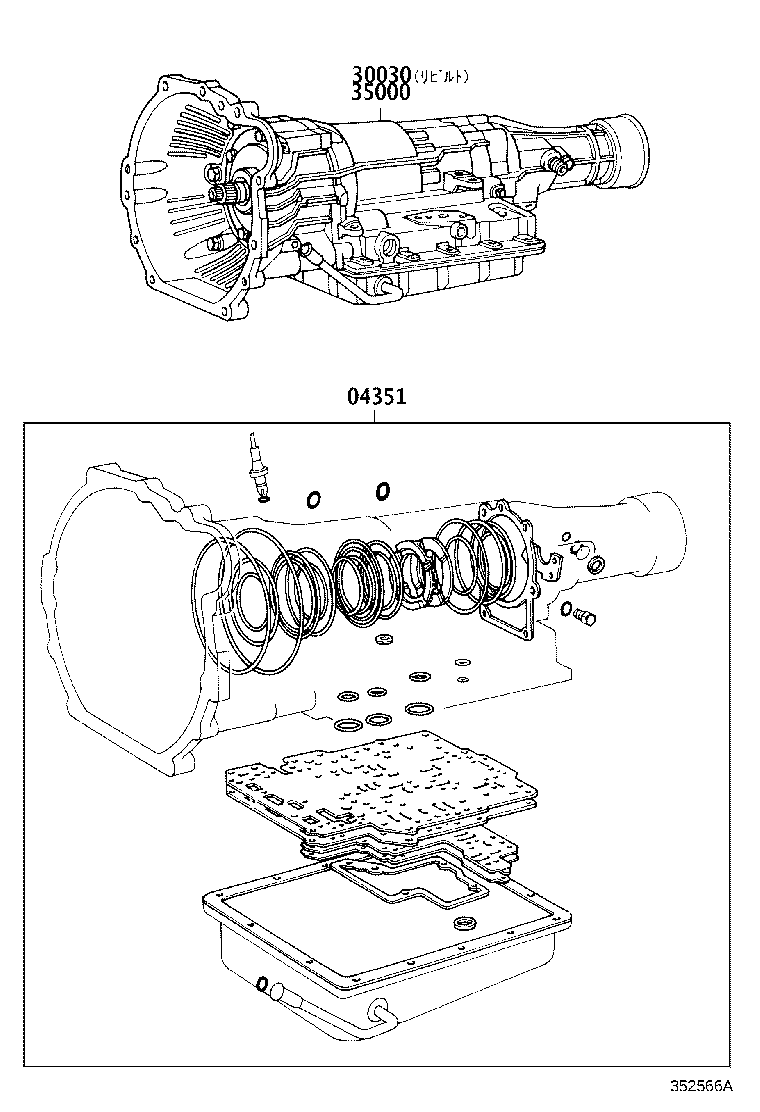

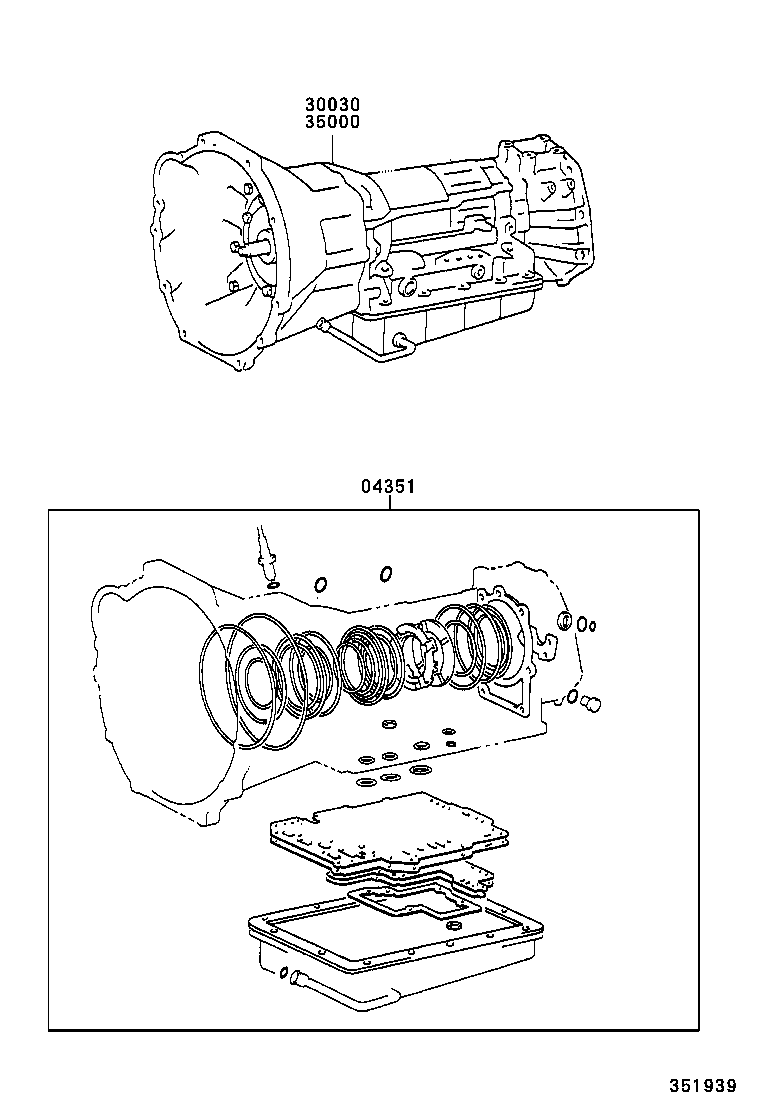

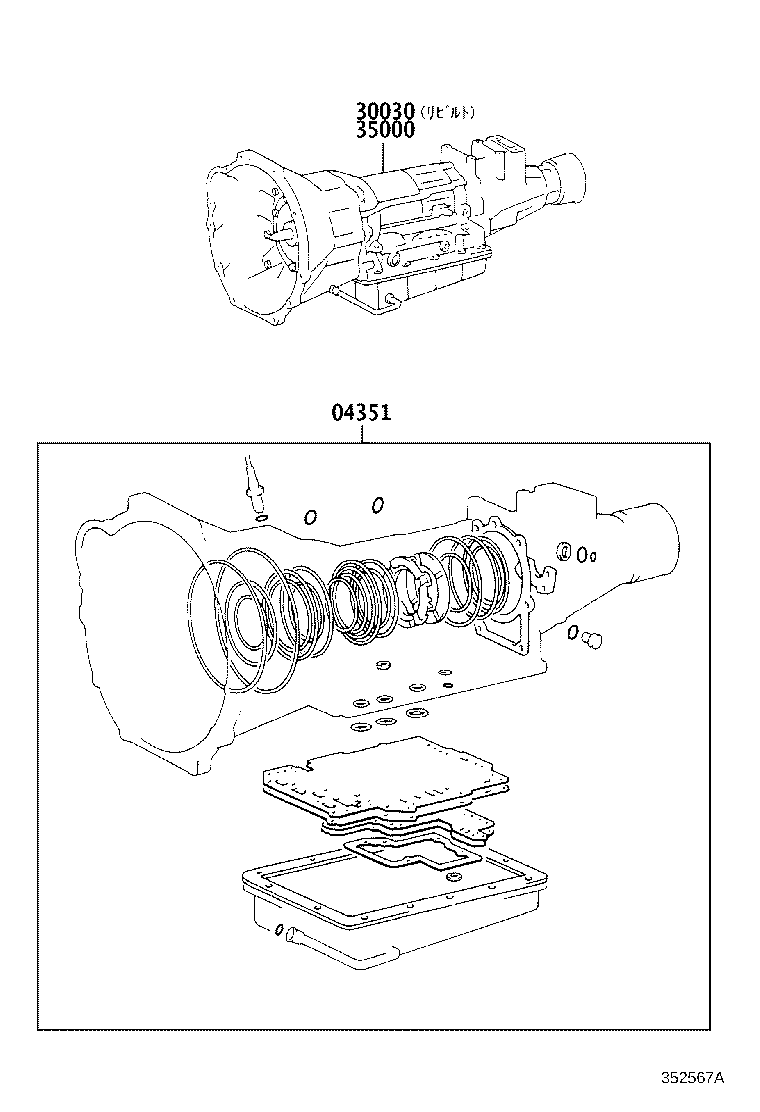

Figure 352565A 352565A 1995-05 → — Figure 352566A 352566A 1995-05 → — Figure 352567A 352567A 1996-10 → — Figure 351939 351939 1996-10 → —

Part groups

PNCDescription
04351 Gasket Kit, Automatic Transmission Overhaul
30030 Transmission Assy, Rebuilt
35000 Transmission Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
